Mitsubishi Lancer Evolution IX. Manual - part 49

WINDSHIELD WIPER AND WASHER

CIRCUIT DIAGRAMS

90-175

NOTES

REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-176

REMOTE CONTROLLED MIRROR

REMOTE CONTROLLED MIRROR

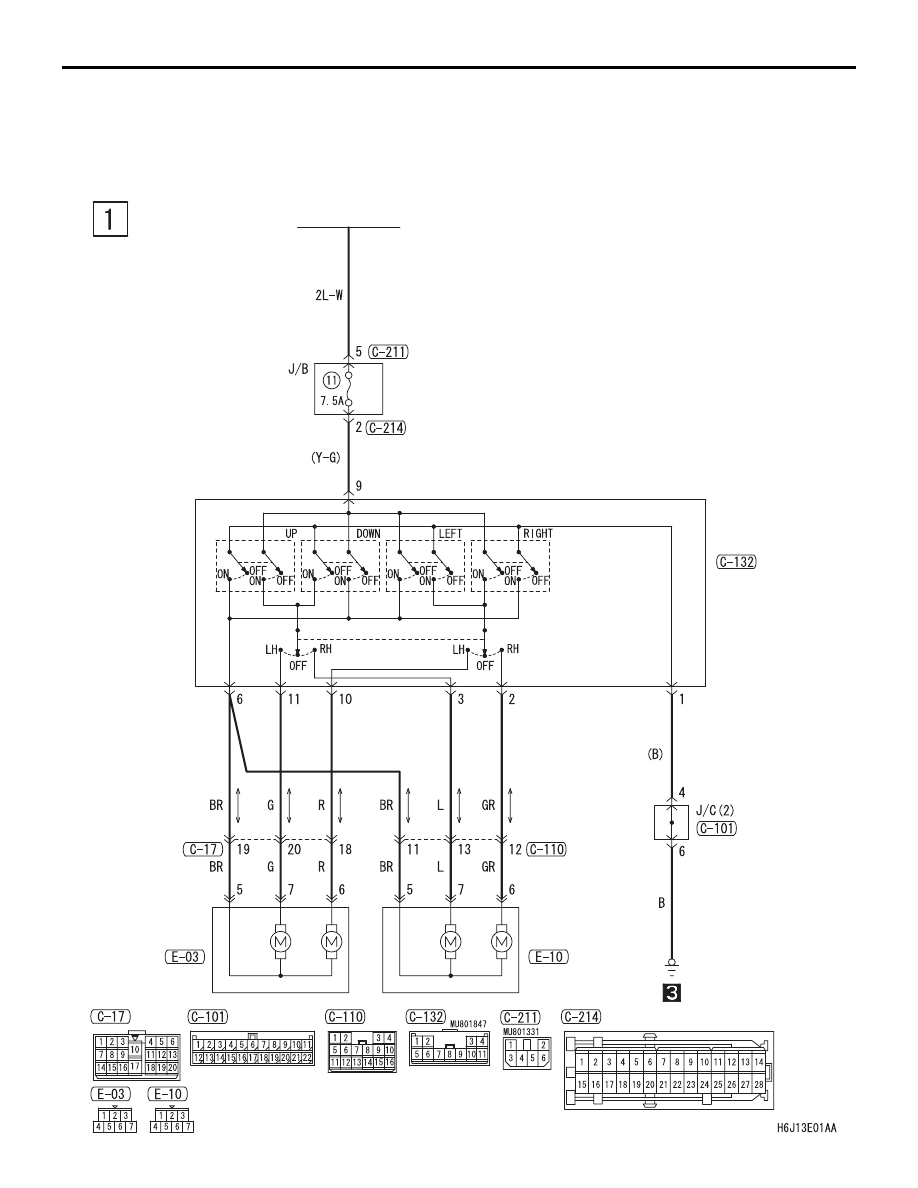

<LH drive vehicles>

M1901006501480

IGNITION
SWITCH (ACC)

REMOTE
CONTROLLED
MIRROR

(LH)

REMOTE
CONTROLLED
MIRROR
SWITCH

REMOTE
CONTROLLED
MIRROR

(RH)

REMOTE CONTROLLED MIRROR

CIRCUIT DIAGRAMS

90-177

REMOTE CONTROLLED MIRROR

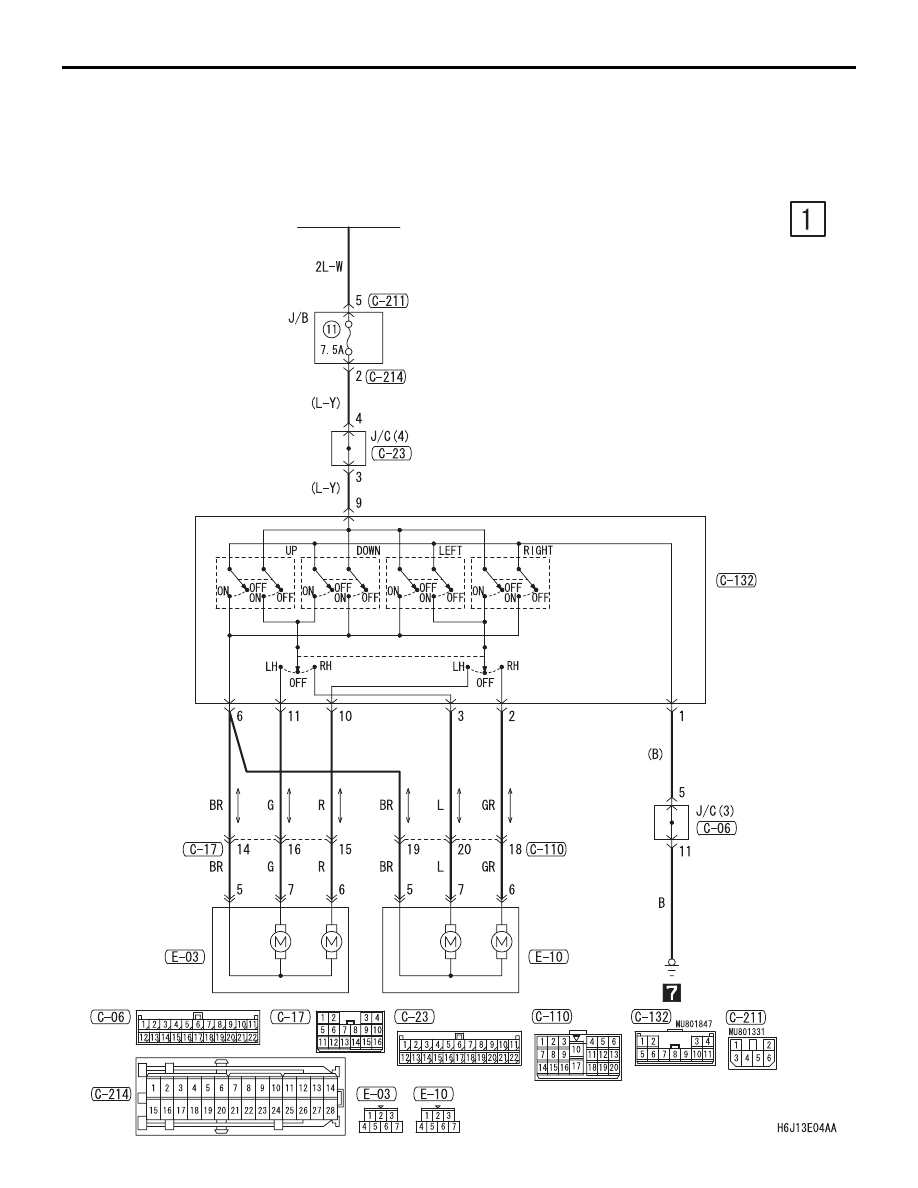

<RH drive vehicles>

M1901006501491

IGNITION
SWITCH (ACC)

REMOTE
CONTROLLED
MIRROR

(LH)

REMOTE
CONTROLLED
MIRROR
SWITCH

REMOTE
CONTROLLED
MIRROR

(RH)

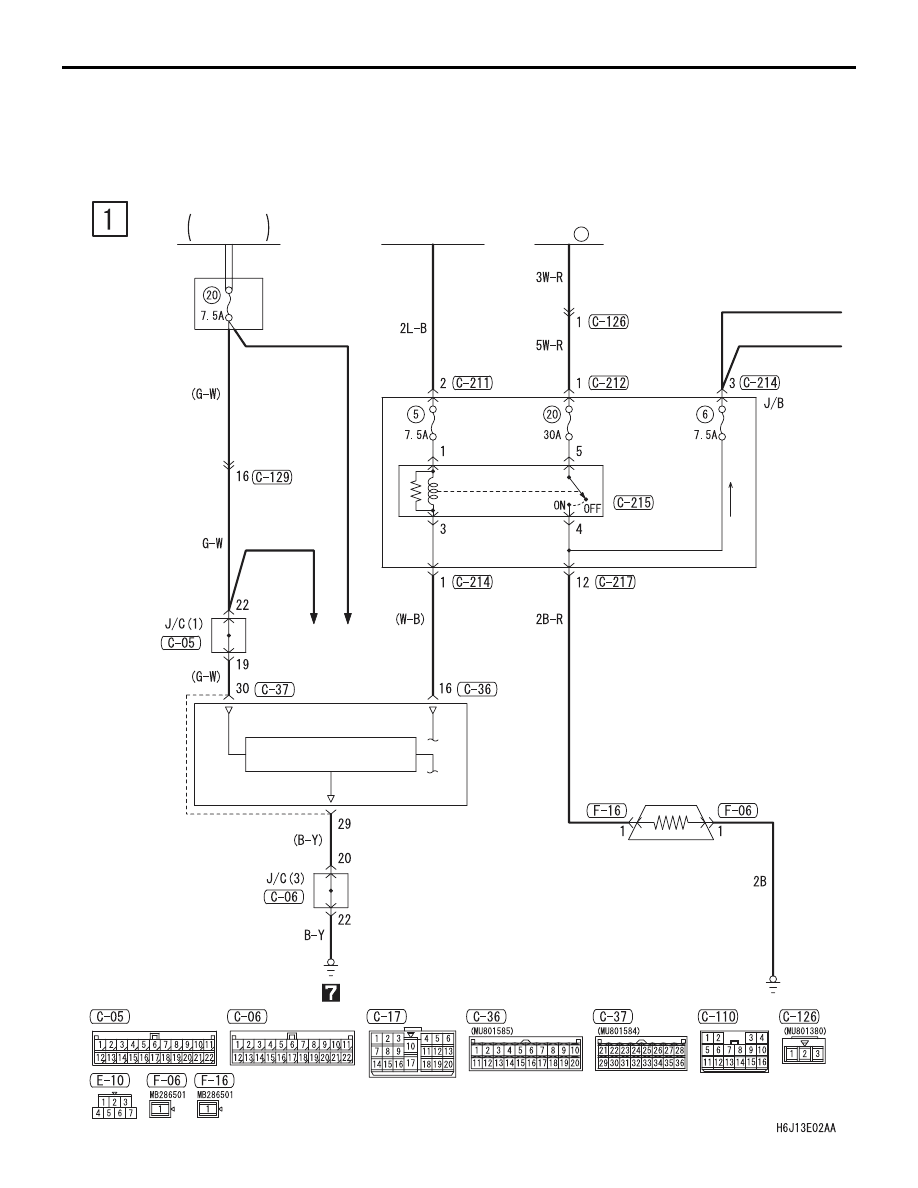

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER

CIRCUIT DIAGRAMS

90-178

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER

REAR WINDOW DEFOGGER AND DOOR MIRROR HEATER <LH drive vehicles>

M1901013500984

IGNITION
SWITCH (IG2)

RELAY
BOX

FRONT-ECU

TAIL LAMP
RELAY

FUSIBLE
LINK

1

DEFOGGER
RELAY

DEFOGGER

A/C-ECU

DEFOGGER
SWITCH, ILL

TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
