POWER WINDOWS

CIRCUIT DIAGRAMS

90-139

NOTES

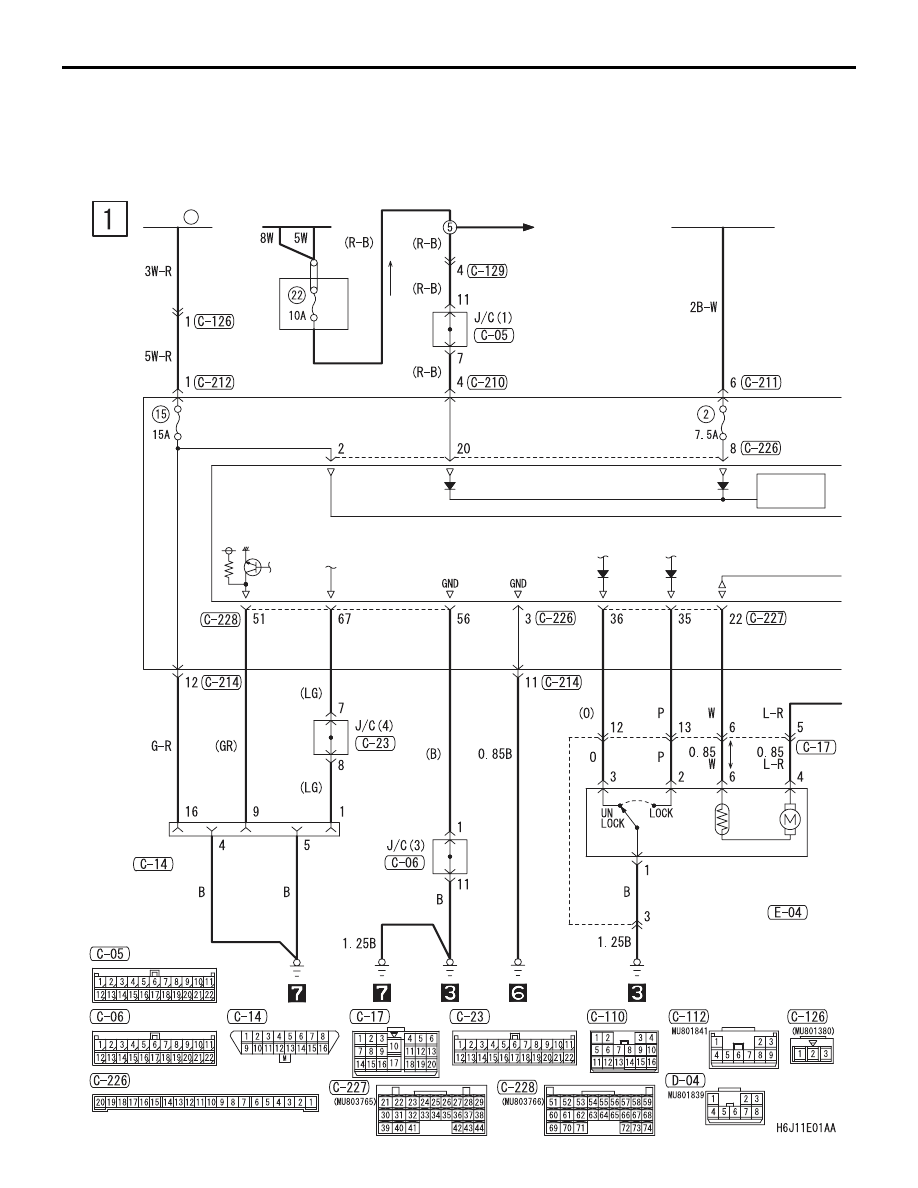

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-140

CENTRAL DOOR LOCKING SYSTEM

CENTRAL DOOR LOCKING SYSTEM



<LH drive vehicles>

M1901004702867

FUSIBLE
LINK

1

BATTERY

IGNITION
SWITCH (IG1)

POWER

SOURCE

DIAGNOSIS
CONNECTOR

DOOR LOCK
ACTUATOR
(FRONT : LH)

RELAY
BOX

FRONT SIDE

J/B SIDE

·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

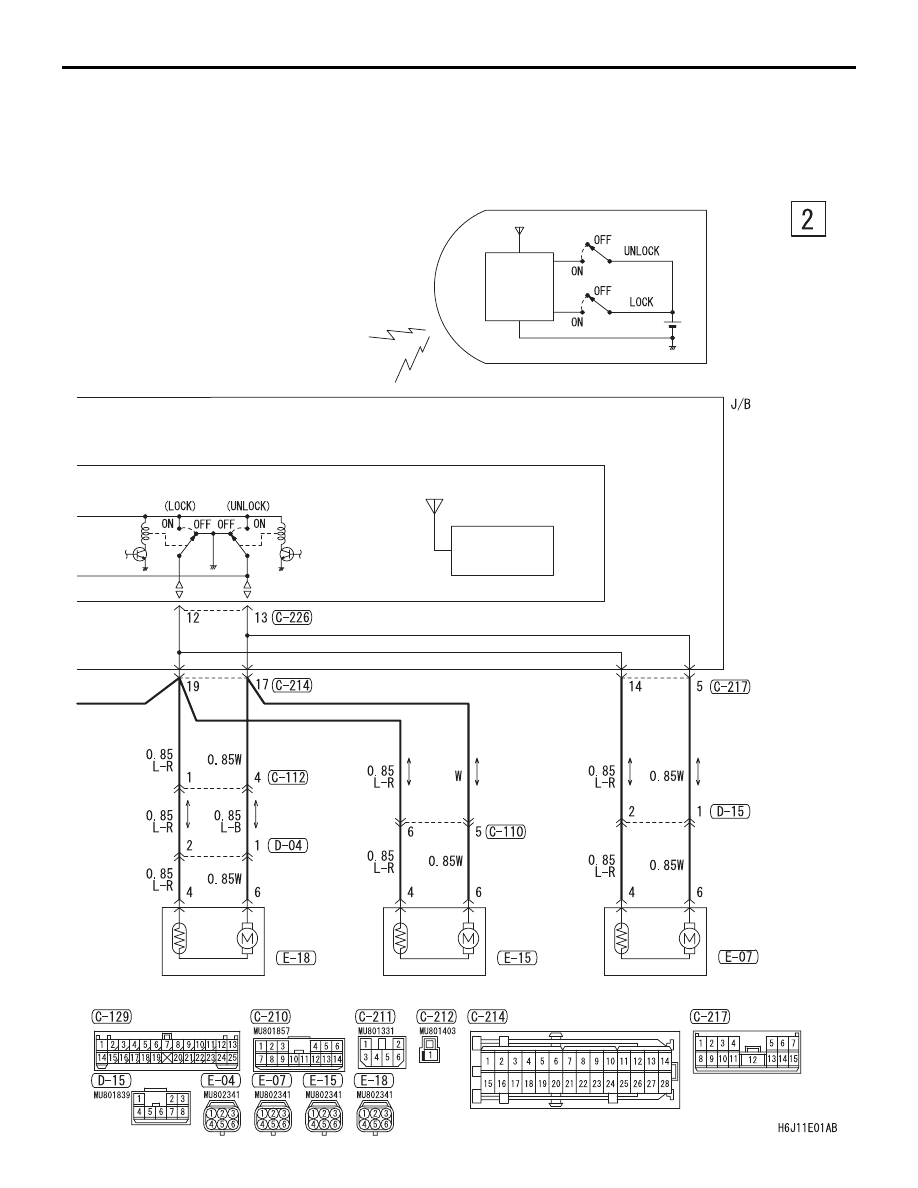

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-141

KEYLESS
ENTRY
RECEIVER

ETACS-
ECU

CONTROL
CIRCUIT

KEYLESS ENTRY TRANSMITTER

DOOR LOCK
ACTUATOR
(REAR : RH)

DOOR LOCK
ACTUATOR
(FRONT : RH)

DOOR LOCK
ACTUATOR
(REAR : LH)

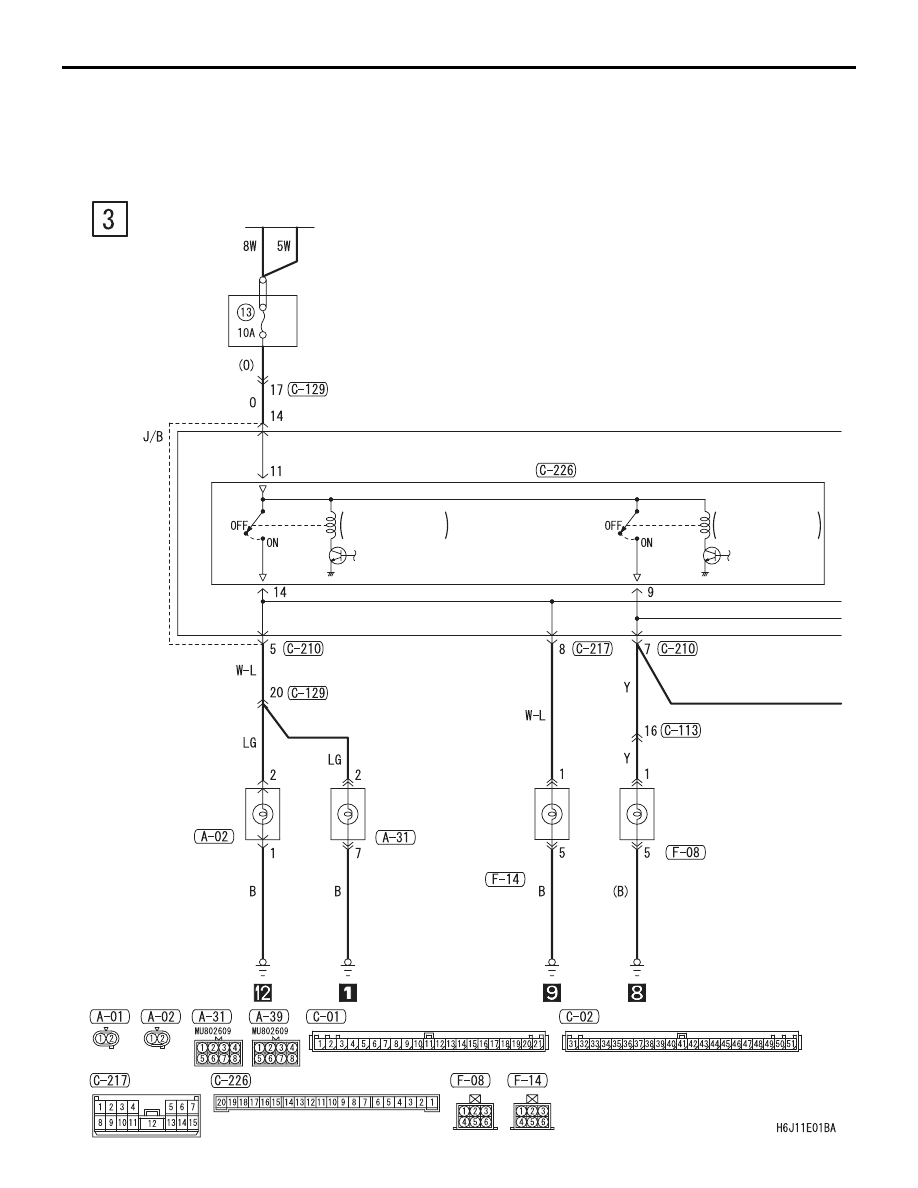

CENTRAL DOOR LOCKING SYSTEM

CIRCUIT DIAGRAMS

90-142

CENTRAL DOOR LOCKING SYSTEM <LH drive vehicles> (CONTINUED)

RELAY
BOX

BATTERY

ETACS-ECU

TURN-SIGNAL
LAMP RELAY : LH

TURN-SIGNAL
LAMP RELAY : RH



SIDE
TURN-SIGNAL
LAMP (LH)

HEADLAMP
ASSEMBLY
(TURN : LH)

REAR
COMBI-
NATION
LAMP
(TURN
 : LH)

REAR
COMBINATION
LAMP
(TURN : RH)

J/B SIDE
