HORN

CIRCUIT DIAGRAMS

90-111

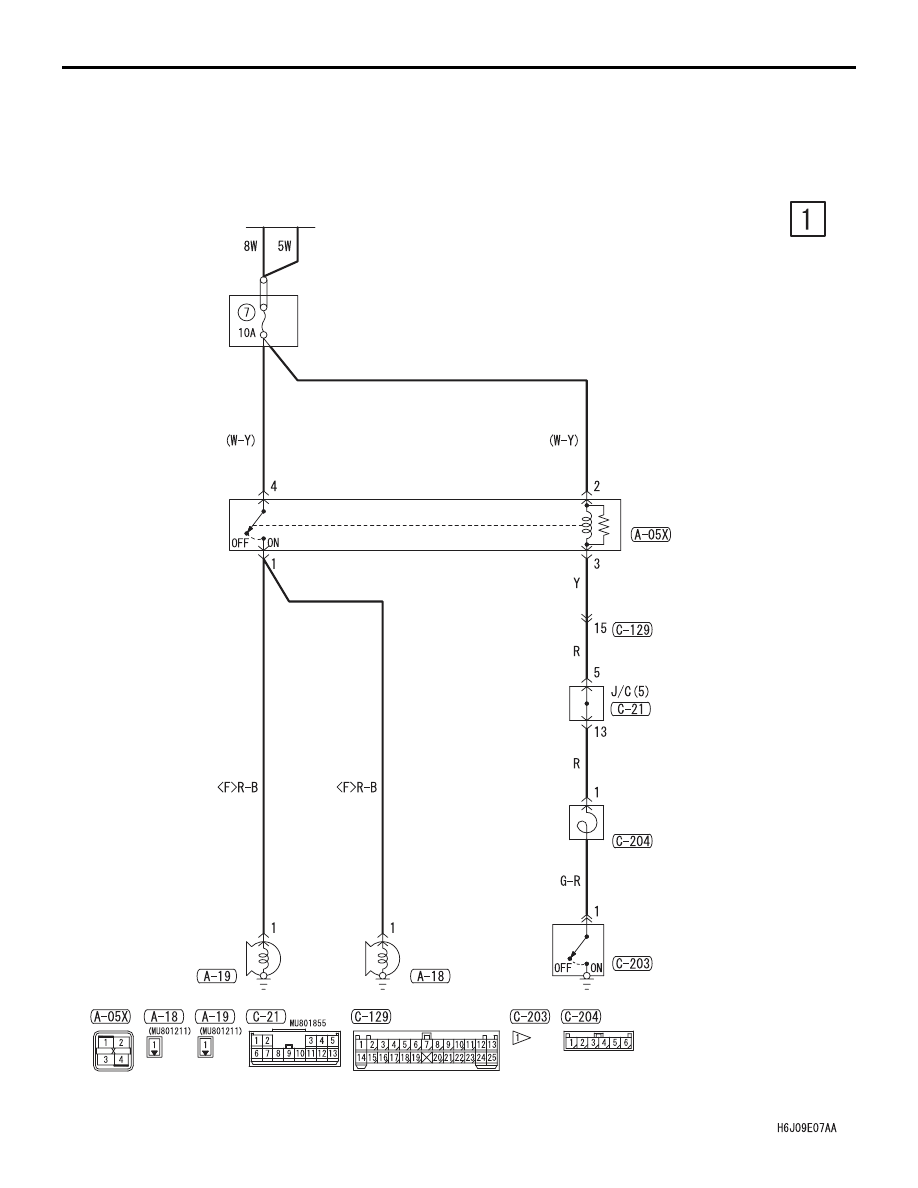

HORN <RH drive vehicles>

M1901003301313

BATTERY

HORN

(LO)

HORN

(HI)

RELAY
BOX

HORN

RELAY

CLOCK
SPRING

HORN
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

METER AND GAUGE

CIRCUIT DIAGRAMS

90-112

METER AND GAUGE

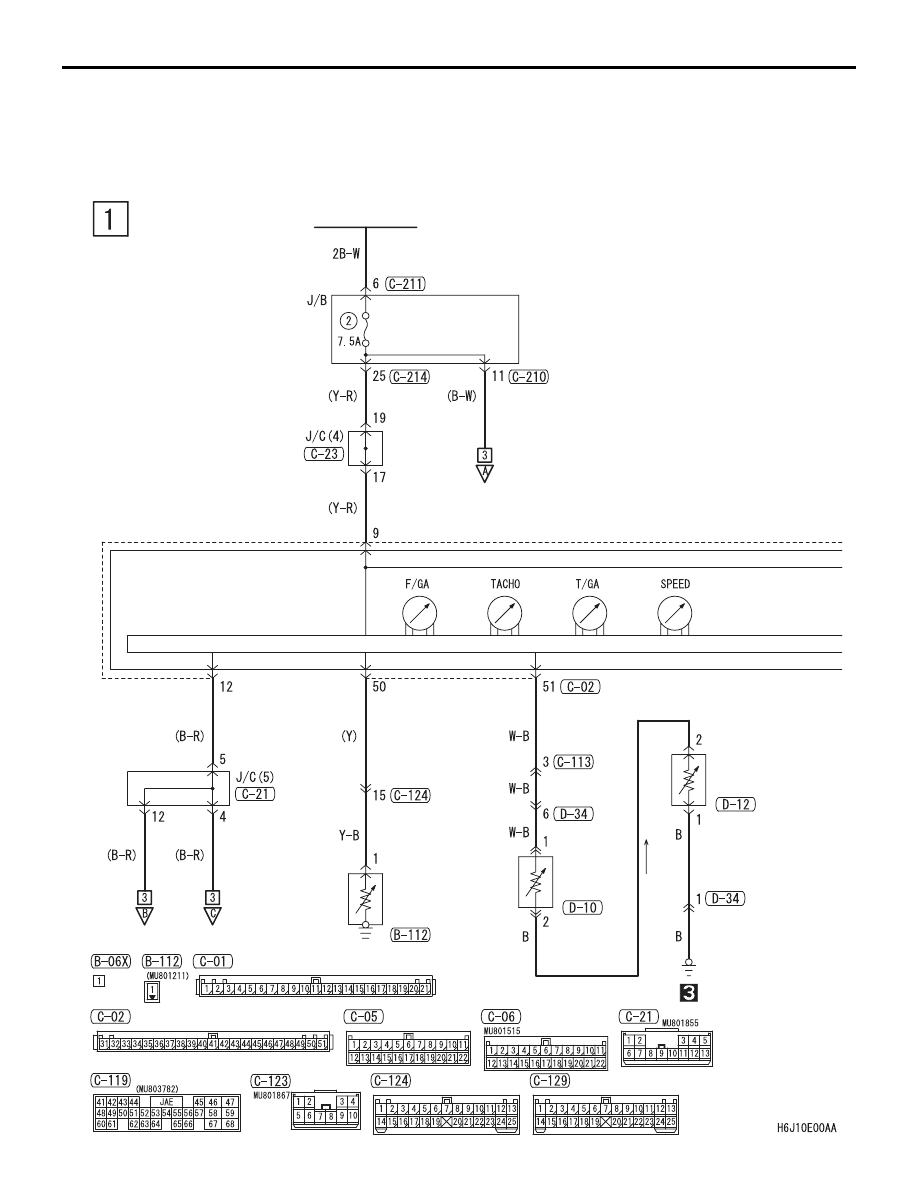

METER AND GAUGE <LH drive vehicles>

M1901003501908

IGNITION
SWITCH (IG1)

COMBINATION
METER

ENGINE
COOLANT
TEMPERATURE
GAUGE UNIT

FUEL
GAUGE
UNIT (SUB)

FUEL PUMP
AND GAUGE
UNIT (MAIN)

CONTROL CIRCUIT

METER AND GAUGE

CIRCUIT DIAGRAMS

90-113

BATTERY

FRONT-ECU

TAIL LAMP
RELAY

ENGINE
SPEED
DETECTION
CONNECTOR

ENGINE-
ECU

·HEADLAMP
·HEADLAMP LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

TAIL LAMP,
POSITION
LAMP, LICENCE
PLATE LAMP
AND LIGHTING
MONITOR
BUZZER

RELAY
BOX

LCD ODO/ TRIP

METER AND GAUGE

CIRCUIT DIAGRAMS

90-114

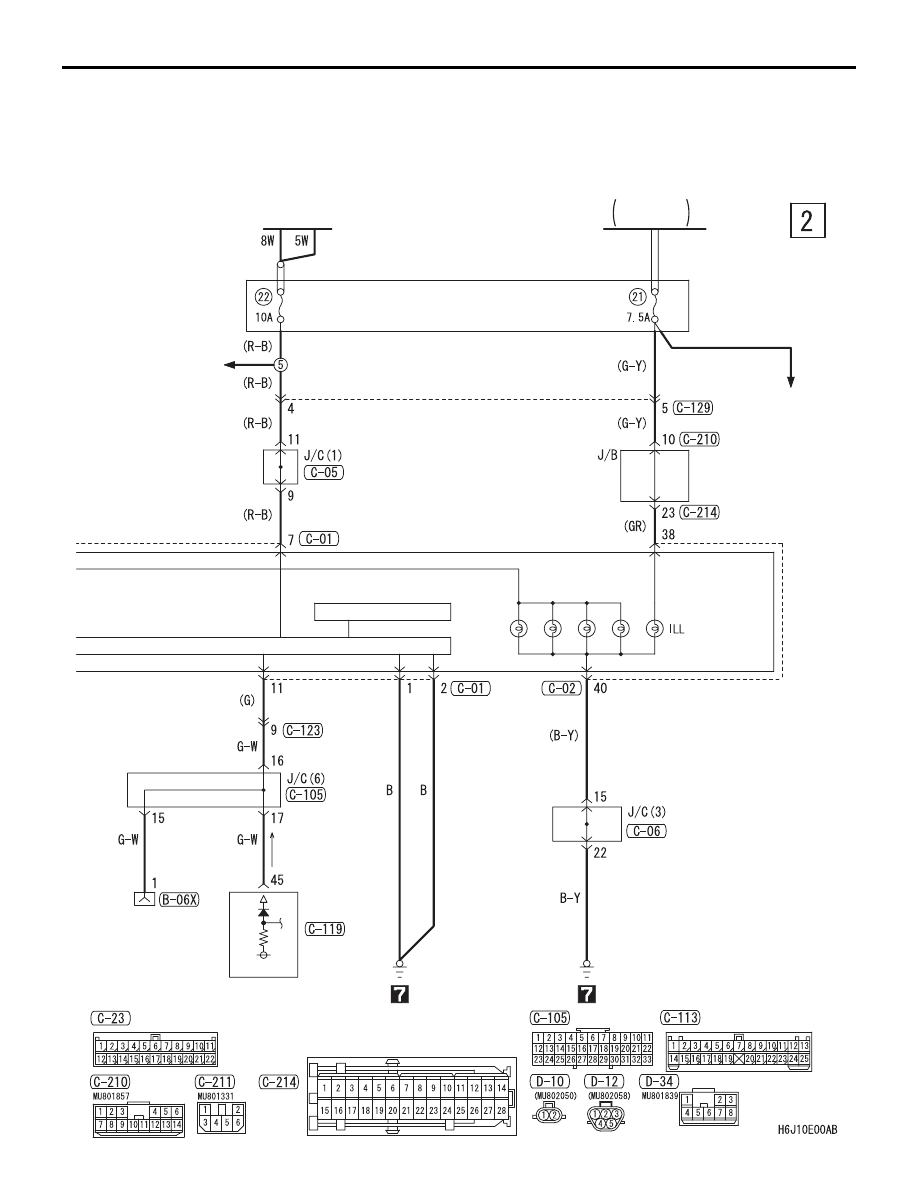

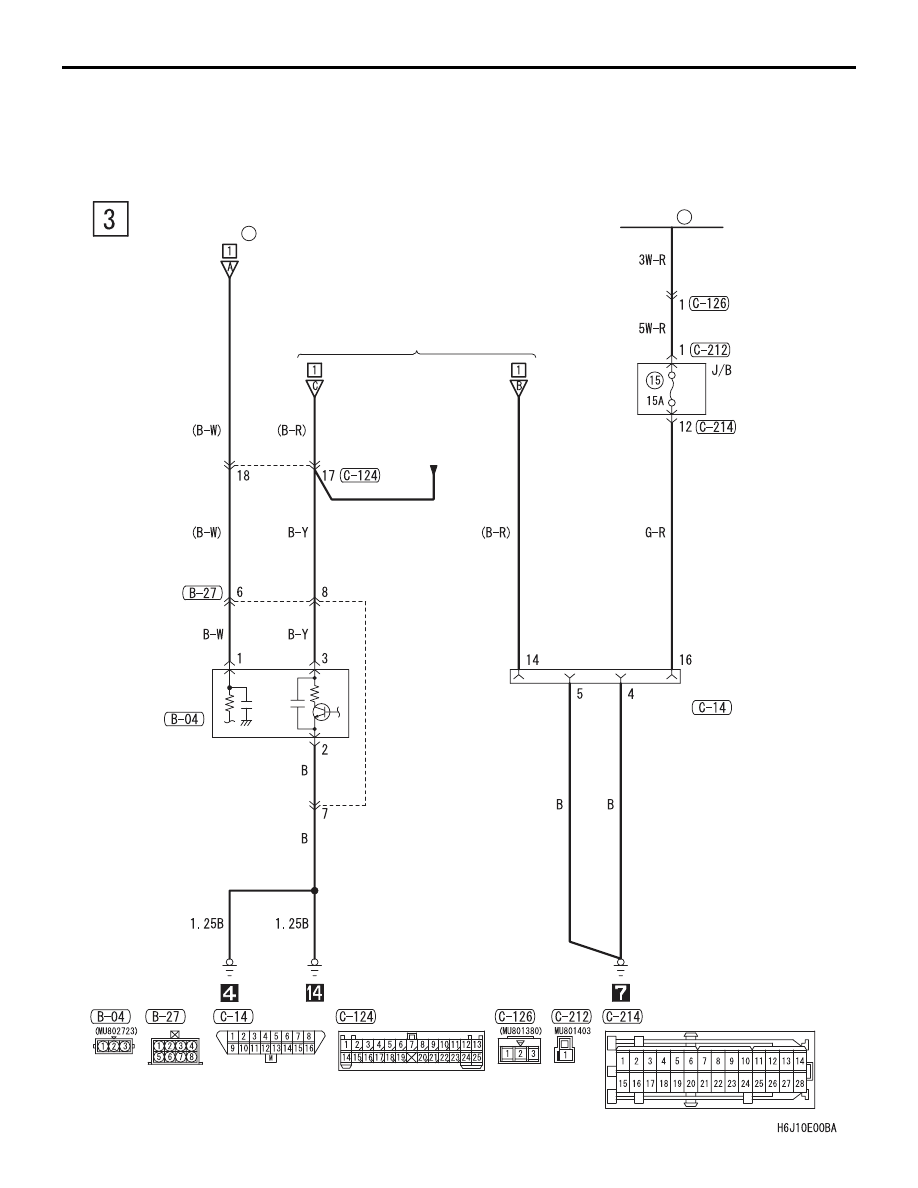

METER AND GAUGE <LH drive vehicles> (CONTINUED)

J/C (5)

DIAGNOSIS
CONNECTOR

VEHICLE
SPEED
SENSOR

J/B

(FUSE     )

2

FUSIBLE
LINK

1

FRONT SIDE

ENGINE
CONTROL
SYSTEM

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple
