70-1

GROUP 70

COMPONENT



LOCATIONS

CONTENTS

SENSOR. . . . . . . . . . . . . . . . . . . . . . .

70-2

ECU  . . . . . . . . . . . . . . . . . . . . . . . . . .

70-6

INSPECTION CONNECTOR AND



SPARE CONNECTOR . . . . . . . . . . . .

70-9

RELAY . . . . . . . . . . . . . . . . . . . . . . . .

70-10

SOLENOID AND SOLENOID VALVE

70-12

EARTH CABLE. . . . . . . . . . . . . . . . . .

70-13

FUSIBLE LINK AND FUSE  . . . . . . . .

70-14

EARTH  . . . . . . . . . . . . . . . . . . . . . . . .

70-15

SENSOR

COMPONENT LOCATIONS

70-2

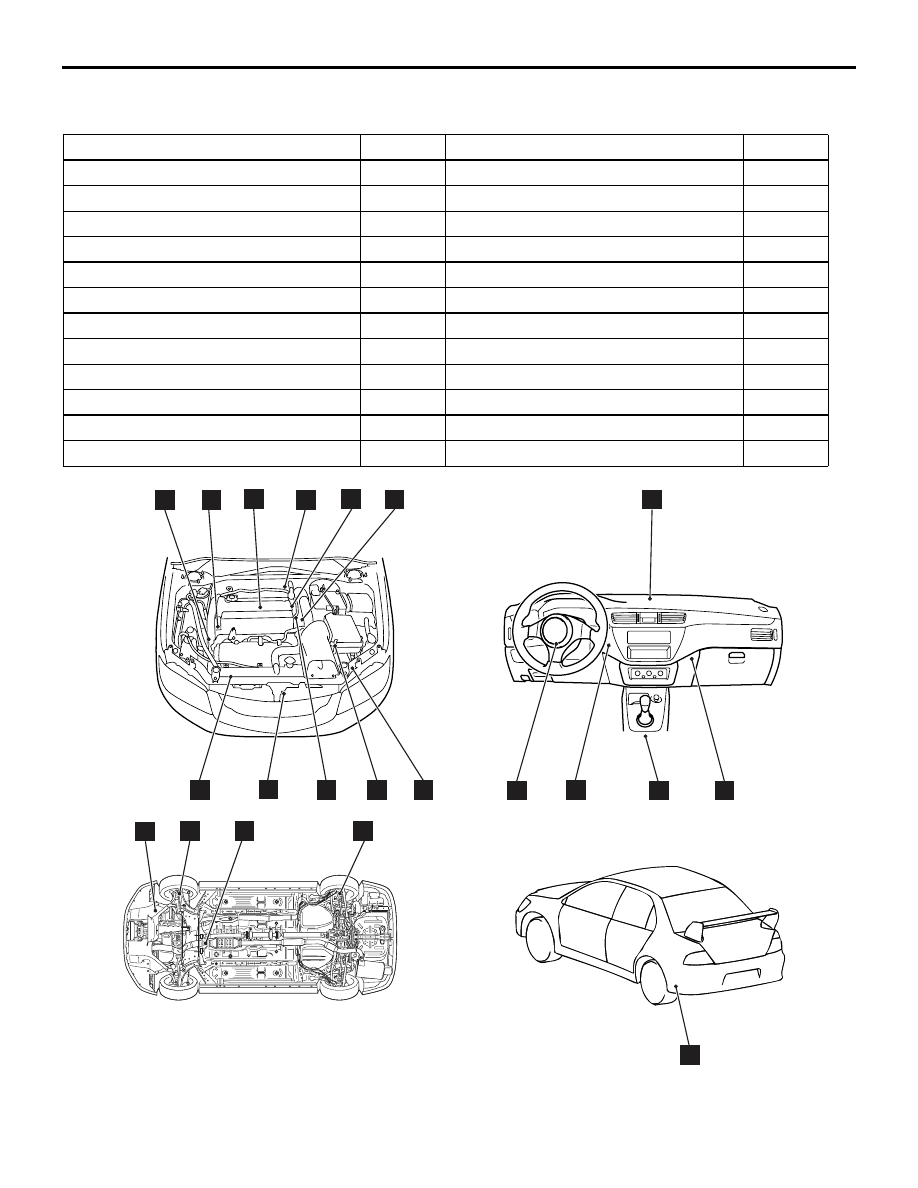

SENSOR

M1701000600846

Name

Symbol

Name

Symbol

Air flow sensor

J

 Interior temperature sensor

N

Air thermo sensor

P

Outside thermo sensor

H

Crank angle sensor

A

Oxygen sensor (front)

G

Detonation sensor

C

Oxygen sensor (rear)

S

Engine coolant temperature sensor

I

Photo sensor

L

Engine oil level sensor

B

Pressure sensor

U

Exhaust camshaft position sensor

E

Steering wheel sensor

M

Front impact sensor

K

Throttle position sensor

D

G-sensor (lateral)

O

Transmission oil temperature sensor

Q

G-sensor (longitudinal)

O

Vehicle speed sensor

F

Heter water temperature sensor

P

Wheel speed sensor (front)

R

Intake camshaft position sensor

E

Wheel speed sensor (rear)

T

AC501366

A

B

C

D

G

J

K

O

AB

S

R

T

U

E

M

P

I

*

*

*

F

H

L

N

Q

NOTE: The * symbols indicate also equipped at the right side.

AC208835

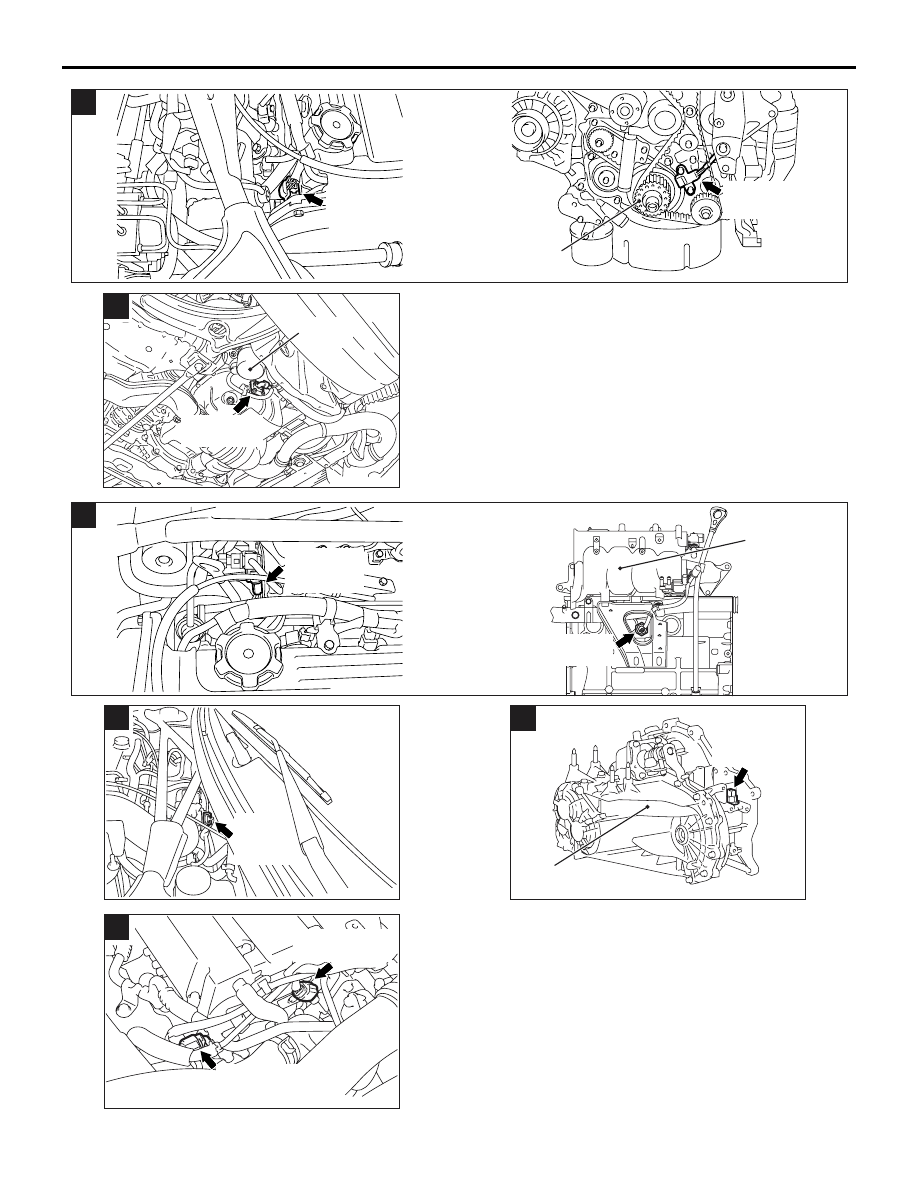

A

AC

Crank angle
sensor connector

Crank angle
sensor

Crankshaft
sprocket

AC310230

B

AB

Engine oil
level sensor

Engine
oil filter

AC208837AG

C

Detonation
sensor
connector

Detonation
sensor

Intake
manifold

AC208857

Throttle
position
sensor

AC

D

AC406674

E

AD

Intake camshaft
position sensor

Exhaust camshaft
position sensor

AC209488

Vehicle speed
sensor

AF

Transmission
assembly

F

SENSOR

COMPONENT LOCATIONS

70-3

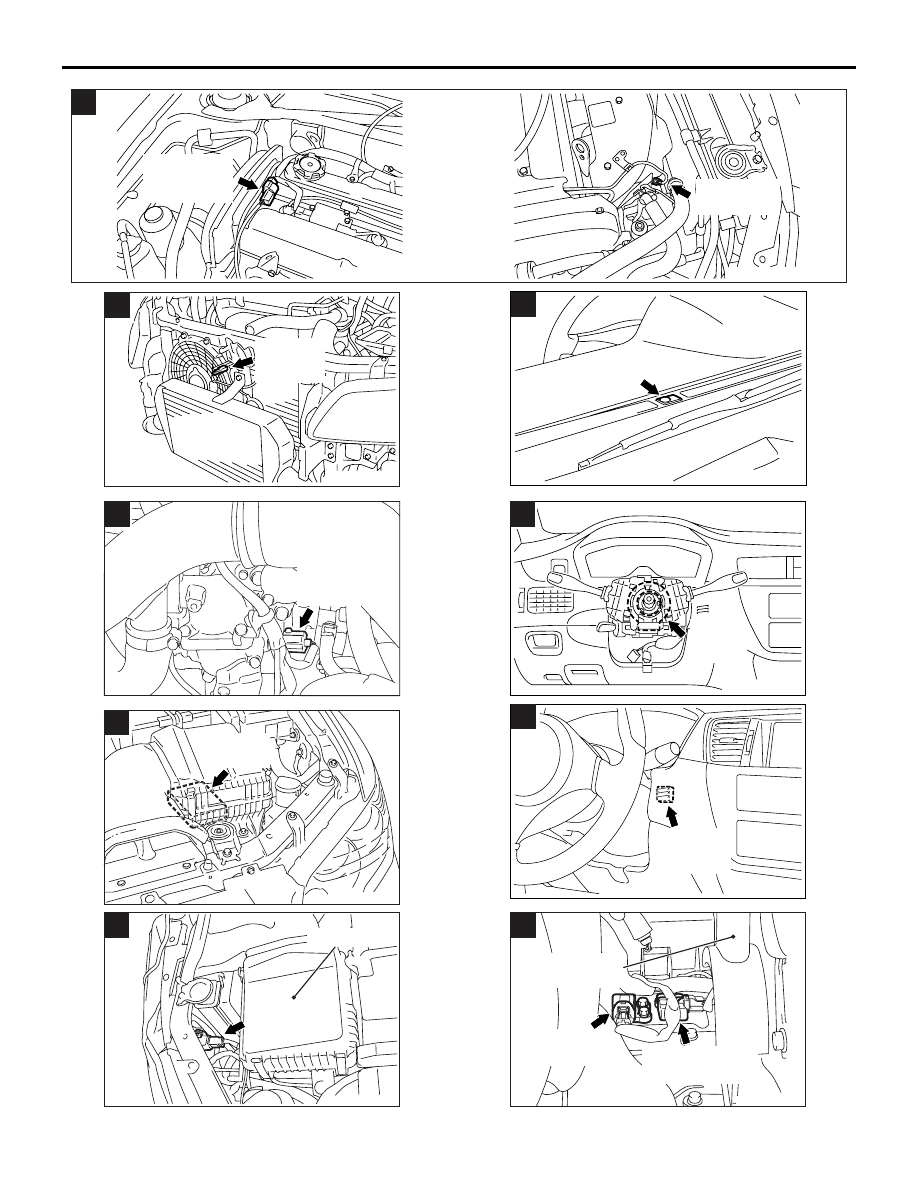

AC208841

AE

G

Oxygen
sensor (front)
connector

Oxygen
sensor (front)

AC212287

H

AE

Outoside
thermo
sensor

AC504759

Engine coolant
temperature
sensor

AC

I

AC208832

Air flow
sensor

AH

J

AC208855

Front impact
sensor

AI

K

Air cleaner

AC500112

AB

L

Photo sensor

AC500111

AB

Steering
wheel
sensor

M

AC500113

N

Interior
temperature
sensor

AB

AC208854

G-sensor
(lateral)

G-sensor
(longitudinal)

Parking brake
lever

O

AL

SENSOR
