Mitsubishi Lancer Evolution 8. Manual - part 148

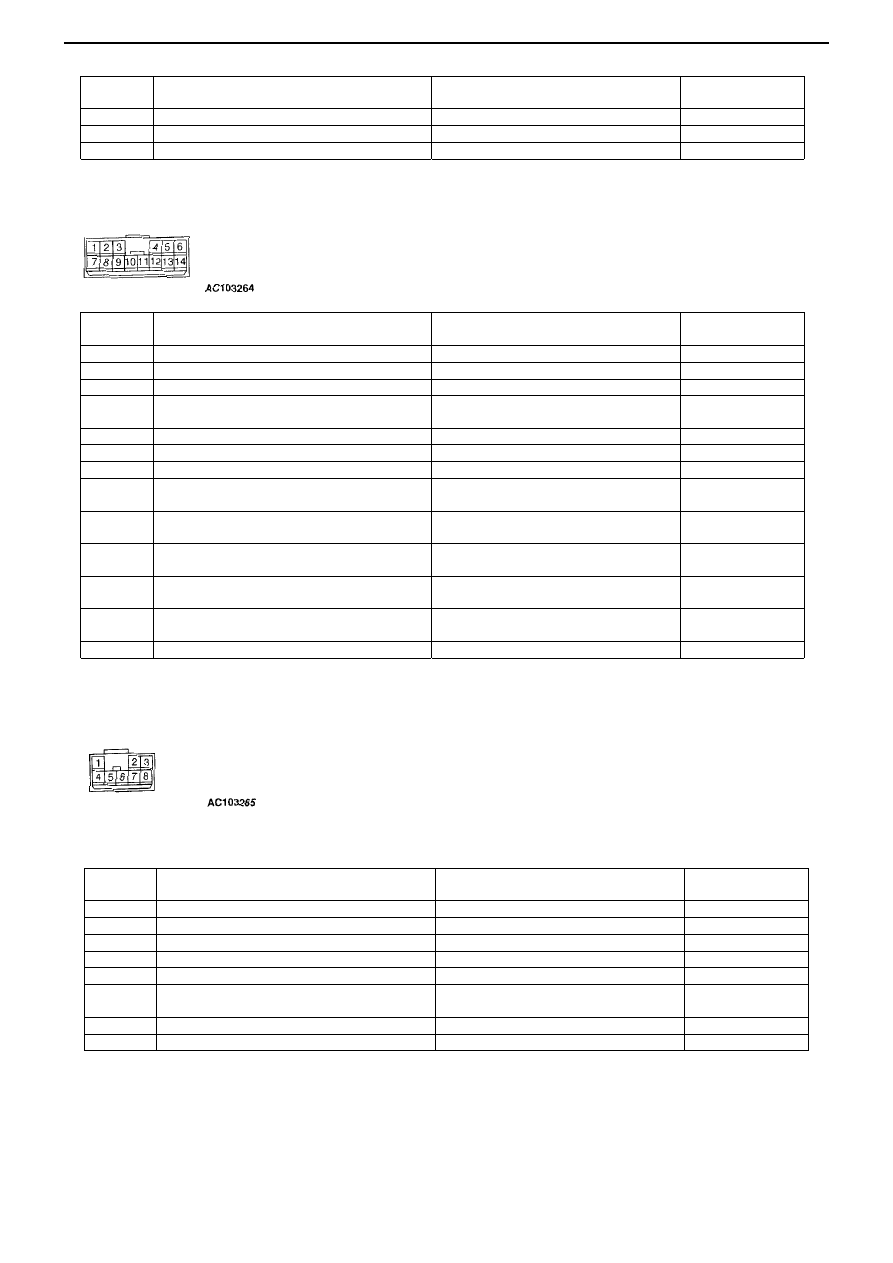

SWS – TROUBLESHOOTING

54B-115

11-4 Electric window main switch

11-5 Electric window sub switch

Terminal
No.

Check Item

Check ConditionsNormal State

Earth

Any

Ignition switch (IG2) power supply

Ignition switch : ON

Battery voltage

Earth

Any

Terminal
No.

Check Item

Check ConditionsNormal State

Electric window motor output

Earth

Any

3
4

SWS communications line (with ETACS-
ECU)

Any

0 – 12V (pulse
signal)

5
6

Power supply

Electric window relay : ON

Battery voltage

Electric window motor output

Electric window motor input (pulse sensor
GND)

Electric window motor input (pulse sensor
signal)

During electric window operation

0 – 5V (pulse
signal)

Electric window motor input (pulse sensor
signal)

During electric window operation

0 – 5V (pulse
signal)

Communications line (electric window sub
switch)

Electric window relay : ON

0 – 12V (pulse
signal)

Electric window motor input (pulse sensor
power supply)

During electric window operation

13, 14

Terminal
No.

Check Item

Check ConditionsNormal State

Earth

Any

Electric window motor input

Power supply

Electric window relay : ON

Battery voltage

Electric window motor output

Communications line

Electric window relay : ON

0 – 12V (pulse
signal)

Electric window motor output

Electric window motor input

SWS – TROUBLESHOOTING

54B-116

11-6 Sunroof motor assembly

Terminal
No.

Check Item

Check ConditionsNormal State

Battery voltage (for motor)

Any

Battery voltage

Ignition switch (IG2) power supply

Ignition switch : ON

Battery voltage

3, 4
5

Earth

Any

Sunroof switch (close / open) input

Sunroof switch : Close / Open

Sunroof switch (up) input

Sunroof switch : Up

Sunroof switch (open) input

Sunroof switch : Open

9
10

SWS communications line

Any

0 – 12V (pulse
signal)

SWS – ON VEHICLE SERVICING

54B-117

On Vehicle Servicing

Adjustment function (User Mode)

By setting the various switches to match the conditions for entering adjustment
mode, you can switch the security alarm function on and off, or adjust the
warning output. Any adjustments made are saved, even when the battery is
disconnected.

1. Entering adjustment mode
(1) Set the following switches as indicated.

• Driver’s door switch: ON (driver’s door open)
• Key reminder switch: ON (ignition key removed)
• Lighting switch: OFF
(2) If the windscreen washer switch is switched on continuously for 10
seconds or more (by pulling the wiper lever towards you), then the ETACS-
ECU buzzer will sound once, and the system will enter adjustment mode. In
this state (and keeping the wiper lever pulled towards you) the setting can be
changed each time you press the unlock switch on the transmitter.

2. Adjusting the security alarm functions
You can switch the security alarm function on and off, and change the alarm
time, in the following sequence. (After option c, the sequence starts again from
a.)

a. Security alarm function OFF. (Initial state): Buzzer sounds once.
b. Security alarm function ON. (Hazard and horn used for alarm): Buzzer
sounds 3 times.
c. Security alarm function ON. (Horn only used for alarm): Buzzer sounds 5
times.

3. Cancelling adjustment mode

The adjustment mode is cancelled when any one of the following conditions
is met.
• Driver’s door switch: OFF (Driver’s door closed)
• Key reminder switch: OFF (ignition key inserted)
• Lighting switch: ON
• Windscreen washer switch: OFF
• If 30 seconds have elapsed without the unlock switch being pressed.

Note
1. Although the wiper washer switch and transmitter are operated during

adjustment mode, the wiper/washer and keyless entry system are not
activated by these operations.

2. This adjustment function is also described in the Owner’s Manual, so that

users are able to perform the adjustment procedure themselves.

3. The user’s wishes should be confirmed fully before setting up this function.

(Where possible, get users to set up the function themselves, so that they
understand how it works.)

SWS – ON VEHICLE SERVICING

54B-118

Adjustment function (Dealer mode)

The following functions can be adjusted from the MUT-II/III. Any adjustments
made will be saved, even if the battery is disconnected.

• Door ajar warning.

If any one of the doors, including the boot, is open whilst the vehicle is
travelling, then this function warns the driver that a door is open by sounding a
buzzer and causing a door ajar indicator light to flash on the combination
meter..

• Turn indicator buzzer

This function causes a buzzer to sound in synchronization with the hazard
lights and turn indicator lights.

• Keyless entry system hazard light answer back function

This function allows the driver to confirm a lock/unlock operation, even when
he or she is away from the car. The hazard lights flash when a lock or unlock
operation is performed by the keyless entry transmitter.

• Operation of electric window and sunroof by multi-mode keyless entry system

This function causes the electric window and sunroof to close when the
keyless entry transmitter is operated, even when the driver is away from the
car.

• Timer lock delay after keyless entry unlock

If any door, including the boot, is not opened after the doors have been
unlocked by operation of the keyless entry transmitter, then after a prescribed
time delay, the doors are automatically locked again.

• Electric window and sunroof timer function.

This function allows the electric window and sunroof to be operated for a
prescribed time, even after the ignition switch has been set to the LOCK (OFF)
position.

• Electric window lock driver operation

This function allows electric windows other than the driver’s window to be
operated by the electric window main switch, when the electric window lock
switch built into the electric window main switch has been pressed.

• Vehicle speed sensitive wiper function

This function changes the intermittent wiper period in accordance with the
intermittent wiper adjustment knob and the vehicle speed, when the
windscreen wiper switch is set to the intermittent position.

• Rear wiper intermittent period

When the rear wiper switch is on, the rear wipers work intermittently. This
function sets the rear wiper to continuous operation, when the rear wiper
switch is operated continuously.

• Automatic return function for motorised retractable door mirror

This function opens the door mirrors automatically if the vehicle is travelling
with the door mirrors retracted. Other methods can also be used to perform the
retract / return operation of the door mirrors.

• Head light automatic cut-off function

This function automatically turns off the head lights if the driver’s door is
opened when the lighting switch is set to the TAIL, AUTO, or HEAD position,
and the ignition switch is set to LOCK (OFF).

• Interior light delayed switch off period

This function causes the interior lights to switch off automatically after a
prescribed delay, when the door has been closed with the ignition switch in the
LOCK (OFF) position.
