Mitsubishi Lancer Evolution 8. Manual - part 88

4-17

Component name

Connector

no.

Circuit diagram page

no.

Harness configuration

diagram page no.

Remote control door mirror (LH)

E-07

3-107, 108

1-18

Remote control door mirror (RH)

E-01

3-107, 109

1-18

Remote control mirror switch

C-112

3-109

1-13

Reversing light switch

B-132

3-64, 102, 118

1-9

Roof aerial

C-101

3-112, 116

1-12

Roof harness and J/B coupling

C-216

3-4, 50, 51, 84, 154

1-15

Seat belt pretensioner (LH)

D-14

3-149, 153

1-17

Seat belt pretensioner (RH)

D-02

3-149, 153

1-16

Spare connector for audio

<vehicle not fitted with DVD-

MMCS> or audio unit <vehicle

fitted with DVD-MMCS>

C-103

3-112, 113, 114, 115, 116

1-12

Spare connector for fog light

A-28

3-54, 167

1-4

Spare connector for fog light

switch

C-111

3-56, 167

1-13

SRS-ECU

C-124

3-149, 153

1-12

SRS-ECU

C-125

3-148, 149, 150, 152, 153

1-12

Starter

B-04

3-23

1-7

Starter

B-05

3-23

1-7

Starter relay

B-14X

3-23, 32

1-7

Steer sensor

C-228

3-126, 136, 146

1-14

Stop light switch

C-118

3-65, 122, 130, 138

1-13

Sunroof motor ASSY

D-27

D-154, 155

1-17

Sunroof switch

D-26

3-155

1-17

Throttle Position Sensor

B-06

3-30, 133, 141

1-7

Transverse G sensor

D-31

3-124, 131, 139

1-16

Tweeter (LH)

C-45

3-112, 115

1-10

Tweeter (RH)

C-128

3-112, 115

1-13

Vacant connector

A-29

1-4

Vacant connector

A-32

3-38

1-5

Vacant connector

C-55

3-38

1-10

Vacant connector

C-132

1-13

Vacant connector

C-217

3-4

1-15

Vacant connector

C-218

3-4

1-15

Vehicle speed sensor

B-131

3-34, 53, 68, 100, 110, 118, 168

1-9

Waste gate solenoid valve

B-30

3-33

1-7

Water temperature gauge unit

B-114

3-68

1-9

Water temperature sensor

B-108

3-30

1-9

Windscreen washer motor

F-19

3-98

1-20

Windscreen wiper motor

B-12

3-98

1-7

CONTENTS

How to use this Manual.........................2

Overview .................................................4

Specifications.........................................5

Maintenance Standards.........................5

Tightening Torques................................5

Transmission ..........................................6

Output Shaft ...........................................9

Control Housing...................................12

Maintenance Manual

W5M51

MANUAL TRANSMISSION

FOREWORD

This manual explains the maintenance procedures for
the W5M51 manual transmission on the 2003 Lancer
Evolution VIII, but only for points which differ from the
following maintenance manual:

●

W5M51 Manual Transmission Maintenance Manual
(No. 1039M17)

This manual is based on the car as it was in January
2003. Some maintenance procedures may have
changed due to subsequent specification changes.
International SI standard units are used in the manual;
old units are not shown alongside them.
(However, old units are used for some figures we have
taken from existing documents).

Any opinions, requests, or questions concerning this
manual, should be written on the ‘Servicing
Comment Form’ at the end, and sent to us by fax.

January 2003

MITSUBISHI MOTOR CORPORATION

This manual is printed on recycled paper.

HOW TO FOLLOW THIS MANUAL

How to Follow this Manual
Extent of maintenance operation covered in this manual

This manual explains maintenance procedures carried out after the transmission has been removed from the
vehicle. Please consult the relevant vehicle maintenance manual if you need to remove the transmission from the
vehicle or carry out checks/maintenance without removing it.

How to follow the explanations

Checks

The only checks explained in this manual are those for which special tools or measuring instruments are used. General visual
checks and cleaning of components are not explained, but this constitutes essential maintenance and must be carried out.

Maintenance Procedures

(1)At the beginning of each section there are component drawings to enable you to grasp how they are fitted.
(2)Numbers on these drawings denote the order for maintenance procedures, The drawings also show parts

that cannot be re-used, and tightening torques.

• Removal order:

The numbers before the part names given in the removal order correspond to the numbers in the
component drawings, and denote the order in which they are removed.

• Fitting order:

If the order in which they are fitted is simply the reverse of the order in which they were removed, the fitting
order is omitted.

• Dismantling order:

The numbers before the part names given in the dismantling order correspond to the numbers in the
component drawings, and denote the order in which they are dismantled.

• Assembly order:

If the order in which they are assembled is simply the reverse of the dismantling order, the assembly order
is omitted.

Categorisation of Key Maintenance Points

Key points for maintenance/maintenance

<<A>> = key point concerning removing/dismantling

standards / use of special tools are

>>A<< = key point concerning fitting/assembling

explained in detail as key maintenance

= key points concerning removing / dismantling are
in ’01-1 W5M51 Manual Transmission Maintenance

Manual’.

= key points concerning fitting / removing are in

’01-1 W5M51 Manual Transmisson Maintenance

Manual’.

Symbols for Lubricants and Sealants

Lubricant/sealant application/topping-up
locations are shown on the component
drawing o

the following page, by these symbols.

........... Grease

........... Sealant, liquid gasket (FIPG)

........... Brake fluid

........... Gear oil

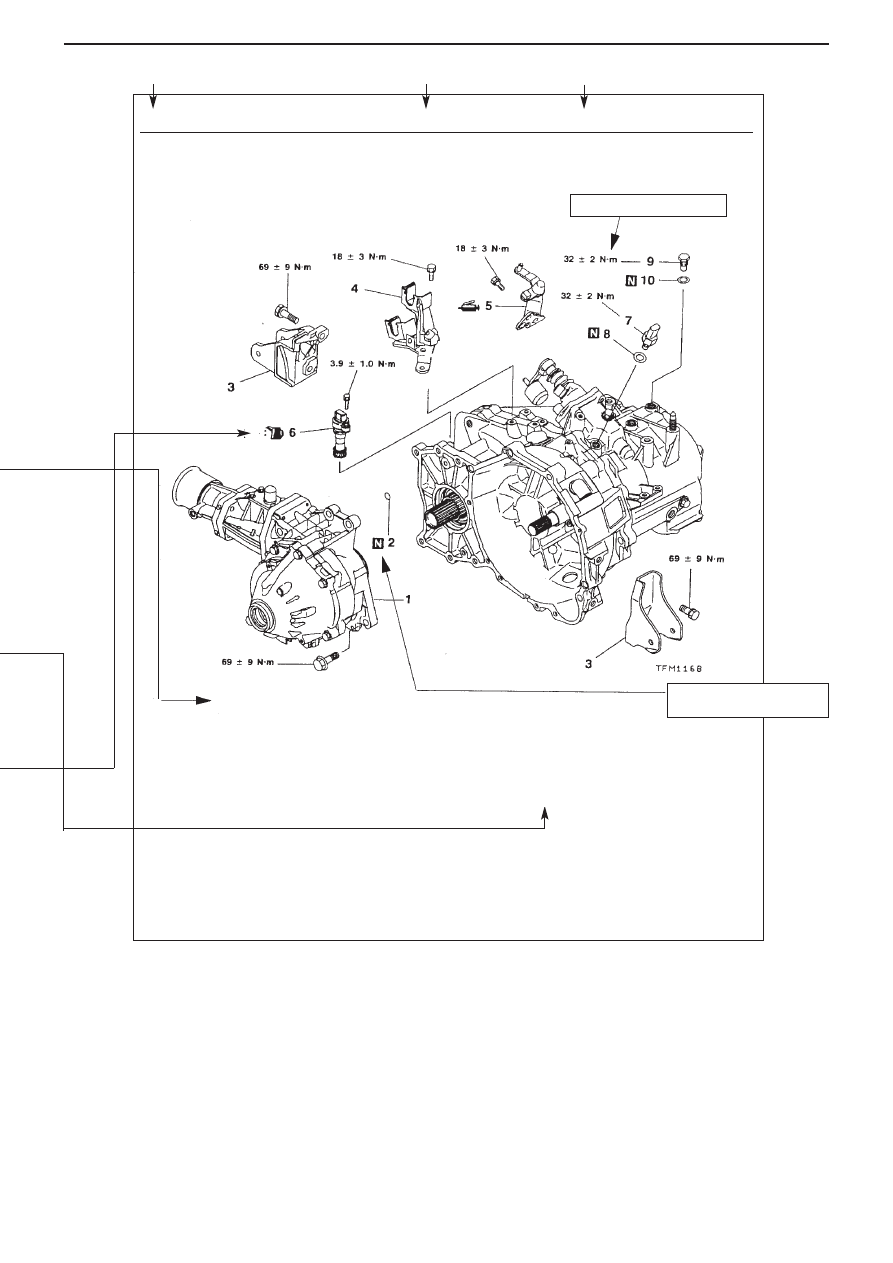

HOW TO FOLLOW THIS MANUAL

Dismantling Order
1. Transfer

6. Speedometer gear

2. O ring

7. Reversing light switch

3. Roll stopper bracket

8. Gasket

4. Shift cable bracket

9. Poppet spring

5. Select lever

10. Gasket

Page number

Group Title

Section Title

MANUAL TRANSMISSION - TRANSMISSION

Transmission

Dismantling / Assembling

Denotes tightening torque

Denotes part that cannot
be re-used
