CIRCUIT DIAGRAMS

3-129

<Memo>

CIRCUIT DIAGRAMS - EQUIPMENT

3-130

ACD <vehicle not fitted with AYC>

M3030018300018

Ignition
switch

Fusible
Link

Battery

Stop light
switch

Stop light

Reversing
power supply

Power
supply

Special-
purpose
fuse

H3J15J07AA

CIRCUIT DIAGRAMS - EQUIPMENT

3-131

Ignition
switch

Front/back
G sensor

Transverse
G sensor

Brake
warning
light

Parking
Brake
Switch

H3J15J07AB

CIRCUIT DIAGRAMS - EQUIPMENT

3-132

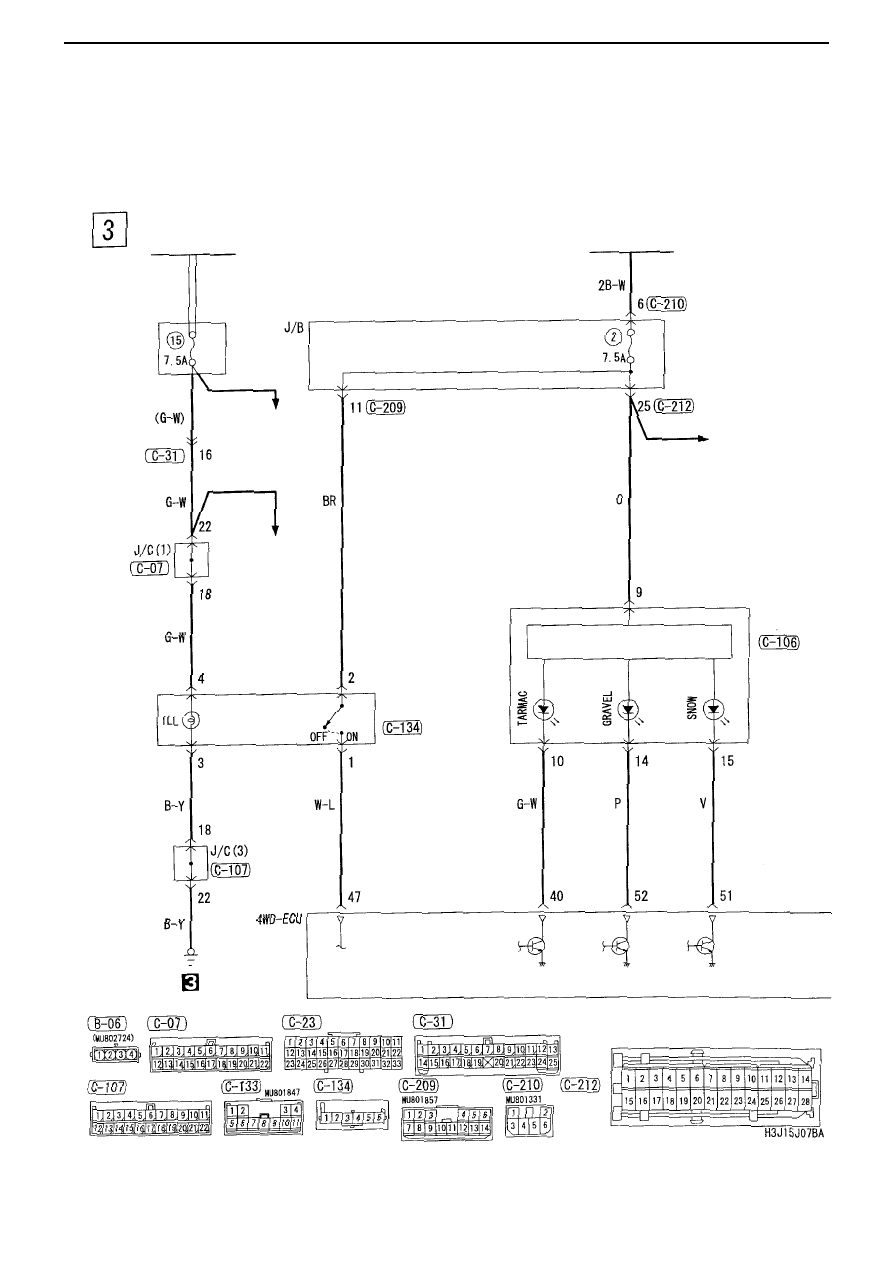

ACD <vehicle not fitted with AYC> (continued)

Front ECU (tail

light relay)

Ignition switch (IG1)

DVD-MMCS
Windscreen
wiper/washer
Engine control system
Gauge
Indicator light, hazard
warning light
Tail light, front side light,
licence plate light,
lighting monitor buzzer
Remote control door
mirror
Fog light
Headlight
Rear wiper/washer
Interior light, luggage
compartment light,
ignition lock light, door
open warning light

Tail light, front
side light,
licence plate
light, lighting
monitor buzzer

Gauge
Tail light, front
side light,
licence plate
light, lighting
monitor buzzer

Combination
meter

ACD motor
changeover
switch

Drive Circuit

Special-
purpose
Fuse
