Mitsubishi Lancer Evolution 8. Manual - part 65

CIRCUIT DIAGRAMS - AIR CONDITIONING

3-93

Battery

J/B (general-
purpose fuse

➄

)

Special-
purpose
fuse

Condenser
fan relay

Condenser
fan relay

Windscreen
wiper/washer
Indicator light,
hazard warning
light
Tail light, front
side light,
licence plate
light, lighting
monitor buzzer
Fog light
Headlight

Condenser
fan motor

Engine ECU

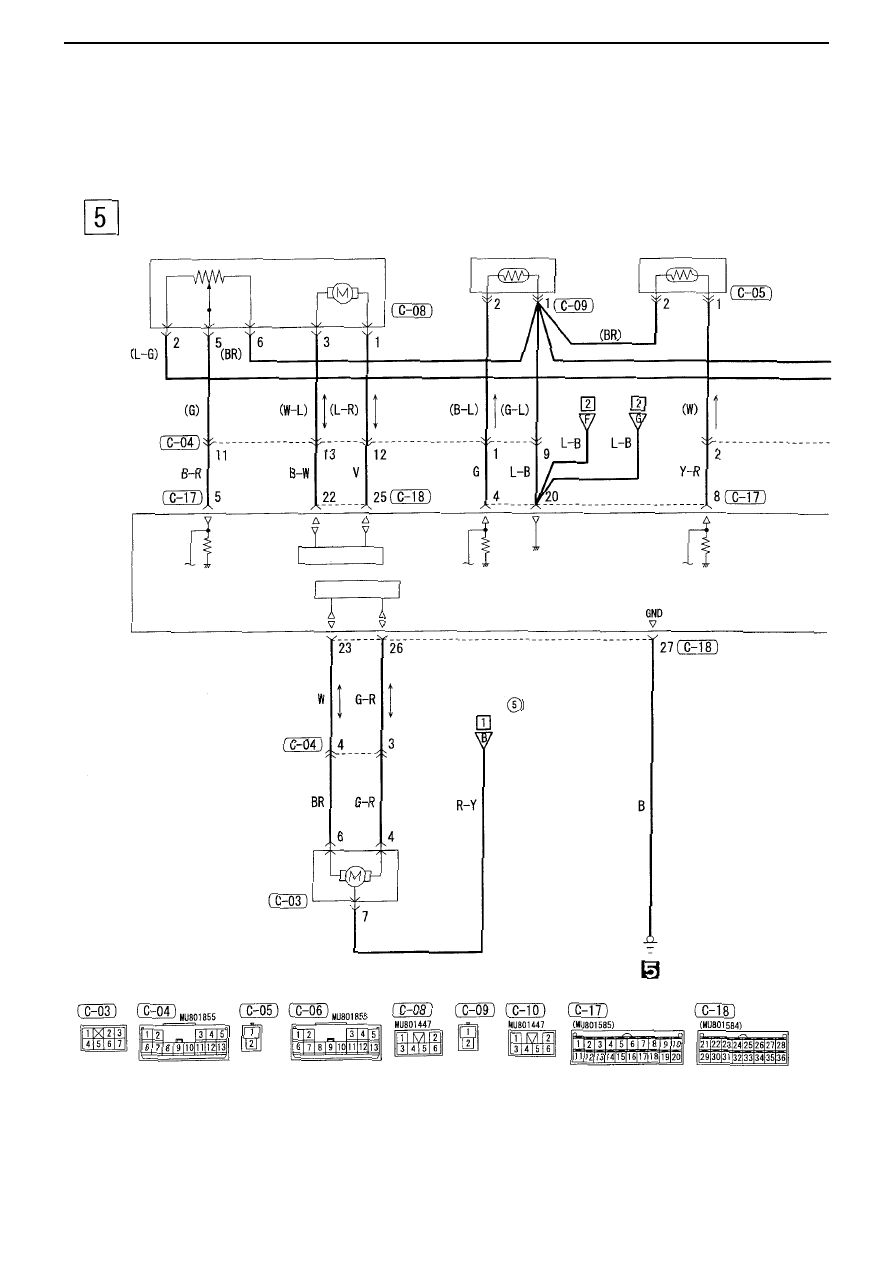

CIRCUIT DIAGRAMS - AIR CONDITIONING

3-94

Fully automatic air conditioning (continued)

Motor for air
mix door &
potentiometer

Heater water
temperature
sensor

Air
thermosensor

Room temperature sensor / Ambient air
temperature sensor

Special-purpose IC

Special-purpose IC

J/B
(general-
purpose
fuse)

Motor for
inside/outside air
exchange damper

H3J12JO3CA

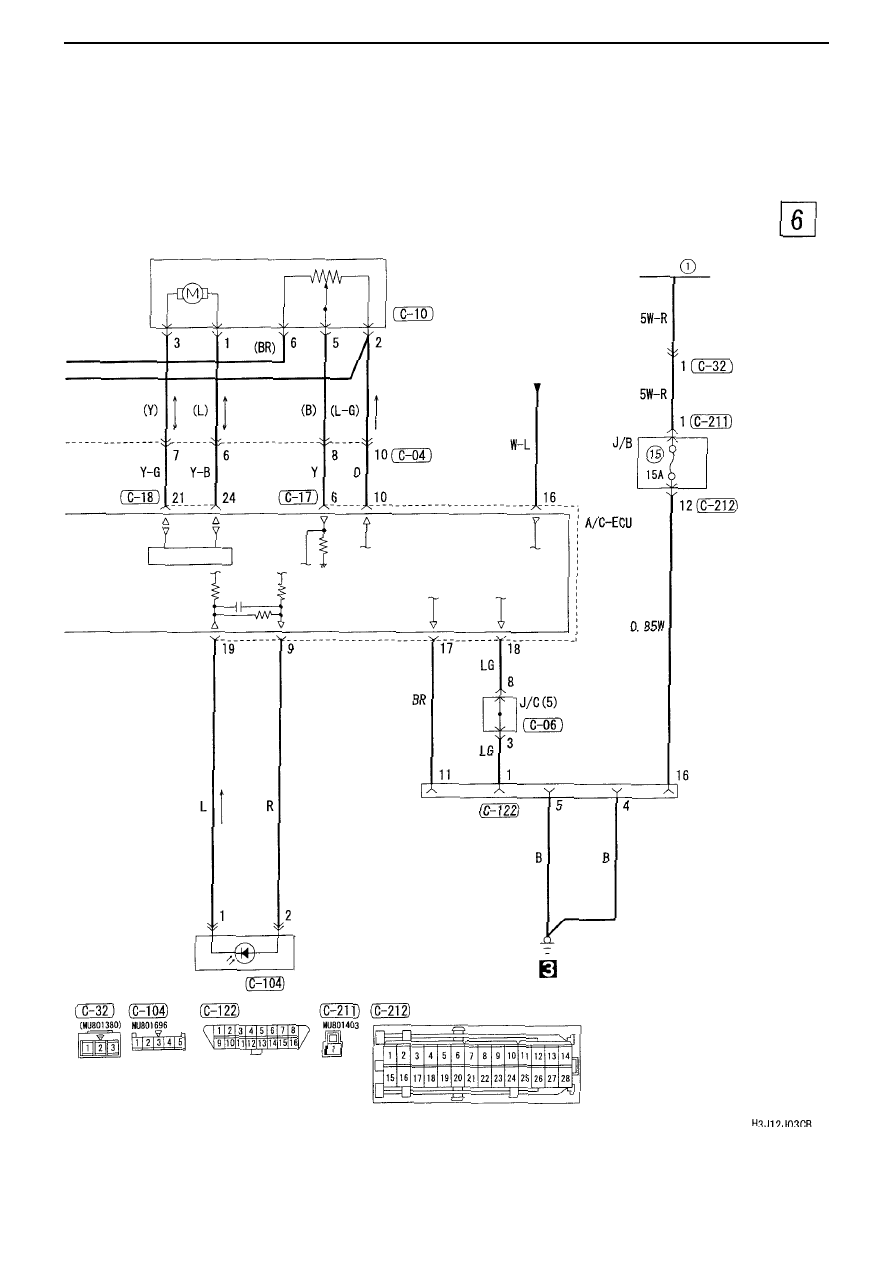

CIRCUIT DIAGRAMS - AIR CONDITIONING

3-95

Motor for blower outlet
exchange damper &
potentiometer

Fusible
link

Diagnostic connector

Daylight
sensor

Special-purpose IC

Front view

Demister

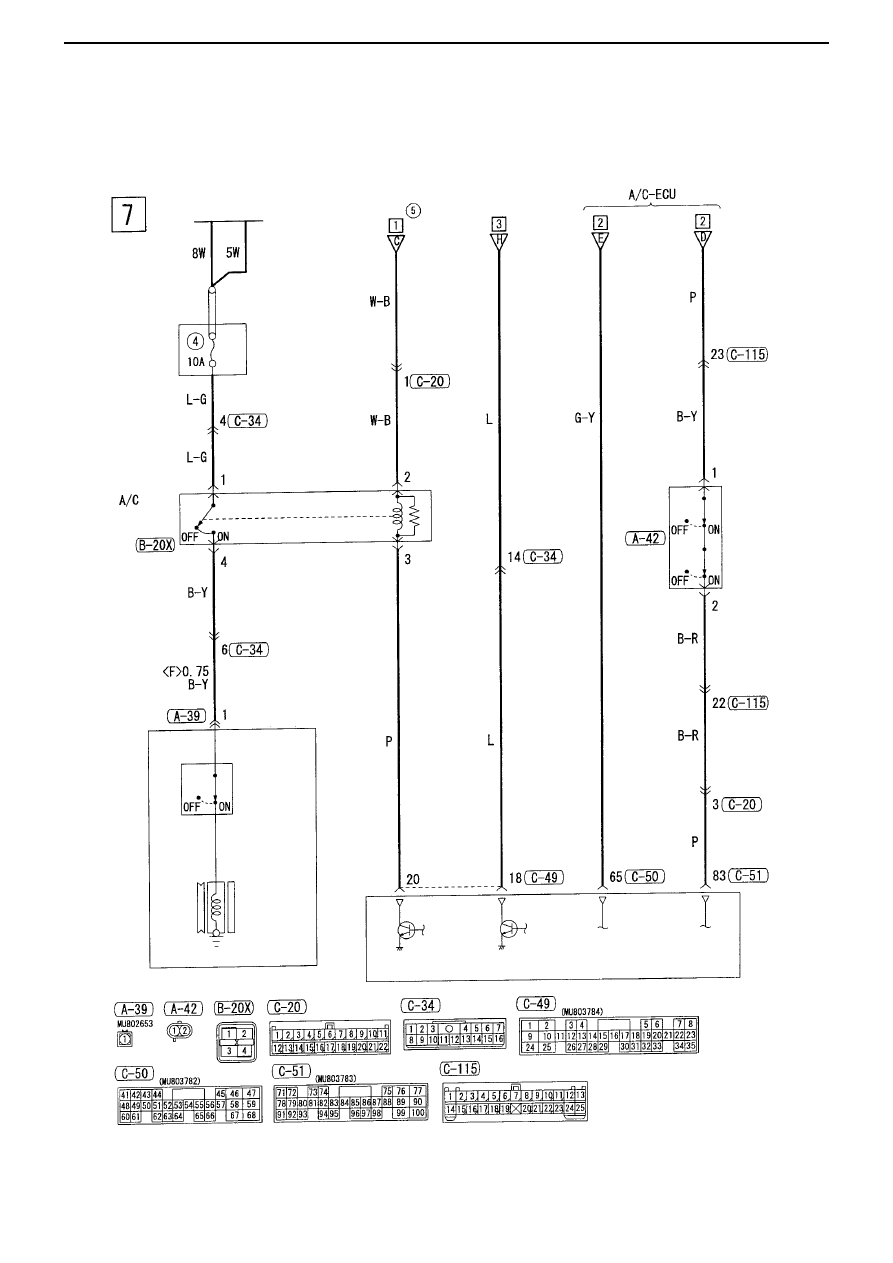

CIRCUIT DIAGRAMS - AIR CONDITIONING

3-96

Fully automatic air conditioning (continued)

Battery

J/B (general-
purpose
fuse)

Radiator fan
controller

Special-
purpose
fuse

compressor
relay

Dual
pressure
switch

Low-pressure side
ON

→

OFF: 196kPa

OFF

→

ON:

221kPA
High-pressure side
ON

→

OFF:

3138kPa
OFF

→

ON:

2550kPa

A/C compressor

Coolant
temperature
switch
ON

→

OFF:

150˚C
OFF

→

ON:

120˚C

Magnetic
clutch

Engine ECU

H3J12J03DA
