CIRCUIT DIAGRAMS - J/C

3-4

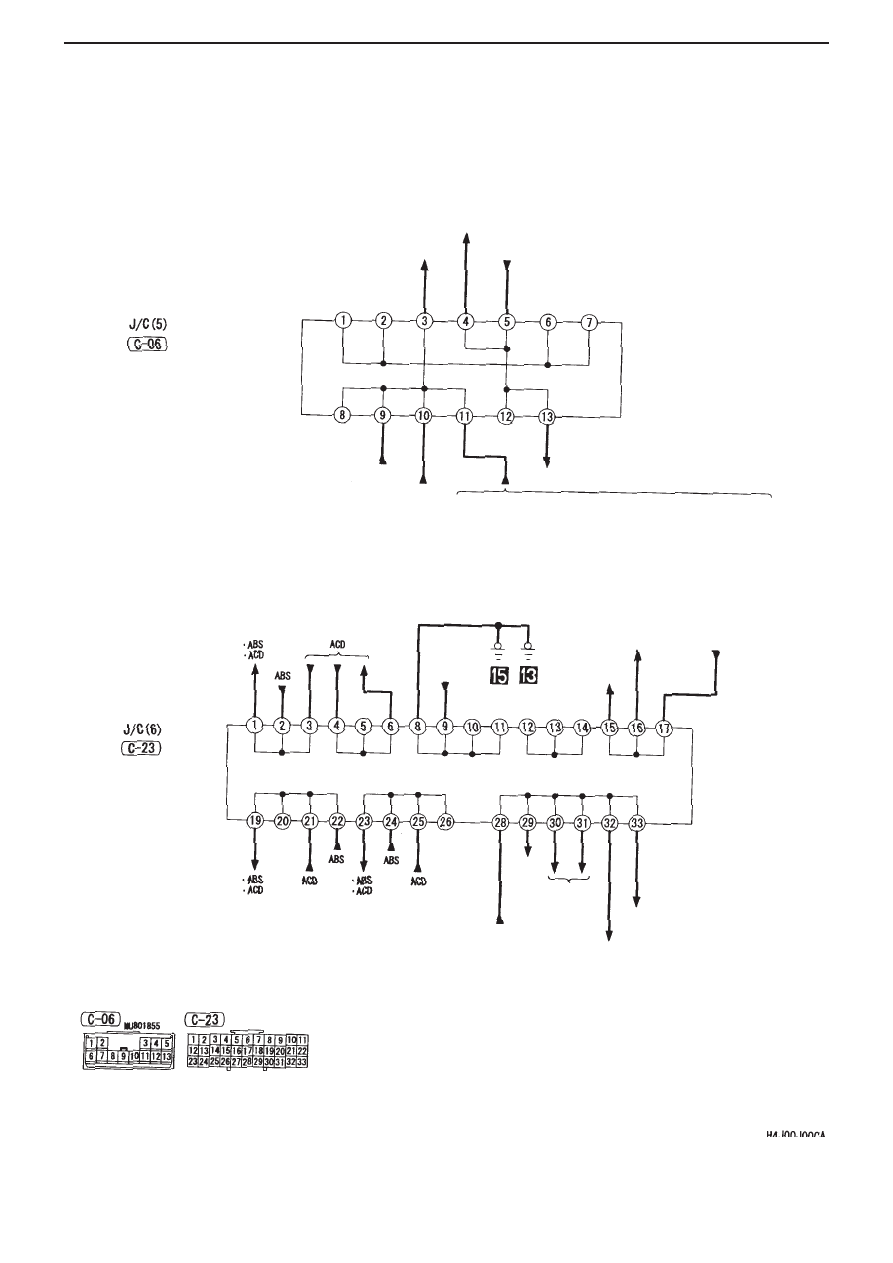

J/C (cont’d)

• Ignition key

reminder buzzer

• Windscreen wiper

& washer

• Security alarm
• Central door

locking

• Indicator lights,

hazard warning
lights

• Tail lights, side

lights, licence
plate lights,
lighting monitor
warning buzzer

• Electric

retractable
remote control
door mirror

• Electric windows
• Heater
• Fog lights

• Full auto A/C
• Headlights
• Manual A/C
• Rear wiper /

washer

• Cabin lights, boot

interior light,
ignition key
cylinder
illumination light,
door not properly
closed indictor
light

• Ignition key reminder

buzzer

• Intercooler water

spray

• Security alarm
• Central door locking

(vehicle with keyless
entry)

• Cabin lights, boot

interior light, ignition
key cylinder
illumination light,
door not properly
closed indictor light

Fog lights

• Clock
• Indicator

lights,
hazard
warning
lights

• ABS
• ACD

Headlight

levelling

system

Electric

retractable

remote

control door

mirror

• Warning lights
• Starter

Headlight

levelling

system

Fog lights

Cigar lighter

Ashtray illumination light

• Demister

(vehicle
w/out full
auto A/C)

• Demister,

door
mirror
heating
element
(vehicle
with full
auto A/C)

• Heater
• Full auto

A/C

• Manual

A/C

ACD

Intercooler

water spray

Indicator

lights,

hazard

warning

lights

Meter gauge

CIRCUIT DIAGRAMS - J/C

3-5

Electric retractable

remote control door

mirrors

J/B

General

fuse

(

)

11

J/B

General

fuse

(

)

13

General spare

connector

Spare

audio

connector

Clock

• Fog lights
• Spare

connector
for fog lights

Fog
lights

• Fog lights
• Spare

connector
for fog lights

SRS airbags,

seatbelt pre-

tensioners

• ABS
• ACD

Engine

immobiliser

system
Engine

control

Diagnosis
connector

Cabin lights,

boot interior

light, ignition

key cylinder

illumination

light, door not

properly closed

indicator light

• Central door

locking
(vehicle with
keyless entry)

• Cabin lights,

boot interior
light, ignition
key cylinder
illumination
light, door not
properly
closed
indicator light

• Warning lights
• Meter gauge

CIRCUIT DIAGRAMS - J/C

3-6

J/C (cont’d)

Diagnosis
connector

Security

alarm

• Security alarm
• Horn

Full auto A/C

• ABS
• ACD

Horn

• Ignition key

reminder
buzzer

• Windscreen

wiper &
washer

• Security alarm
• Central door

locking

• Turn signal

lights, hazard
warning lights

• Tail lights,

position lights,
licence plate
lights, lighting
monitor
warning
buzzer

• Electric

stowable
remote control
door mirrors

• Power

windows

• Fog lamps
• Headlights
• Rear wiper /

washer

• Cabin lights,

boot interior
light, ignition
key cylinder
illumination
light, door not
properly
closed
indicator light

Engine

control

• Engine

control

• Ignition

Meter gauge

• Engine control
• Meter gauge
• Ignition

• Engine immobiliser

system

• Engine control
• Full auto A/C
• Cooling

Engine

control

• Engine

immobiliser
system

• Engine

control

• Full auto A/C
• Cooling

Engine
immobiliser
system
