MANUAL TRANSMISSION -

General/General Information/

Service Specification/Lubricants

22A-3

GENERAL

OUTLINE OF CHANGE

With the addition of the EVOLUTION-VII, the W5M51 transmission service adjustment procedure has

been set as follows.

GENERAL INFORMATION

Items

Specifications

Grade

RS, RS II

RS, RS II (With super cross gear)

Transmission model

W5M51

Engine model

4G63-DOHC-T/C

Type

5-speed, floor-shift

Gear ratio

1st

2.785

2.785

2nd

1.950

1.950

3rd

1.407

1.444

4th

1.031

1.096

5th

0.720

0.825

Reverse

3.416

3.416

Final reduction ratio

(Differential gear ratio)

4.529

4.529

Front limited-slip differential

(Helical-gear type)

Not provided

Provided

Transfer

Reduction ratio

3.307

3.307

Limited-slipdifferential

VCU or hydraulic multi plate

clutch (ACD)

VCU or hydraulic multi plate

clutch (ACD)

SERVICE SPECIFICATION

Item

Standard value

Hydraulic unit generation oil pressure

MPa

1.0 - 1.6

LUBRICANTS

Item

Specified lubricant

Quantity L

Transmission oil

Gear oil SAE 75W-90 or 75W-85W conforming to API GL-4

2.8

Transfer

oil

Vehicles without ACD or ve-

hicles without ACD and AYC

MITSUBISHI Genuine Gear Oil Part No.8149630 EX,

CASTROL HYPOY LS (GL-5, SAE 90), SHELL-LSD

(GL 5 SAE 80W 90) or equivalent

0.55

Vehicles with ACD or vehicles

with ACD and AYC

(GL-5, SAE 80W - 90) or equivalent

0.6

Fluid

Piping between ACD and

hydraulic unit

DIA QUEEN ATF SP III

0.9

Pipes between ACD and hy-

draulic unit and between AYC

and hydraulic unit

1.0

MANUAL TRANSMISSION - Special Tools

22A-4

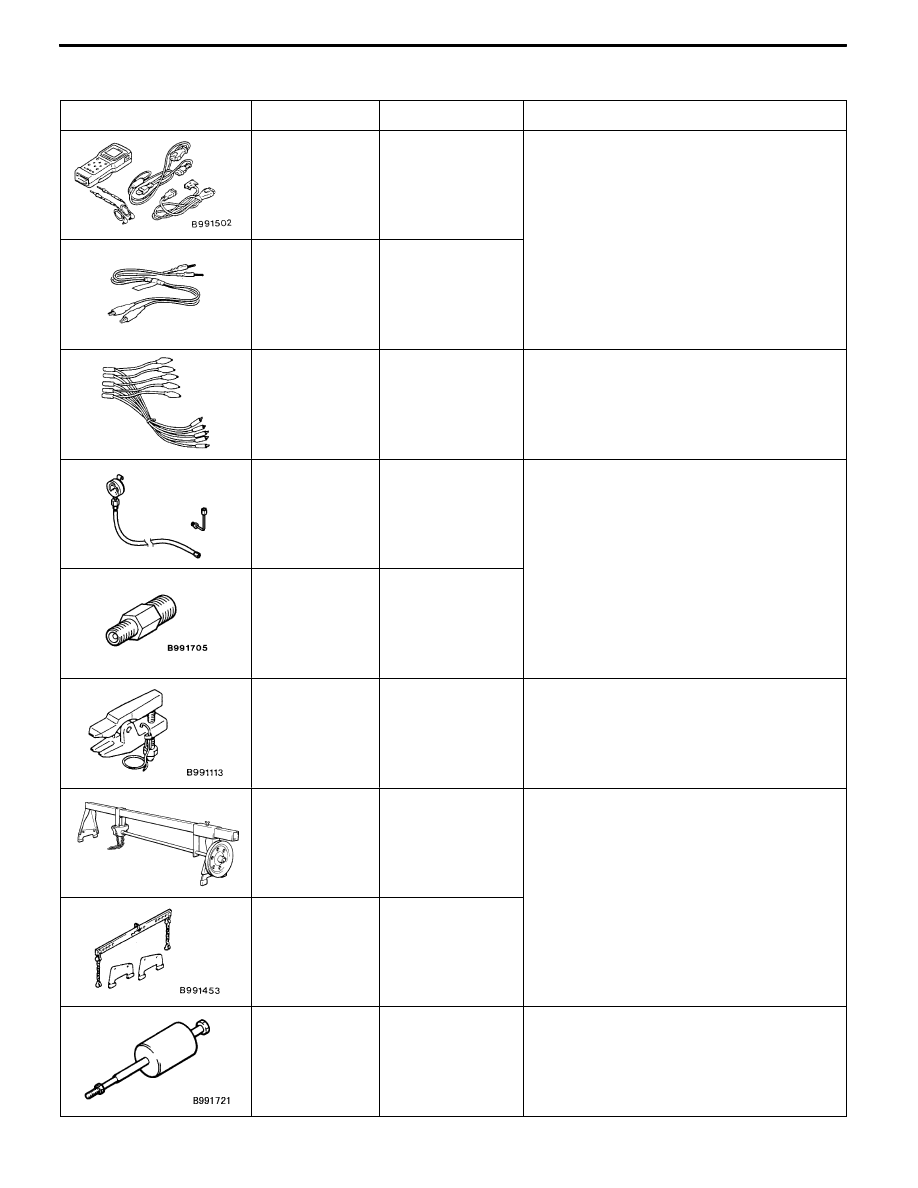

SPECIAL TOOLS

Tool

Number

Name

Use

MB991502

MUT-II Sub as-

sembly

Diagnosis code checking

MB991529

Diagnosis

code

checking harness

MB991348

Test harness set

G sensor check

MD998330

(including

MD998331)

Oil pressure gauge

(3.0 MPa)

Hydraulic pressure measurement <ACD>

MB991705

Adapter

MB990635

,

MB991113 or

MB991406

Steering linkage

puller

Tie rod end and lower disconnection

GENERAL

SERVICE

TOOL

MZ203827

Engine lifter

Supporting the engine assembly during

removal and installation of the transmission

MB991453

Engine hanger at-

tachment set

MB991721

Slide hammer

Output shaft removal

MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-5

TROUBLESHOOTING <ACD>

BASIC TROUBLESHOOTING CONDITIONS

Refer to GROUP 00 - How to Use Troubleshooting/Inspection Service Points.
NOTE

Before starting the troubleshooting procedure, make sure that the following items have been checked

okay.
D

Is the appropriate steering wheel installed at the center of the steering column shaft correctly?

D

Are the tire, wheel size, specifications, air pressure, balance, and wear state normal?

D

Is the wheel alignment normal?

D

Has the engine, suspension, etc. been remodeled in such a way that it will affect the ACD and AYC

systems?

DIAGNOSIS FUNCTION

READING DIAGNOSIS CODE
Read a diagnosis code by the MUT-II or ACD mode indicator

lamp. (Refer to GROUP 00 - How to Use Troubleshooting/

Inspection Service Points.)
NOTE

Connect the MUT-II to the diagnosis connector (16-pin).
ERASING DIAGNOSIS CODES
When using the MUT-II
Connect the MUT-II to the diagnosis connector (16-pin) and

erase the diagnosis code.
Caution

Turn the ignition switch to the “LOCK”(OFF) position

before connecting or disconnecting the MUT-II.

ACD

mode indicator lamp

MANUAL TRANSMISSION - Troubleshooting <ACD>

22A-6

INSPECTION CHART FOR DIAGNOSIS CODES

Diagnosis

code No.

Diagnosis items

Reference page

12

Power supply voltage (valve power supply) system

open circuit or short-circuit

22A-8

13

Fail-safe relay system <inside 4WD-ECU>

open circuit or short-circuit

22A-8

21

Wheel speed sensor <FR> system

open circuit or short-circuit

22A-9

22

Wheel speed sensor <FL> system

open circuit or short-circuit

22A-9

23

Wheel speed sensor <RR> system

open circuit or short-circuit

22A-9

24

Wheel speed sensor <RL> system

open circuit or short-circuit

22A-9

25

Wrong-diameter tire

22A-11

26

Wheel speed sensor (faulty output signal)

22A-13

31

Steering wheel sensor <ST-1, ST-2, ST-N> system

open circuit or short-circuit

22A-15

32

Steering wheel sensor <ST-N> system

short-circuit

22A-16

33

fixed

22A-16

34

Steering wheel sensor <ST-1, ST-2> system

short-circuit

or

output

fixed

22A-17

41

TPS system

open circuit or ground

22A-18

42

short-circuit

22A-18

45

Pressure sensor system

open circuit or ground

22A-19

46

open earth

22A-19

47

abnormal power supply

22A-20

51

Longitudinal G sensor system

open circuit or short-circuit

22A-21

52

defective sensor

22A-22

56

Lateral G sensor system

open circuit or short-circuit

22A-23

57

defective sensor

22A-24

61

Stop lamp switch system

open circuit

22A-25

62

ACD mode switch system

stuck

22A-26

63

Parking brake switch system

short-circuit or not re-

turned to original position

22A-27

65

ABS monitor system

open circuit or defective

ABS

22A-28

71

Proportional valve <AYC> system

open circuit or short-circuit

Refer to

GROUP 27B

72

Directional control valve <Right> system

open circuit or short-circuit

GROUP 27B.

73

Directional control valve <Left> system

open circuit or short-circuit

74

Proportional valve <ACD> system

open circuit or short-circuit

22A-29
