EQUIPMENT –

Immobilizer System

7-5

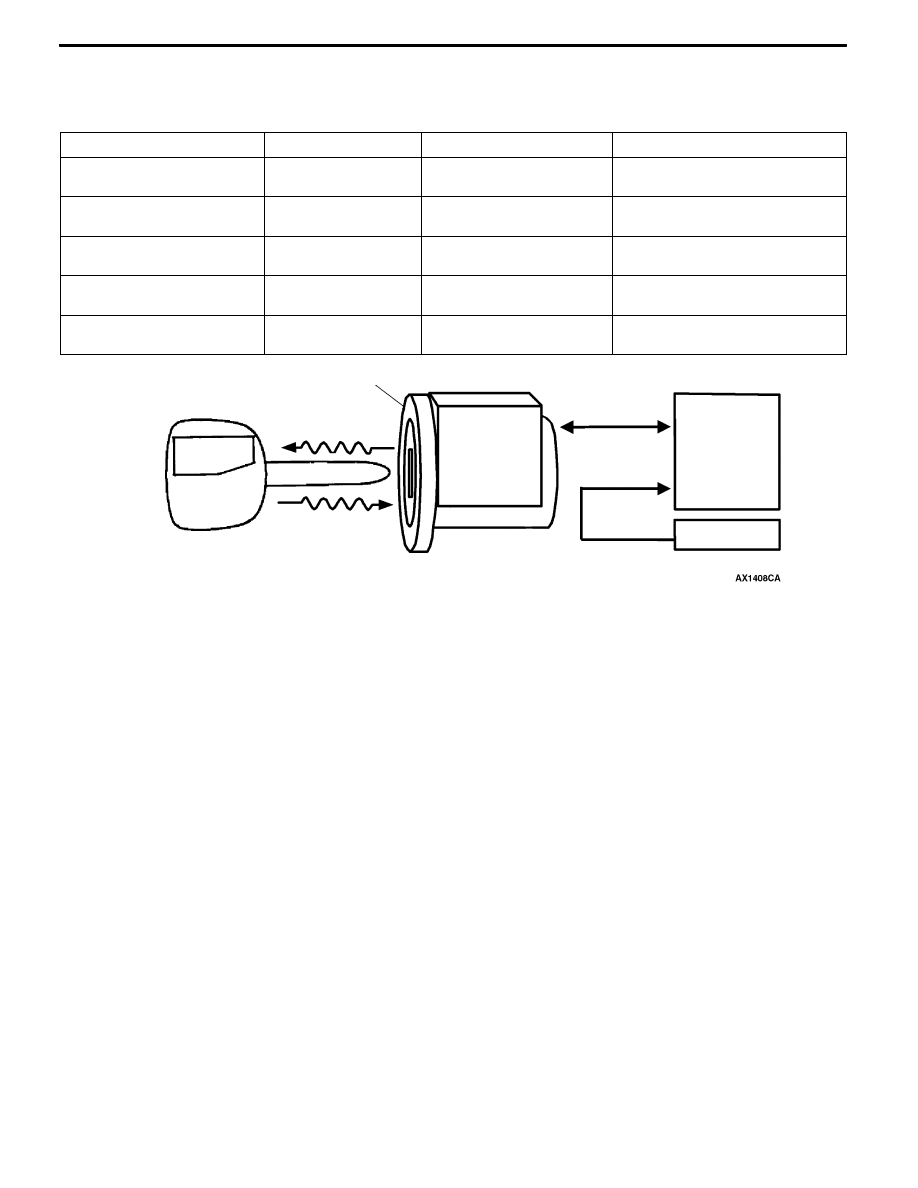

DISPOSITION WHEN REPLACING IMMOBILIZER SYSTEM RELATED PARTS
To replace immobilizer related parts, observe the table below. When the ignition key is re-registered with

the MUT-II, the originally registered ignition key registration information will be lost.

Engine-ECU

Immobilizer-ECU

Ignition key

When replacing engine-ECU –

Replacement required

Replacement and re-registration

are required.

When rewriting engine-ECU –

Replacement not required

Replacement not required, re-

registration not required

ECU

Replacement not re-

quired

Replacement not required, regis-

tration are required

When adding ignition key

newly

Replacement not re-

quired

Replacement not required

Register an additional ignition key

and re-register all other ignition keys.

When ignition key is lost

Replacement not re-

quired

Replacement not required

re-register all other ignition keys

except the lost one.

Power

Encrypted code

Transponder

Ignition key

Steering lock key cylinder and

immobilizer-ECU

MUT-II

Engine-ECU

Start of permis-

sion signal

Registration

of ignition key

Integrated immobilizer-ECU and antenna

EQUIPMENT –

Lighting

7-6

LIGHTING

EXTERIOR LAMPS

D

The large lens adjusted to the exclusive body has been equipped with model specific 4 bulb type

headlamp incorporating front turn signal lamp, position lamp. The low beam is a projector type used

as a compact but efficient wide light distributor.

D

The front turn signal lamp adopts an aluminum metal evaporated reflector to improve visibility.

D

The tail lamp and stop lamp make use of complementary colors to emit white color from the red lens

to improve visibility.

D

The inner lens of the tail lamp has been set with a reflex reflector to improve appearance.

D

Rear fog lamps with outstanding visibility have been installed.

D

A high mount stop lamp has been installed to the rear shelf.

D

The lighting system is provided with headlamp auto-cut.

SPECIFICATIONS

Item

Specifications

Item

Specifications

Headlamp assembly

High beam (Halogen bulb) W

60 (HB3)

p

y

Low beam (Halogen bulb) W

51 (HB4)

Headlamp assembly

Position lamp W

5

p

y

Front turn signal lamp W

21

Side turn signal lamp W

5

Rear combination lamp

Tail/stop lamp W

5/21

p

Turn signal lamp W

21

Backup lamp W

21

Rear fog lamp W

21

High mount stop lamp W

21

License plate lamp W × number

5 × 2

NOTE
The brackets ( ) show the bulb type.

EQUIPMENT –

Lighting

7-7

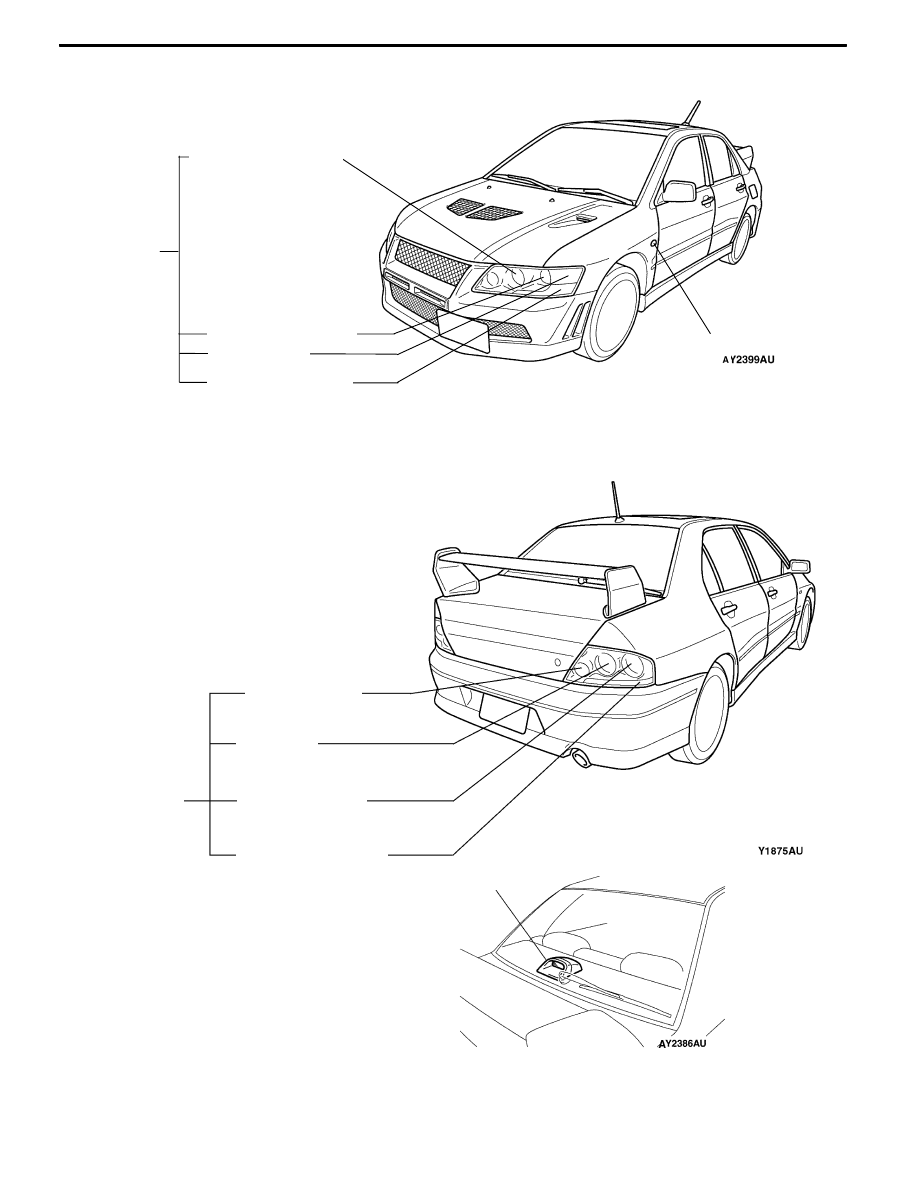

CONSTRUCTION DIAGRAM

Side turn signal lamp

Headlamp

assembly

Rear combination

lamp

Tail lamp

Tail / stop lamp

Rear turn signal lamp

Back

-

up lamp or

rear fog lamp ∗

High mount stop lamp

NOTE

*: The driver’s side is installed with a rear fog lamp, while the passenger’s side is installed with a back-up

lamp.

Headlamp (High beam)

Headlamp (Low beam)

Position lamp

Front turn signal lamp

EQUIPMENT –

Lighting

7-8

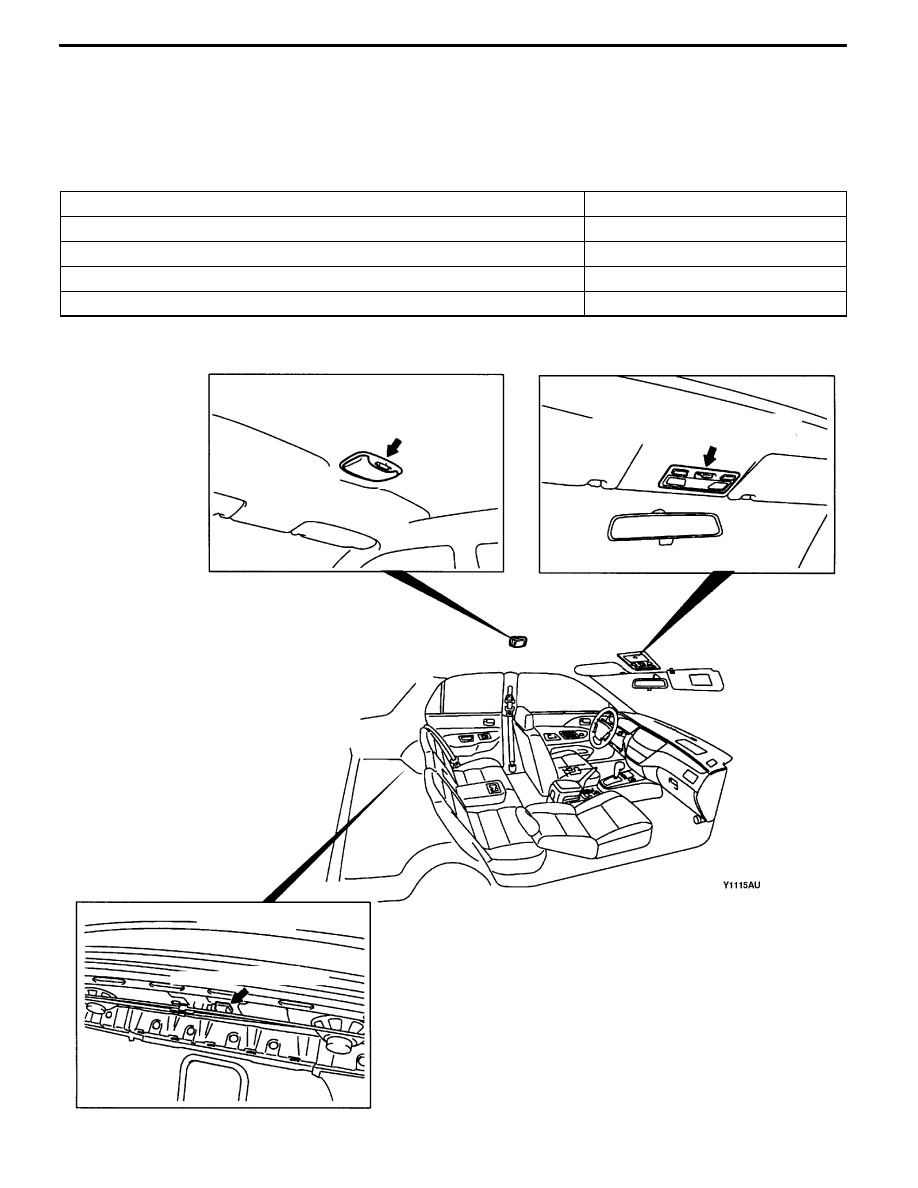

INTERIOR LAMPS

D

A map lamp serving also as front room lamp which can be used at both the driver’s seat and passenger

sea is provided.

D

A rear room lamp to light the backseat and trunk lamp to light the trunk are provided.

SPECIFICATIONS

Item

Specifications

Map lamp W × quantity

7.5 × 2

Front room lamp W

7.5

Rear room lamp W

8

Trunk lamp W

5

CONSTRUCTION DIAGRAM

Rear room lamp

Map lamp and front room lamp

Trunk lamp
