CIRCUIT DIAGRAMS –

Tail lamp, Position Lamp,  Licence Plate
Lamp and Lighting Monitor Buzzer

C-44

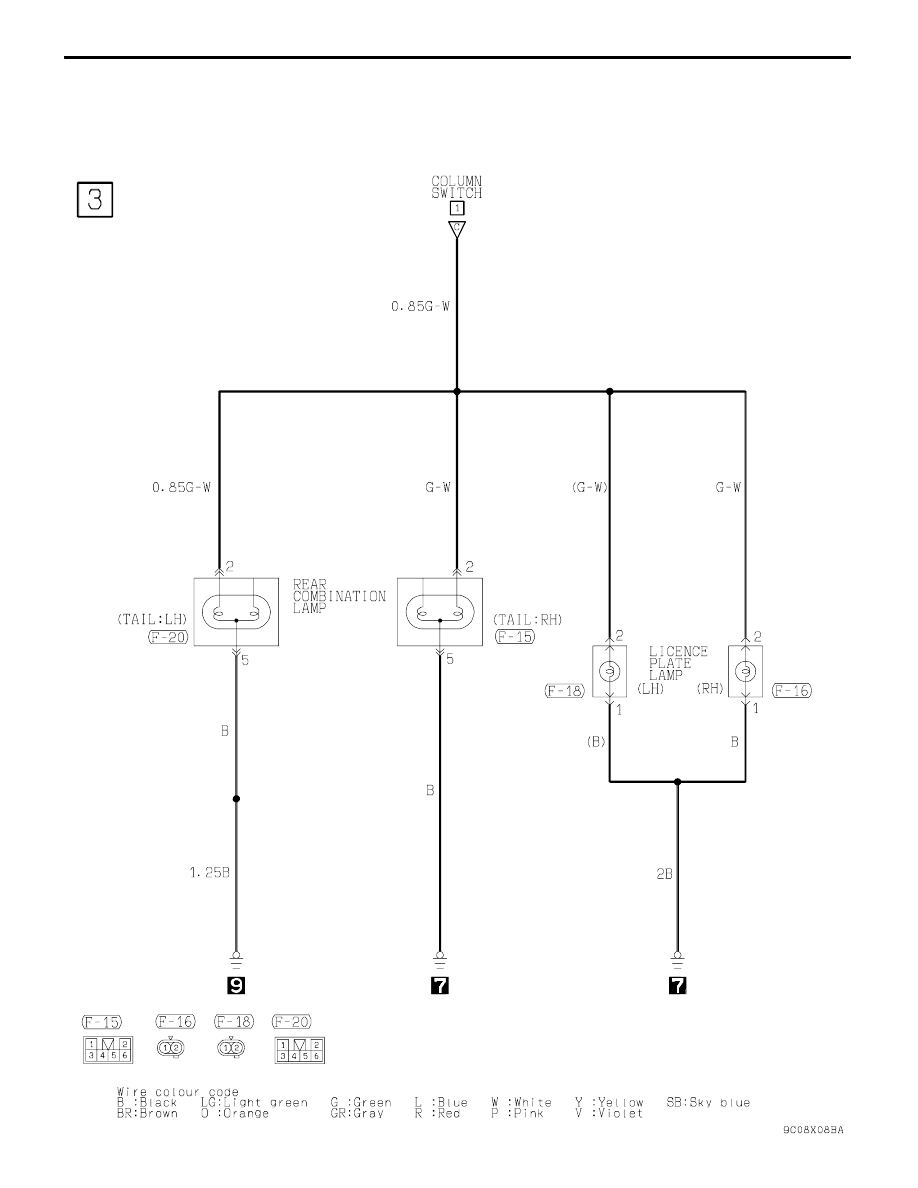

TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP AND LIGHTING MONITOR
BUZZER (CONTINUED)

CIRCUIT DIAGRAMS –

Room Lamp and Luggage
Compartment Lamp

C-45

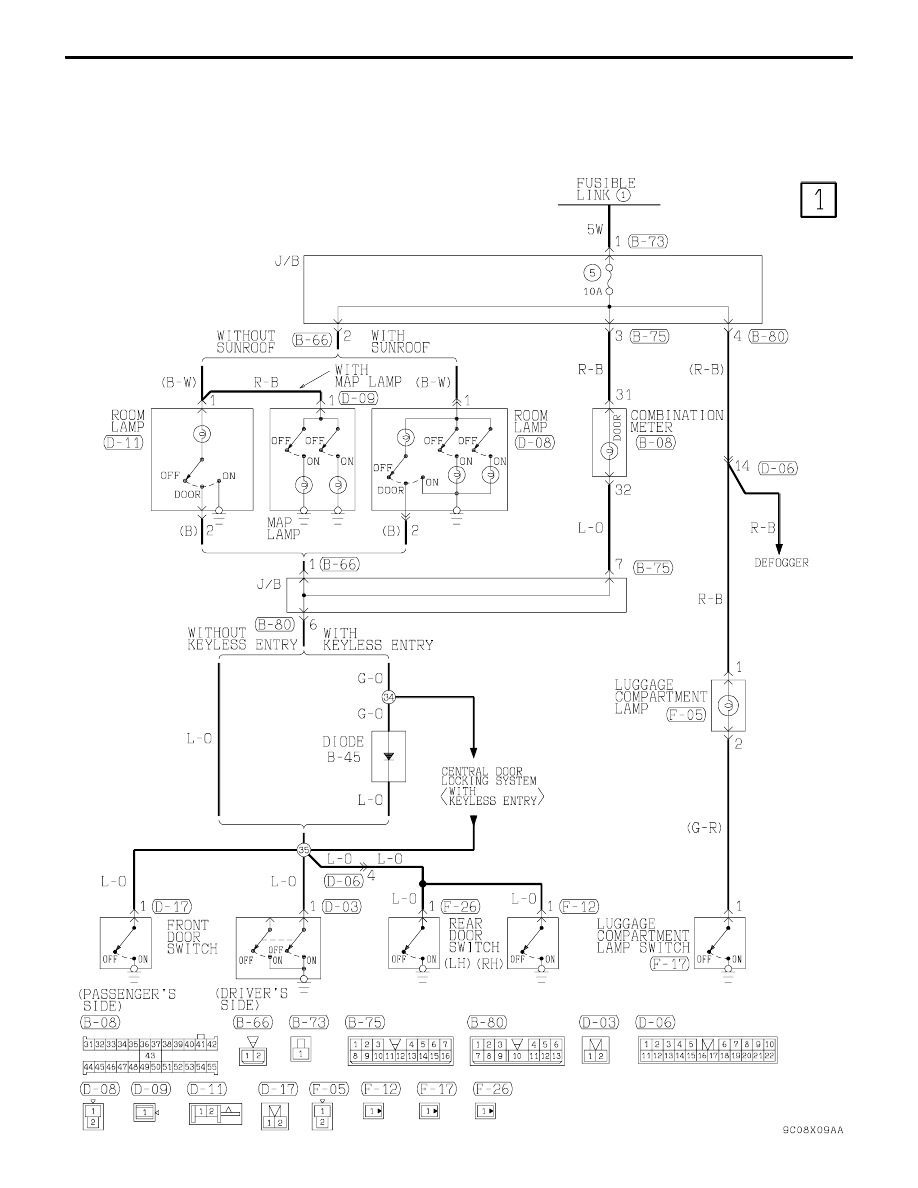

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP

CIRCUIT DIAGRAM –

Ignition Key Cylinder Illumination Lamp

C-46

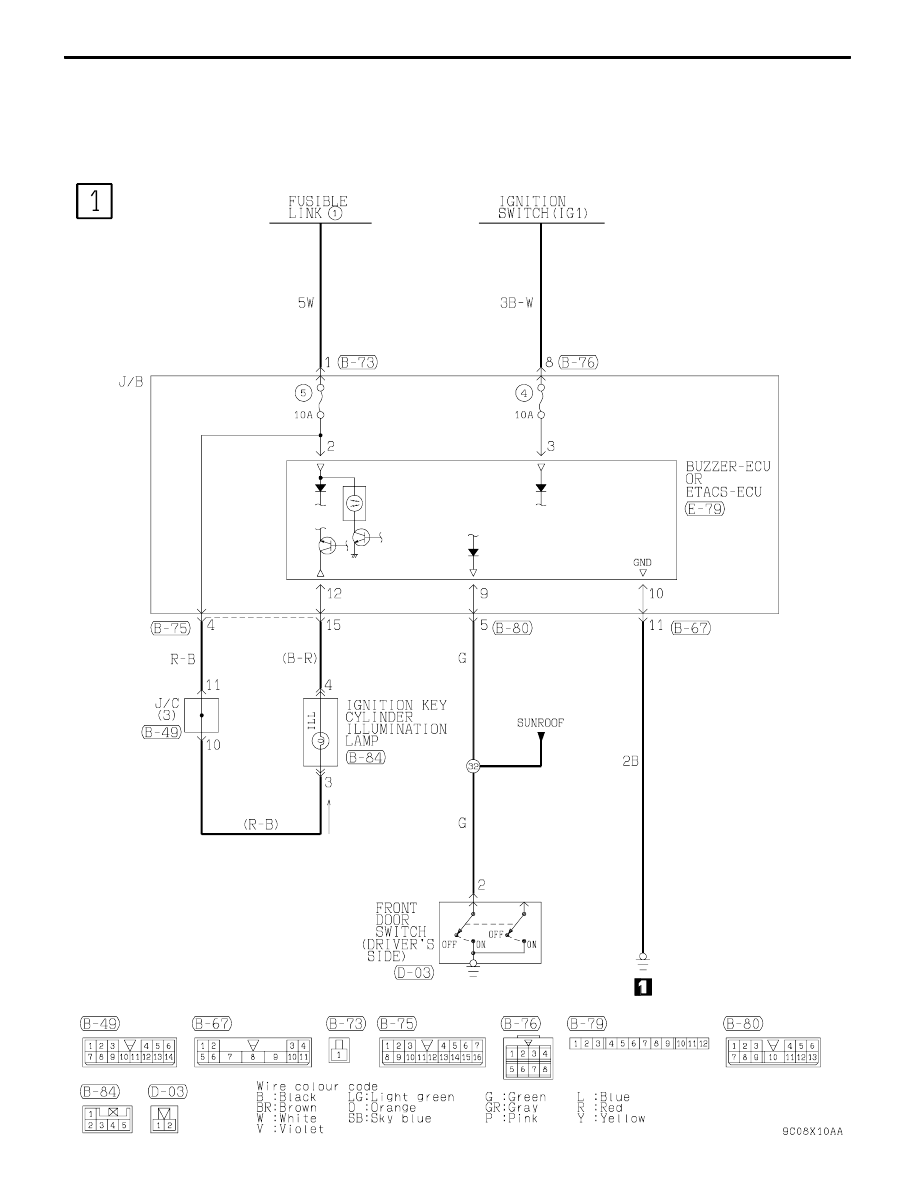

IGNITION KEY CYLINDER ILLUMINATION LAMP

C-47

NOTES
