NOTES

54-1

CHASSIS

ELECTRICAL

CONTENTS

GENERAL

3

. . . . . . . . . . . . . . . . . . . . . . . . . .

BATTERY

3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATION

3

. . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

3

. . . . . . . . . . . . . . . . . .

IGNITION SWITCH <EXCEPT
EVOLUTION-VI WITH IMMOBILIZER
SYSTEM>

6

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOL

6

. . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

6

. . . . . . . . . . . . . . . . . . . .

IGNITION SWITCH

11

. . . . . . . . . . . . . . . . . . . . . .

IGNITION SWITCH AND IMMOBILIZER
SYSTEM <EVOLUTION-VI WITH
IMMOBILIZER SYSTEM>

13

. . . . . . . . . . .

SPECIAL TOOL

13

. . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

13

. . . . . . . . . . . . . . . . . .

IGNITION SWITCH AND IMMOBILIZER
SYSTEM

19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMBINATION METERS

22

. . . . . . . . . . . .

SERVICE SPECIFICATIONS

22

. . . . . . . . . . . .

SEALANT

23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

23

. . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

24

. . . . . . . . . . . . . . . . . .

CONTINUED ON NEXT PAGE

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) The service personnel must thoroughly review this manual, and especially its GROUP 52B – Supplemental Restraint

System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.

(2) When removing or installing the components indicated in the table of contents by an astarisk (*), use utmost care so

as not to apply any strong shock to SRS components.

NOTE
The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring and interconnecting
wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance) are
indicated in the table of contents by an asterisk (*).

54-2

ON-VEHICLE SERVICE

27

. . . . . . . . . . . . . . . .

COMBINATION METERS

30

. . . . . . . . . . . . . . .

HEADLAMP

32

. . . . . . . . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

32

. . . . . . . . . . . .

SPECIAL TOOLS

32

. . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

33

. . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

34

. . . . . . . . . . . . . . . .

HEADLAMP AND FRONT TURN-SIGNAL
LAMP*

36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FRONT FOG LAMP

39

. . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

39

. . . . . . . . . . . .

ON-VEHICLE SERVICE

39

. . . . . . . . . . . . . . . .

FOG LAMP

41

. . . . . . . . . . . . . . . . . . . . . . . . . . .

REAR COMBINATION LAMP*

42

. . . . . . .

TROUBLESHOOTING

42

. . . . . . . . . . . . . . . . . .

REAR COMBINATION LAMP*

42

. . . . . . . . . .

SIDE TURN-SIGNAL LAMP

43

. . . . . . . . .

SPECIAL TOOL

43

. . . . . . . . . . . . . . . . . . . . . . .

SIDE TURN-SIGNAL LAMP

43

. . . . . . . . . . . .

HAZARD WARNING LAMP
SWITCH, CLOCK

44

. . . . . . . . . . . . . . . . . . .

SPECIAL TOOL

44

. . . . . . . . . . . . . . . . . . . . . . .

HAZARD WARNING LAMP SWITCH

44

. . . .

RADIO AND TAPE PLAYER

45

. . . . . . . .

TROUBLESHOOTING

45

. . . . . . . . . . . . . . . . . .

RADIO AND TAPE PLAYER

47

. . . . . . . . . . . .

SPEAKER

47

. . . . . . . . . . . . . . . . . . . . . . . . .

ANTENNA

48

. . . . . . . . . . . . . . . . . . . . . . . . .

POLE ANTENNA

48

. . . . . . . . . . . . . . . . . . . . . .

REAR WINDOW ANTENNA AND GLASS
DIVERSITY ANTENNA

49

. . . . . . . . . . . . . . . . .

REAR WINDOW DEFOGGER

50

. . . . . . .

TROUBLESHOOTING <VEHICLES WITH
AUTOMATIC A/C>

50

. . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

50

. . . . . . . . . . . . . . . .

REAR WINDOW DEFOGGER SWITCH
<VEHICLES WITH AUTOMATIC A/C>

51

. . .

CHASSIS ELECTRICAL –

General / Battery

54-3

GENERAL

Outline of Change

D

The following service procedures have been incorporated.

BATTERY

SERVICE SPECIFICATION

Item

Specification

Specific gravity of the battery fluid

1.220–1.290 [20

_

C]

ON-VEHICLE SERVICE

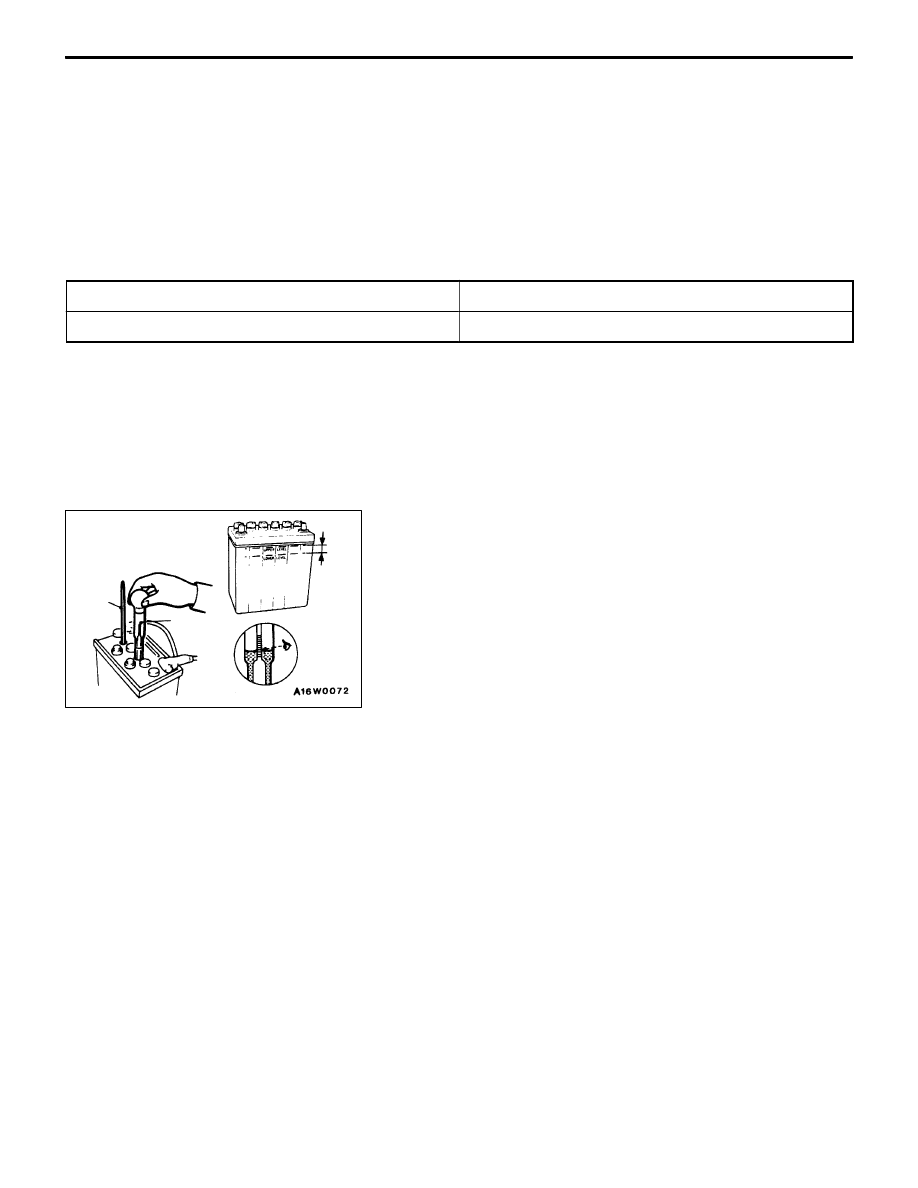

FLUID LEVEL AND SPECIFIC GRAVITY CHECK

1.

Inspect whether or not the battery fluid is between the
UPPER LEVEL and LOWER LEVEL marks.

2.

Use a hydrometer and thermometer to check the specific
gravity of the battery fluid.

Standard value: 1.220– 1.290 [20

_

C]

The specific gravity of the battery fluid varies with the
temperature, so use the following formula to calculate
the specific gravity for 20

_

C. Use the calculated value

to determine whether or not the specific gravity is
satisfactory.

D

20

=Dt+0.0007 (t– 20)

D

20

: Specific gravity of the battery fluid calculated

for 20

_

C.

Dt: Actually measured specific gravity

t: Actually measured temperature

Ther-
mometer

Hydrometer

Good
