GENERAL  –

Precautions Before Service

00-17

MUT-

II

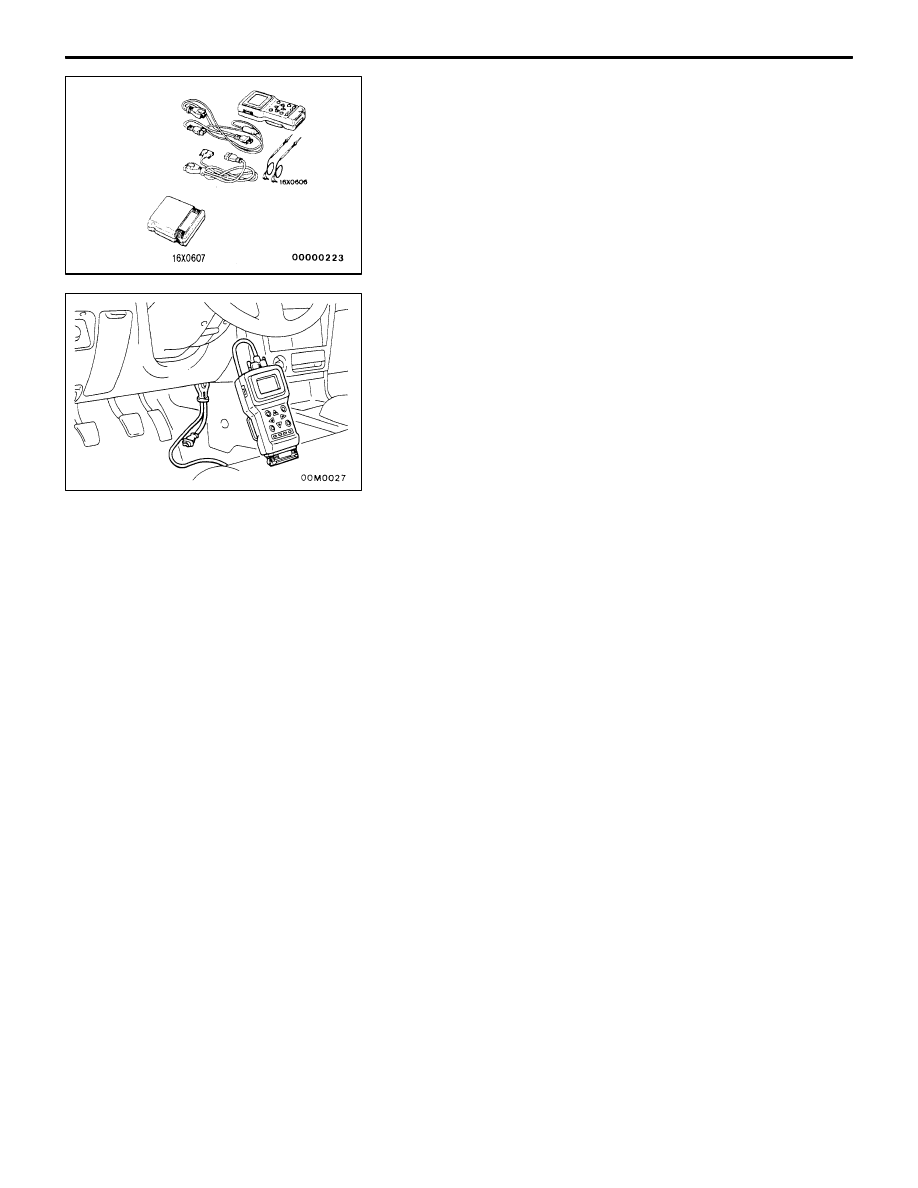

Refer to the MUT-

II

 INSTRUCTION MANUAL for instructions

on handling the MUT-

II

.

Connect the MUT-

II

 to the diagnosis connector as shown

in the illustration.

Caution
Connection and disconnection of the MUT-

II

 should

always be made with the ignition switch in the OFF
position.

MUT-

II



sub-assembly

ROM pack

GENERAL  –

Support Locations for Lifting and Jacking

00-18

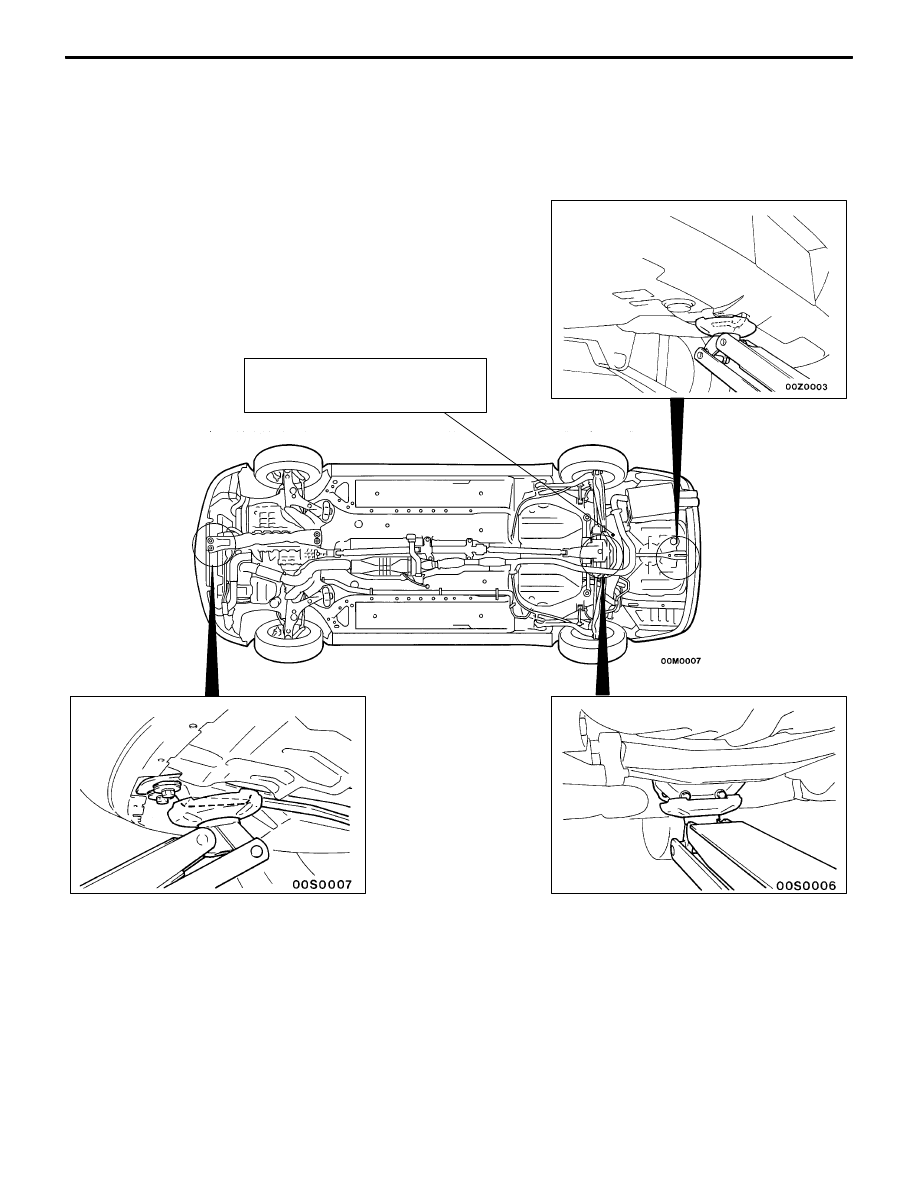

SUPPORT LOCATIONS FOR LIFTING AND JACKING

GARAGE JACK

Caution
Do not support the vehicles at locations other than specified supporting points. Neglecting this
will cause damage, etc.

Caution
Never support the rear floor
crossmember.

GENERAL  –

Support Locations for Lifting and Jacking

00-19

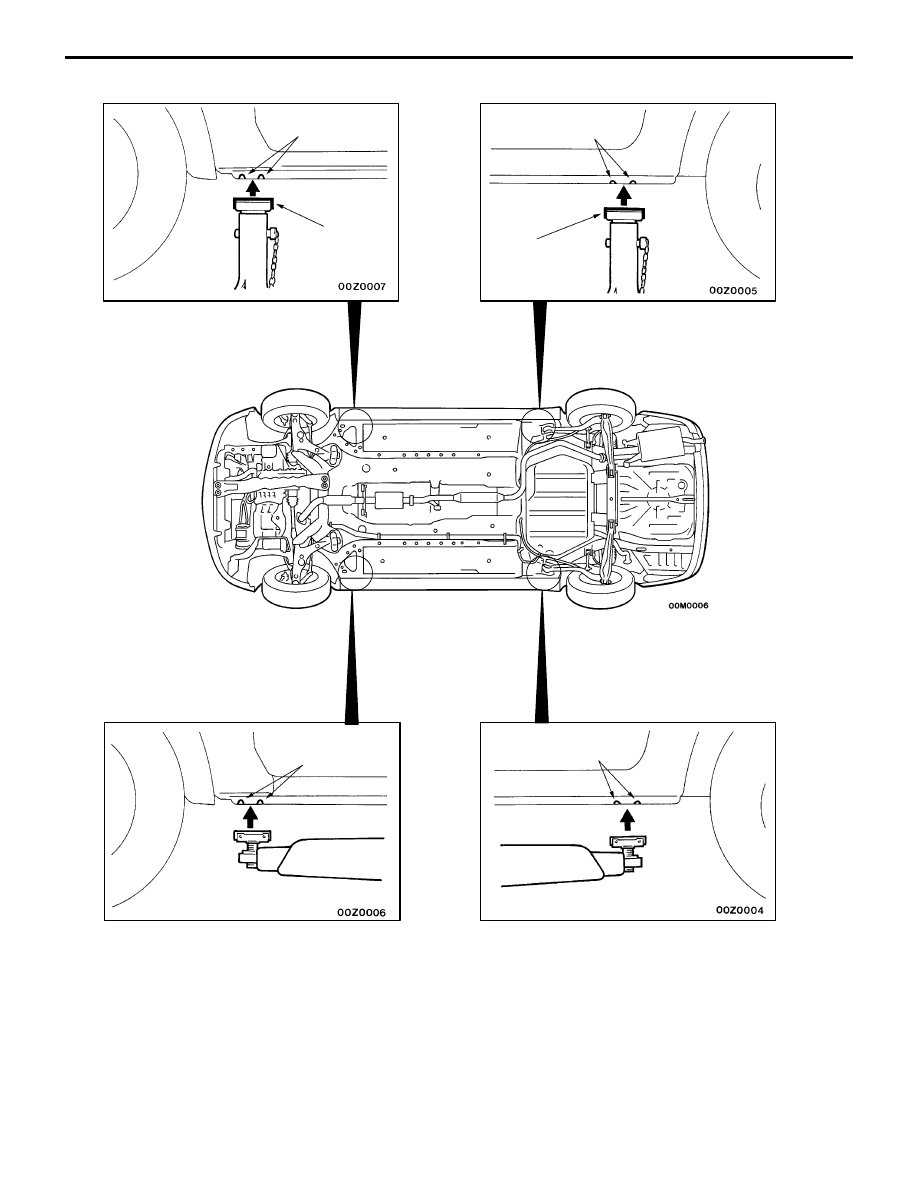

AXLE STANDS

SINGLE-POST AND
DOUBLE-POST LIFT

Notch

Rubber

Rubber

Notch

Notch

Notch

GENERAL  –

Special Handling Instruments for Towing

00-20

SPECIAL HANDLING INSTRUMENTS FOR TOWING

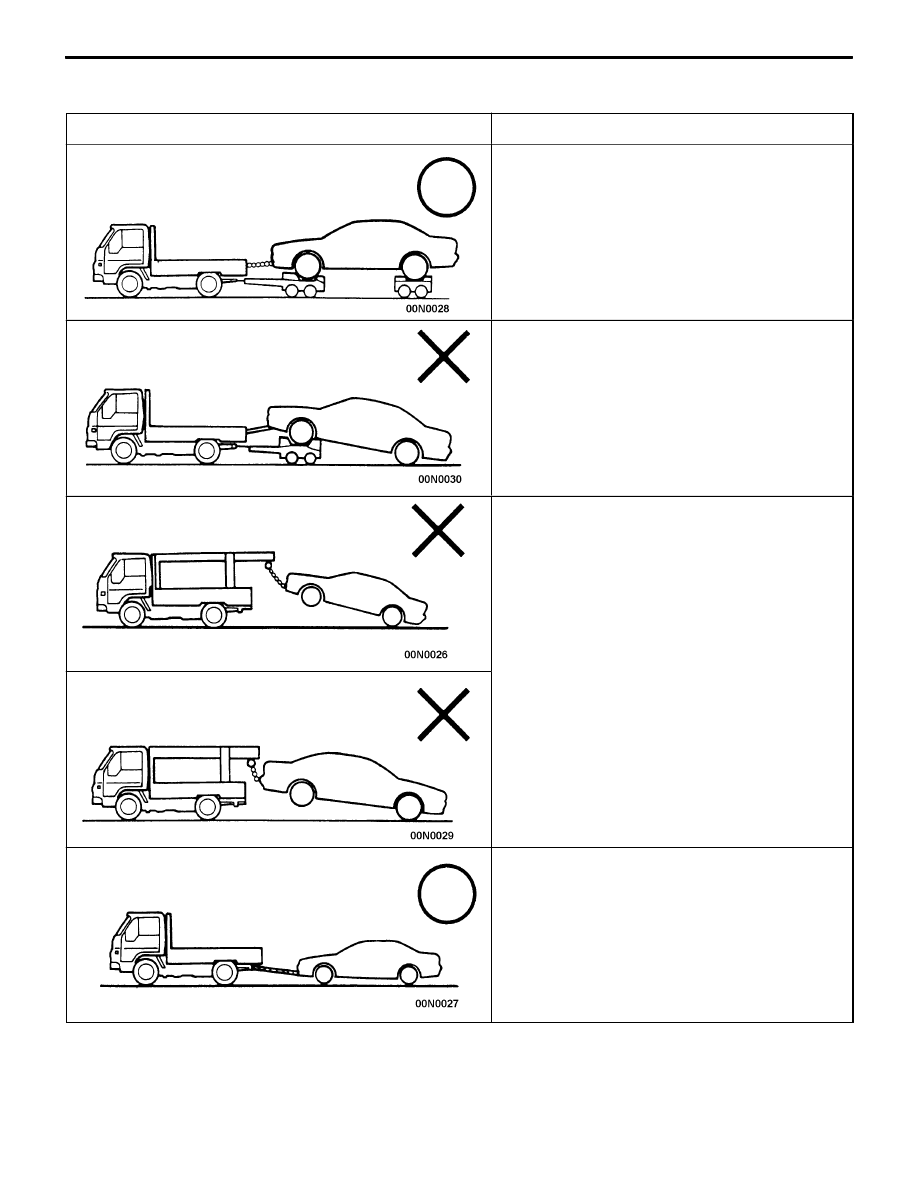

Towing methods

Remarks

If a tow truck is used
Lifting method for 4 wheels – Good

D

For 4WD models, the basic principle is that all
four wheels are to be raised before towing.

D

The shift lever should be set to 1st gear and
the parking brake should be applied.

Front wheels lifted – No good

D

The vehicle must not be towed by placing only
its front wheels or only the rear wheels on a
rolling dolly, because to do so will result in
deterioration of the viscous coupling and result
in the viscous coupling causing the vehicle to
jump forward suddenly.

Front wheels lifted – No good

D

If only the front wheels or only the rear wheels
are lifted for towing, the bumper will be damaged.
In addition, lifting of the rear wheels causes
the oil to flow forward, and may result in heat
damage to the rear bushing of the transfer, and
so should never be done.

Rear wheels lifted – No good

Towing by rope or cable – Good

D

The front and rear wheels must rotate normally.

D

Both running and driving systems must function
normally.

D

The shift lever must be set to the neutral position
and the ignition key must be set to “ACC”.
