Mitsubishi Fuso Canter. Manual - part 1

1

CONTENTS

■ GENERAL INFORMATION

■ BASIC MODELS & SPECIFICATIONS

1. MODEL CODING SYSTEM

2. BODY CODING SYSTEM

3. EXTERIOR COLOR & INTERIOR CODE

4. CLASSIFICATION OF EXPORT VEHICLE SPECIFICATIONS

5. WEIGHTS DEFINITION

6. SPECIFIC GRAVITY OF GOODS

7. CONVERSION TABLE

NOTE

The information in this material is accurate as of the date of publication.
Mitsubishi Fuso Truck and Bus Corporation reserves the right to make
changes in the specification, equipment or design, or to discontinue
models or options without notice at any time.

8TG4K0E066

1. CAB & CHASSIS

FB
FB71A Series

Spec. No. FB71, 1 / 9

FE
FE71P / FE73P Series

Spec. No. FE71 / 73, 1 / 11

FE83P / FE84P Series

Spec. No. FE83 / 84, 1 / 13

FE85P Series

Spec. No. FE85P, 1 / 9

FE85C-Z Series

Spec. No. FE85C, 1 / 9

FG
FG83P Series

Spec. No. FG83, 1 / 9

2. CARGO & DUMP TRUCK

CARGO TRUCK
FB71A Series

Spec. No. FB71-C, 1 / 2

FE71P Series

Spec. No. FE71-C, 1 / 2

FE73P Series

Spec. No. FE73-C, 1 / 2

FE83P Series

Spec. No. FE83-C, 1/ 2

FE83P-W Series

Spec. No. FE83W-C, 1 / 2

FE84P Series

Spec. No. FE84-C, 1 / 2

FE85P Series

Spec. No. FE85P-C, 1 / 2

FE85C-Z Series

Spec. No. FE85C-C, 1 / 2

FG83P Series

Spec. No. FG83-C, 1 / 2

FG83P-W Series

Spec. No. FG83W-C, 1 / 2

DUMP TRUCK
FE71PBD4 Series

Spec. No. FE71-D, 1 / 2

FE83PCD6 Series

Spec. No. FE83-D, 1 / 2

2

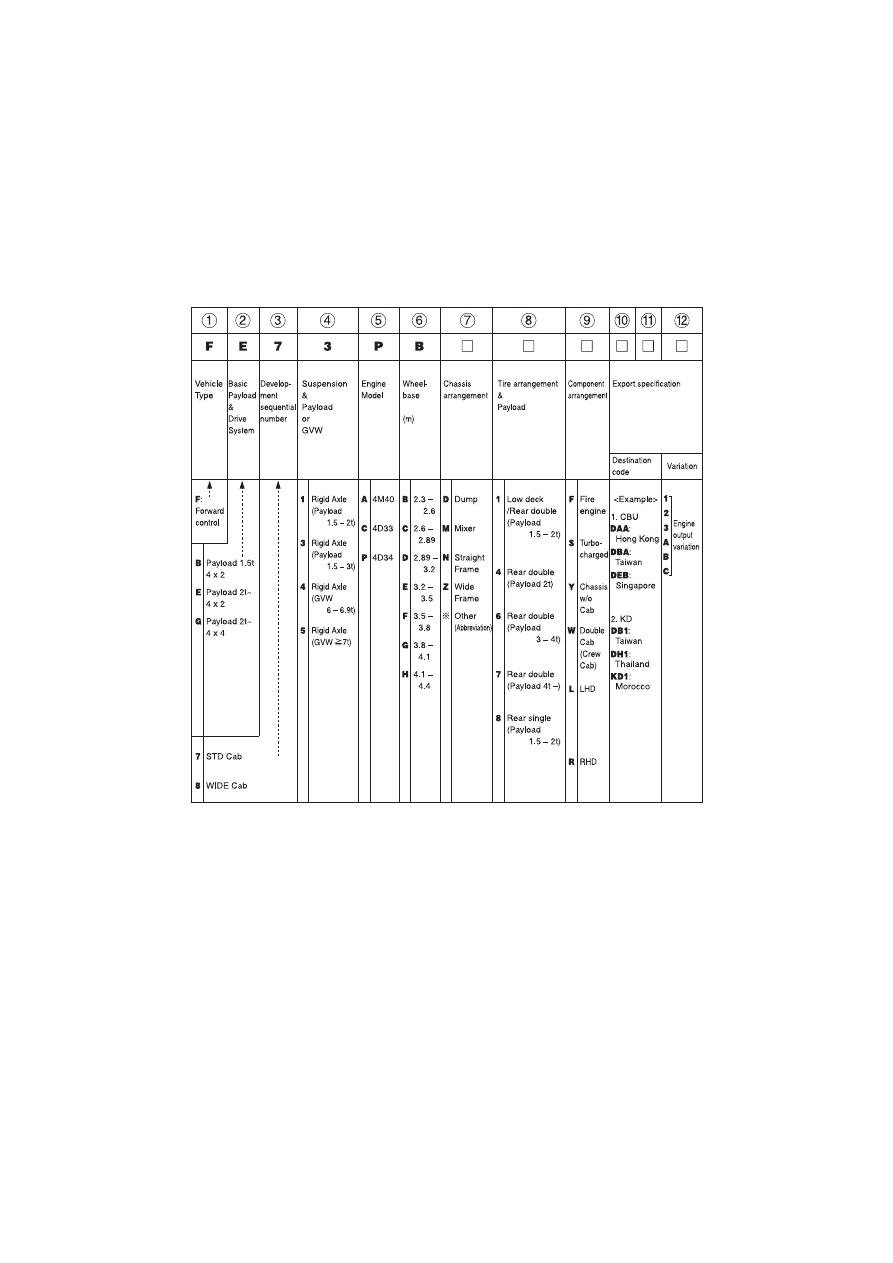

1. MODEL CODING SYSTEM

■

GENERAL INFORMATION

3

CARGO

2. BODY CODING SYSTEM

The BODY CODE mentioned the specification sheets of MITSUBISHI FUSO truck is used for
MFTBC production arrangement, which is classified as mentioned below.

You are kindly requested to use BODY TYPE (EX: WOODEN CARGO) and BODY CODE (EX: CA)
at your order, so that we can follow your requiment adequately.

NOTE: CODE of  TRUCK CHASSIS WITH CAB”

→

AA”

”

”

DUMP

BODY CODE

CA

CS

DA

DB

DC

DD

WOODEN  CARGO

ALL STEEL CARGO

DROP TAIL

DROP SIDE & TAIL

DROP TAIL, U-SECTION

SCOOP END

BODY TYPE

PAINT NAME

FB, FE, FG

Cab & Chassis / Cab & Chassis with Body

W31

Natural White

Standard

B00

Sonic Blue

Option

G58

Forest Green

Option

T89

Shannon Blue

Option

INTERIOR CODE

00G

EXTERIOR

COLOR CODE

3. EXTERIOR COLOR & INTERIOR CODE

4

4. CLASSIFICATION OF EXPORT VEHICLE SPECIFICATIONS

(1) Results of a detailed analysis of past export achievements conspicuously show features
by area, such as the adoption of snorkel-type air intake in the Middle East and Africa and the
adoption of two-speed rear axle in Latin America. Equipment and accessories show a similar
tendency.
Deciding specifications by country and order looks as if it satisfies the requirements of the
owners greatly. However, besides making production and sales control of the manufacturer
and the sales agents complex and increasing the cost burden of the manufacturer, it results
in unsatisfactory supply of accessorial parts arising from confusion in specification control
(parts picked erroneously or missing parts, delay in delivery), raising fears of betraying the
owners’ reliance on the vehicles in the
long run. There have been such instances.
Export specifications have been therefore,
established as shown in Fig. 1 on the basis
of results of inspection trips made by
MITSUBISHI FUSO engineers in various
places overseas and experience acquired
through business talks conducted, field
service report and orders received so far.
Production and supply activities have
been conducted in accordance with the
classification of export specifications.

Coping with  market
    adaptability

Covering merchandis-

ability overseas

Coping with  owners' needs

Regional

Spec.

Option

Variation

MODEL

Basic Spec.

(2) The classification of export specifications and their details are as follows.

Basic Specifications

1. Equipment standards that form the basis of

publicity material, parts catalogues, etc.,
but do not include options.

2. Equipment level that becomes the standard

for cost and price calculations.

3. Standard specifications for design

arrangements.

Details are shown in this
book.

Regional Specifications

Tentative Specifications

Options

1. Drive line combinations.
2. Equipment, accessories.

1. Specifications established beforehand by

area.

2. Specifications established beforehand by

principal destination.

1. Special specifications when orders are

received intermittently for small numbers.

2. Special specifications at time of spot deal

business.

To cope individually with
basic specifications plus
options.

To cope individually with
basic specifications plus
options.

Details are shown in this
book.

(3) The Export Vehicle Specifications in this material show the Basic Specifications and the
Regional Specifications are not described herein. The Regional Specifications are separately
established for market-by-market basic in order to comply with the respective laws, rules and
regulations such as for vehicular laws and traffic rules, to incorporate the specifications in
conformity with the service conditions, and to provide additional equipment and accessories
for meeting with the customers’ needs and market tendency. Thus, the Regional Specifications
are repeatedly revised in accordance with the needs from time to time.

(4) In the case of mounting the body on the cab & chassis, please refer to the  BODY
BUILDER’S DRAWING” of the technical information for installation (which is compiled and
issued for the vehicles separately by class-by-class basis).

”

Fig.1  Export Specifications Established
