Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 761

HEATER

TSB Revision

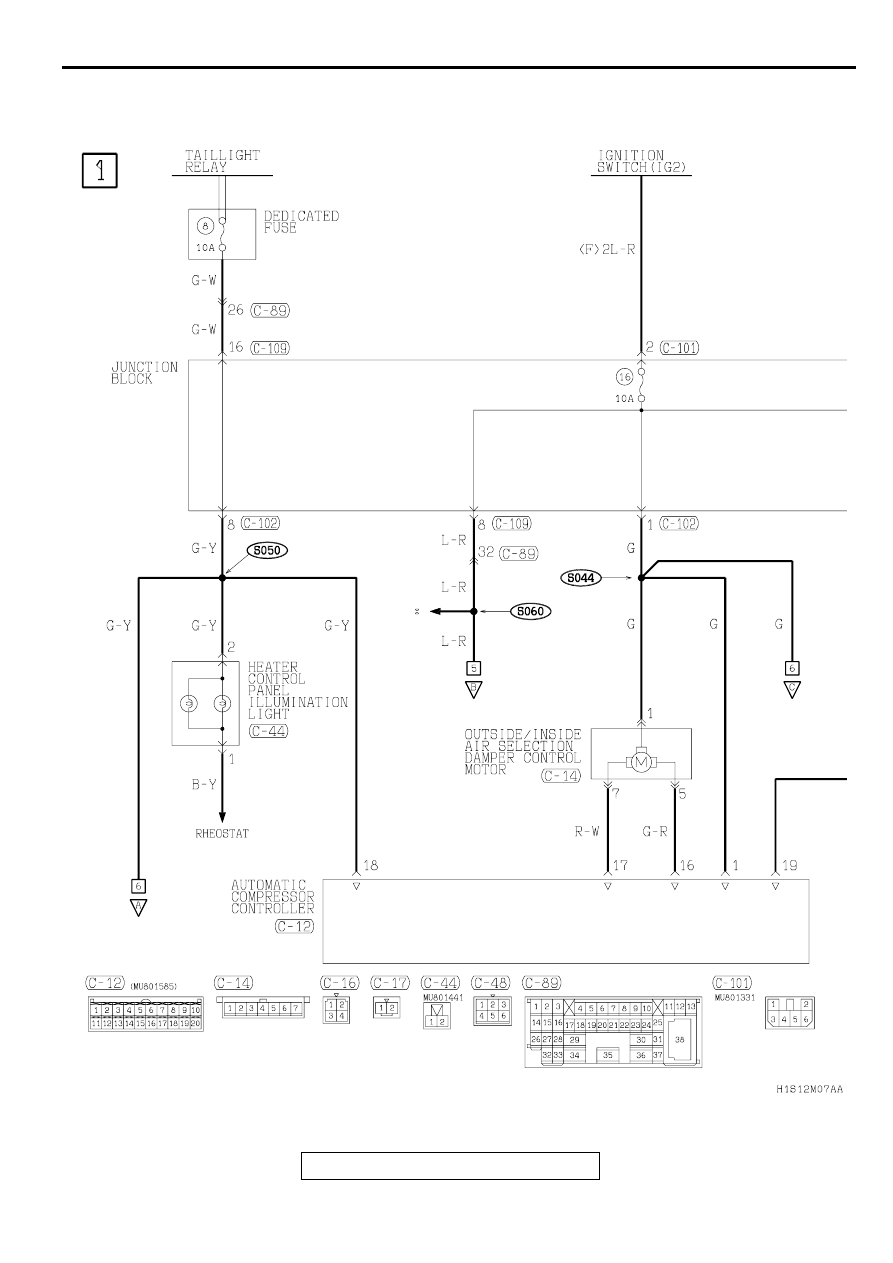

CIRCUIT DIAGRAMS

90-171

HEATER

TSB Revision

CIRCUIT DIAGRAMS

90-172

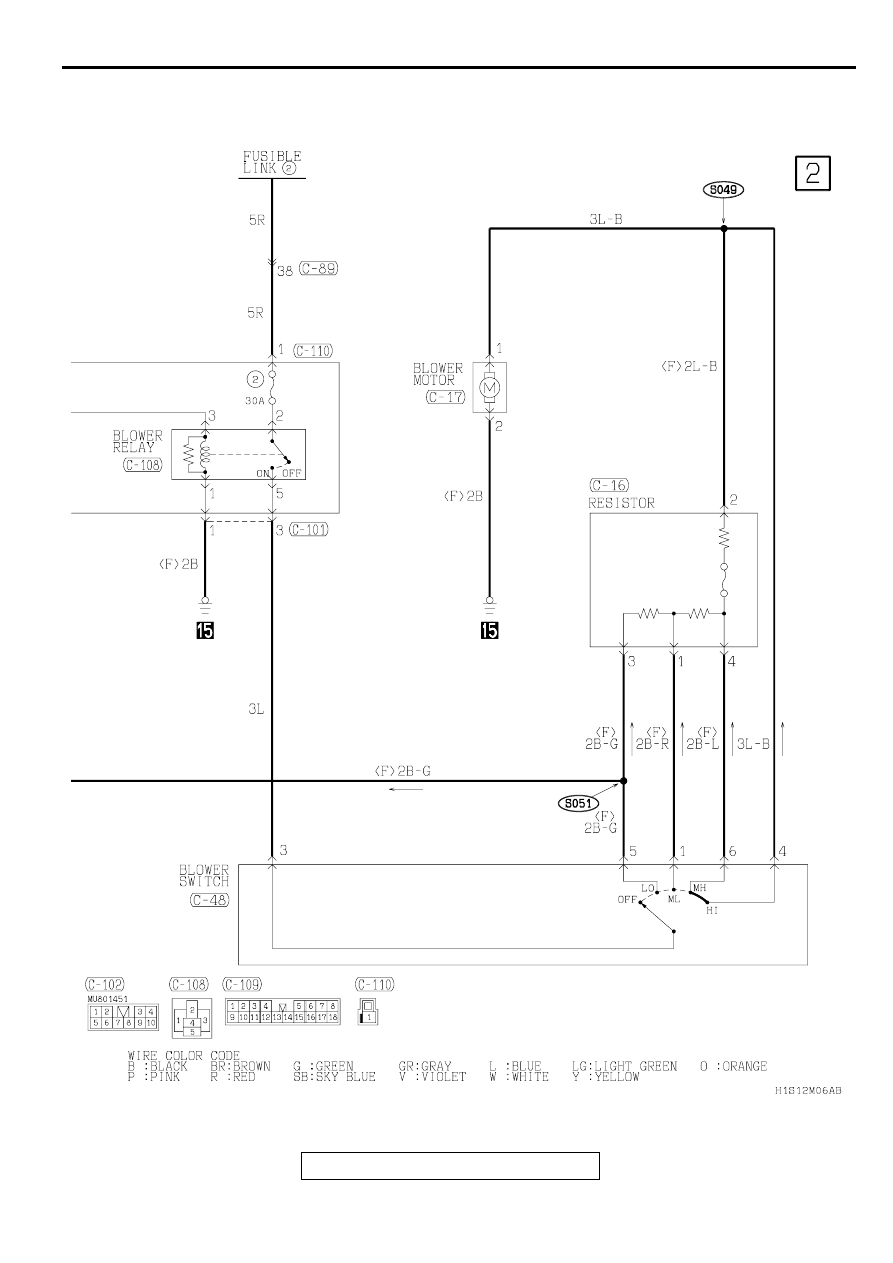

HEATER (CONTINUED)

HEATER

TSB Revision

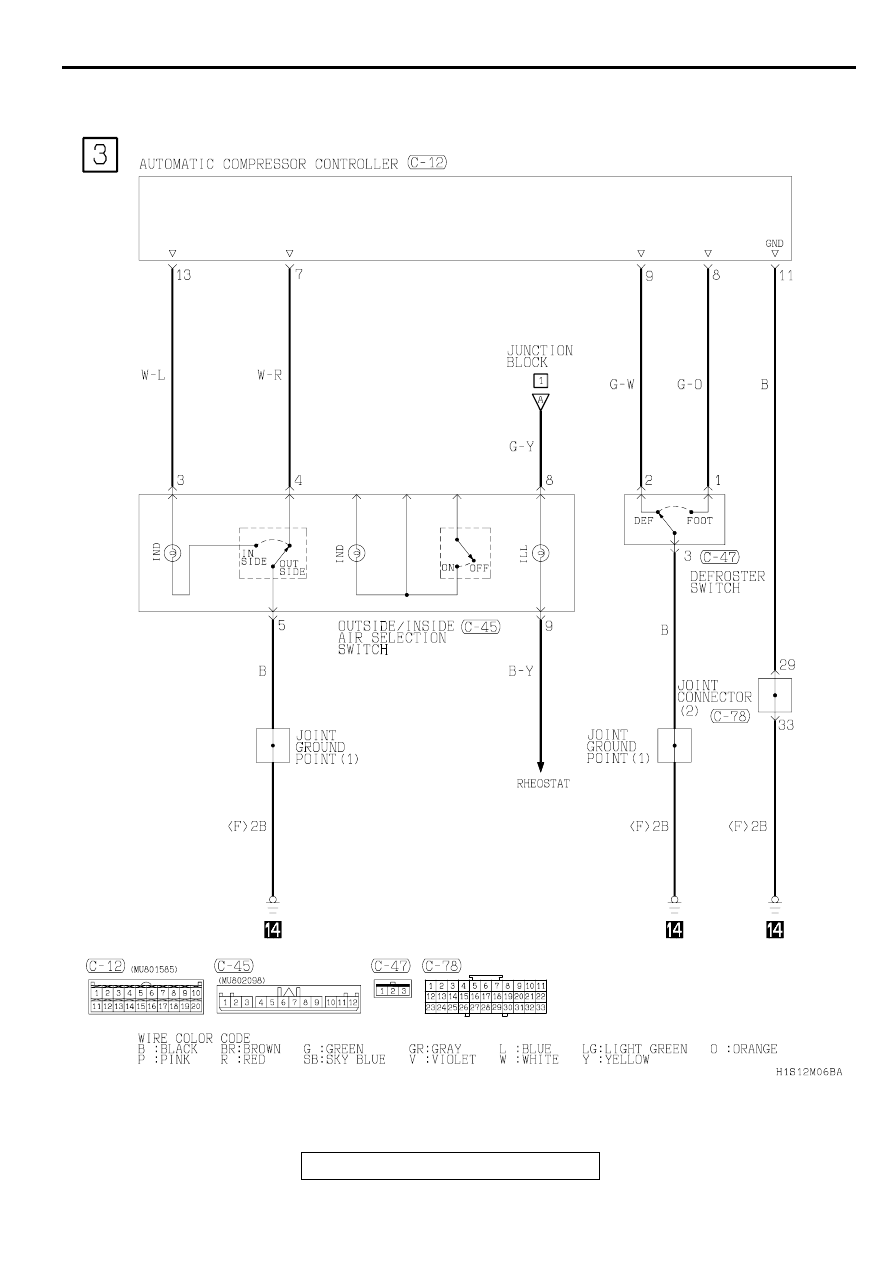

CIRCUIT DIAGRAMS

90-173

NOTES

AIR CONDITIONING SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-174

AIR  C O N D ITIO N ING  SYSTEM  <2.4L EN G IN E>

M1901005500161
