Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 735

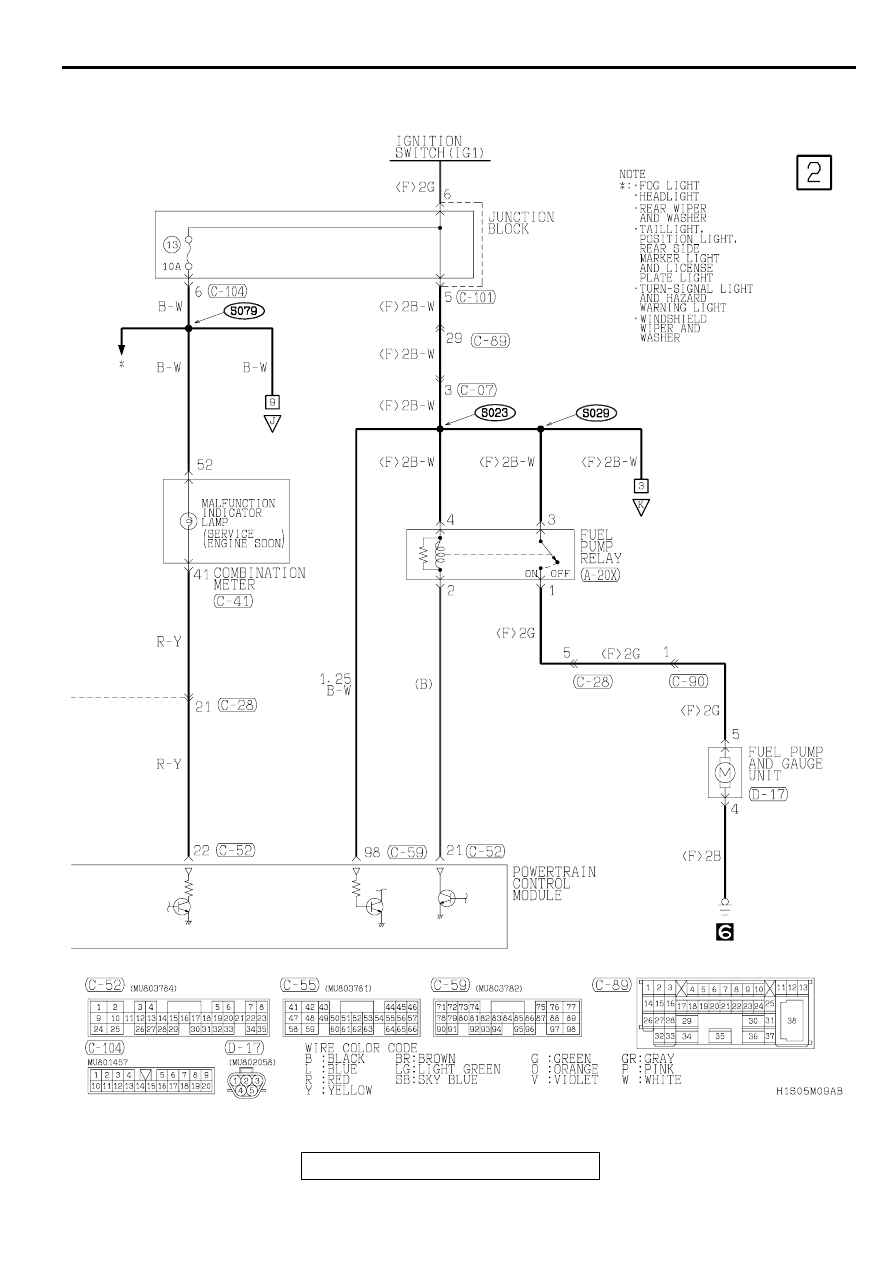

MFI SYSTEM <3.0L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-67

MFI SYSTEM <3.0L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-68

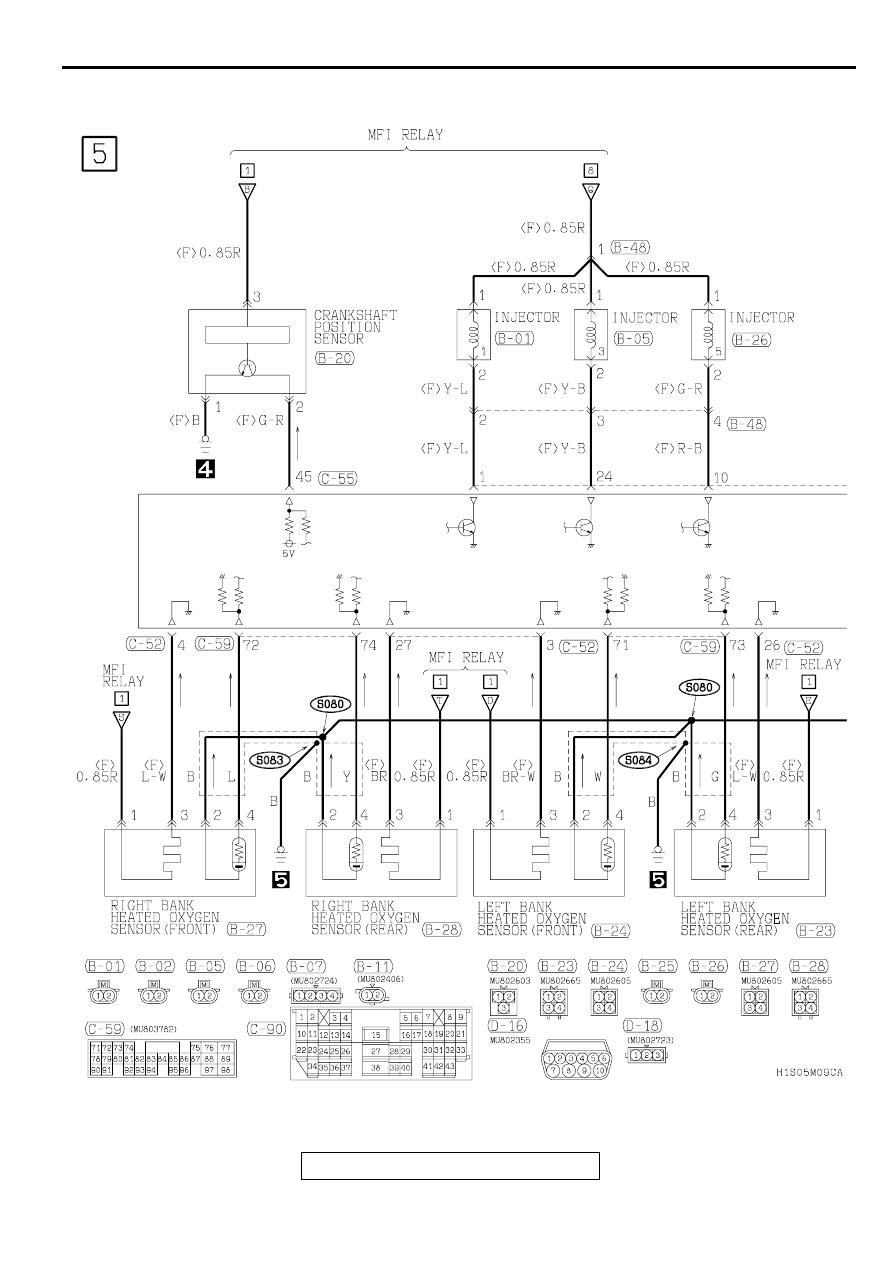

MFI SYSTEM <3.0L ENGINE-A/T> (CONTINUED)

MFI SYSTEM <3.0L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-69

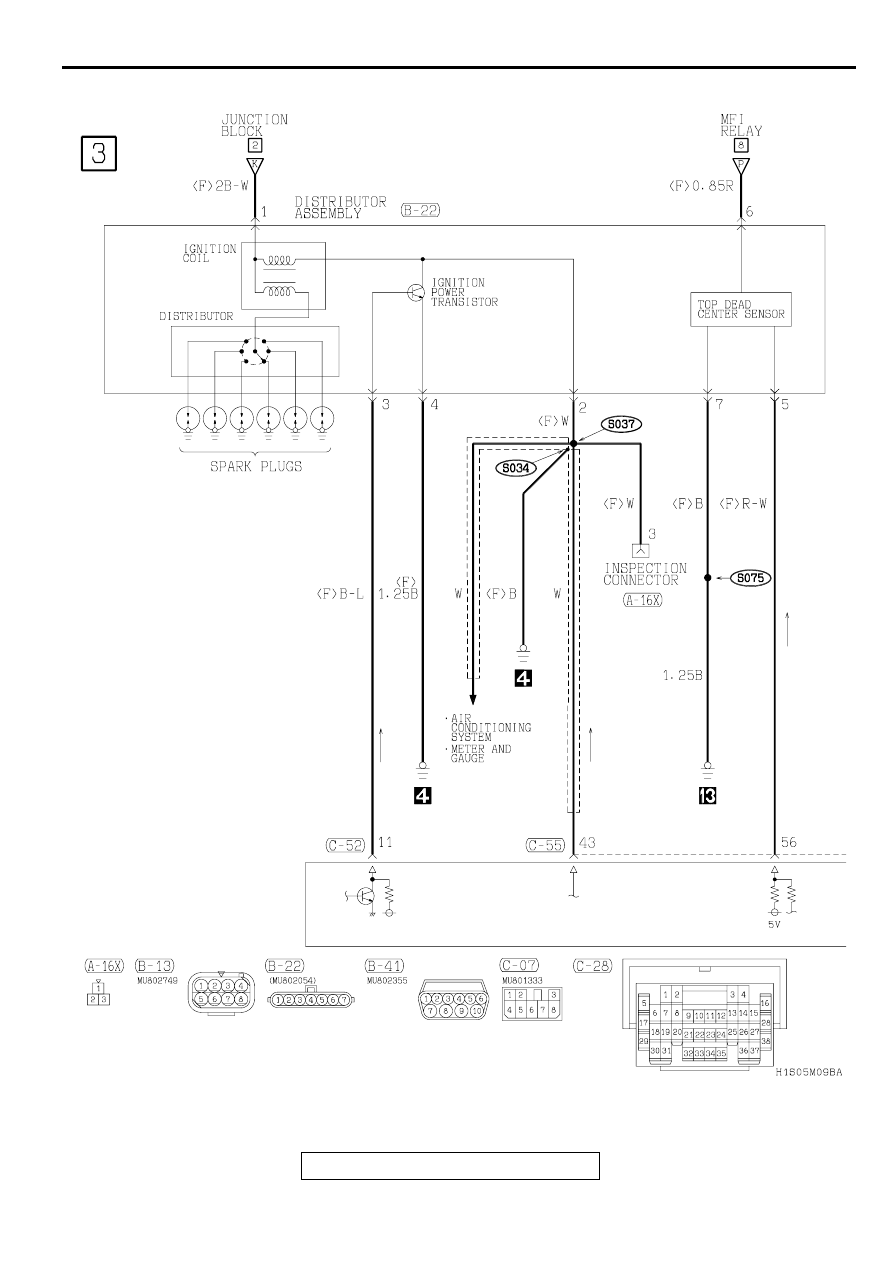

MFI SYSTEM <3.0L ENGINE-A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-70

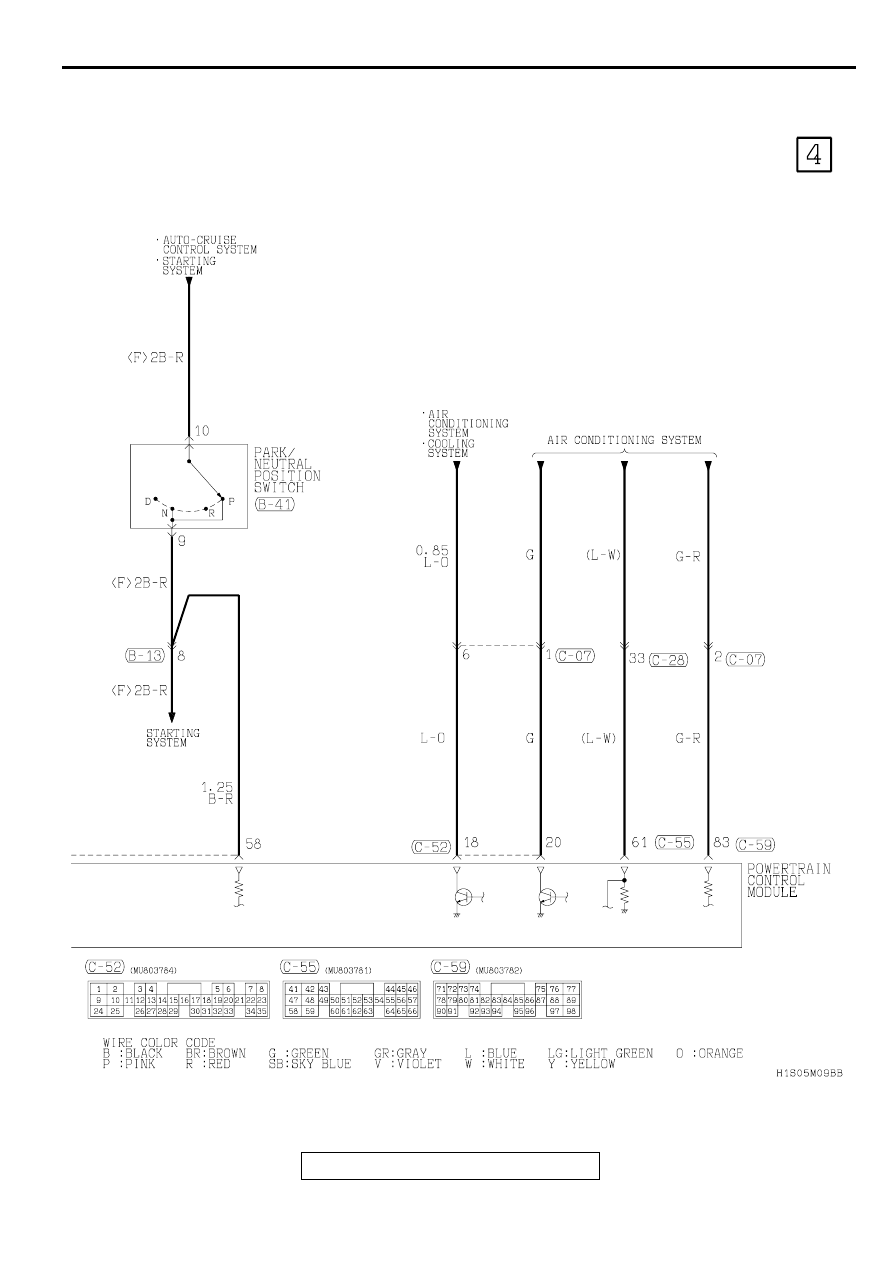

MFI SYSTEM <3.0L ENGINE-A/T> (CONTINUED)
