Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 728

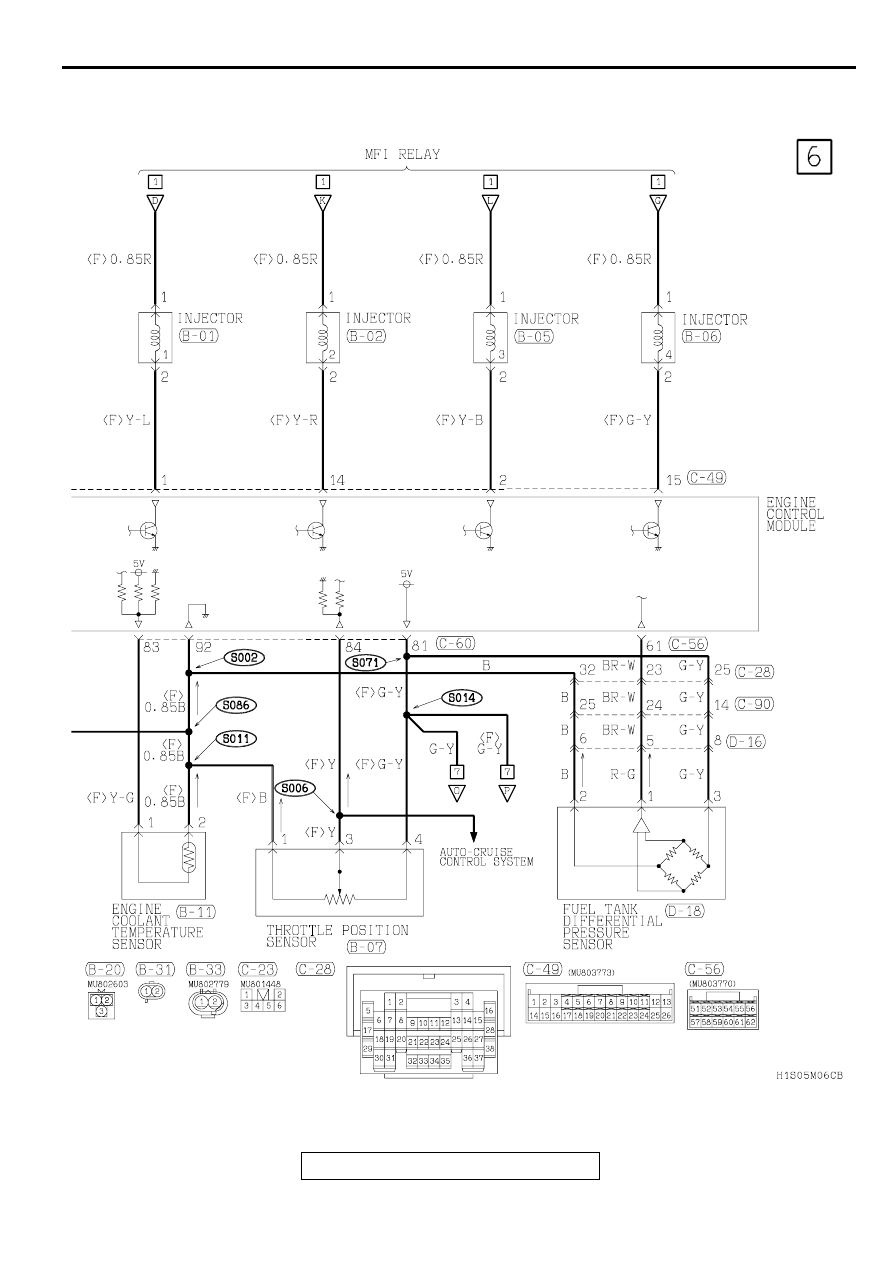

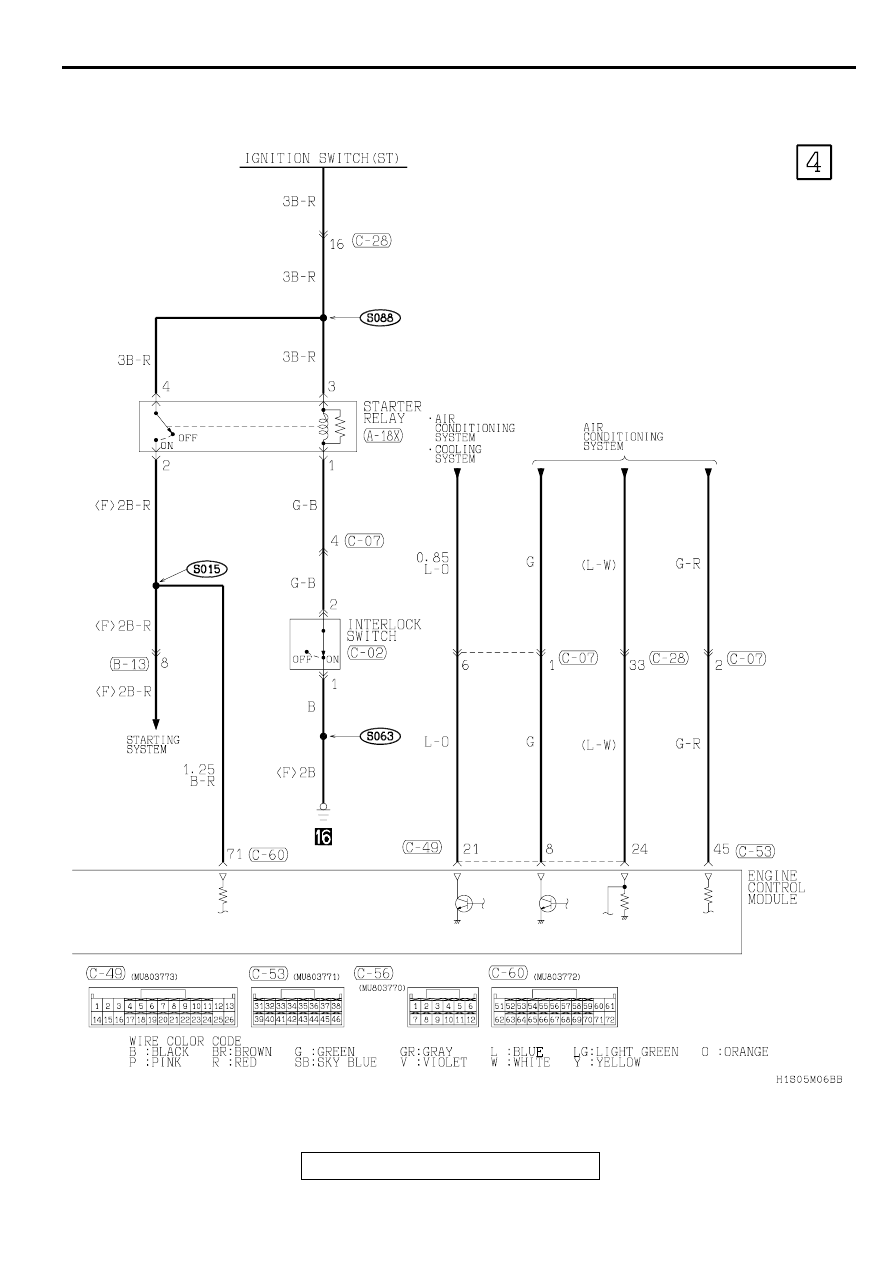

MFI SYSTEM <2.4L ENGINE-M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-39

MFI SYSTEM <2.4L ENGINE-M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-40

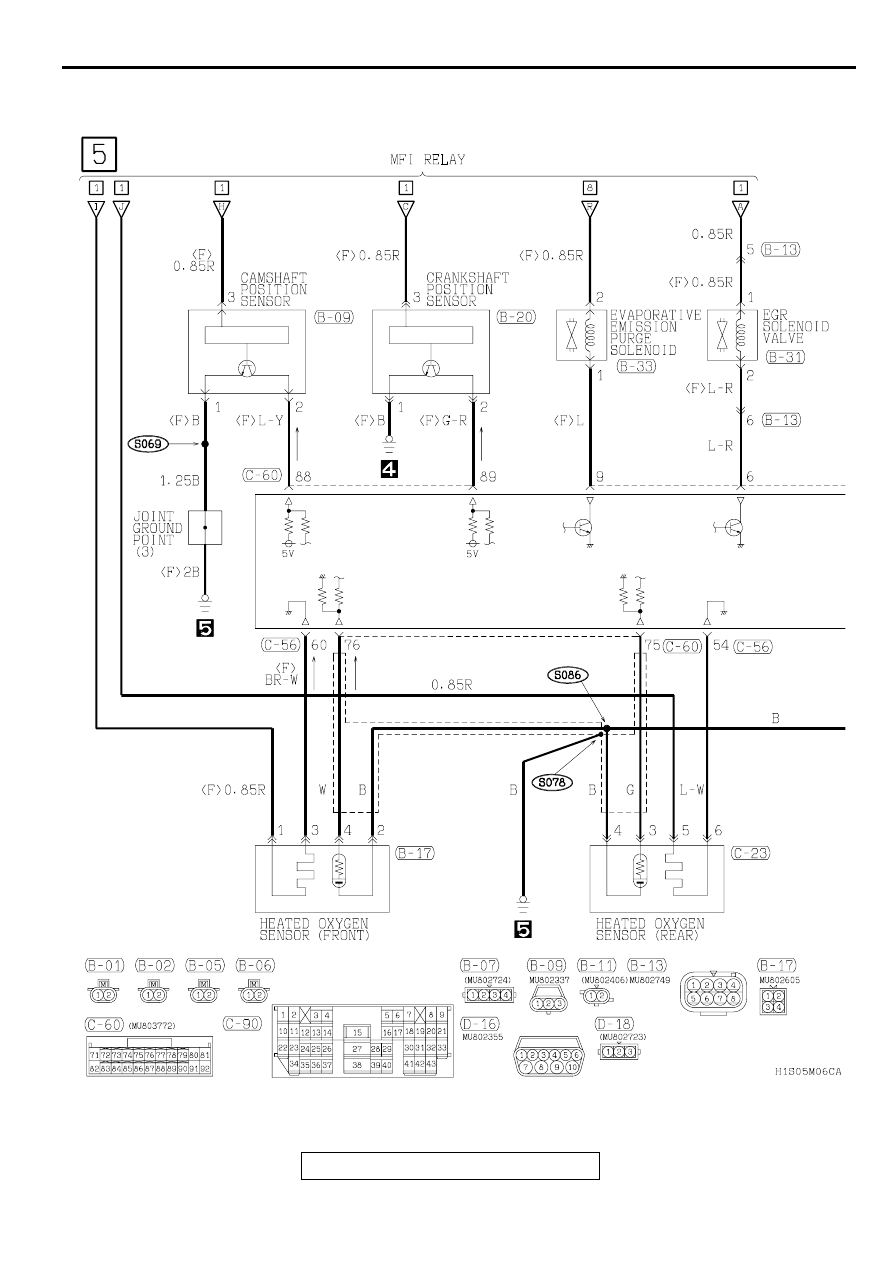

MFI SYSTEM <2.4L ENGINE-M/T> (CONTINUED)

MFI SYSTEM <2.4L ENGINE-M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-41

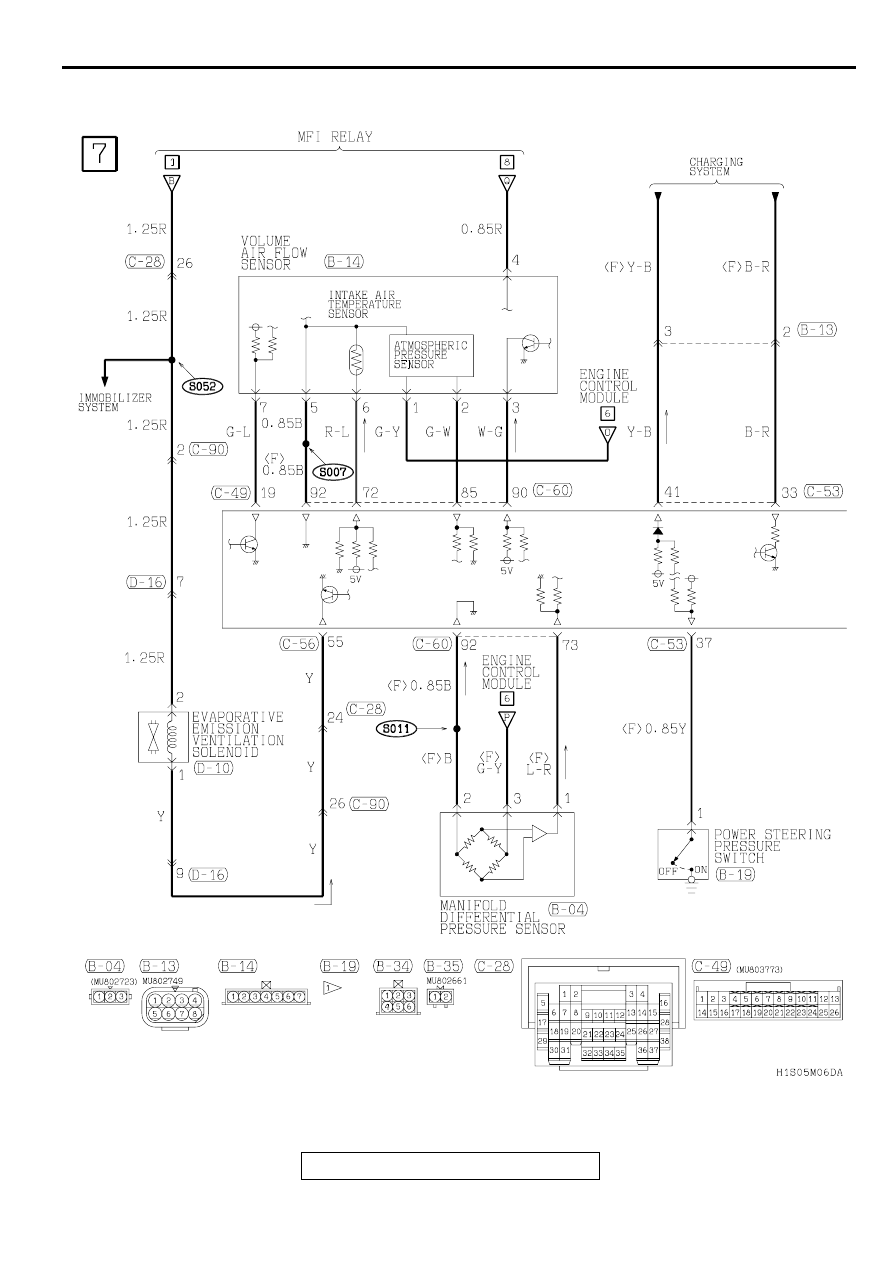

MFI SYSTEM <2.4L ENGINE-M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-42

MFI SYSTEM <2.4L ENGINE-M/T> (CONTINUED)
