Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 706

SENSOR

TSB Revision

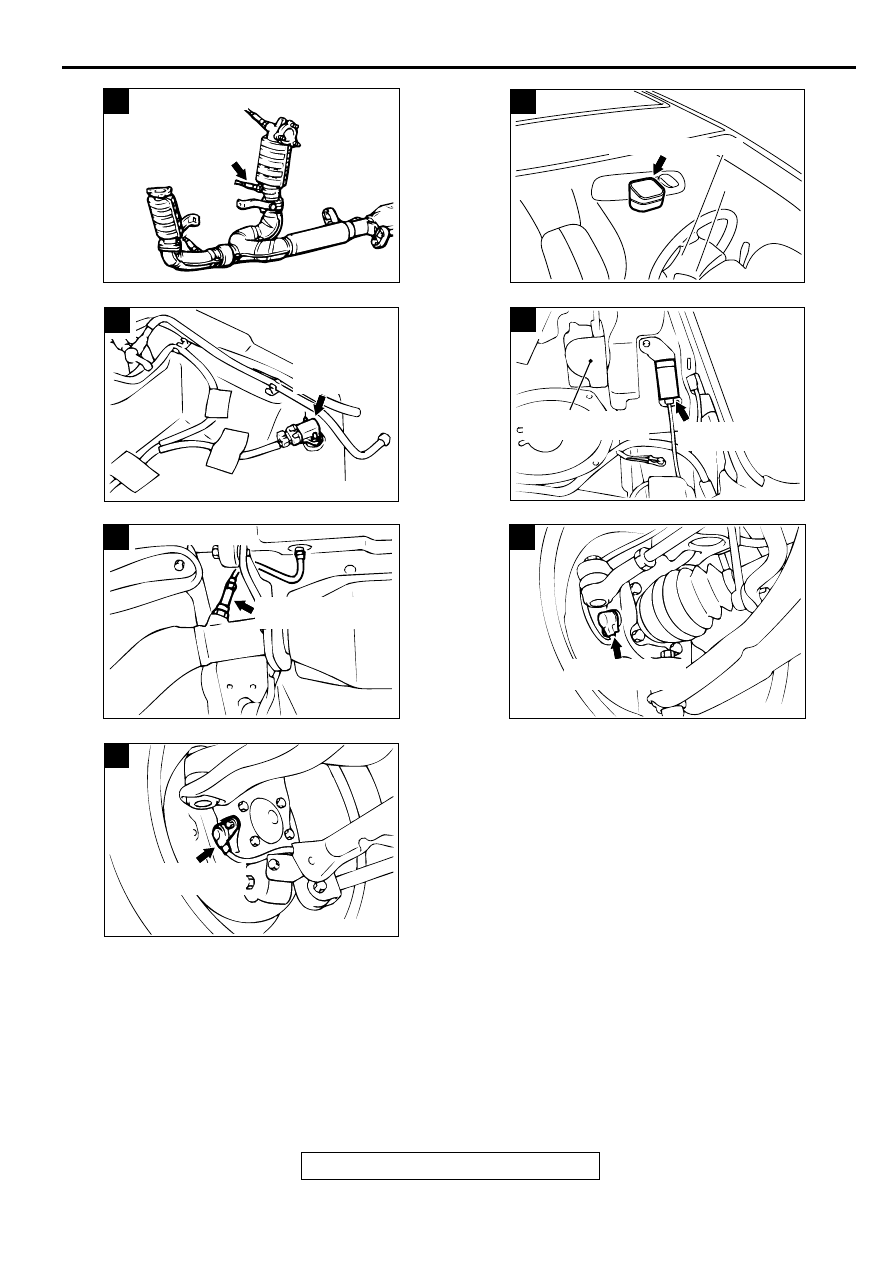

COMPONENT LOCATIONS

70-15

ACX02493

Y

AB

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

<3.0L ENGINE>

AC000007AD

COMPASS SENSOR

Z

ACX02494

a

AF

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

AC003106AB

SIDE IMPACT
SENSOR

FRONT SEAT BELT
RETRACTOR (LH)

b

ACX02495

c

AB

HEATED OXYGEN
SENSOR (REAR)

<2.4L ENGINE>

ACX02496AB

d

WHEEL SPEED
SENSOR (FRONT)

ACX02497

e

AB

WHEEL SPEED
SENSOR (REAR)

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-16

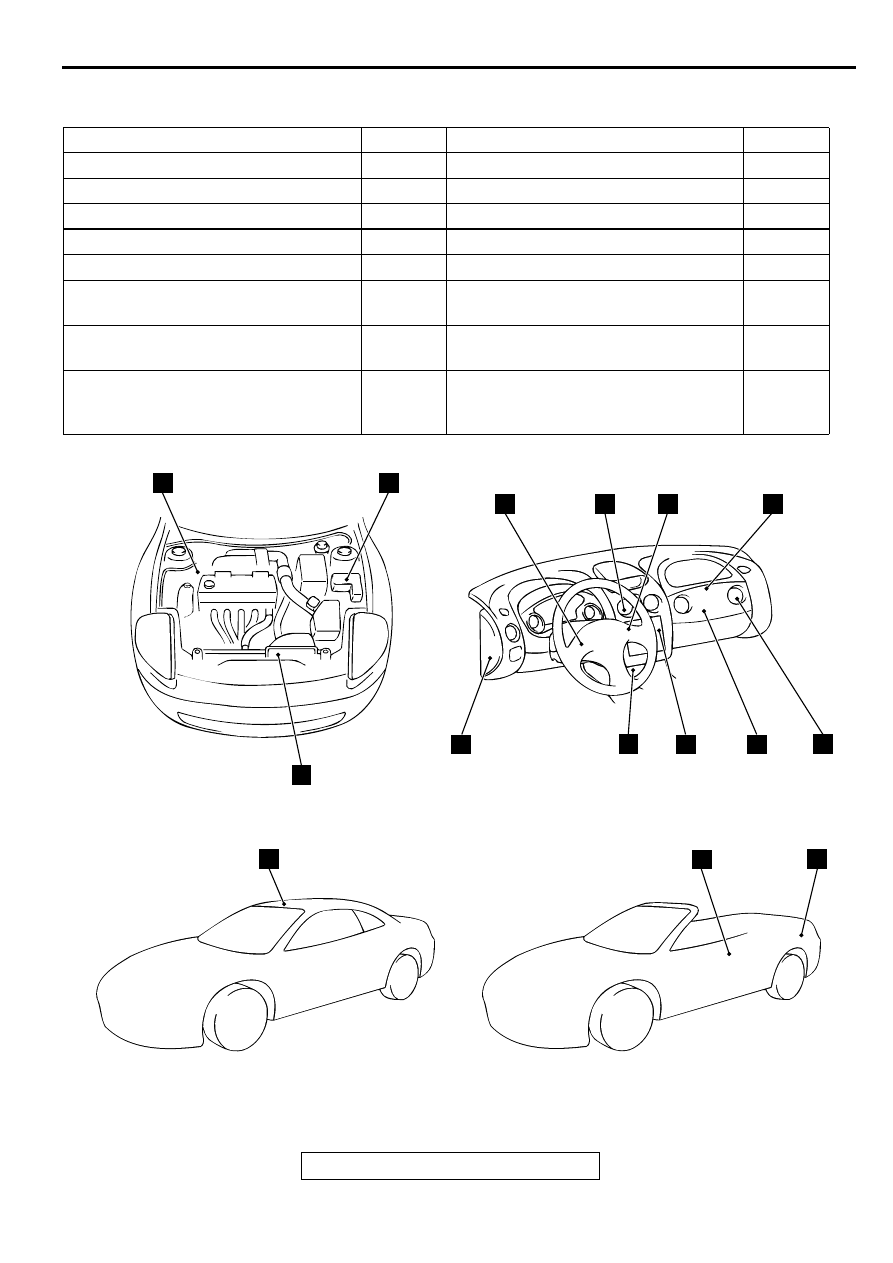

C O N TR O L U N IT

M1701000700081

NAME

SYMBOL NAME

SYMBOL

ABS-ECU

A

Fan controller

C

Auto-cruise control-ECU

F

Front-ECU

B

Automatic compressor controller <A/C> G

Immobilizer-ECU

J

Column-ECU

D

Multi center display unit

E

Compass-ECU

L

Powertrain control module <A/T>

K

Convertible top control module
<ECLIPSE SPYDER>

N

SRS-ECU

I

Engine control module <M/T>

K

Sunroof motor assembly (with built-in
CPU) <ECLIPSE>

M

ETACS-ECU

H

Motor antenna assembly (with built-in
motor antenna-ECU) <ECLIPSE SPY-
DER>

O

AC003124 AB

A

B

D

E

F

G

H

I

J

K

L

M

N

O

C

<ECLIPSE>

<ECLIPSE SPYDER>

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-17

ACX02499

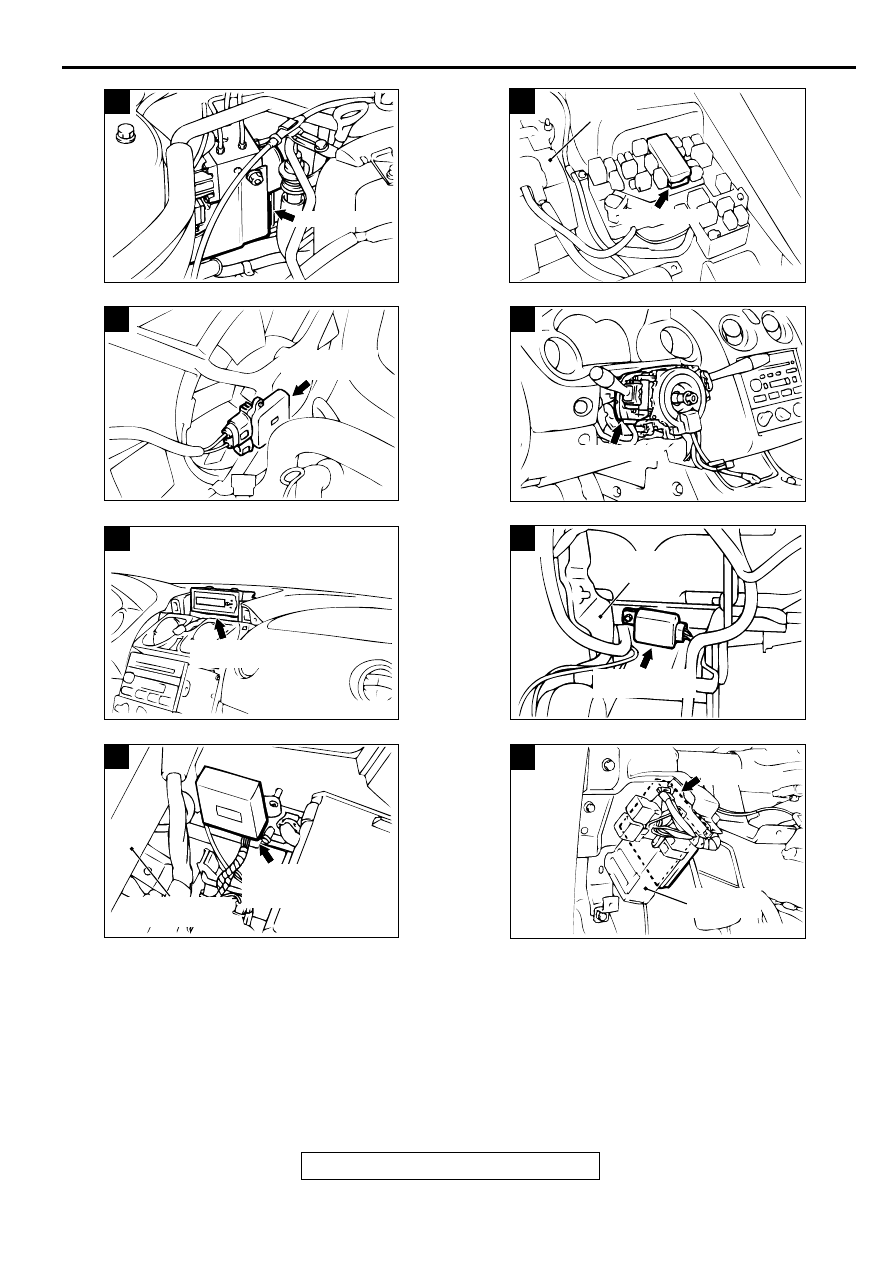

A

AB

ABS-ECU

ACX02500AB

FRONT-ECU

B

BATTERY

ACX02501AB

C

FAN
CONTROLLER

ACX02502 AC

COLUMN-ECU

D

ACX02503

E

AC

MULTI CENTER
DISPLAY UNIT

ACX02504AE

AUTO-CRUISE
CONTROL-ECU

CENTER
REINFORCEMENT

F

ACX02505

G

AE

AUTOMATIC
COMPRESSOR
CONTROLLER

FRONT DECK
CROSSMENBER

ACX02506AC

JUNCTION
BLOCK

ETACS-ECU

H

CONTROL UNIT

TSB Revision

COMPONENT LOCATIONS

70-18

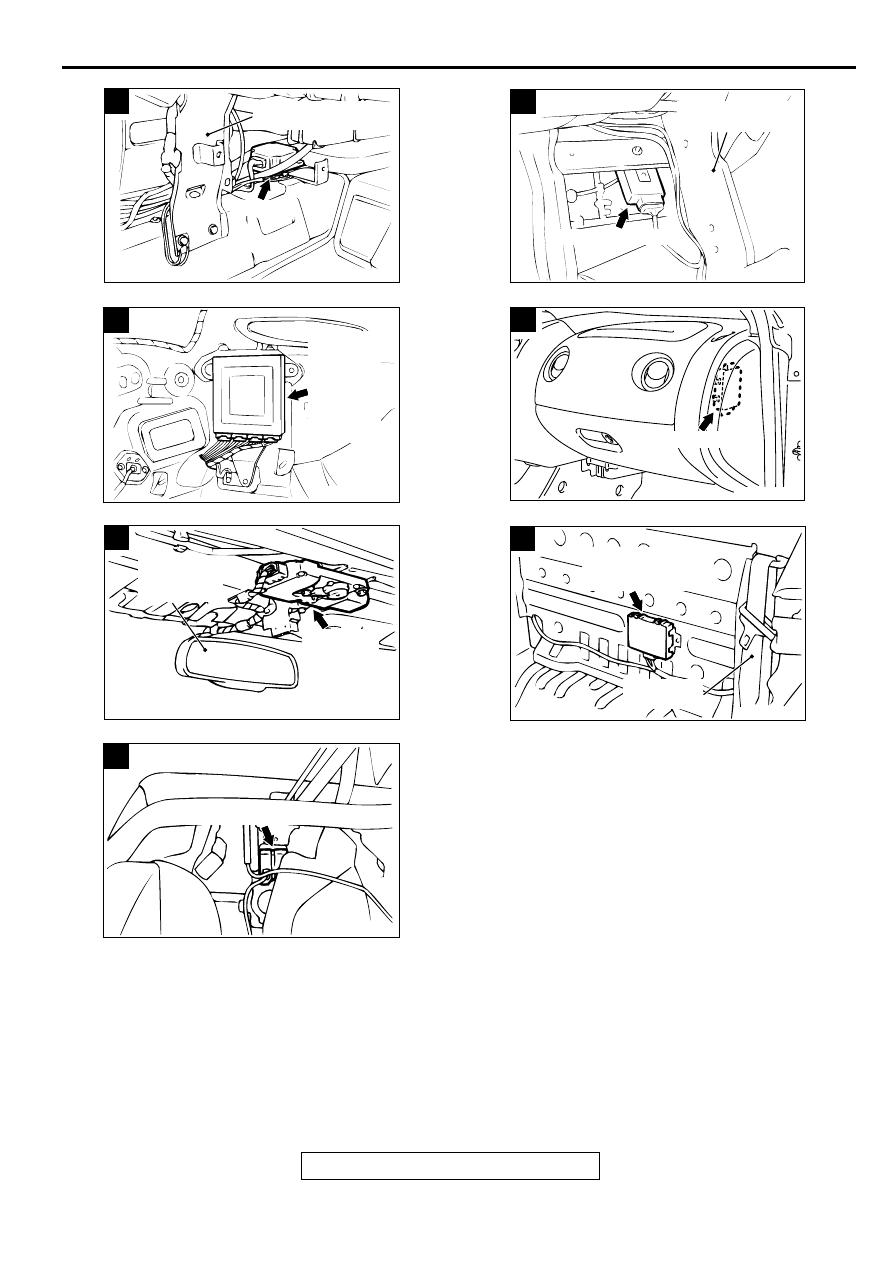

ACX02507

I

AD

CENTER
REINFORCEMENT

SRS-ECU

ACX02508AC

J

CENTER
REINFORCEMENT

IMMOBILIZER-ECU

ACX02509

K

AG

ENGINE
CONTROL
MODULE
OR
POWER-
TRAIN
CONTROL
MODULE

AC000674 AD

L

COMPASS-ECU

AC003100

M

AB

INSIDE
REAR VIEW
MIRROR

SUNROOF
MOTOR
ASSEMBLY

AC003101AB

N

REAR SEAT
BELT (LH)

CONVERTIBLE
TOP CONTROL
MODULE

AC003099

O

AB

MOTOR ANTENNA-ECU
