Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 633

DOOR

TSB Revision

BODY

42-79

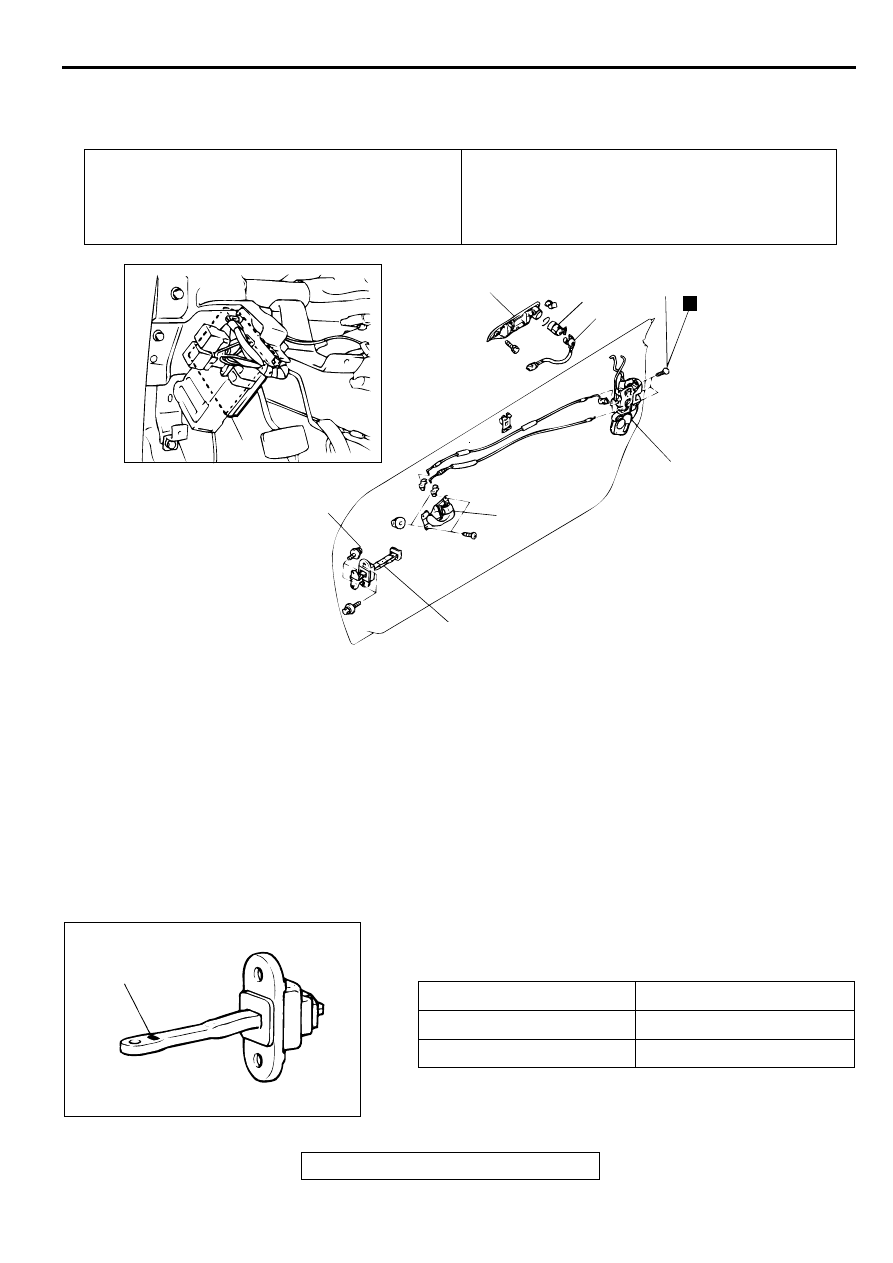

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004600083

INSTALLATION SERVICE POINT

>>A<< DOOR CHECK INSTALLATION
Install the door check so that the identification mark faces
upwards.

Pre-removal Operation

•

Door Trim Removal (Refer to

P.42-71

.)

Post-installation Operation

•

Door Inside Handle Play Check (Refer to

P.42-69

.)

•

Door Outside Handle Play Check (Refer to

P.42-69

.)

•

Door Trim Installation (Refer to

P.42-71

.)

•

Door Fit Adjustment (Refer to

P.42-64

.)

AC000499

1

5.0 ± 1.0 N·m

44 ± 9 in-lb

9.0 ± 2.0 N·m

80 ± 17 in-lb

N

3

4

5

2

6

7

AB

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS
1. ETACS-ECU
2. DOOR INSIDE HANDLE

•

WATERPROOF FILM (REFER TO

P.42-71

.)

3. DOOR OUTSIDE HANDLE
4. DOOR LOCK KEY CYLINDER

5. DOOR LOCK KEY CYLINDER

SWITCH

6. DOOR LATCH ASSEMBLY
 DOOR CHECK REMOVAL STEPS

•

WATERPROOF FILM (REFER TO

P.42-71

.)

>>A<<

7. DOOR CHECK

DOOR HANDLE AND DOOR LATCH
ASSEMBLY REMOVAL STEPS

ITEM

IDENTIFICATION MARK

Left door

1L

Right door

1R

ACX00541

IDENTIFICATION
MARK

AB

DOOR

TSB Revision

BODY

42-80

INSPECTION

M1423004700109

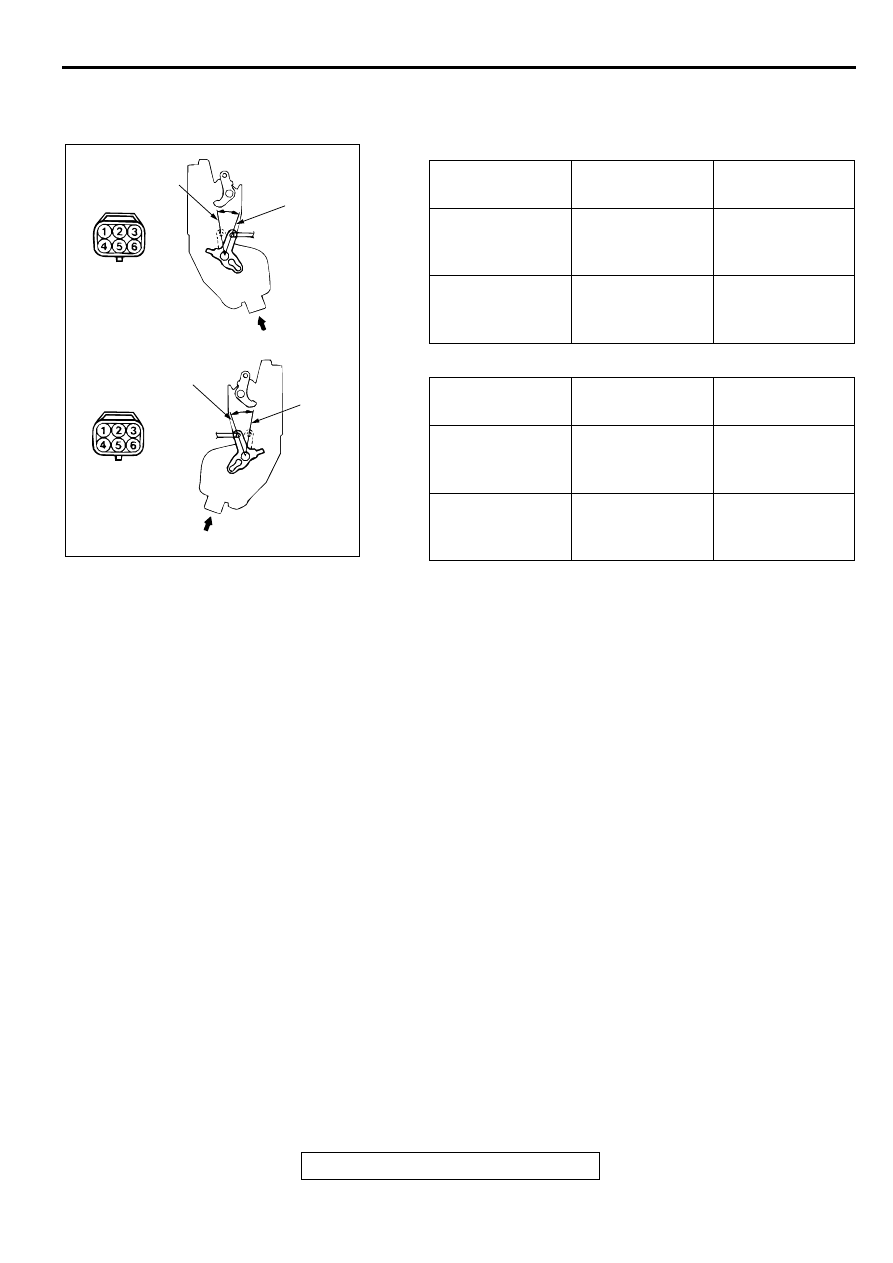

DOOR LOCK ACTUATOR CHECK

<DRIVER'S SIDE>

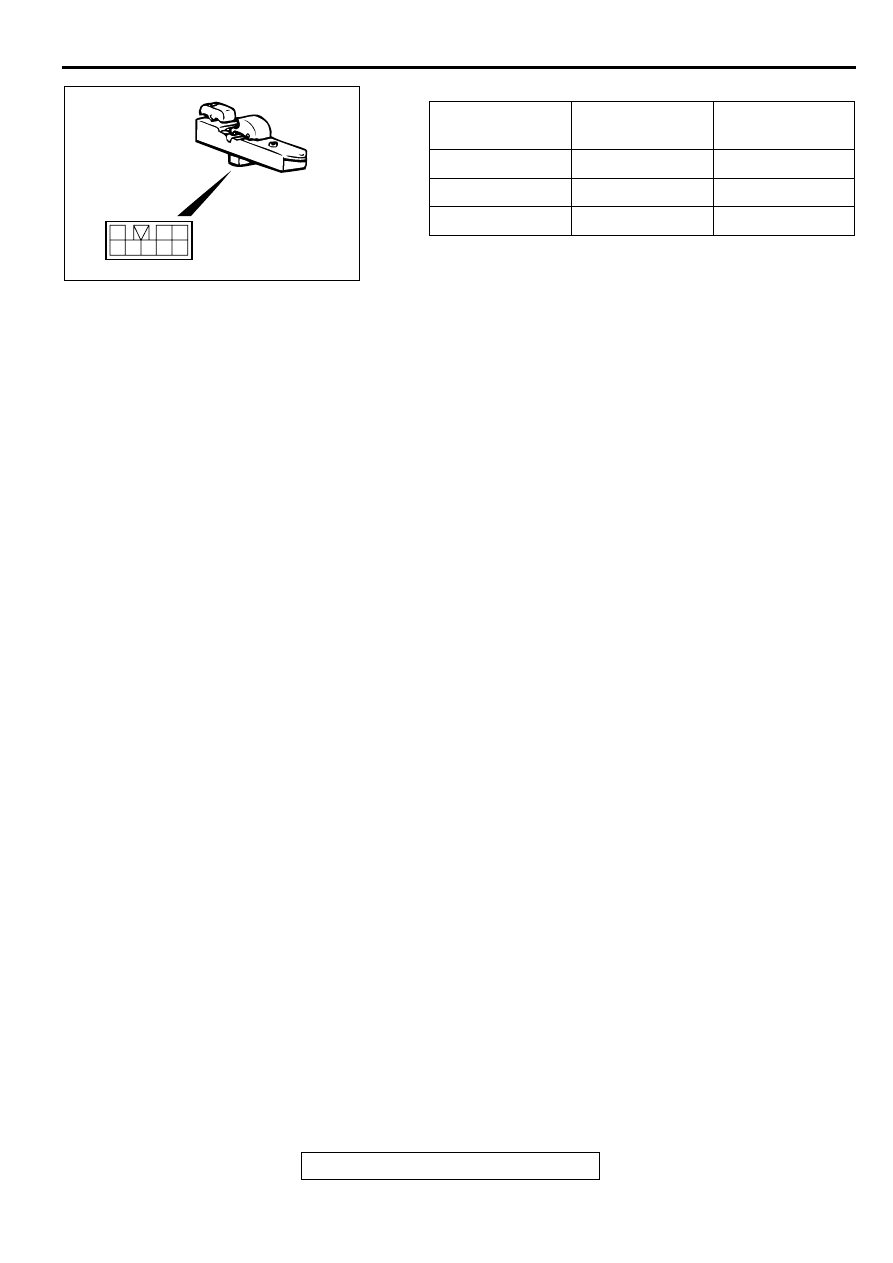

<PASSENGER'S SIDE>

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(-)

→

 6-

Battery(+), 1

−

 3

Lock position

→



Unlock position,
Continuity

UNLOCK

4-Battery(+)

→

 6-

Battery(-), 1

−

 2

Unlock position

→



Lock position,
Continuity

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

4-Battery(+)

→

 6-

Battery(-), 1

−

 3

Lock position

→



Unlock position,
Continuity

UNLOCK

4-Battery(-)

→

 6-

Battery(+), 2

−

 3

Unlock position

→



Lock position,
Continuity

AC000039

LOCK

UNLOCK

VIEW A

VIEW B

UNLOCK

LOCK

B

<DRIVER'S SIDE>

<PASSENGER'S SIDE>

AE

A

DOOR

TSB Revision

BODY

42-81

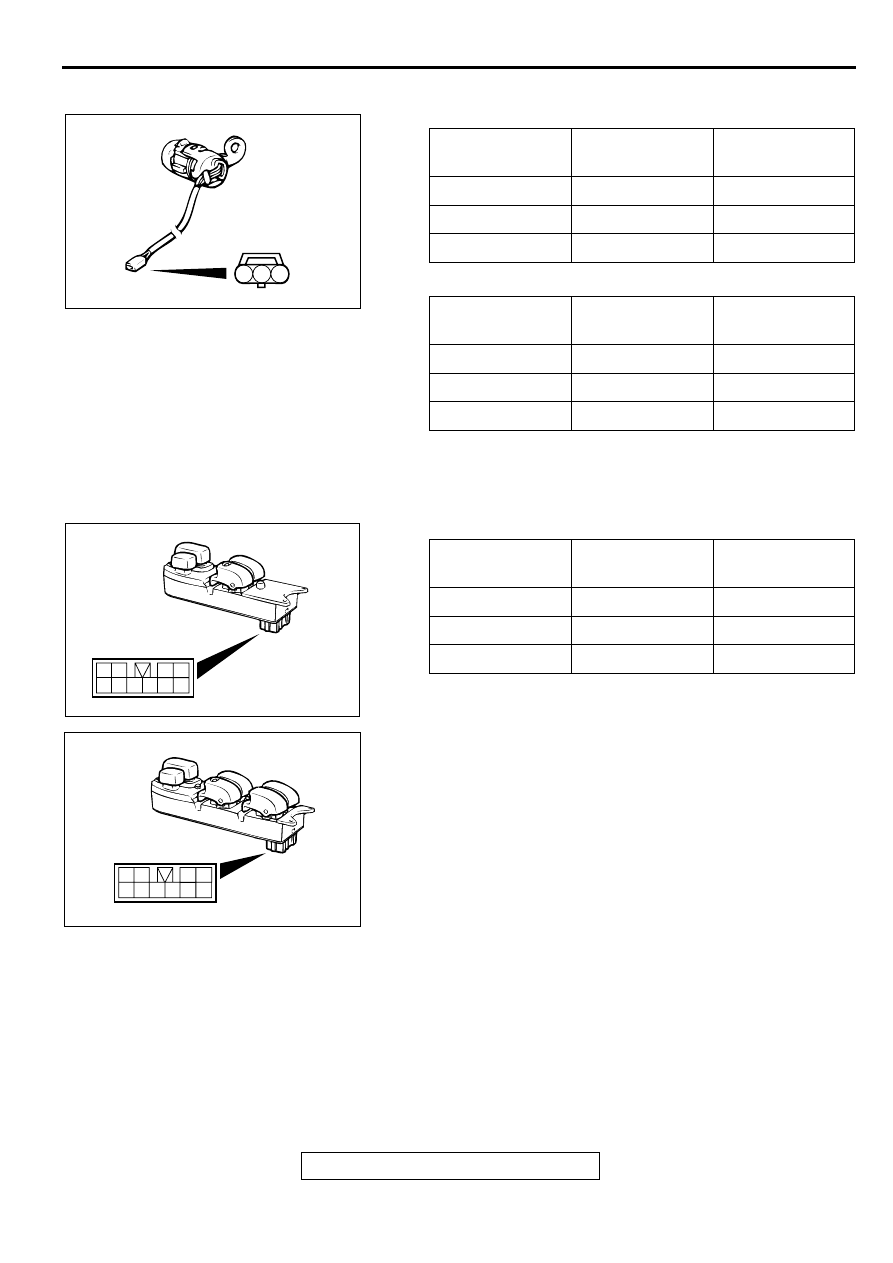

DOOR LOCK KEY CYLINDER SWITCH CHECK

<DRIVER'S SIDE>

<PASSENGER'S SIDE>

CENTER DOOR LOCK SWITCH CONTINUITY
CHECK

Remove the power window switch. (Refer to

P.42-71

.)

<DRIVER'S SIDE>

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

2

−

 3Continuity

NEUTRAL (OFF)

-

No Continuity

UNLOCK

1

−

 2

Continuity

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

−

 2

Continuity

NEUTRAL (OFF)

-

No Continuity

UNLOCK

2

−

 3Continuity

AC000500

1

2

3

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

3

−

 9

Continuity

OFF

-

No Continuity

UNLOCK

9

−

 10

Continuity

AC000463

1 2

3 4

5 6 7 8 9 10

AB

<ECLIPSE>

AC003390

1 2

3 4

5 6 7 8 9 10

<ECLIPSE SPYDER>

AB

DOOR

TSB Revision

BODY

42-82

<PASSENGER'S SIDE>

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

−

 2

Continuity

OFF

-

No Continuity

UNLOCK

2

−

 3Continuity

AC000464

1

2 3

4 5 6 7 8
