HOOD

TSB Revision

BODY

42-7

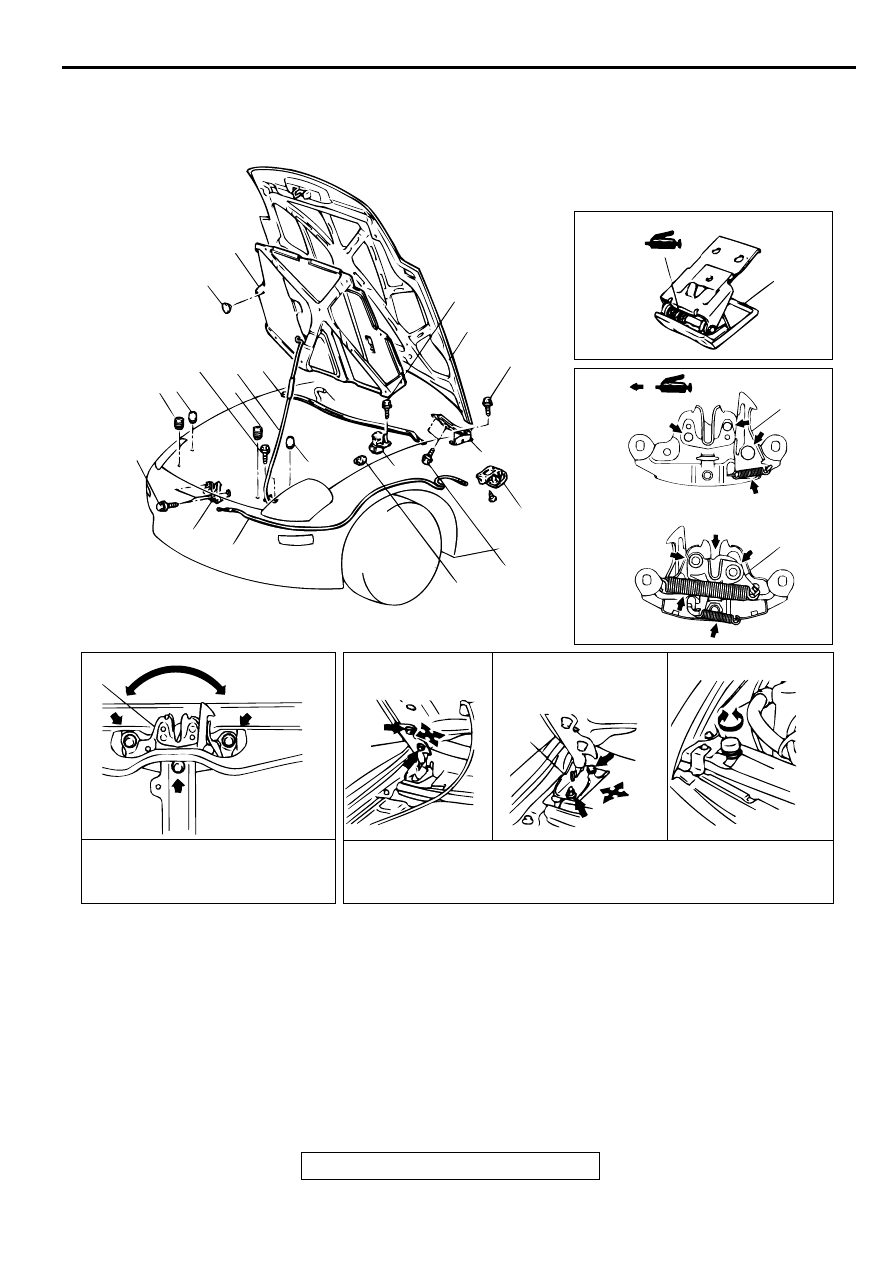

HOOD

REMOVAL AND INSTALLATION

M1421001600066

AC000448

11

4.9 ± 1.0 N·m

44 ± 8 in-lb

10

4

6

9

10

2

8.9 ± 1.9 N·m

78 ± 17 in-lb

8

9

3

12

1

12 ± 2 N·m

100 ± 22 in-lb

7

14

12 ± 2 N·m

100 ± 22 in-lb

13

4.9 ± 1.0 N·m

44 ± 8 in-lb

2

FRONT VIEW

1

REAR VIEW

1

1

ADJUSTMENT OF FOOD
LATCH AND HOOD STRIKER
ENGAGEMENT

<WHEN REPLACING

THE HOOD>

14

14

<WHEN REPLACING THE

HOOD AND THE HOOD

HINGE>

9

ADJUSTMENT OF HOOD INSTALLATION AND BUMPER

AC

5

HOOD LATCH REMOVAL STEPS

•

FRONT BUMPER (REFER TO
GROUP 51

P.51-3

.)

1. HOOD LATCH

HOOD LOCK RELEASE CABLE
REMOVAL STEPS

2. HOOD LOCK RELEASE HANDLE
3. HOOD LOCK RELEASE CABLE

HOOD AND HOOD HINGE
REMOVAL STEPS

4. HOOD WEATHERSTRIP
5. WASHER HOSE CONNECTION
6. CLIP
7. HOOD INSULATOR
8. HOOD

>>A<<

9. BUMPER A

>>A<<

10. BUMPER B
11. HOOD DAMPER

HOOD

TSB Revision

BODY

42-8

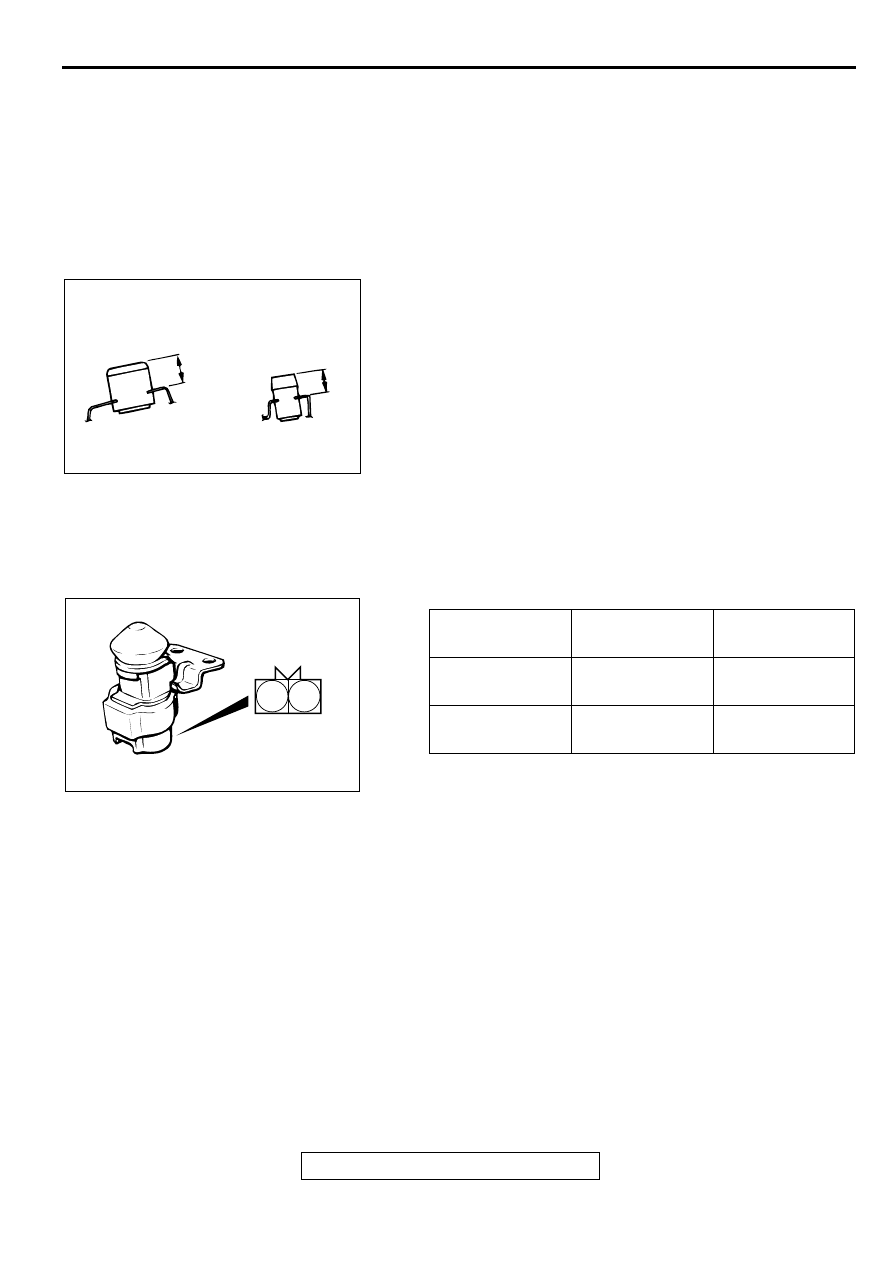

INSTALLATION SERVICE POINT

>>A<< BUMPER B/BUMPER A INSTALLATION
Install bumpers A and B as shown in the illustration.
Be sure they are adjusted so the hood is even with the body on
all sides.

INSPECTION

M1421001700052

HOOD SWITCH CONTINUITY CHECK <VEHICLES
WITH THEFT-ALARM SYSTEM>

12. HOOD SWITCH <VEHICLES WITH

THEFT-ALARM SYSTEM>

13. HOOD SUPPORT ROD

•

FRONT DECK GARNISH (REFER
TO GROUP 51

P.51-15

.)

14. HOOD HINGE

HOOD AND HOOD HINGE
REMOVAL STEPS (Continued)

AC000449

BUMPER A

BUMPER B

17.5 – 18.5 mm

(0.69 – 0.73 in)

15.5 – 16.5 mm

(0.61 – 0.65 in)

AB

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Hood switch
unpressed

1

−

 2

Continuity

Hood switch
depressed

-

No Continuity

2

1

AC003329

FENDER

TSB Revision

BODY

42-9

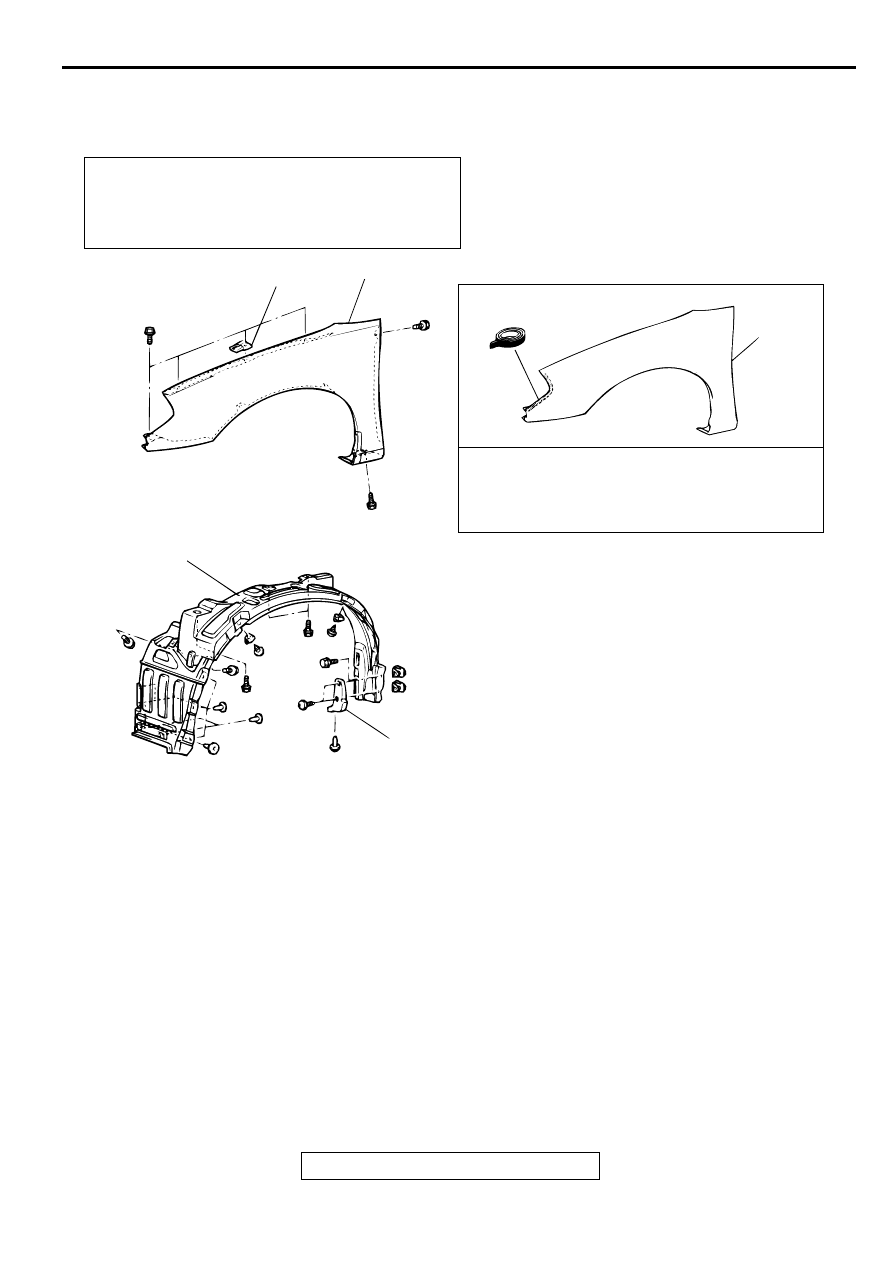

FEN D ER

REMOVAL AND INSTALLATION

M1421001900067

Pre-removal and Post-installation Operation

•

Front Bumper Removal and Installation (Refer to GROUP
51, Front Bumper

P.51-3

.)

•

Headlight Removal and Installation (Refer to GROUP
54A, Headlight

P.54A-73

.)

AC000451

3

4

2

1

4

SEALANT:
       3M™ AAD PART NO.8625 OR EQUIVALENT

AB

REMOVAL STEPS
1. FRONT STONE GUARD OR FRONT SIDE

AIR DAM

2. SPLASH SHIELD
3. HOOD DAMPER BRACKET
4. FENDER

FUEL FILLER LID

TSB Revision

BODY

42-10

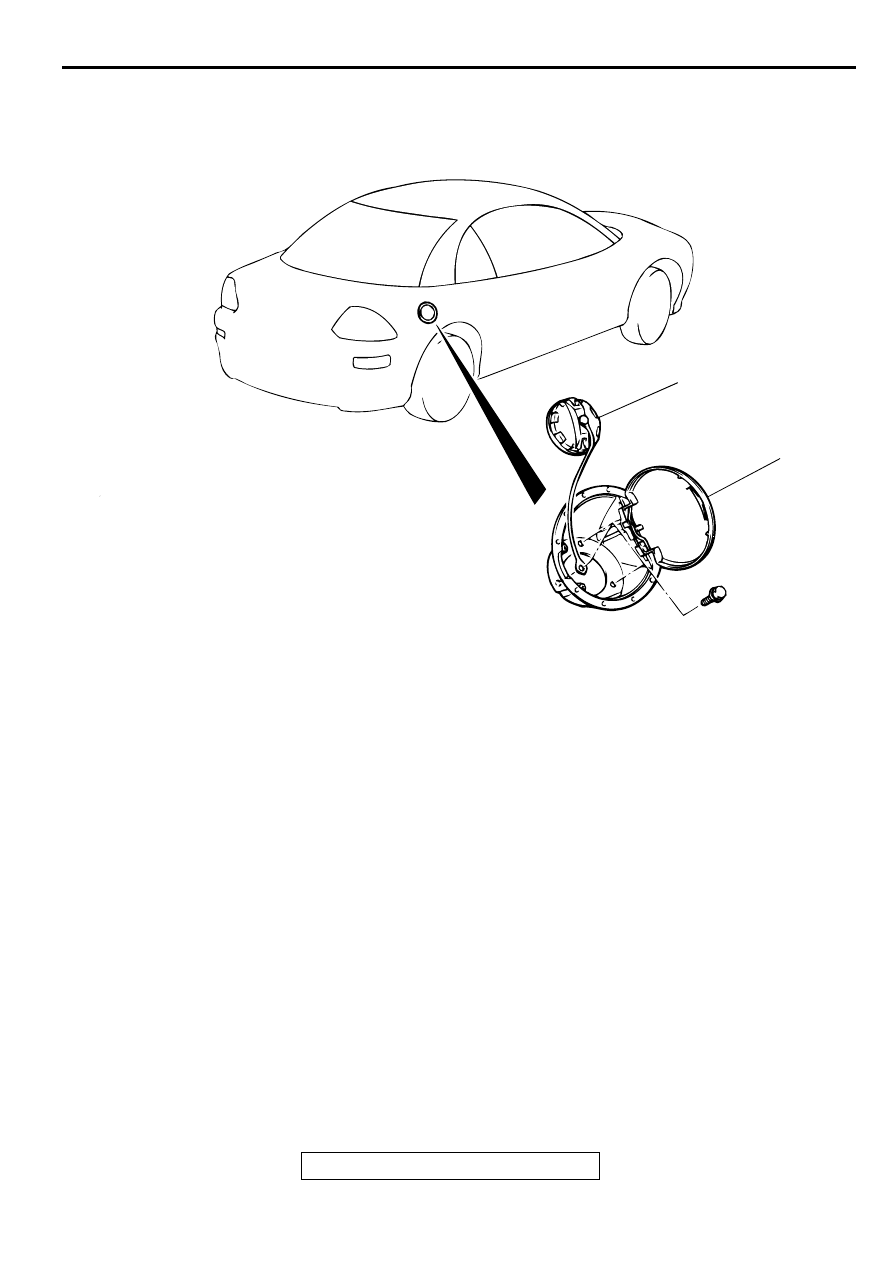

FU EL FILLER  LID

REMOVAL AND INSTALLATION

M1421002500073

AC000452

1

2

AB

REMOVAL STEPS
1. FUEL CAP
2. FUEL FILLER DOOR
