SPECIFICATIONS

TSB Revision

BASIC BRAKE SYSTEM

35A-57

LUBRICANTS

M1351000400076

SEALANT

M1351000500062

ITEMS

SPECIFIED LUBRICANT

Brake fluid

DOT3 or DOT4

Brake piston seal

Repair kit grease

Guide pin boot inner surface

Lock pin boot inner surface

Piston boot mounting grooves

Brake piston boot inner surface

Lock pin bush inner surface

Piston cup surface

Front brake pad and inner shim A contact surface <2.4L ENGINE>

Repair kit grease
Brake grease SAE J310, NLGI
NO.1

Front disc brake inner shim A and inner shim B contact surface <2.4L
ENGINE>

Front brake pad and outer shim A contact surface <2.4L ENGINE>

Front disc brake outer shim A and outer shim B contact surface <2.4L
ENGINE>

Rear brake pad and inner shim A contact surface

Rear disc brake inner shim A and inner shim B contact surface

Rear brake shoe and backing plate contact surface

Auto adjuster assembly

ITEM

SPECIFIED SEALANT

REMARKS

Thread part fitting

3M

TM

 AAD Part No. 8663 or equivalent

Semi-drying sealant

NOTES

35B-1

GROUP 35B

ANTI-LOCK



BRAKING SYSTEM

(ABS)

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

35B-2

ANTI-SKID BRAKING SYSTEM (ABS)
DIAGNOSIS . . . . . . . . . . . . . . . . . . . .

35B-3

INTRODUCTION TO ANTI-LOCK BRAKE
SYSTEM DIAGNOSIS  . . . . . . . . . . . . . . . .

35B-3

ABS DIAGNOSTIC TROUBLESHOOTING
STRATEGY. . . . . . . . . . . . . . . . . . . . . . . . .

35B-3

ABS TROUBLE CODE DIAGNOSIS. . . . . .

35B-4

DIAGNOSTIC TROUBLE CODE CHART . .

35B-7

DIAGNOSTIC TROUBLE CODE
PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

35B-8

WHEEL SPEED SENSOR CIRCUIT  . . . . .

35B-14

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

35B-25

SYMPTOM PROCEDURES . . . . . . . . . . . .

35B-27

TECHNICAL DESCRIPTION (COMMENT)

35B-42

DATA LIST REFERENCE TABLE  . . . . . . .

35B-42

ACTUATOR TEST REFERENCE TABLE. .

35B-42

CHECK AT ABS-ECU . . . . . . . . . . . . . . . . .

35B-43

SPECIAL TOOLS. . . . . . . . . . . . . . . .

35B-44

ON-VEHICLE SERVICE. . . . . . . . . . .

35B-45

BLEEDING  . . . . . . . . . . . . . . . . . . . . . . . . .

35B-45

WHEEL SPEED SENSOR OUTPUT
VOLTAGE MEASUREMENT. . . . . . . . . . . .

35B-45

HYDRAULIC UNIT CHECK . . . . . . . . . . . . .

35B-47

DISCHARGED BATTERY . . . . . . . . . . . . . .

35B-48

MASTER CYLINDER AND
BRAKE BOOSTER . . . . . . . . . . . . . . .

35B-49

REMOVAL AND INSTALLATION  . . . . . . . .

35B-49

MASTER CYLINDER  . . . . . . . . . . . . . . . . .

35B-49

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35B-50

HYDRAULIC UNIT  . . . . . . . . . . . . . . .

35B-51

REMOVAL AND INSTALLATION  . . . . . . . .

35B-51

WHEEL SPEED SENSOR  . . . . . . . . .

35B-53

REMOVAL AND INSTALLATION  . . . . . . . .

35B-53

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35B-54

SPECIFICATIONS  . . . . . . . . . . . . . . .

35B-55

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

35B-55

SERVICE SPECIFICATIONS  . . . . . . . . . . .

35B-55

GENERAL DESCRIPTION

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-2

.

G EN ER A L DESC RIPTIO N

M1352000100089

The ABS consists of components such as the wheel
speed sensors, stoplight switch, hydraulic unit
assembly (integrated with ABS-ECU), ABS rotor, and
the ABS warning light. If a problem occurs in the
system, the malfunctioning components can be
identified and the trouble symptoms will be
memorized by the diagnostic function.
In addition, reading of diagnostic trouble codes and
data list and actuator testing are possible by using
the Scan Tool.

If the ABS hydraulic unit is faulty, the ABS-ECU must
be replaced.
The ABS-ECU runs a self-check for 3 seconds upon
start-up (also ignition switch ON, engine stopped).
The ABS warning light, TCL warning light, and TCL
indicator light should be illuminated during the self-
check and turn off when the self-check completes.

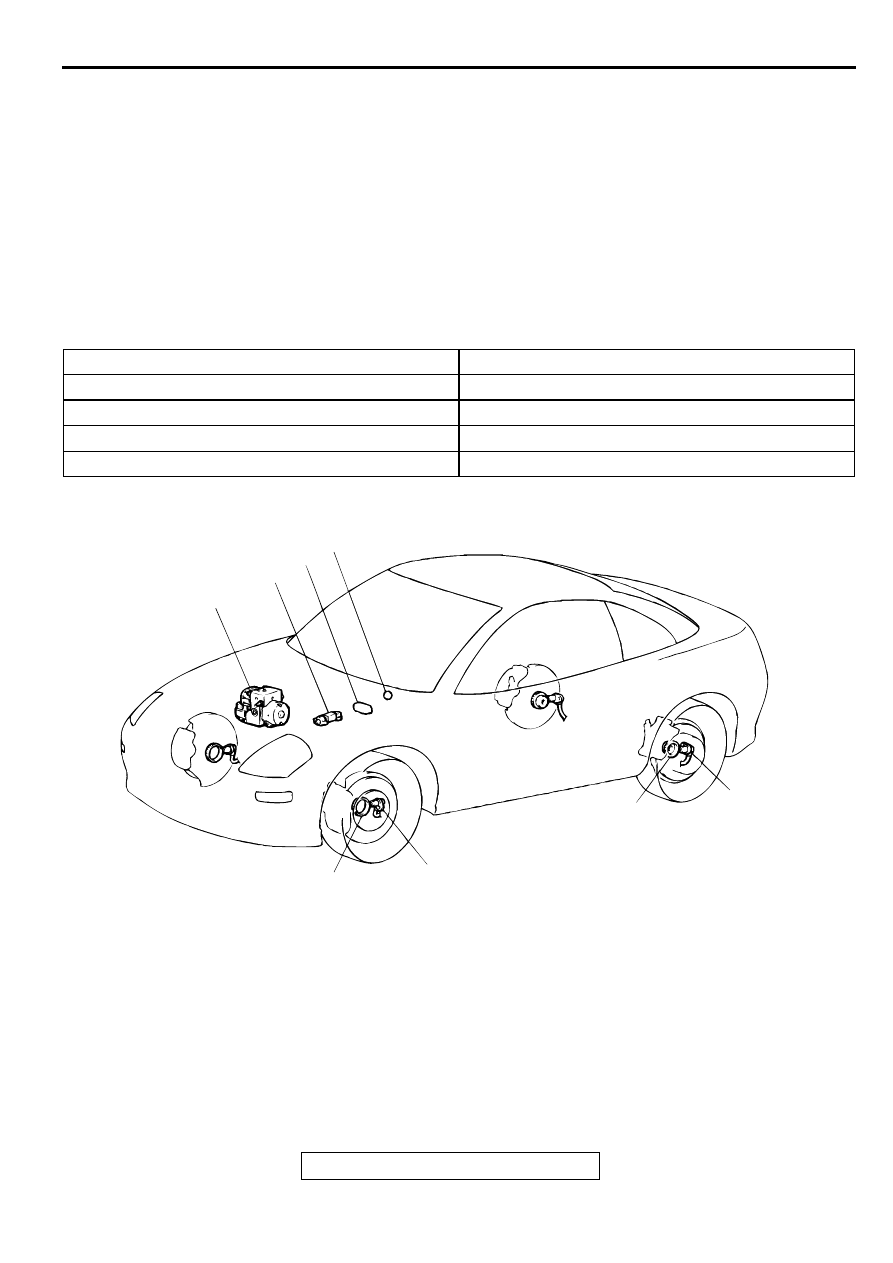

CONSTRUCTION DIAGRAM

ITEMS

SPECIFICATIONS

ABS type

4-sensor, 3-channel type

Speed sensor

Magnet coil type on 4-wheels

Front ABS rotor teeth

43

Rear ABS rotor teeth

43

AC004346 AB

1

2

3

4

5

6

5

6

1. HYDRAULIC UNIT (INTEGRATED

WITH ABS-ECU)

2. STOPLIGHT SWITCH
3. DATA LINK CONNECTOR

4. ABS WARNING LIGHT
5. ABS ROTOR
6. WHEEL SPEED SENSOR
