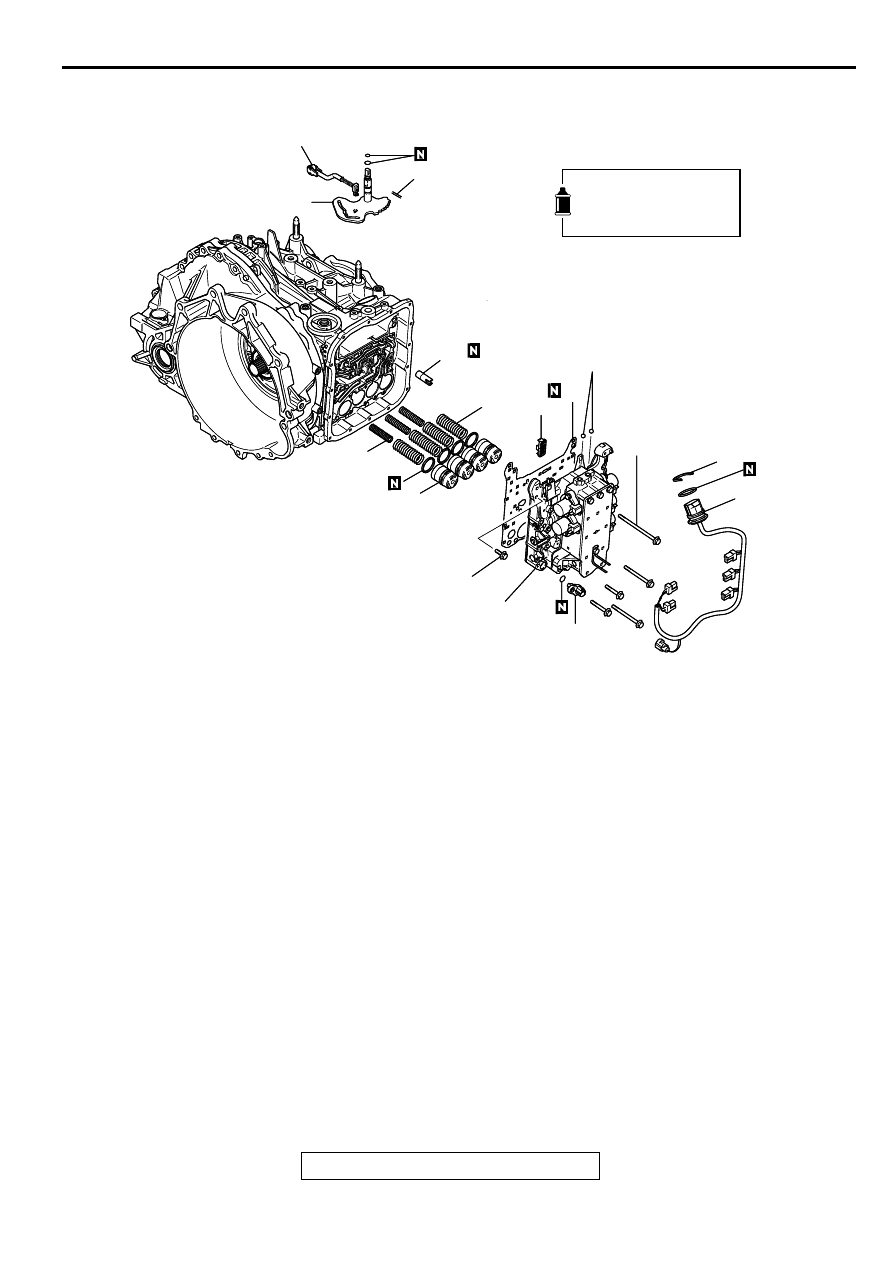

AUTOMATIC TRANSAXLE OVERHAUL
23B-15
<F4A51>
AKX01133
AKX01133
11 ± 1 N·m
95 ± 9 in-lb
11 ± 1 N·m
95 ± 9 in-lb
22 ± 3 N·m
16 ± 2 ft-lb
11
12
30 ± 3 N·m
22 ± 2 ft-lb
30 ± 3 N·m
22 ± 2 ft-lb
11 ± 1 N·m
95 ± 9 in-lb
11 ± 1 N·m
95 ± 9 in-lb
11 ± 1 N·m
95 ± 9 in-lb
13
10
6
6
8
7
9
3
69 ± 10 N·m
51 ± 7 ft-lb
69 ± 10 N·m
51 ± 7 ft-lb
4
14
16
2
5
6 ± 1 N·m
52 ± 9 in-lb
15
2
1
23 ± 3 N·m
17 ± 2 ft-lb
5 ± 1 N·m
43 ± 9 in-lb

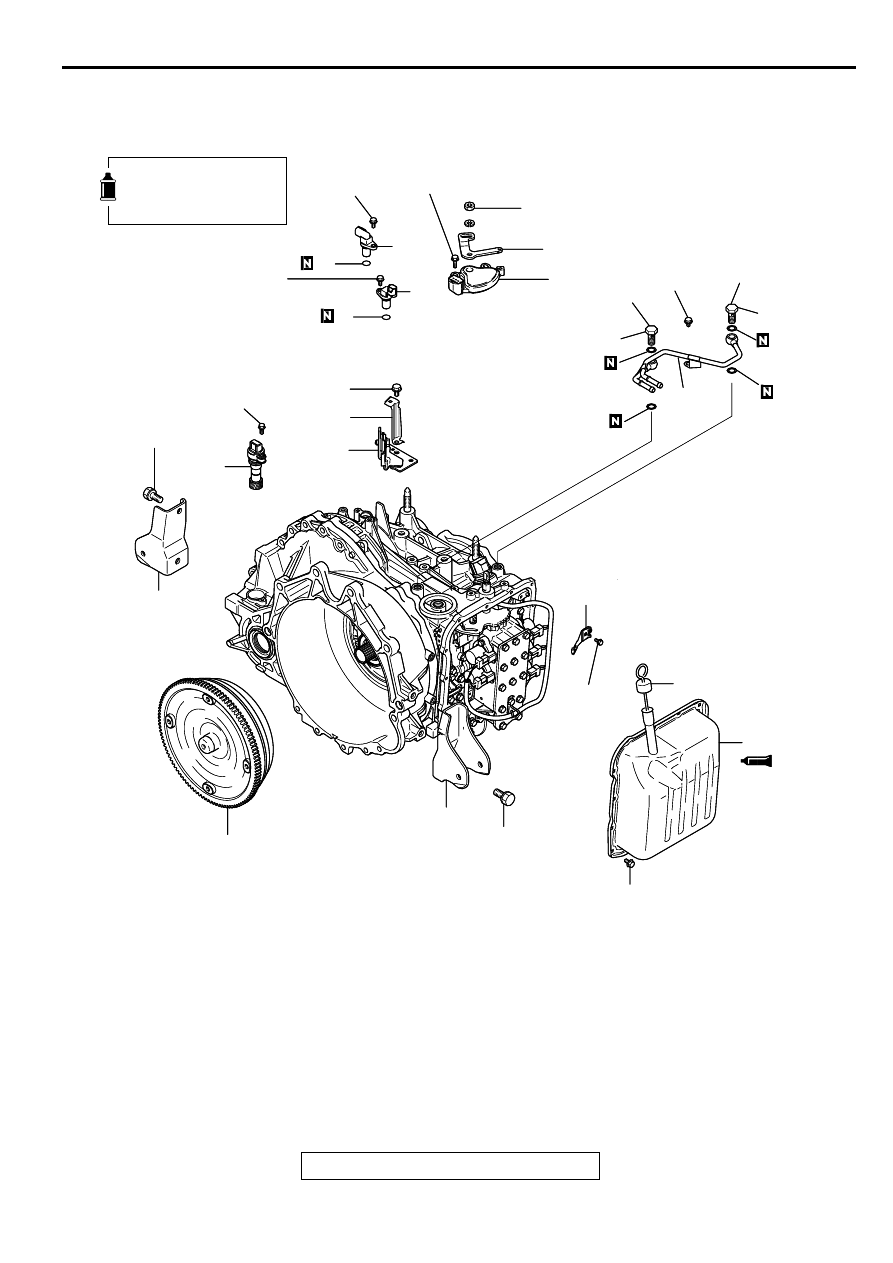

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.
AB
1.
TORQUE CONVERTER
2.
ROLL STOPPER BRACKET
3.
HARNESS BRACKET
4.
CONTROL CABLE SUPPORT BRACKET
5.
OIL DIPSTICK
6.
EYE BOLT
7.
OIL COOLER FEED TUBE
8.
INPUT SHAFT SPEED SENSOR
9.
O-RING
10. OUTPUT SHAFT SPEED SENSOR
11. O-RING
12. MANUAL CONTROL LEVER
13. PARK/NEUTRAL POSITION SWITCH
14. SPEEDOMETER GEAR
15. VALVE BODY COVER
16. MANUAL CONTROL SHAFT DETENTE
