AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-168

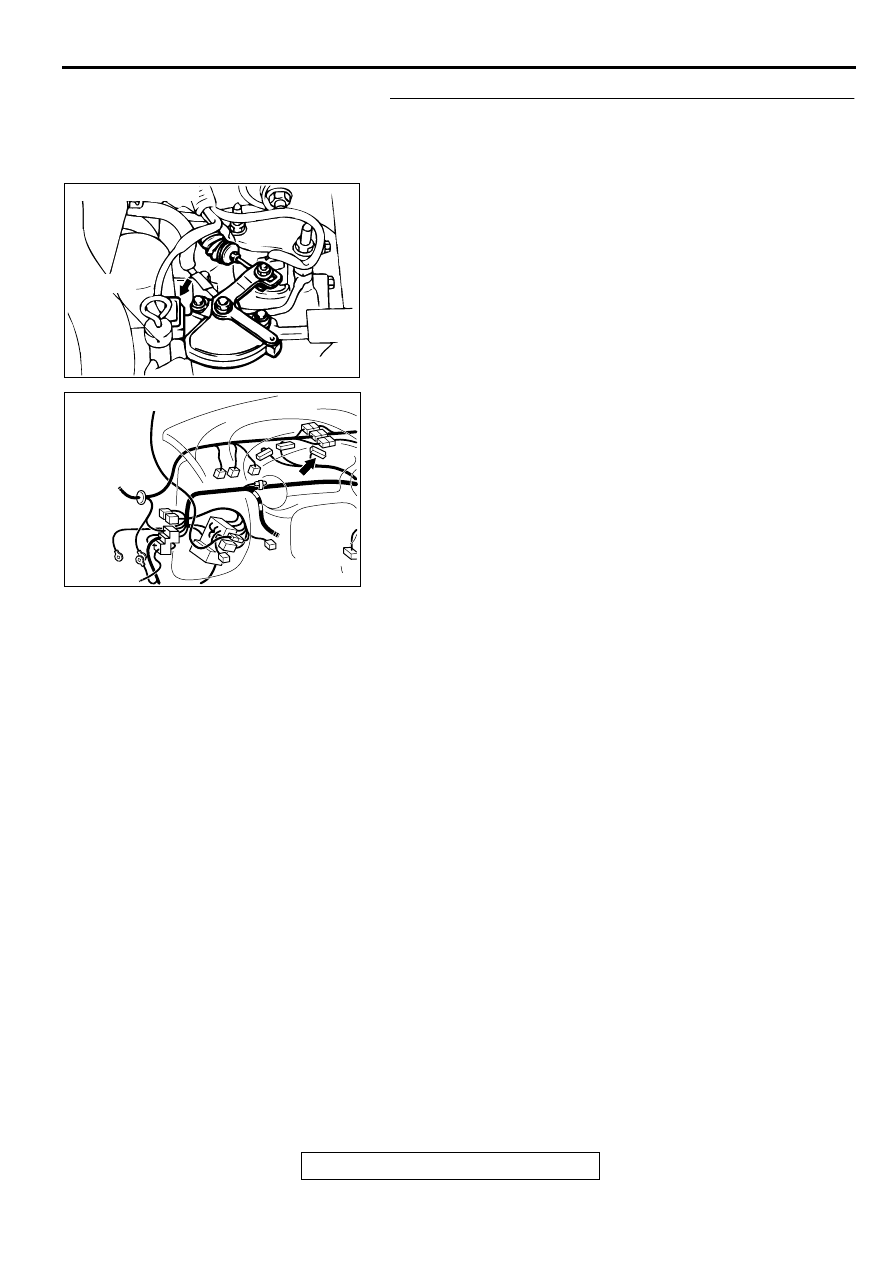

STEP 8. Check harness for damage between Park/Neutral
position switch connector B-41 terminal 7 and PCM
connector C-63 terminal 108. <Vehicles with sport mode>
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it.

STEP 9. Check connectors C-27 at intermediate connector
and C-43 at combination meter for damage. <Vehicles with
sport mode>
Q: Are the connectors in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001657

CONNECTOR: C-63

PCM

AO

AC001741

CONNECTOR: C-27

AK

AC001729 AO

CONNECTOR: C-43

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-169

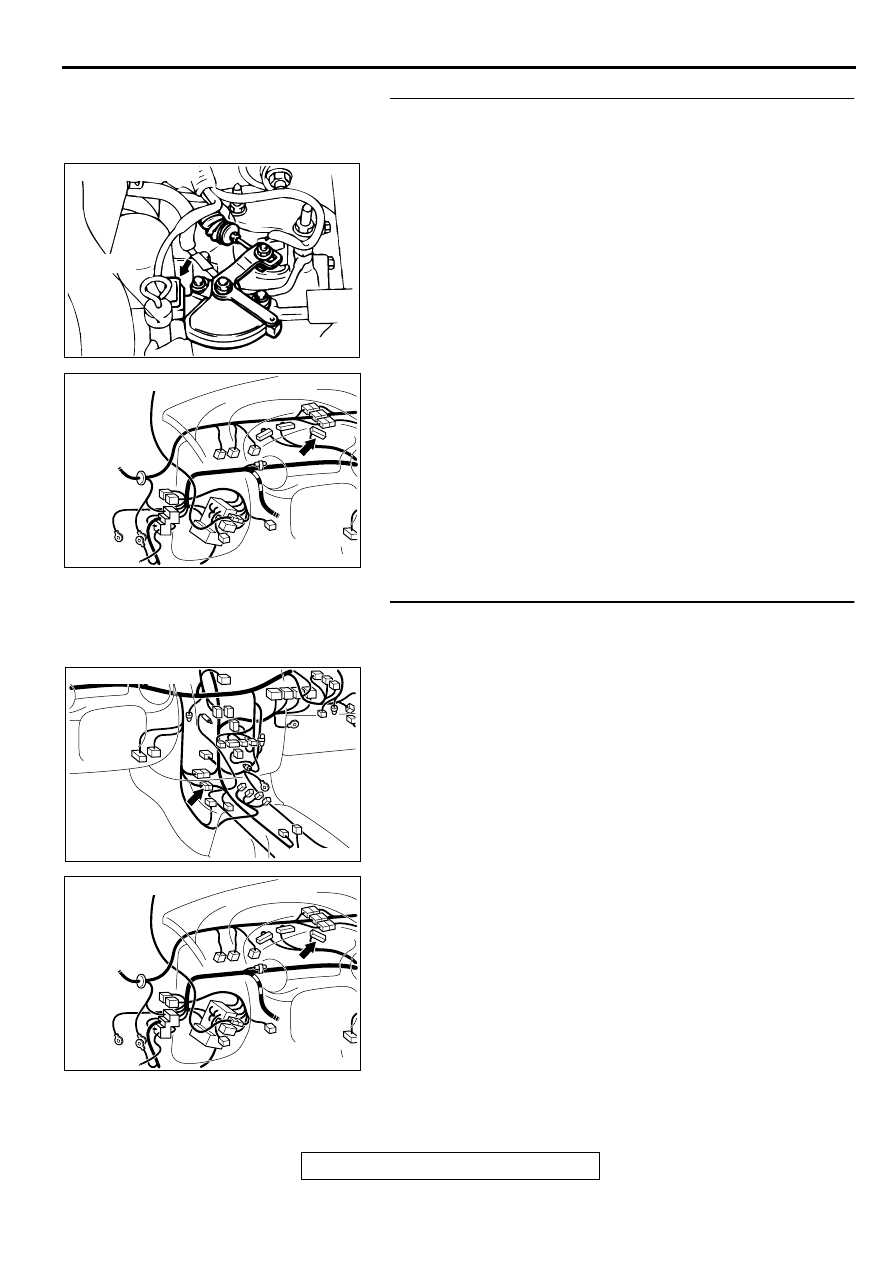

STEP 10. Check harness for damage between Park/Neutral
position switch connector B-41 terminal 7 and
combination meter connector C-43 terminal 10. <Vehicles
with sport mode>
Q: Is the harness wire in good condition?

YES : Repair it because of the connector and the harness

damage between output signal of Park/Neutral
position switch connector B-41 terminal 7.

NO :  Repair it.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001729 AO

CONNECTOR: C-43

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-170

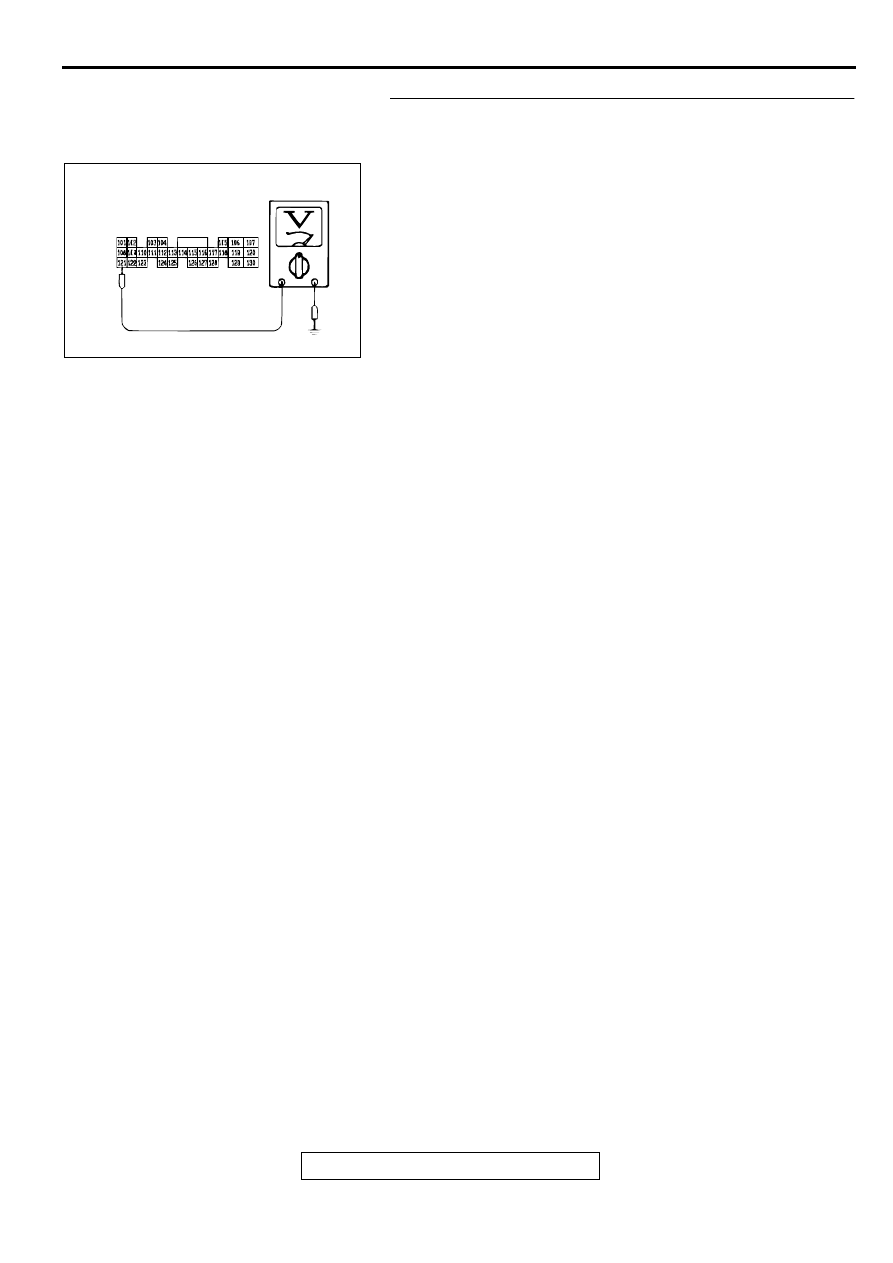

STEP 11. Check the switch output voltage at PCM
connector C-61 <2.4L Engine> or C-63 <3.0L Engine> by
backprobing.
Measure the voltage between terminal 121 and ground by
backprobing.

When selector lever position is "P," voltage should be 0.5
volt or less.

When selector lever position is "R," voltage should be 0.5
volt or less.

When selector lever position is "N," voltage should be
battery positive voltage.

When selector lever position is "D," voltage should be 0.5
volt or less.

When selector lever position is "3," voltage should be 0.5
volt or less. <Vehicles without sport mode>

When selector lever position is "2," voltage should be 0.5
volt or less. <Vehicles without sport mode>

When selector lever position is "L," voltage should be 0.5
volt or less. <Vehicles without sport mode>

When selector lever position is sport mode, voltage should
be 0.5 volt or less. <Vehicles with sport mode>

Q: Is the voltage normal?

YES : Go to Step 14.
NO :  Turn the ignition switch to "LOCK" (OFF) position. Go

to Step 12. <Vehicles with sport mode> Repair it
because of the harness damage between the Park/
Neutral position switch connector B-41 terminal 4 and
PCM connector C-61 <2.4L Engine> or C-63 <3.0L
Engine> terminal 121. <Vehicles without sport mode>

AC001905

C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>
CONNECTOR HARNESS
SIDE VIEW

AD

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-171

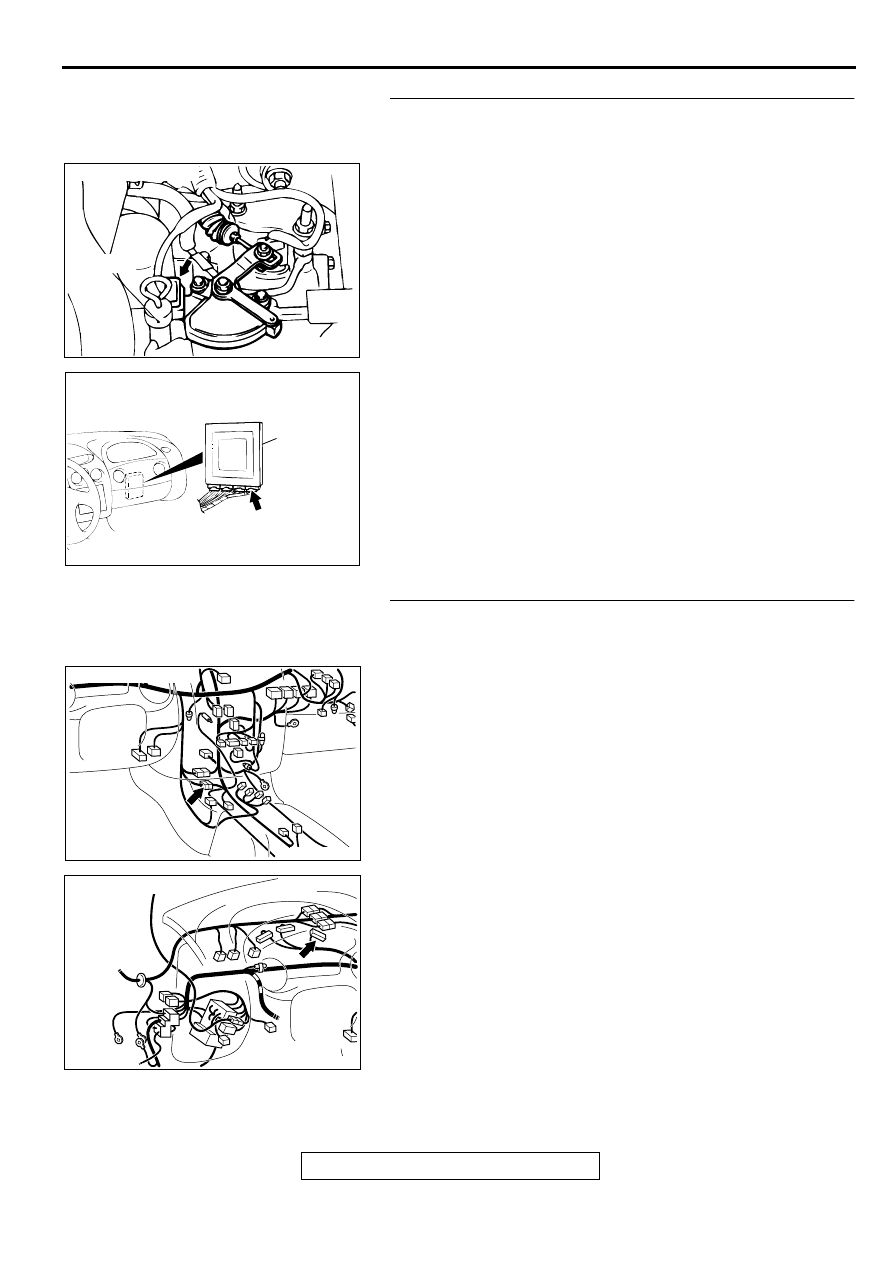

STEP 12. Check harness for damage between Park/Neutral
position switch connector B-41 terminal 4 and PCM
connector C-43 terminal 121. <Vehicles with sport mode>
Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it.

STEP 13. Check connectors C-27 at intermediate
connector C-43 at combination meter for damage.
<Vehicles with sport mode>
Q: Are the connectors in good condition?

YES : Repair it because of the harness damage between

the Park/Neutral Position Switch connector B-41
terminal 4 and combination meter connector C-43
terminal 9.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001844

CONNECTOR: B-41

DIPSTICK

AB

AC001729 AO

CONNECTOR: C-43

AC001741

CONNECTOR: C-27

AK

AC001729 AO

CONNECTOR: C-43
