EXHAUST MANIFOLD <3.0L>

TSB Revision

INTAKE AND EXHAUST

15-17

EXH AU ST M AN IFO LD  <3.0L>

REMOVAL AND INSTALLATION

M1151003300126

Pre-removal and Post-installation Operation

•

Front Exhaust Pipe Removal and Installation (Refer to

P.15-21

.)

•

Air Cleaner Removal and Installation (Refer to

P.15-5

.)

•

Battery and Battery Tray Removal and Installation (Refer
to GROUP 54A, Battery

P.54A-8

.)

•

Engine Oil Dipstick Guide, A/T Oil Dipstick Guide
Removal and Installation

•

Strut Tower Bar Removal and Installation (Refer to
GROUP 42, Strut Tower Bar

P.42-11

.)

AC004226AC

N

1

2

3

4

5

N

13

7

8

9

10

11

12

N

6

14 ± 1 N·m
120 ± 13 in-lb

14 ± 1 N·m
120 ± 13 in-lb

18 ± 2 N·m
13 ± 1 ft-lb

59 ± 10 N·m
44 ± 7 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

14 ± 1 N·m
120 ± 13 in-lb

44 ± 5 N·m
33 ± 3 ft-lb

44 ± 5 N·m
33 ± 3 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

14 ± 1 N·m
120 ± 13 in-lb

44 ± 5 N·m
33 ± 3 ft-lb

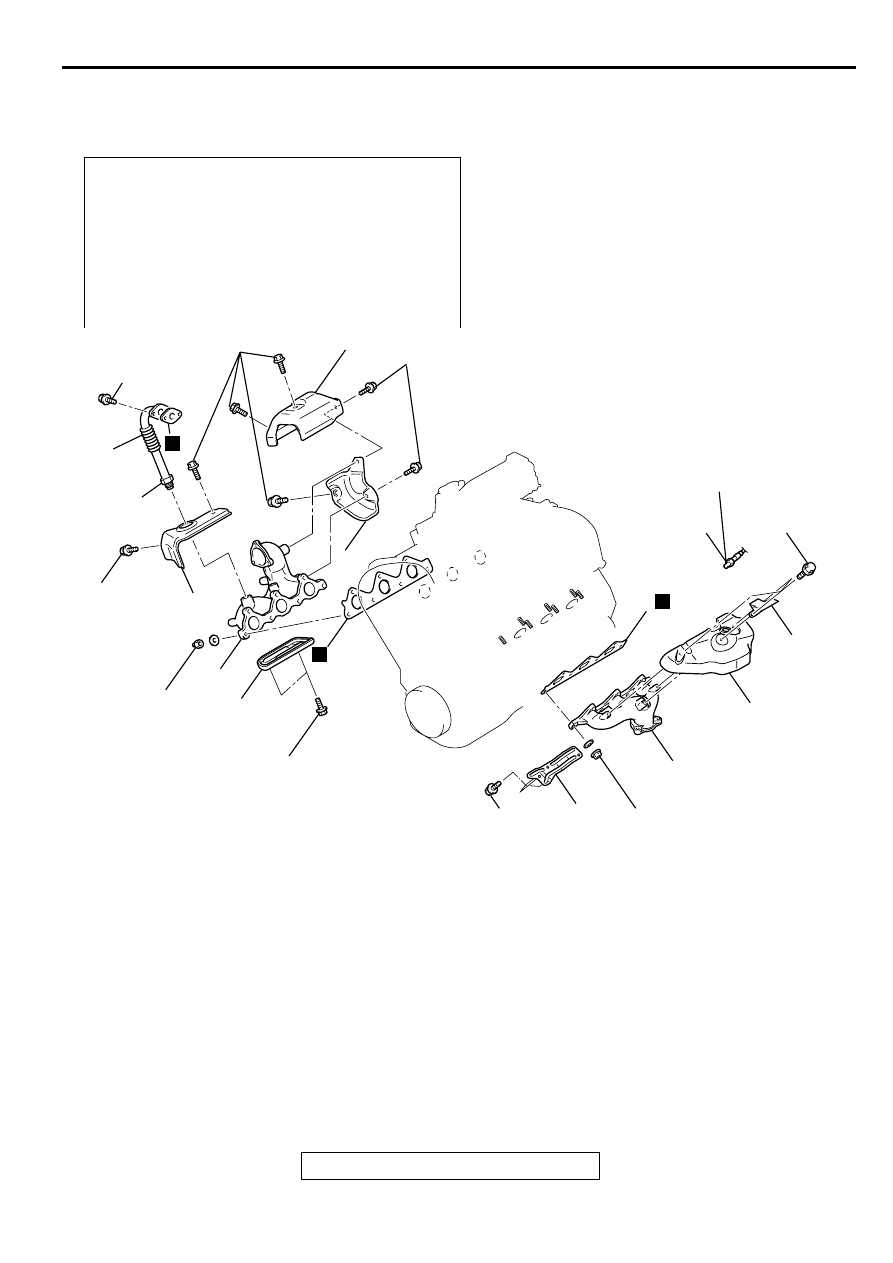

REMOVAL STEPS

1. HEAT UPPER PROTECTOR <LEFT

BANK>

<<A>> >>A<<

2. LEFT BANK HEATED OXYGEN

SENSOR (FRONT)

3. HEAT PROTECTOR <LEFT BANK>
4. HEAT LOWER PROTECTOR <LEFT

BANK>

5. EXHAUST MANIFOLD <LEFT

BANK>

6. EXHAUST MANIFOLD GASKET

<LEFT BANK>

7. EGR PIPE

8. HEAT UPPER PROTECTOR

<RIGHT BANK>

9. HEAT PROTECTOR <RIGHT BANK>
10. HEAT FRONT PROTECTOR

<RIGHT BANK>

11. HEAT LOWER PROTECTOR

<RIGHT BANK>

12. EXHAUST MANIFOLD <RIGHT

BANK>

13. EXHAUST MANIFOLD GASKET

<RIGHT BANK>

REMOVAL STEPS (Continued)

EXHAUST MANIFOLD <3.0L>

TSB Revision

INTAKE AND EXHAUST

15-18

REMOVAL SERVICE POINT

<<A>> LEFT BANK HEATED OXYGEN SENSOR (FRONT)
REMOVAL

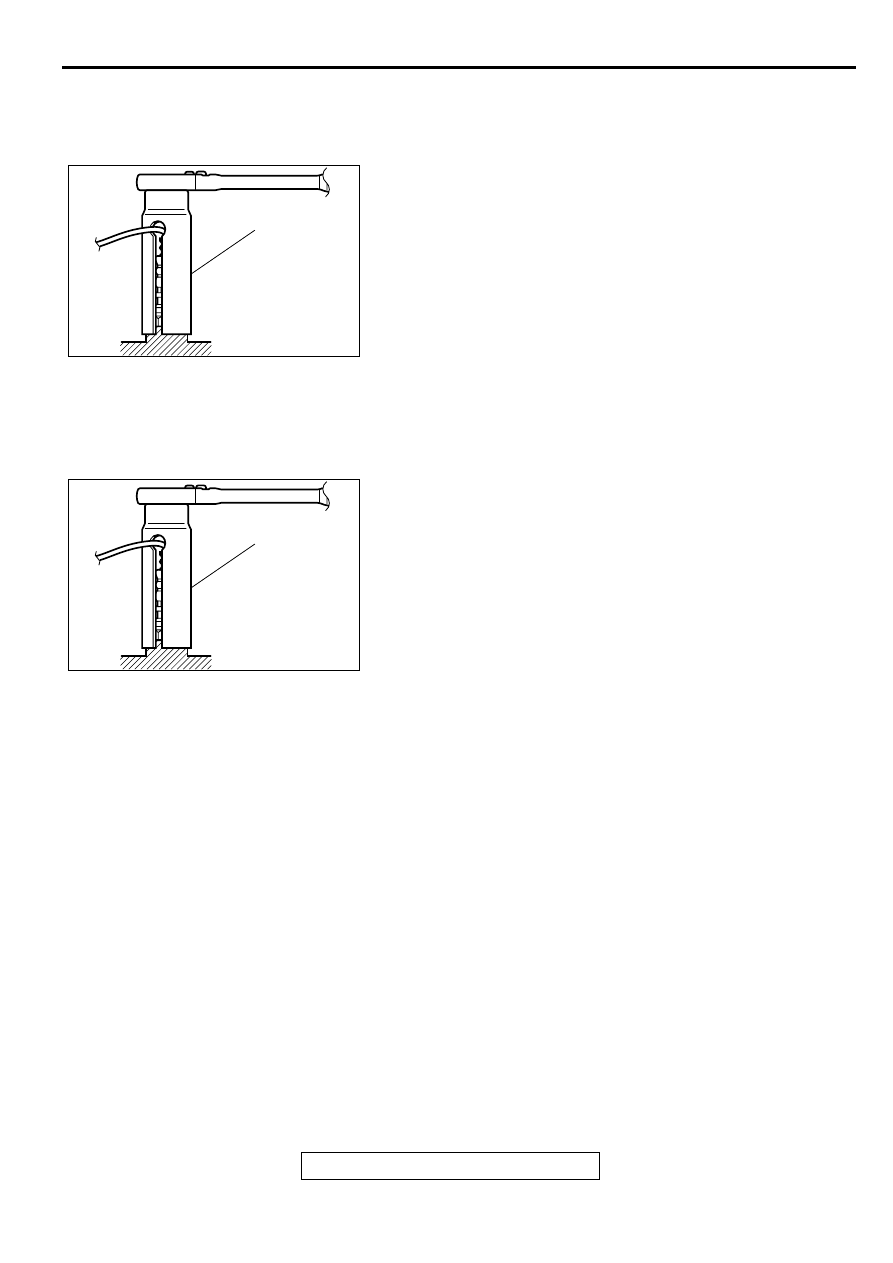

Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

>>A<< LEFT BANK HEATED OXYGEN SENSOR (FRONT)
INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.

INSPECTION

M1151003400112

Check the following points; replace the part if a problem is
found.

EXHAUST MANIFOLD CHECK

1. Check for damage or cracking of any part.

2. Using a straight edge and a feeler gauge, check for

distortion of the cylinder head installation surface.

Standard value: 0.15 mm (0.006 inch) or less
Limit: 0.20 mm (0.008 inch)

ACX02426 AB

MD998770

ACX02426 AB

MD998770

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <2.4L>

TSB Revision

INTAKE AND EXHAUST

15-19

EXH A U ST PIPE, M A IN  M U FFLER  A N D  C ATA LYTIC

C O N VER TER  <2.4L>

REMOVAL AND INSTALLATION

M1151005400118

REMOVAL SERVICE POINT

<<A>> HEATED OXYGEN SENSOR (REAR) REMOVAL
Use special tool MD998770 to remove the oxygen sensor.

AC004227

1

2

3

4

5

6

7

8

9

10

10

N

N

N

AC

49 ± 10 N·m
37 ± 7 ft-lb

12 ± 2 N·m
107 ± 17 in-lb

49 ± 10 N·m
37 ± 7 ft-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

12 ± 2 N·m
107 ± 17 in-lb

35 ± 4 N·m
26 ± 3 ft-lb

44 ± 5 N·m
33 ± 3 ft-lb

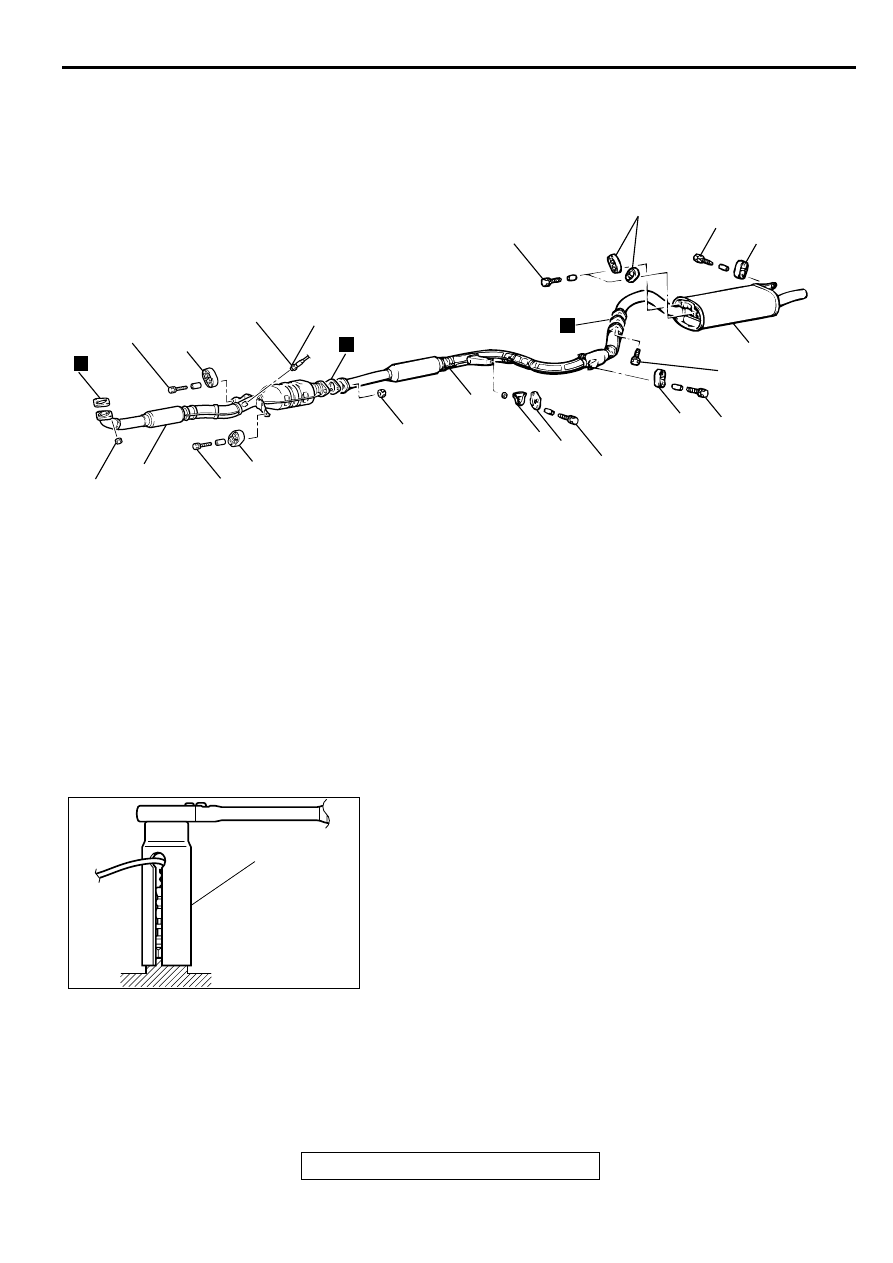

MAIN MUFFLER REMOVAL
STEPS

1.

MAIN MUFFLER

2.

HANGER

3.

HANGER
CENTER EXHAUST PIPE
REMOVAL STEPS

4.

CENTER EXHAUST PIPE

5.

HANGER

6.

HANGER

7.

PROTECTOR

FRONT EXHAUST PIPE
REMOVAL STEPS

<<A>>

>>A<<

8.

HEATED OXYGEN SENSOR
(REAR)

9.

FRONT EXHAUST PIPE
(CATALYTIC CONVERTER
INCORPORATED)

10. HANGER

ACX02426 AB

MD998770

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <2.4L>

TSB Revision

INTAKE AND EXHAUST

15-20

INSTALLATION SERVICE POINT

>>A<< HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use special tool MD998770 to install the oxygen sensor.

ACX02426 AB

MD998770
