THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-563

TH R O TTLE B O D Y A SSEM B LY

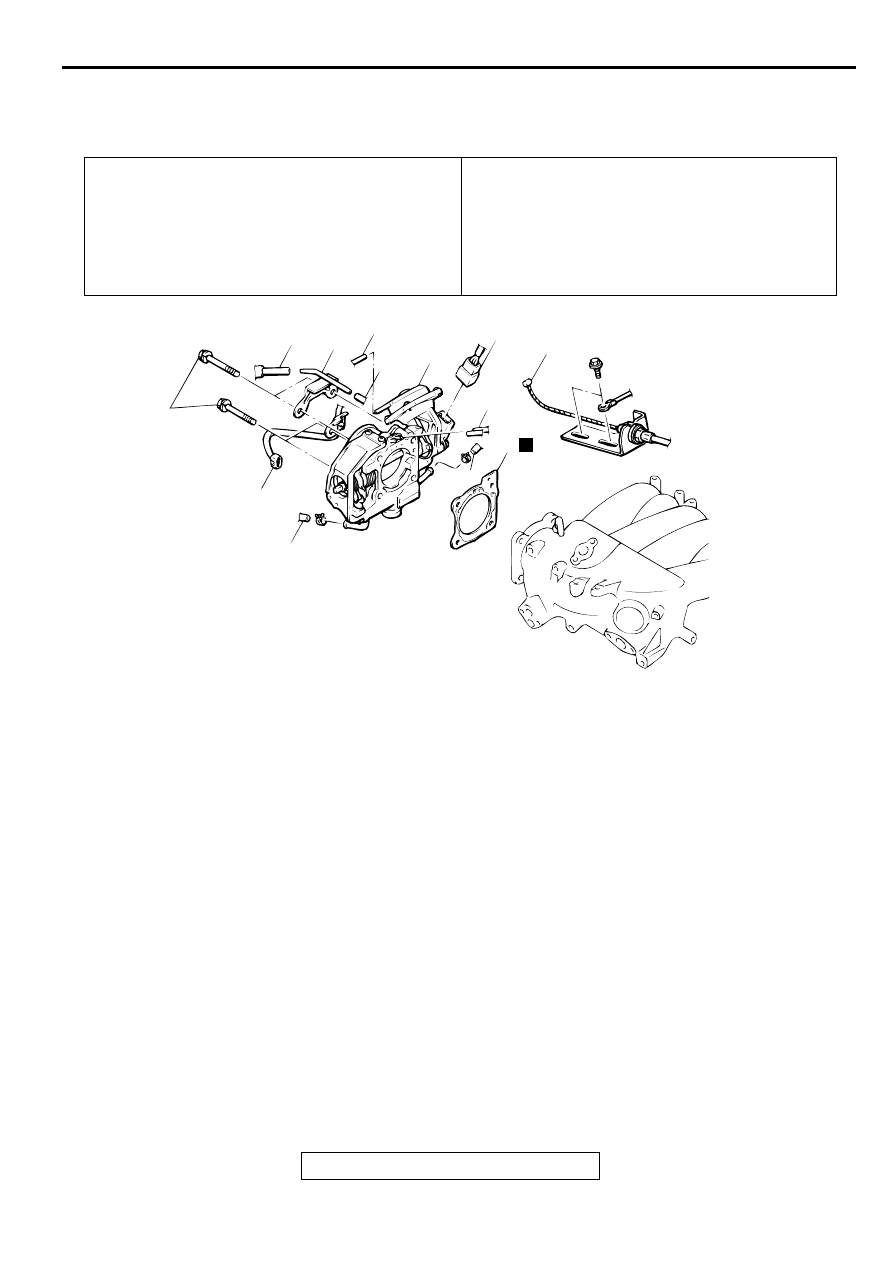

REMOVAL AND INSTALLATION

M1131007700124

Pre-removal Operation

Engine Coolant Draining [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-52

.]

Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-5

.)

Post-installation Operation

Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-5

.)

Engine Coolant Refilling [Refer to GROUP 00, Mainte-
nance Service

 Engine Coolant (Change)

P.00-52

.]

Accelerator Cable Adjustment (Refer to GROUP 17, On-
vehicle Service

 Accelerator Cable Check and Adjust-

ment

P.17-4

.)

AC001624

4

6

4

4

7

2

1

4

3

5

8

19 ± 3 N·m
14 ± 2 ft-lb

AB

N

5

REMOVAL STEPS

1.

ACCELERATOR CABLE
CONNECTION

2.

THROTTLE POSITION SENSOR
CONNECTOR

3.

IDLE AIR CONTROL MOTOR
CONNECTOR

4.

VACUUM HOSE CONNECTION

5.

WATER HOSE CONNECTION

6.

VACUUM PIPE CONNECTION

7.

THROTTLE BODY

>>A<<

8.

THROTTLE BODY GASKET

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-564

INSTALLATION SERVICE POINT

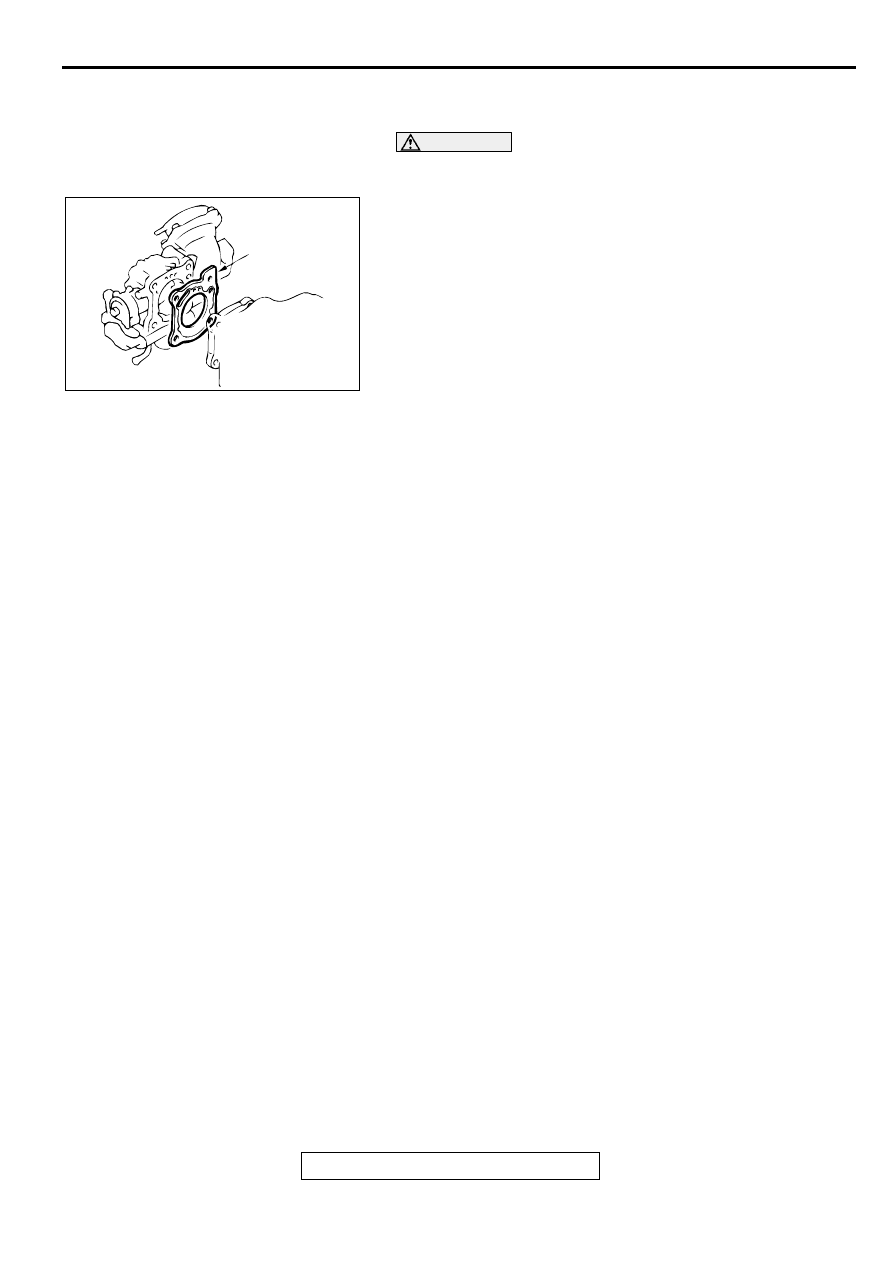

>>A<< THROTTLE BODY GASKET INSTALLATION

CAUTION

Poor idling etc. may result if the throttle body gasket is
installed incorrectly.
Install the throttle body gasket as shown in the illustration.

AC000233

PROJECTION

AB

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-565

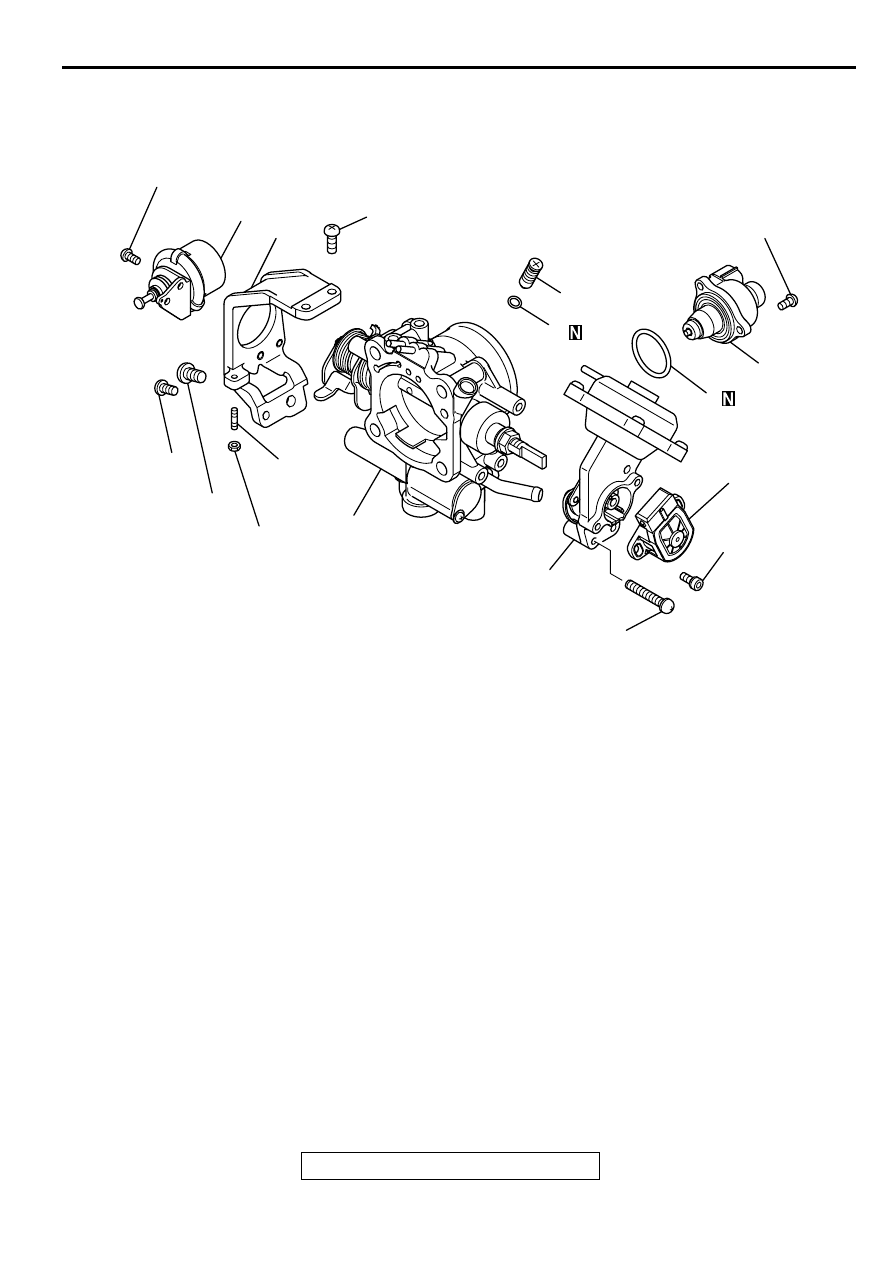

DISASSEMBLY AND ASSEMBLY

M1131009700090

NOTE: IF THE ADJUSTING SCREW WAS HAPPEN
TO HAVE BEEN REMOVED, PERFOM SPEED
ADJUSTING SCREW ADJUSTMENT.

DISASSEMBLY SERVICE POINTS

<<A>> THROTTLE POSITION SENSOR DISASSEMBLY
1. Do not disassemble the sensor and motor.

2. Do not clean the sensor and motor by dipping them into

cleaning solvent. Clean them with shop towel.

AK000206

6

8

7

5

9

10

2

1

4

3

3.4 ± 1 N·m
30 ± 9 in-lb

4.9 ± 1 N·m
43 ± 9 in-lb

4.9 ± 1 N·m
43 ± 9 in-lb

6.9 ± 1.5 N·m
61 ± 13 in-lb

2.0 ± 0.5 N·m
18 ± 4 in-lb

4.9 ± 1 N·m
43 ± 9 in-lb

2.0 ± 0.5 N·m
18 ± 4 in-lb

2.0 ± 0.5 N·m
18 ± 4 in-lb

AB

REMOVAL STEPS

<<A>>

>>A<<

1. THROTTLE POSITION SENSOR
2. LEVER ASSEMBLY
3. IDLE AIR CONTROL MOTOR
4. O-RING

<<B>>

5. THROTTLE BODY
6. DASH POT<M/T>
7. THROTTLE SPEED ADJUSTING

SCREW

8. BRACKET

9. SPEED ADJUSTING SCREW
10.O-RING

REMOVAL STEPS (Continued)

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-566

<<B>> THROTTLE BODY DISASSEMBLY
1. Do not disassemble the throttle body.

2. Check if the vacuum port or passage is clogged. Use

compressed air to clean the vacuum passage.

ASSEMBLY SERVICE POINTS

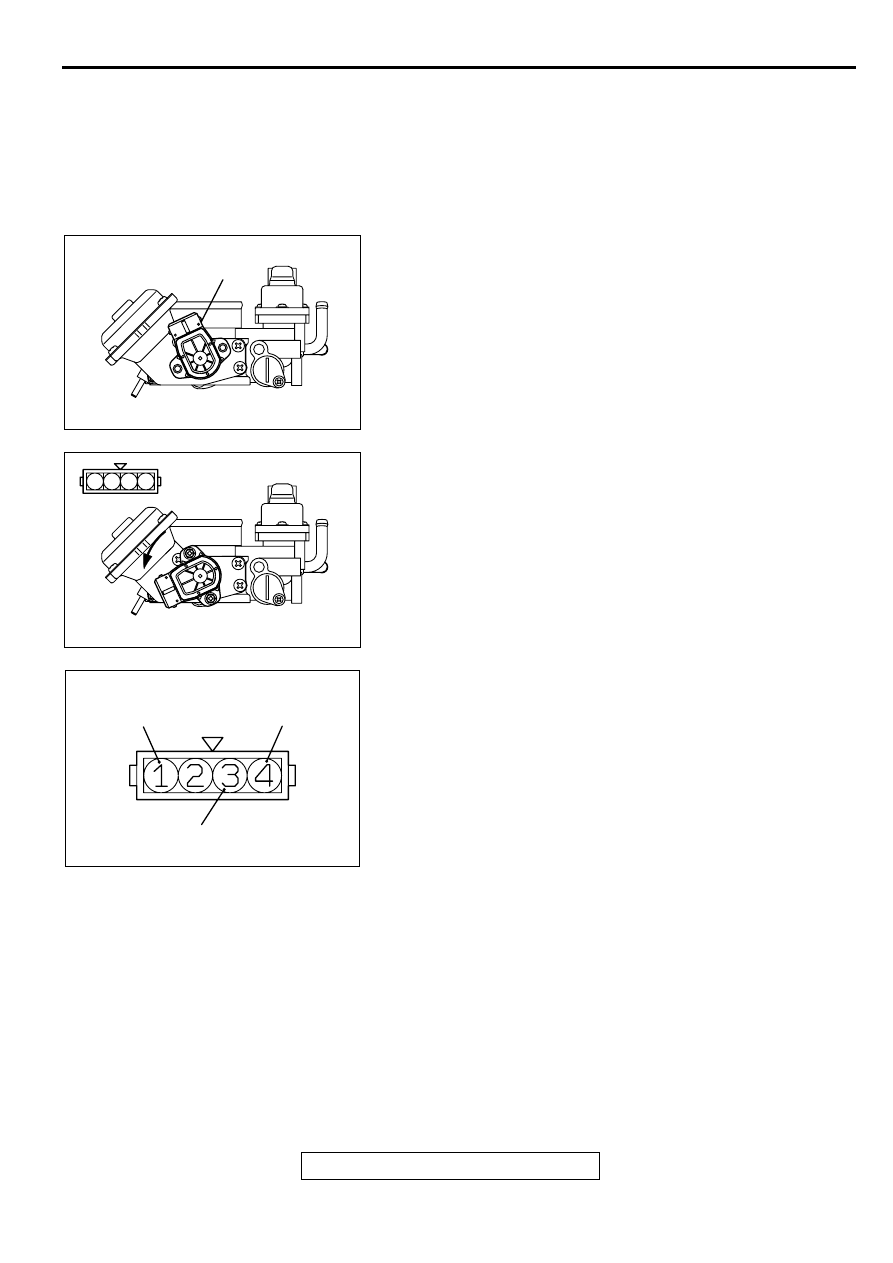

>>A>> THROTTLE POSITION SENSOR (TPS) INSTIGATION
1. Install the throttle position sensor to the throttle body as

shown in the illustration.

2. Turn the throttle position sensor 90 degrees

counterclockwise to set it, and tighten the screws.

3. Connect an ohmmeter between terminals 1 (ground) and 3

(output), or between terminals 3 (output) and 4 (power).
Then, make sure that the resistance changes smoothly
when the throttle valve is slowly moved to the fully open
position.

INSPECTION

M1131009800042

DASH POT

1. Push the dash pot rod in lightly and confirm the resistance.

NOTE: Resistance increases as the rod is pushed harder.

NOTE: If the rod can be pushed in with no resistance, either
the diaphragm or check valve is faulty.

2. Release finger and confirm that the rod returns to it's original

position quickly.

NOTE: If the rod returns slowly, the check valve is faulty.

AK000037

TPS

AB

1 2 3 4

AK000038AB

AKX01635

THROTTLE POSITION
SENSOR POWER

GROUND

THROTTLE POSITION
SENSOR OUTPUT

AB
