MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS
TSB Revision
MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>
13B-491

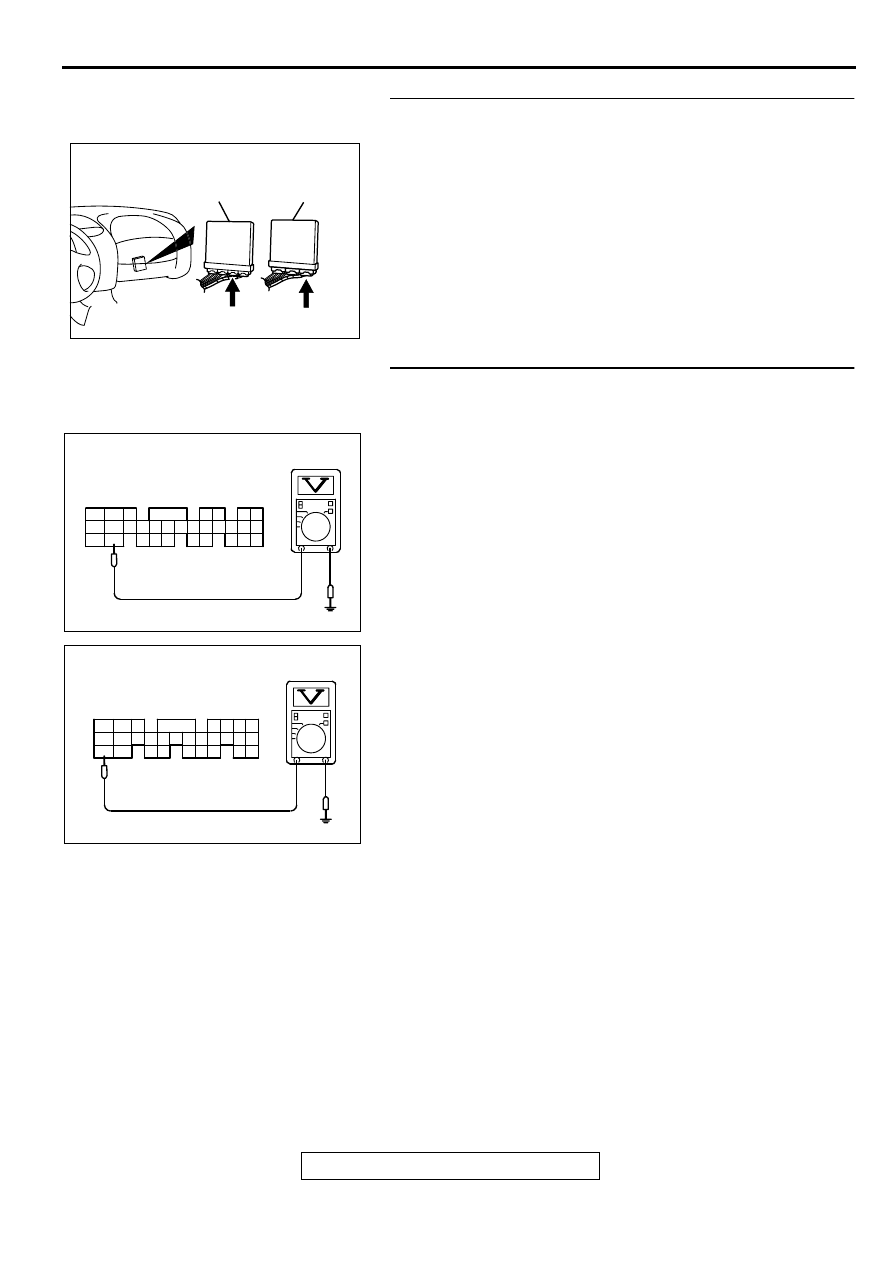

STEP 4. Check connector C-62 at ECM <M/T> or connector
C-59 at PCM <A/T> for damage.
Q: Is the connector in good condition?
YES : Go to Step 5.
NO : Repair or replace it. Refer to GROUP 00E, Harness
Connector Inspection (
). Then confirm that
the malfunction symptom is eliminated.

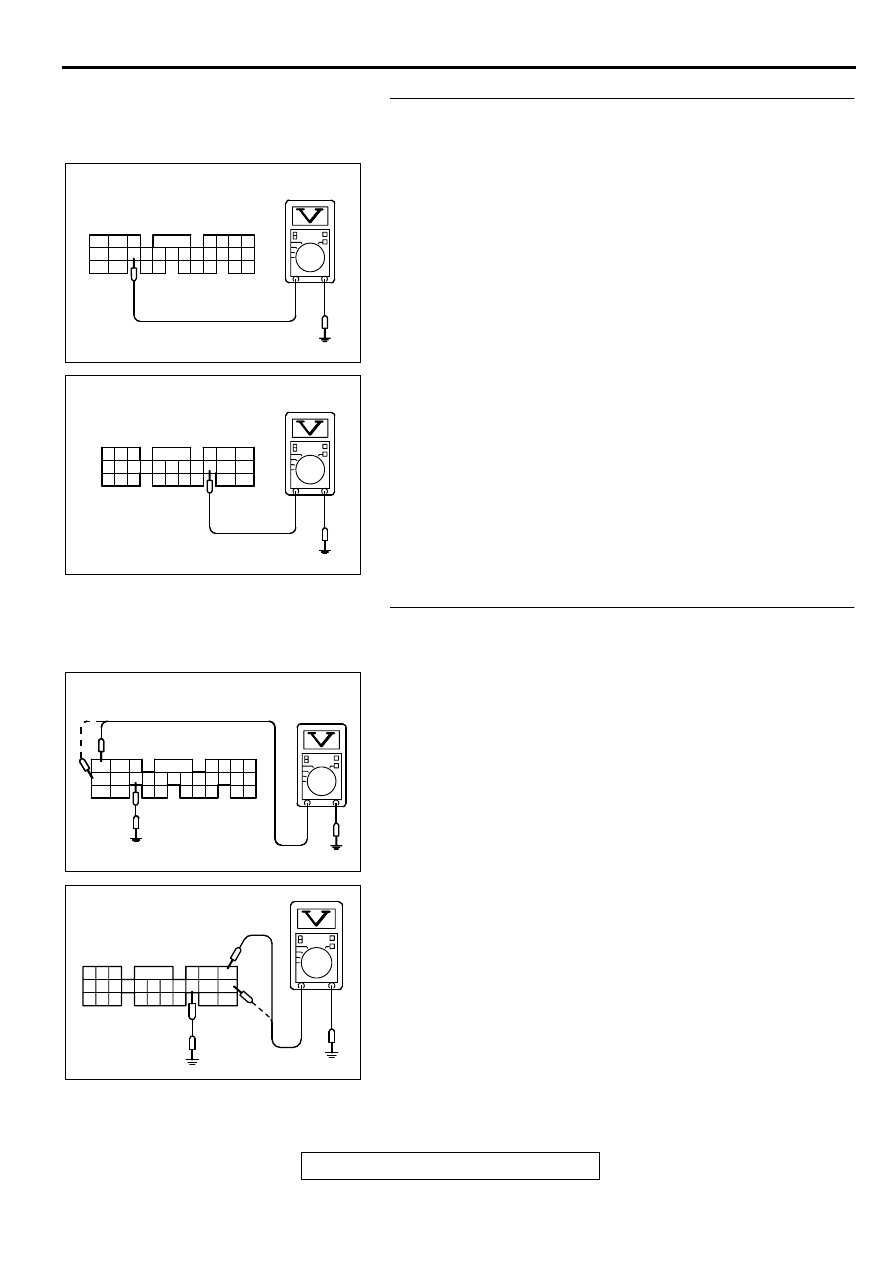

STEP 5. Check the ignition switch-IG signal voltage at ECM
harness side connector C-62 <M/T> or PCM harness side
connector C-59 <A/T>.
(1) Disconnect the connector C-62 <M/T> or C-59 <A/T> and
measure at the harness side.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 99 <M/T> or 98 <A/
T> and ground.
•
Voltage should be battery positive voltage.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?
YES : Go to Step 6.
NO : Check harness connector C-07, C-89 and C-101 at
intermediate connector for damage, and repair or
replace as required. Refer to, GROUP 00E, Harness
Connector Inspection (
). If intermediate
connectors are in good condition, repair harness wire
between ignition switch connector C-87 terminal 2
and ECM connector C-62 terminal 99 <M/T> or PCM
connector C-59 terminal 98 <A/T> because of open
circuit. Then confirm that the malfunction symptom is
eliminated.
AK000225
CONNECTOR : C-62<M/T>, C-59<A/T>
C-59
C-62
PCM<A/T>
ECM<M/T>
AL
AK000372
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
<M/T>
C-62 HARNESS
SIDE CONNECTOR
AC
AK000373AC
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
<A/T>
C-59 HARNESS
SIDE CONNECTOR
