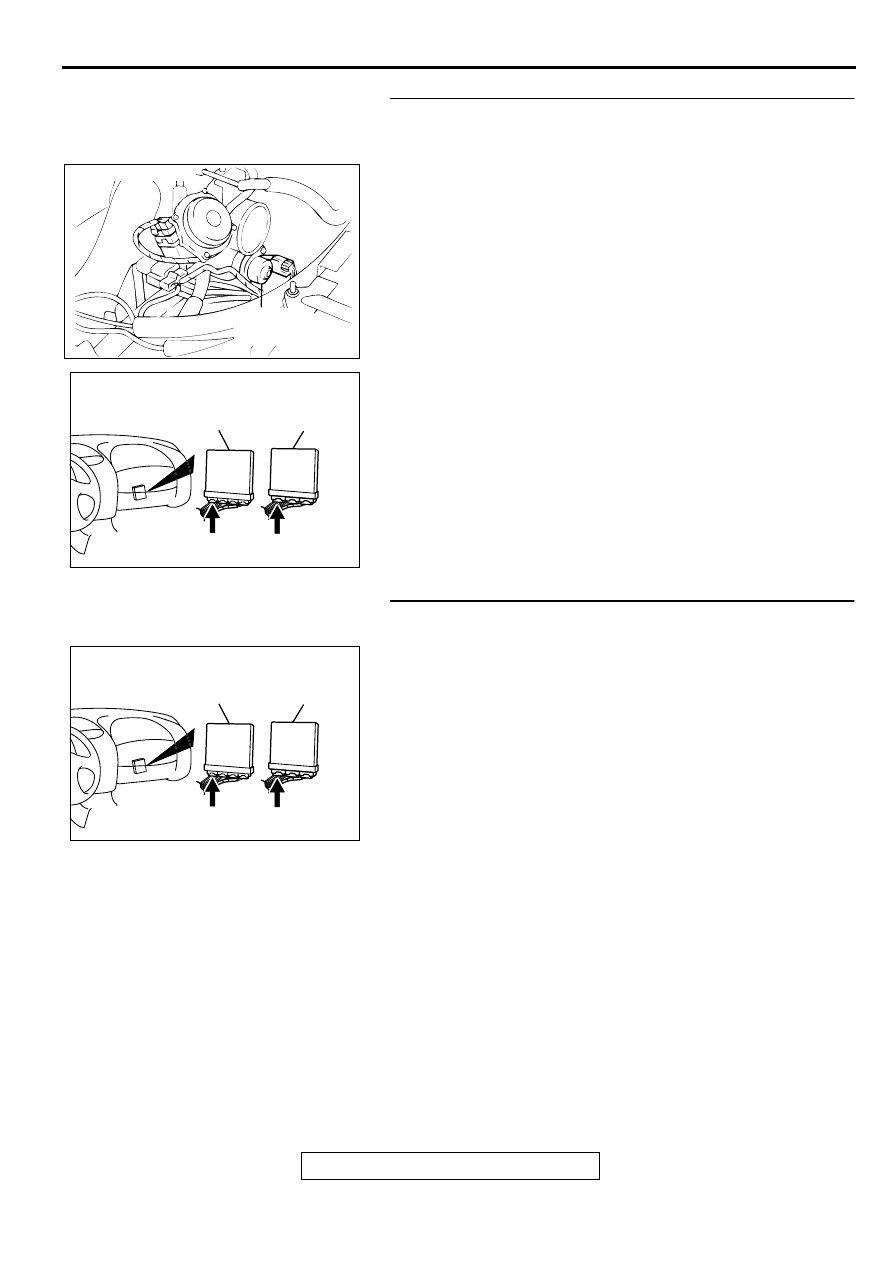

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-371

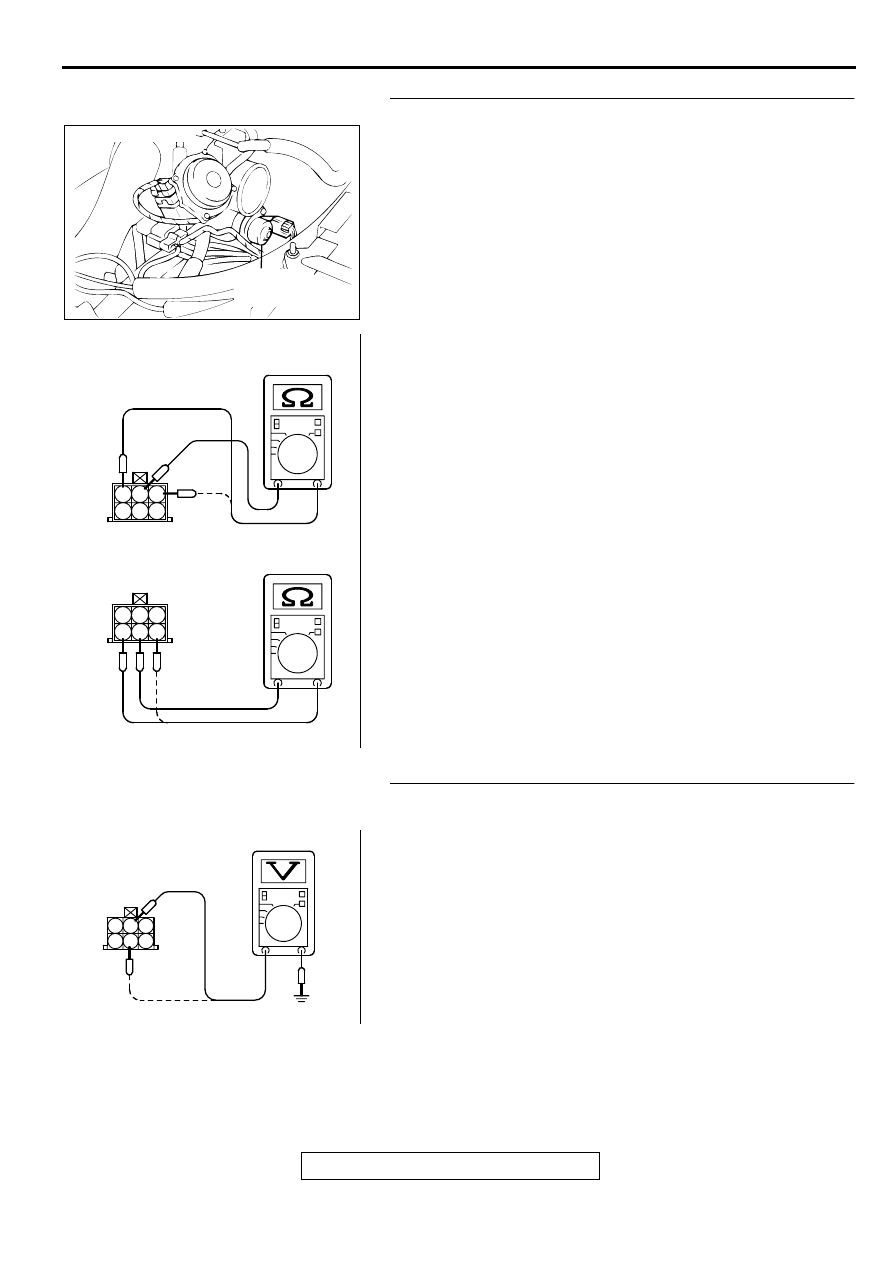

STEP 4. Check the idle air control motor coil resistance.
(1) Disconnect the idle air control motor connector B-34.
(2) Measure the resistance between idle air control motor

connector terminal 2 and either terminal 1 or terminal 3.

Standard value: 28

 33 ohm [at 20

°

C (68

°

 F)]

(3) Measure the resistance between idle air control motor

connector terminal 5 and either terminal 4 or terminal 6.

Standard value: 28

 33 ohm [at 20

°

C (68

°

 F)]

Q: Is the resistance normal?

YES : Go to Step 5.
NO :  Replace the idle air control motor. Then go to Step 14.

STEP 5. Check the power supply voltage at idle air control
motor harness side connector B-34.
(1) Disconnect the connector B-34 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 2, 5 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 7.
NO :  Go to Step 6.

ACX02523AI

IDLE AIR
CONTROL
MOTOR

CONNECTOR:B-34

AKX01561

1 2 3
4 5 6

1 2 3
4 5 6

AB

AKX01428

1

2

3

5 4

6

B-34 HARNESS
SIDE CONNECTOR

AF

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-372

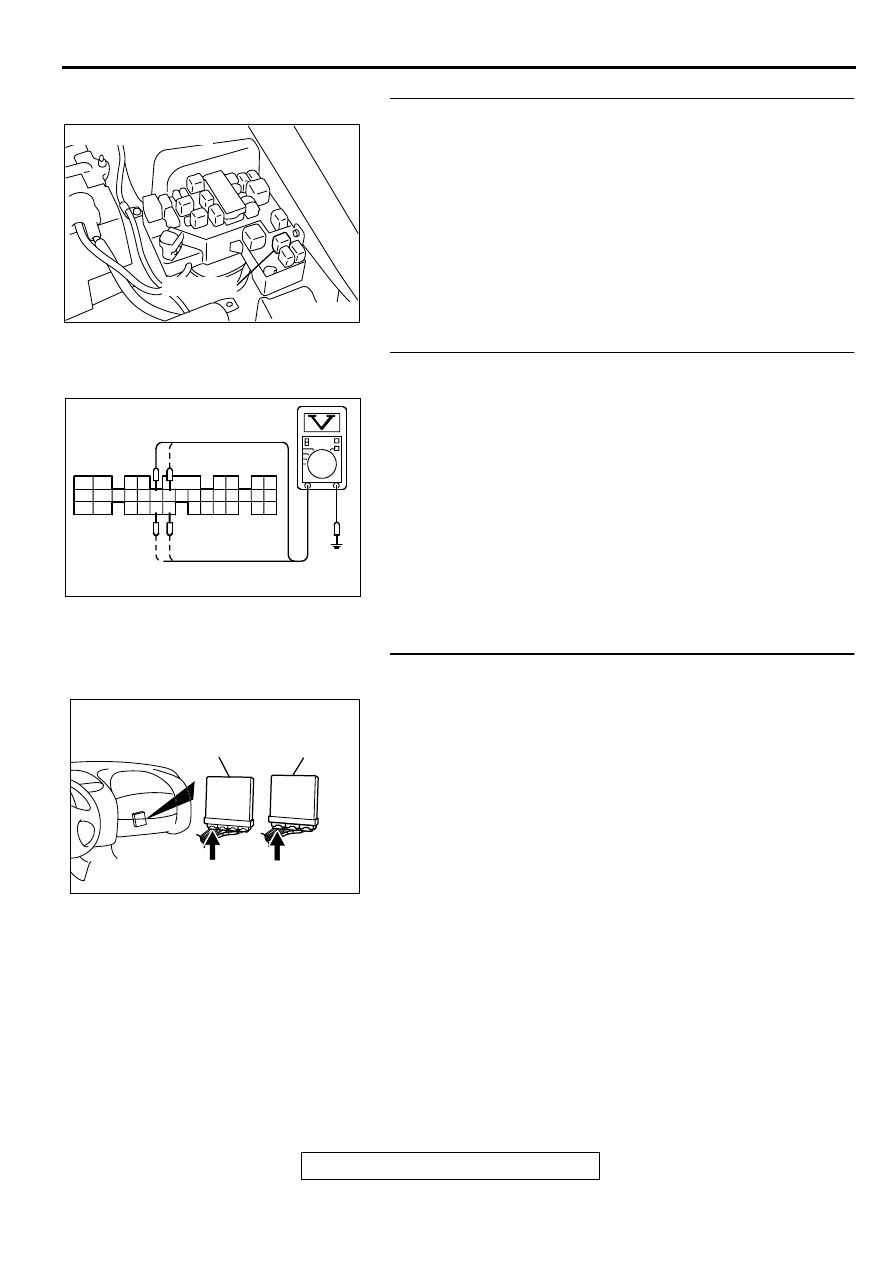

STEP 6. Check connector A-21X at MFI relay for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector A-

21X terminal 1 and idle air control motor connector B-
34 terminal 2, 5 because of open circuit or short circuit
to ground. Then go to Step 14.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 14.

STEP 7. Check the power supply voltage at ECM connector
C-51 <M/T> or PCM connector C-52 <A/T> by backprobing
(1) Do not disconnect the connector C-51 <M/T> or C-52 <A/

T>.

(2) Measure the voltage between terminal 14, 15, 28, 29 and

ground by backprobing.

The voltage is 1V or lower for approximately 3 seconds,
then changes to the battery positive voltage when the
Ignition switch is turned from the "LOCK" (OFF) position
to the "ON" position.

(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 10.
NO :  Go to Step 8.

STEP 8. Check connector C-51 at ECM <M/T> or connector
C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 14.

AK000226

AK000226AB

CONNECTOR : A-21X

MFI RELAY

AKX01550

1

2

3 4

5 6

7 8

10 11 12 13 14 15 16 17 18 19 20 21 22 23

24 25

26 27 28 29

30 31 32 33

34 35

C-51<M/T>, C-52<A/T>
CONNECTOR HARNESS
SIDE VIEW

AE

9

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-373

STEP 9. Check for open circuit and short circuit to ground
between idle air control motor connector B-34 and ECM
connector C-51 <M/T> or PCM connector C-52 <A/T>.

a. Idle air control motor connector B-34 terminal 1 and ECM

connector C-51 terminal 14 <M/T> or PCM connector C-52
terminal 14 <A/T>.

b. Idle air control motor connector B-34 terminal 3 and ECM

connector C-51 terminal 28 <M/T> or PCM connector C-52
terminal 28 <A/T>.

c. Idle air control motor connector B-34 terminal 4 and ECM

connector C-51 terminal 15 <M/T> or PCM connector C-52
terminal 15 <A/T>.

d. Idle air control motor connector B-34 terminal 6 and ECM

connector C-51 terminal 29 <M/T> or PCM connector C-52
terminal 29 <A/T>.

Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

STEP 10. Check connector C-51 at ECM <M/T> or
connector C-52 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 14.

ACX02523AI

IDLE AIR
CONTROL
MOTOR

CONNECTOR:B-34

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ

AK000225

CONNECTOR : C-51<M/T>, C-52<A/T>

C-52

C-51

PCM<A/T>

ECM<M/T>

AJ

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-374

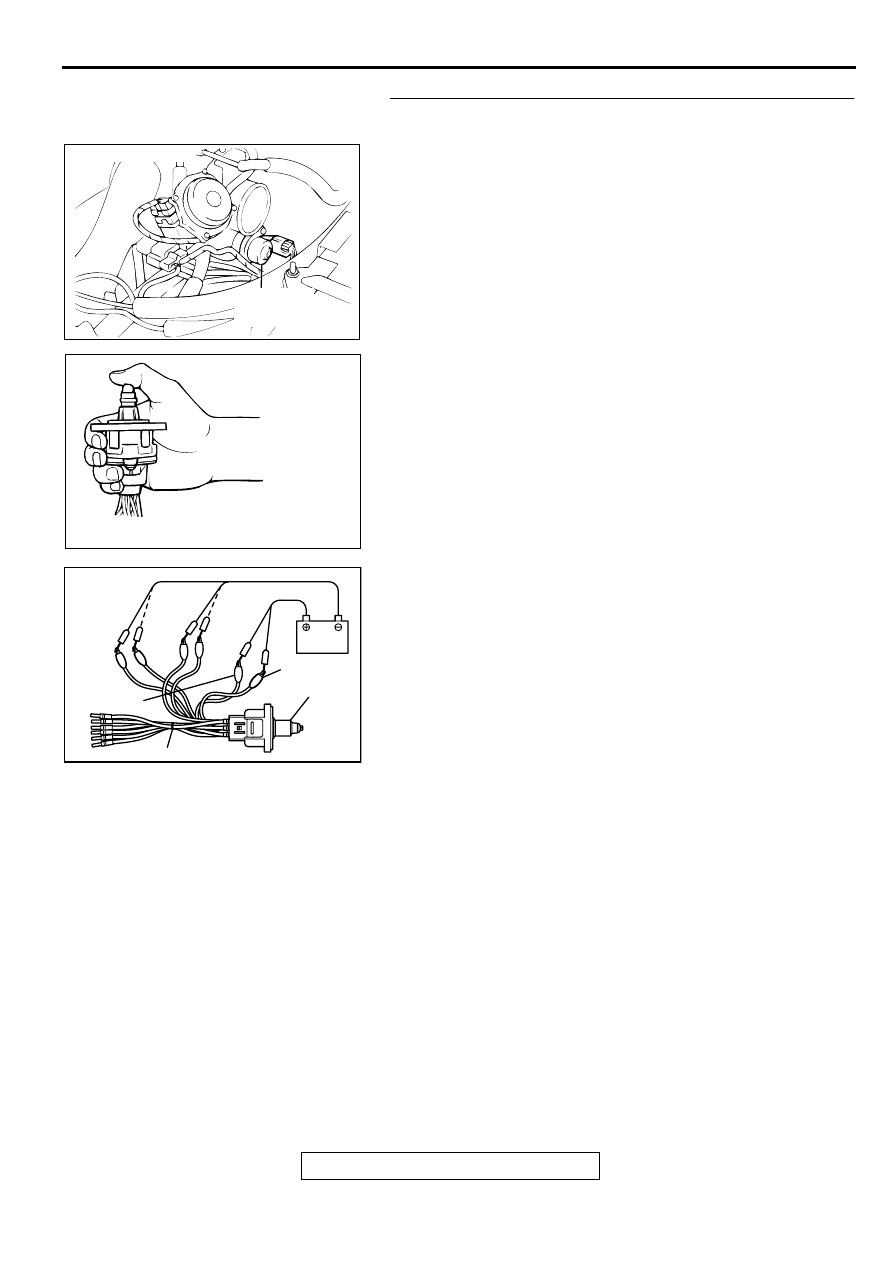

STEP 11. Check the idle air control motor operation using
special tool MB991709.
(1) Remove the idle air control motor.
(2) Connect special tool MB991709 to the idle air control motor.

(All terminals should be connected.)

(3) Use the jumper wires to connect terminal 2 of the idle air

control motor connector to the battery (+) terminal.

(4) Check the ensure that the motor operates when the

terminals 1 and 3 of the idle air control motor connector are
respectively connected to the battery (-) terminal using a
jumper wire.

Vibration should be present at each application of
voltage to test clip combination.

(5) Then. Use jumper wires to connect the terminal 5 of the idle

air control motor connector to the battery (+) terminal.

(6) Check the ensure that the motor operates when the

terminals 4 and 6 of the idle air control motor connector are
respectively connected to the battery (-) terminal using a
jumper wire.

Vibration should be present at each application of
voltage to test clip combination.

(7) Install the idle air control motor. Refer to, Throttle Body



Disassembly and Assembly (

P.13B-565

).

Q: Is the idle air control motor operating properly?

YES : Go to Step 12.
NO :  Replace the idle air control motor. Then go to Step 14.

ACX02523AI

IDLE AIR
CONTROL
MOTOR

CONNECTOR:B-34

AKX01626

AKX01627AB

TERMINAL 2

IAC MOTOR

TERMINAL 5

MB991709
