MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-47

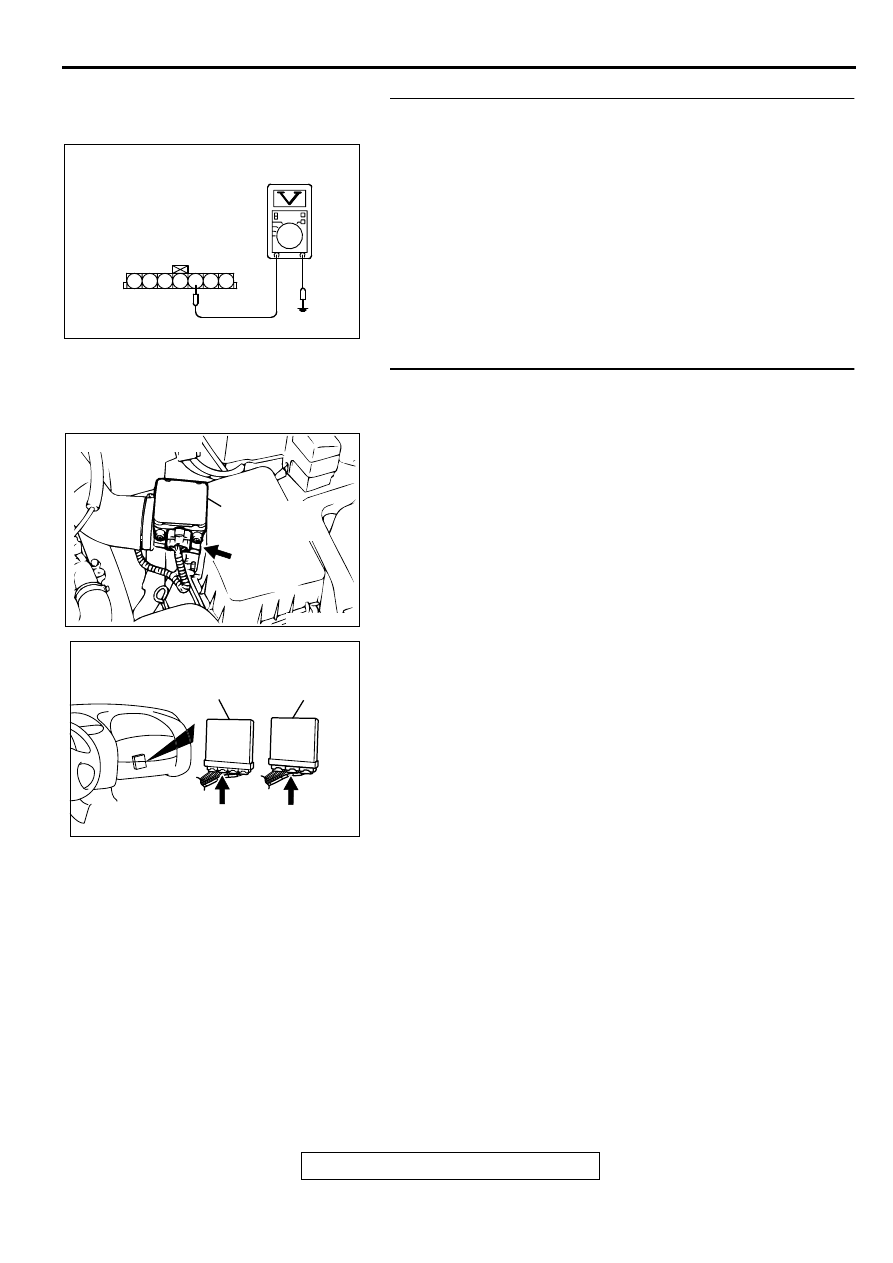

STEP 12. Check the ground voltage at barometric pressure
sensor connector B-14 by backprobing.
(1) Do not disconnect the connector B-14.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 5 and ground by

backprobing.

Voltage should be 0.5 volt or less.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 15.
NO :  Go to Step 13.

STEP 13. Check connector B-14 at the barometric pressure
sensor and connector C-58 at ECM <M/T> or connector C-
55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 18.

AKX01517

B-14 CONNECTOR
HARNESS
SIDE VIEW

1 2 3 4 5 6 7

AC

ACX02480

CONNECTOR : B-14

AF

BAROMETRIC
PRESSURE
SENSOR

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-48

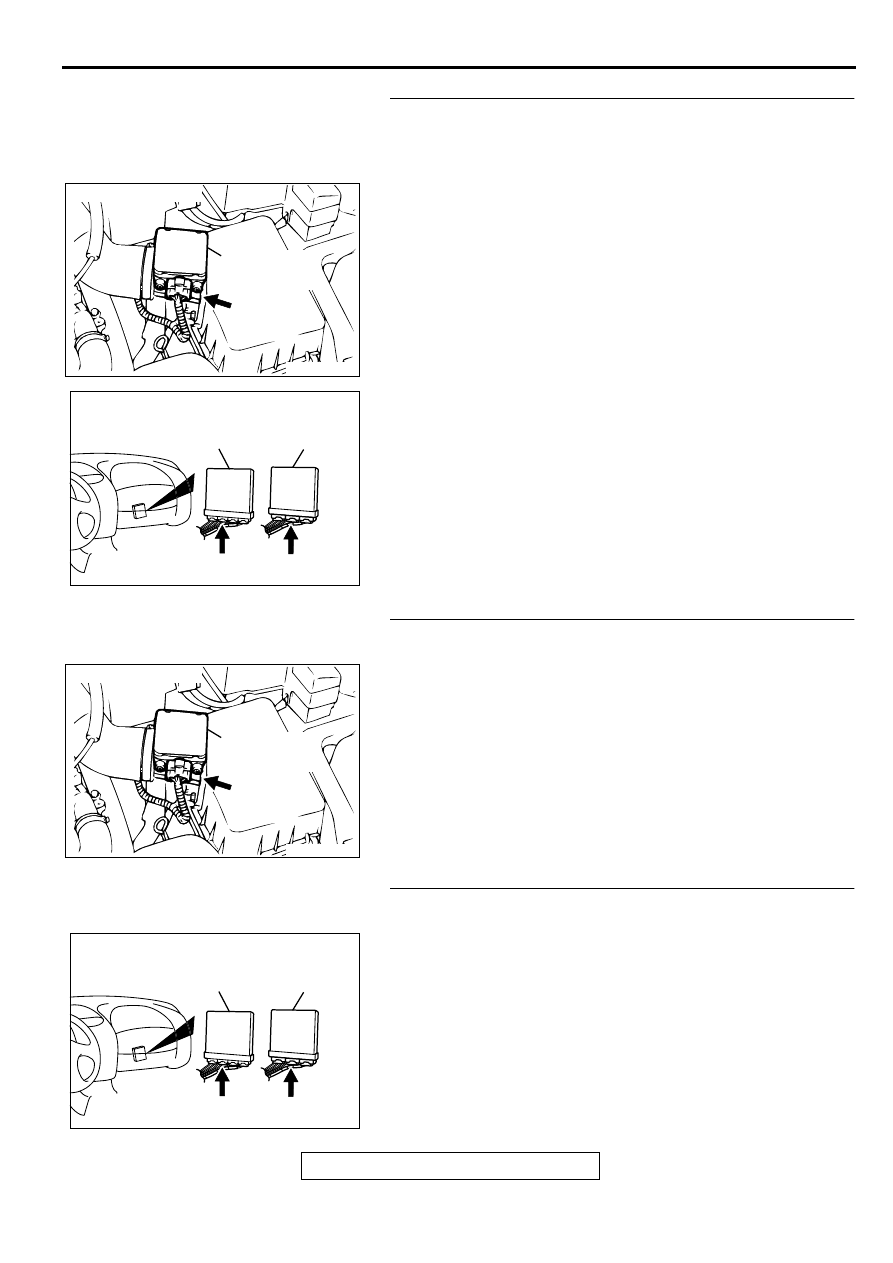

STEP 14. Check for harness damage between barometric
pressure sensor connector B-14 terminal 5 and ECM
connector C-58 terminal 49 <M/T> or PCM connector C-55
terminal 57 <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 18.
NO :  Repair it. Then go to Step 18.

STEP 15. Check connector B-14 at barometric pressure
sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 18.

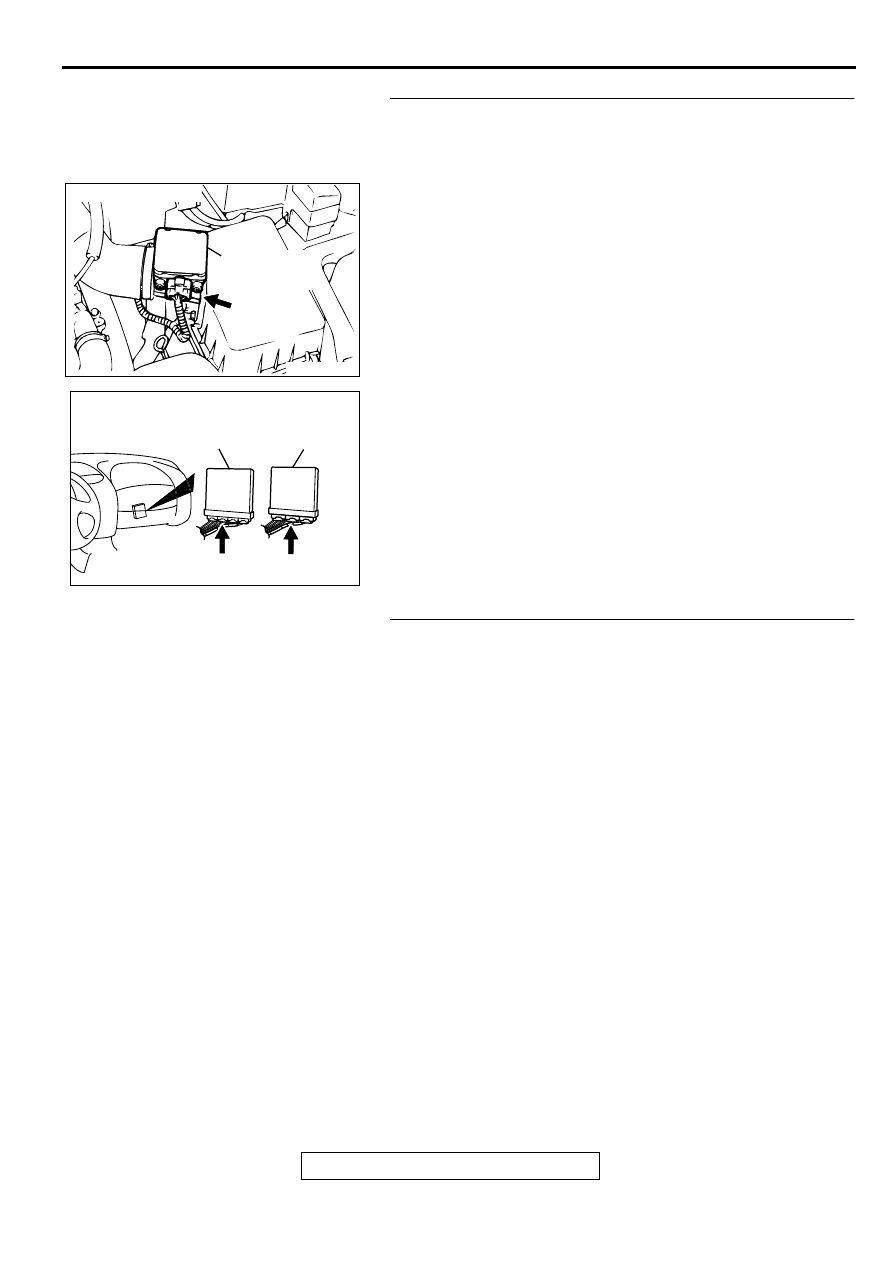

STEP 16. Check connector C-58 at ECM <M/T> or
connector C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 18.

ACX02480

CONNECTOR : B-14

AF

BAROMETRIC
PRESSURE
SENSOR

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

ACX02480

CONNECTOR : B-14

AF

BAROMETRIC
PRESSURE
SENSOR

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-49

STEP 17. Check for short circuit to ground and harness
damage between barometric pressure sensor connector B-
14 terminal 2 and ECM connector C-58 terminal 51 <M/T>
or PCM connector C-55 terminal 55 <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the volume air flow sensor. Then go to Step

18.

NO :  Repair it. Then go to Step 18.

STEP 18. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

P.13B-4

, Procedure 6

 Other Monitor.

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0107 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

ACX02480

CONNECTOR : B-14

AF

BAROMETRIC
PRESSURE
SENSOR

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-50

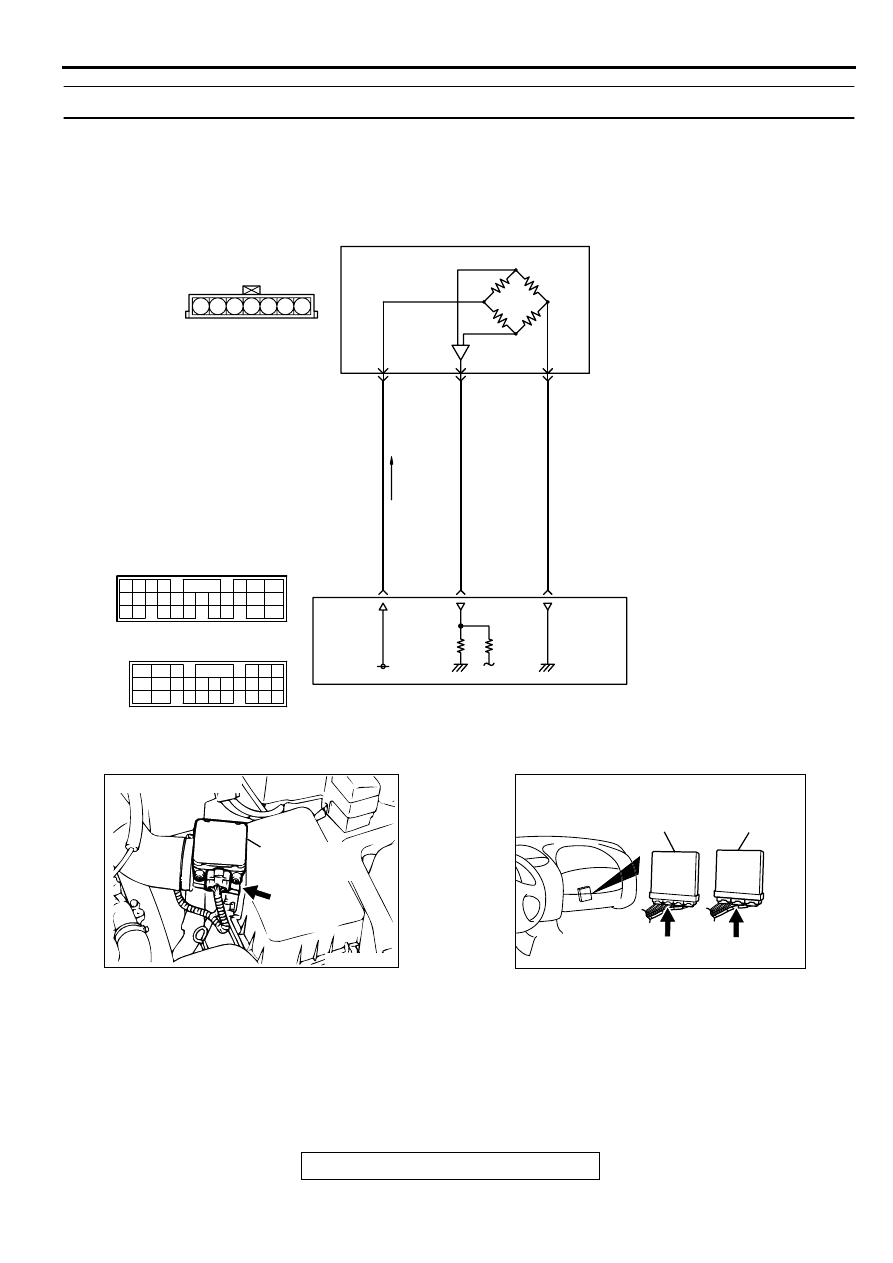

DTC P0108: Barometric Pressure Circuit High Input

CIRCUIT OPERATION

A 5-volt voltage is supplied to the barometric
pressure sensor power terminal (terminal 1) from
the ECM (terminal 42) <M/T> or PCM (terminal
46) <A/T>. The ground terminal (terminal 5) is
grounded with ECM (terminal 49) <M/T> or PCM
(terminal 57) <A/T>.

A voltage that is proportional to the atmospheric
pressure is sent to the ECM (terminal 51) <M/T>
or PCM (terminal 55) <A/T> from the barometric
pressure sensor output terminal (terminal 2).

AK000686

7

4 5 6

1 2 3

GREEN-YELLO

W

GREEN-WHITE

BLA

CK

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

5V

B-14

BAROMETRIC PRESSURE SENSOR
(INCORPORATED IN VOLUME AIR
FLOW SENSOR)

1

2

5

42<M/T>
46<A/T>

51<M/T>
55<A/T>

49<M/T>
57<A/T>

65

43
50

42
49

41
48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

 C-58<M/T>
(MU803782)

 C-55<A/T>
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

ACX02480

CONNECTOR : B-14

AF

BAROMETRIC
PRESSURE
SENSOR

AK000225

CONNECTOR : C-58<M/T>, C-55<A/T>

C-55

C-58

PCM<A/T>

ECM<M/T>

AI
