Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 204





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-15

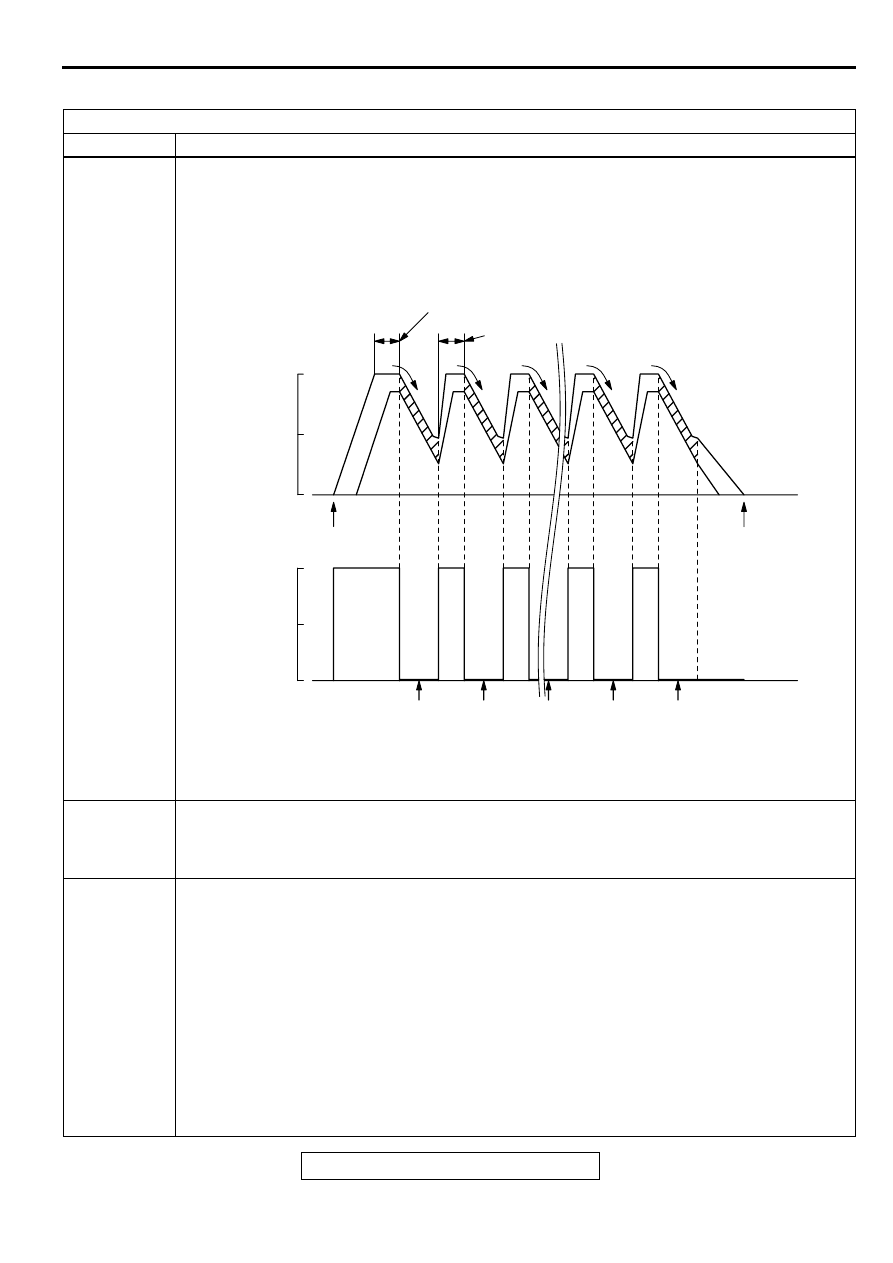

PROCEDURE 5

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MONITOR

DTC

P0401

Drive cycle
pattern

This monitor [from start to ignition switch to the "LOCK" (OFF) position] will be completed while
traveling with the following drive cycle pattern. It will take 10 minutes. You must complete this drive
twice.

NOTE: . Vehicle speed and throttle opening angle should be within the shaded range.

Inspection
conditions

Engine coolant temperature: 80

°

C (176

°

F) or more

Atmospheric temperature: 5

°

C (41

°

F) or more

A/C switch: OFF

Condition of A/T: Selector lever D range

Test procedure

1. Engine: start
2. Accelerate until the vehicle speed is 56

 64 km/h (35

 40 mph).

3. Travel for 20 seconds or more while keeping the vehicle speed at 56

 64 km/h (35 - 40 mph). (M/

T = 4th speed)

4. Fully close the throttle from an engine speed of 2,000

 3,000 r/min, and decelerate to approx. 900

r/min without applying the brakes. Do not steer the handle or turn the light ON/OFF during this
time. (During monitor)

5. Accelerate until the vehicle speed reaches 56

 64 km/h (35

 40 mph), and travel for 20 seconds

or more. Then, repeat steps 4 and 5 and complete 8 monitor sessions.

6. Return the vehicle to the shop, then turn the ignition switch to the "LOCK" (OFF) position.
7. Confirm that the diagnostic trouble code (DTC) is not output.
8. If DTC P0401 is output, refer to, DTC P0401

 Exhaust Gas Recirculation Flow Insufficient

Detected.

P.13B-266

.

AKX01349

(2)

AKX01349

(3)

(5)

(5)

(5)

(5)

(2)

(1)

(4)

(4)

(4)

(4)

(4)

20 SECONDS OR MORE
56 - 64 km/h (35 - 40 mph)
M/T: 4TH SPEED

20 SECONDS OR MORE

1 ST
MON-
ITOR

7 TH
MON-
ITOR

8 TH
MON-
ITOR

2 ND
MON-
ITOR

ENGINE START

IGNITION
SWITCH:"LOCK"
(OFF) position

FULL
DECEL-
ERATION

FULL
DECEL-
ERATION

FULL
DECEL-
ERATION

FULL
DECEL-
ERATION

FULL
DECEL-
ERATION

64
(40)

32
(20)

0

100

50

0

VEHICLE
SPEED
km/h (mph)

CALCULATED
LOAD (%)

AKX01349AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-16

PROCEDURE 6

OTHER MONITOR (Main components, sensors and switches, wire breakage and short circuit)

DTC

Main components: P0134, P0154,P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0506,P0507,P1400

Sensors and switches: P0101,P0102,P0103,P0107,P0108,P0111,P0115,P0116,P0117, P0121,P0122,P0123,
P0335, P0340, P0551

Wire breakage and short circuit: P0130, P0135, P0136, P0141, P0150, P0155, P0156, P0161, P0201, P0202,
P0203, P0204, P0205, P0206, P0403, P0443, P0446, P1500

Drive cycle
pattern

This monitor [from start to ignition switch to the "LOCK" (OFF) position] will be completed while traveling with the
following drive cycle pattern. It will take 10 minutes. You must complete this drive twice.
NOTE: . Drive according to the graph below.

Inspection
conditions

Engine coolant temperature: 80

°

C (176

°

F) or more

Atmospheric temperature: 5

°

C (41

°

F) or more

Condition of A/T: Selector lever D range

Test procedure

Engine: start
Accelerate until the vehicle speed is 56

 64 km/h (35

 40 mph), and travel for 300 seconds or more. (M/T = 4th

speed)

Return the vehicle to the shop.
After stopping the vehicle, continue idling for 300 seconds, and then turn the ignition switch to the "LOCK" (OFF)

position. Moreover, the vehicle should be set to the following conditions for idling.

A/C switch: OFF

Lights and all accessories: OFF

Transaxle: P range

Steering wheel: Straightforward position

Confirm that the diagnostic trouble code (DTC) is not output.
If a DTC is output, refer to Diagnostic Trouble Code Chart.

P.13B-18

.

AKX01350

AKX01350

(3)

(2)

(1)

(4)

300 SECONDS OR MORE
56 - 64 km/h (35 - 40 mph)
M/T: 4TH SPEED

ENGINE: IDLING
TRANSMISSION: NEUTRAL
300 SECONDS

ENGINE START

IGNITION
SWITCH:"LOCK"
(OFF) position

64
(40)

32
(20)

0

100

50

0

VEHICLE
SPEED
km/h (mph)

CALCULATED
LOAD (%)

AKX01350 AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-17

READINESS TEST STATUS

Purpose
The Readiness function also referred as I/M
Readiness or I/M Flags indicate if a full diagnostic
check has been "Completed" (is "Ready") for each
non-continuous monitor. Enhanced I/M State
Emission Programs will use the Readiness status
(Codes) to see if the vehicle is ready for OBD II
testing. "Incomplete" (Not Ready) codes will be one
of the triggers for I/M failure.

Overview
The engine control module (ECM) <M/T> or
powertrain control module (PCM) <A/T> monitors the
following main diagnosis items and records whether
the evaluation was completed or is incomplete. The
Readiness codes were established for the I/M
programs, thereby confirming that the vehicle was
not tampered with by erasing the DTC's before I/M
testing. The Readiness and DTC codes can be reset
by disconnecting the battery or by erasing the codes
with a scan tool. For this reason all Readiness codes
must read "Complete" before I/M testing. When the
monitors run and complete, the MUT II will record the
Readiness Code as "Complete" (General Scan Tools
record as "Ready"). If the monitor did not run
completely, the system then reads as "Incomplete"
(General Scan Tools record as "Not Ready").

When the monitors run and complete, the MUT II will
record the Readiness Code as "Complete" (General
Scan Tools record as "Ready"). If the monitor did not
run completely, the system then reads as
"Incomplete" (General Scan Tools record as "Not
Ready"). When the vehicle is operating normally and
the OBD II Drive Cycle is carried out, Readiness
Code will set as "Complete" on the first drive cycle. If
during the first drive cycle a fault is detected then, a
second drive is required before the Readiness Code
will "Complete." If the fault is still there, then a DTC
will set.

Catalyst: P0421, P0431

Evaporative system: P0442, P0455

Heated oxygen sensor:
P0130,P0133,P0136,P0139,P0150,P0153,P015
6,P0159

Heated oxygen sensor heater: P0135, P0141,
P0155, P0161

EGR system: P0401

After the Readiness is "Complete," the technician is
assured that any DTC's associated with that monitor
will be displayed if the system has a problem. That is
why some State's I/M programs require the
Readiness Code as "Complete" before they check
for DTC's.

NOTE: After a repair is mode for a DTC the
technician should drive the OBD II drive cycle
checking that the MUT II records all Readiness as
"Complete".

FAIL-SAFE/BACKUP FUNCTION TABLE

M1131009100065

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by
means of the following defaults.

MALFUNCTION ITEM

CONTROL CONTENTS DURING MALFUNCTION

Volume air flow sensor

1. Uses the throttle position sensor signal and engine speed signal (crankshaft

position sensor signal) for basic injector drive time and basic ignition timing
from the pre-set mapping.

2. Fixes the IAC motor in the appointed position so idle air control is not

performed.

Intake air temperature
sensor

Controls as if the intake air temperature is 25

°

C (77

°

F).

Throttle position sensor

No increase in fuel injection amount during acceleration due to the unreliable
throttle position sensor signal.

Engine coolant
temperature sensor

Controls as if the engine coolant temperature is 80

°

C (176

°

F). (This control will

be continued until the ignition switch is turned to the "LOCK" (OFF) position
even though the sensor signal returns to normal.)

Camshaft position sensor Injects fuel simultaneously into all cylinders. (After the ignition switch is turned to

the "ON" position, the No.1 cylinder top dead center is not detected at all.)

Barometric pressure
sensor

Controls as if the barometric pressure is 101 kPa (30 in Hg).

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-18

DIAGNOSTIC TROUBLE CODE CHART

M1131008700086

Knock sensor

Switches the ignition timing from ignition timing for high octane to ignition timing
for standard octane fuel.

Communication line with
transaxle control CPU

No ignition timing retard control (overall engine-transaxle control) achieved
when transaxle speeds are changed.

Generator FR terminal

Does not restrict the generator output with respect to electrical load.

Heated oxygen sensor
<front>

Air/fuel ratio closed loop control is not performed.

Heated oxygen sensor
<rear>

Performs the closed loop control of the air/fuel ratio by using only the signal of
the heated oxygen sensor (front) installed on the front side of the catalytic
converter.

Misfire detection

The ECM <M/T> or PCM <A/T> stops supplying fuel to the cylinder with the
highest misfiring rate if a misfiring that could damage the catalytic converter is
detected.

MALFUNCTION ITEM

CONTROL CONTENTS DURING MALFUNCTION

DTC
CODE

DIAGNOSTIC ITEMS

REFERENCE
PAGE

P0101

Volume air flow circuit range/performance problem

P.13B-24

P0102

Volume air flow circuit low input

P.13B-31

P0103

Volume air flow circuit high input

P.13B-34

P0107

Barometric pressure circuit low input

P.13B-40

P0108

Barometric pressure circuit high input

P.13B-50

P0111

Intake air temperature circuit range/performance problem

P.13B-56

P0115

Engine coolant temperature circuit high input

P.13B-66

P0116

Engine coolant temperature circuit range/performance problem

P.13B-74

P0117

Engine coolant temperature circuit low input

P.13B-80

P0121

Throttle position circuit range/performance problem

P.13B-88

P0122

Throttle position circuit low input

P.13B-96

P0123

Throttle position circuit high input

P.13B-102

P0128

Coolant thermostat malfunction

P.13B-107

P0130

O

2

 Sensor circuit malfunction (bank 1 sensor 1)

P.13B-109

P0133

O

2

 Sensor circuit slow response (bank 1 sensor 1)

P.13B-118

P0134

O

2

 Sensor circuit no activity detected (bank 1 sensor 1)

P.13B-120

P0135

O

2

 Sensor heater circuit malfunction (bank 1 sensor 1)

P.13B-127

P0136

O

2

 Sensor circuit malfunction (bank 1 sensor 2)

P.13B-134

P0139O

2

 Sensor circuit slow response (bank 1 sensor 2)

P.13B-144

P0141

O

2

 Sensor heater circuit malfunction (bank 1 sensor 2)

P.13B-147

P0150

O

2

 Sensor circuit malfunction (bank 2 sensor 1)

P.13B-154

P0153

O

2

 Sensor circuit slow response (bank 2 sensor 1)

P.13B-164

P0154

O

2

 Sensor circuit no activity detected (bank 2 sensor 1)

P.13B-166
