MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-239

The ECM <M/T> or PCM <A/T> must see this
activity during 8 consecutive idling periods from
engine starting.

NOTE: Rapid voltage occurs due to fuel sloshing
during refuelling. However, when the PCM sees
the activity mentioned above 8 consecutive
times, it judges that an electrical noise is present.

NOTE: The PCM determines that the engine is
not idling if all of the following conditions are met.

.

Engine speed is higher than 2,500 r/min.

Vehicle speed is 15 km/h (9.3 mph) or more.

Volumetric efficiency is 55 percent or more.

TROUBLESHOOTING HINTS
The most likely causes for this code to be set are:

Fuel tank differential pressure sensor failed.

Open or shorted fuel tank differential pressure
sensor circuit, or loose connector.

ECM failed <M/T>.

PCM failed <A/T>.

Blockage of evaporative emission system
(causing high pressure).

OVERVIEW OF TROUBLESHOOTING

The DTC P0450 can be set if either of the
following conditions occur:

1. Faulty fuel differential pressure sensor,

related circuit, or ECM <M/T> or PCM <A/T>.

2. Faulty fuel filler neck evaporative emission

ventilation solenoid or blocked vapor line.

To check a system blockage, do a performance
test which uses a mechanical vacuum gauge and
the scan tool MB991502 set on the fuel tank
differential pressure sensor (TANK PRS
SNSR73.)
The mechanical gauge reading is used to verify
the scan tool MB991502 reading.
A comparison of the mechanical gauge to the
scan tool MB991502 determines the problem in
the system.

DIAGNOSIS

Required Special Tools:

MB991502: Scan Tool (MUT-II)

MB991658: Test Harness Set

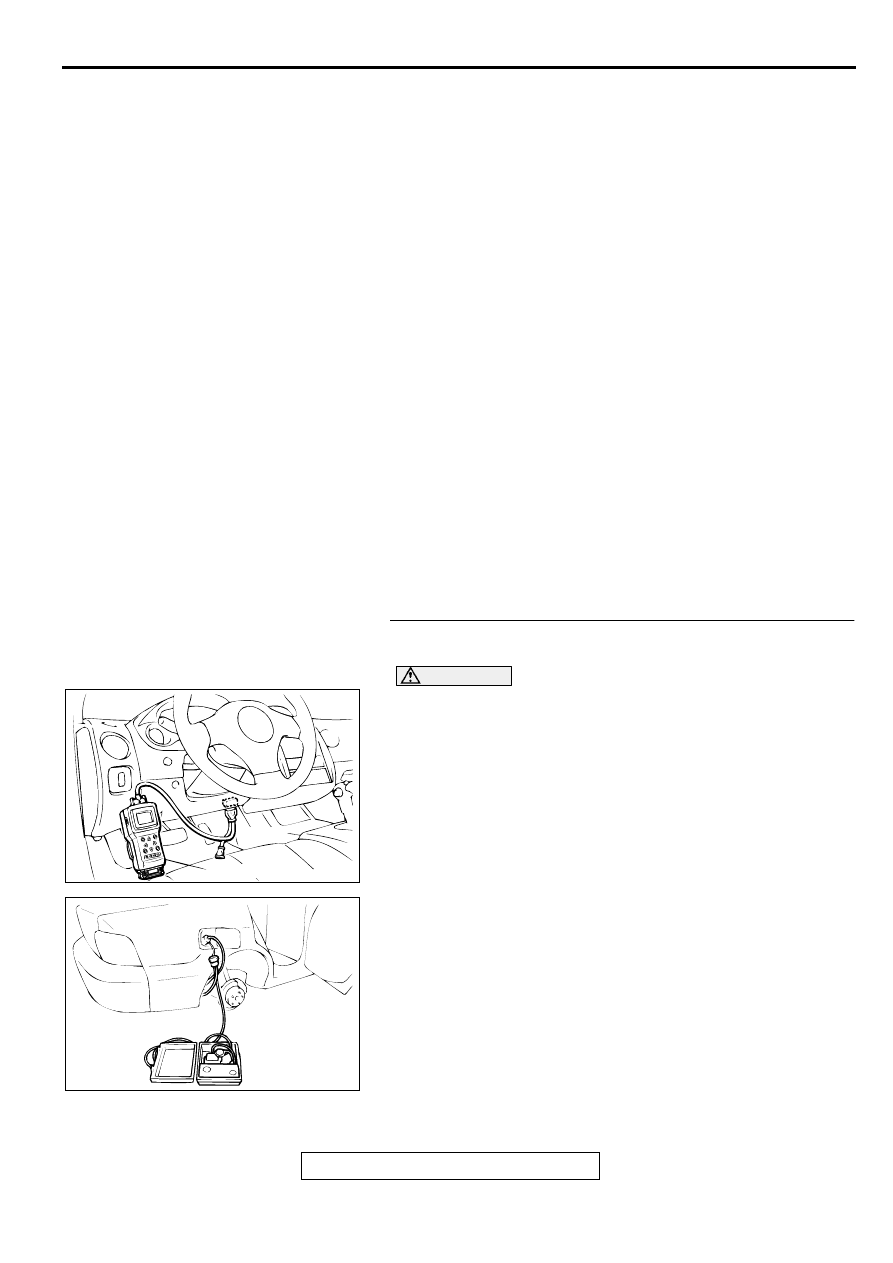

STEP 1. Using scan tool MB991502, check data list item 73:
Fuel Tank Differential Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Remove the fuel cap.
(4) Set scan tool MB991502 to the data reading mode for item

73, Fuel Tank Differential Pressure Sensor.

The fuel tank pressures should be

1.5 to 1.5kPa.

(5) Connect an evaporative emission system pressure pump to

the fuel filler neck, and apply pressure.

The scan tool reading should increase.

Q: Is the scan tool reading within the specified value?

YES : Go to Step 20.
NO :  Go to Step 2.

AC001252

MB991502

16 PIN

AB

AC000186

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-240

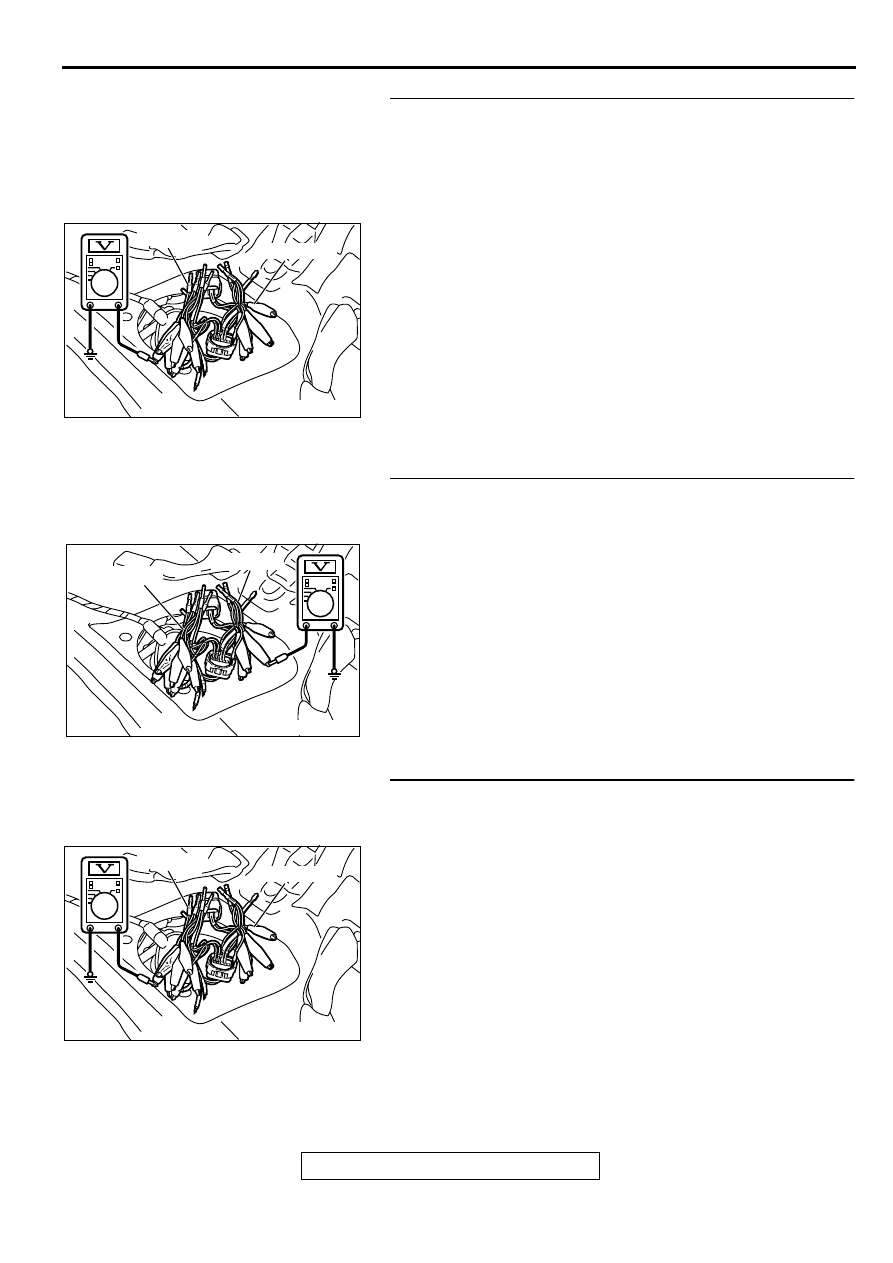

STEP 2. Check the output circuit voltage at intermediate
connector D-16.
(1) Remove the rear seat cushion. (Refer to GROUP 52A, Rear

Seat

P.52A-23

.)

(2) Remove the protector.
(3) Do not disconnect intermediate connector D-16.
(4) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector, respectively.

(5) Turn the ignition switch to the "ON" position.
(6) Remove the fuel cap.
(7) Measure the voltage between terminal 5 and ground by

backprobing.

Voltage should be between 2.0 and 3.0 volts.

(8) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 10.
NO :  Go to Step 3.

STEP 3. Check the 5-volt supply circuit voltage at
intermediate connector D-16.
(1) Do not disconnect intermediate connector D-16.
(2) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 8 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 4.
NO :  Go to Step 11.

STEP 4. Check the ground circuit voltage at intermediate
connector D-16.
(1) Do not disconnect intermediate connector D-16.
(2) Use special tools (MB991658 and MB991709) to connect

terminals 5, 6 and 8 between connectors of the
intermediate connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 6 and ground by

backprobing.

Voltage should be between 0.5 volts or less.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 5.
NO :  Go to Step 15.

AC002079 AB

MB991709

MB991658

AC002080

MB991709

MB991658

AB

AC002079 AB

MB991709

MB991658

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-241

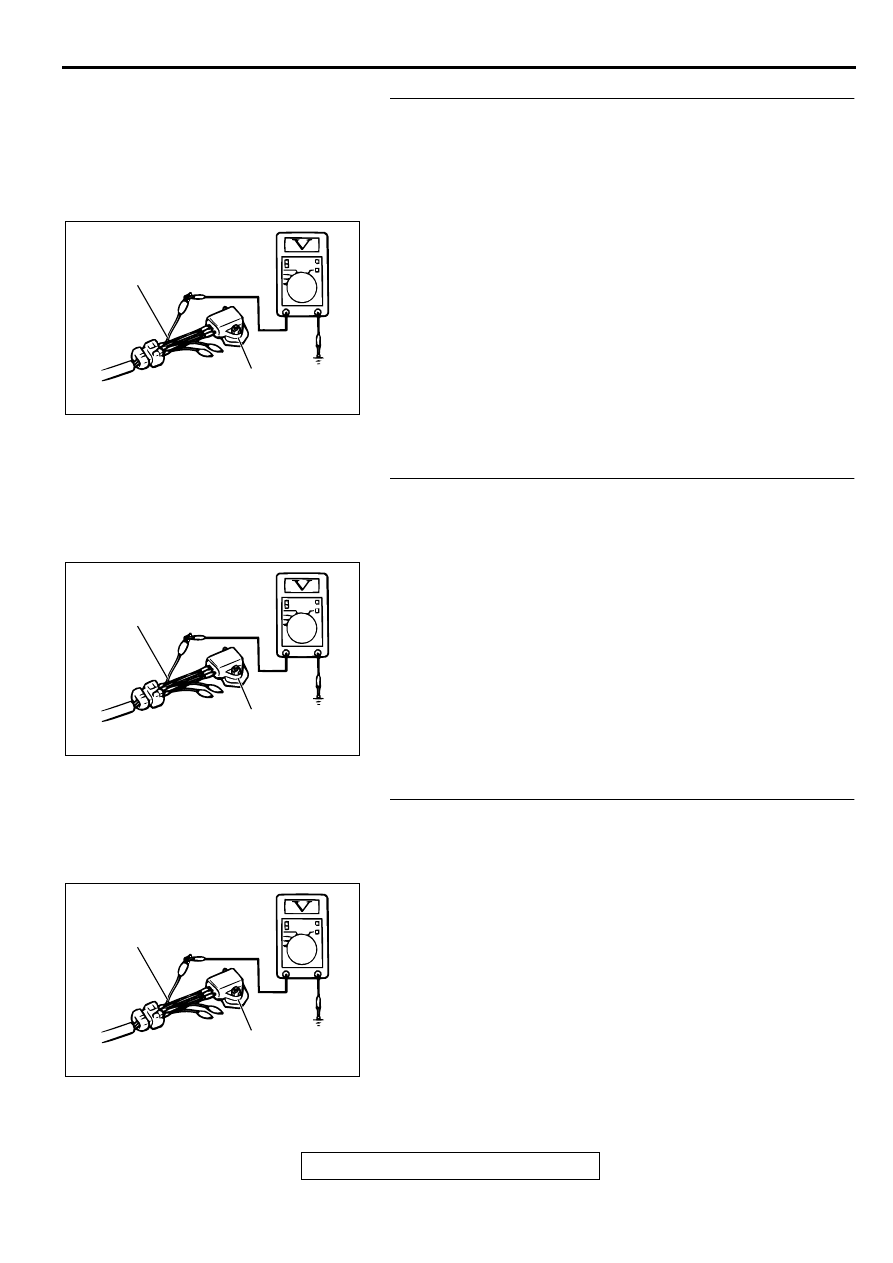

STEP 5. Check the output circuit voltage at fuel tank
differential pressure connector D-18.
(1) Remove the center pipe.
(2) Remove the fuel band assembly, tilt the fuel tank.
(3) Disconnect fuel tank differential pressure sensor connector

D-18.

(4) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(5) Turn the ignition switch to the "ON" position.
(6) Remove the fuel cap.
(7) Measure the voltage between terminal 1 and ground by

backprobing.

Voltage should be between 2.0 and 3.0 volts.

(8) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 17.
NO :  Go to Step 6.

STEP 6. Check the 5-volt supply circuit voltage at fuel tank
differential pressure sensor connector D-18.
(1) Do not disconnect fuel tank differential pressure sensor

connector D-18.

(2) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 3 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 7.
NO :  Go to Step 17.

STEP 7. Check the ground circuit voltage at fuel tank
differential pressure sensor connector D-18.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

(2) Use special tool (MB991658) to connect terminals 1, 2 and

3 of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 2 and ground by

backprobing.

Voltage should be between 0.5 volts or less.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Go to Step 8.
NO :  Go to Step 17.

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-242

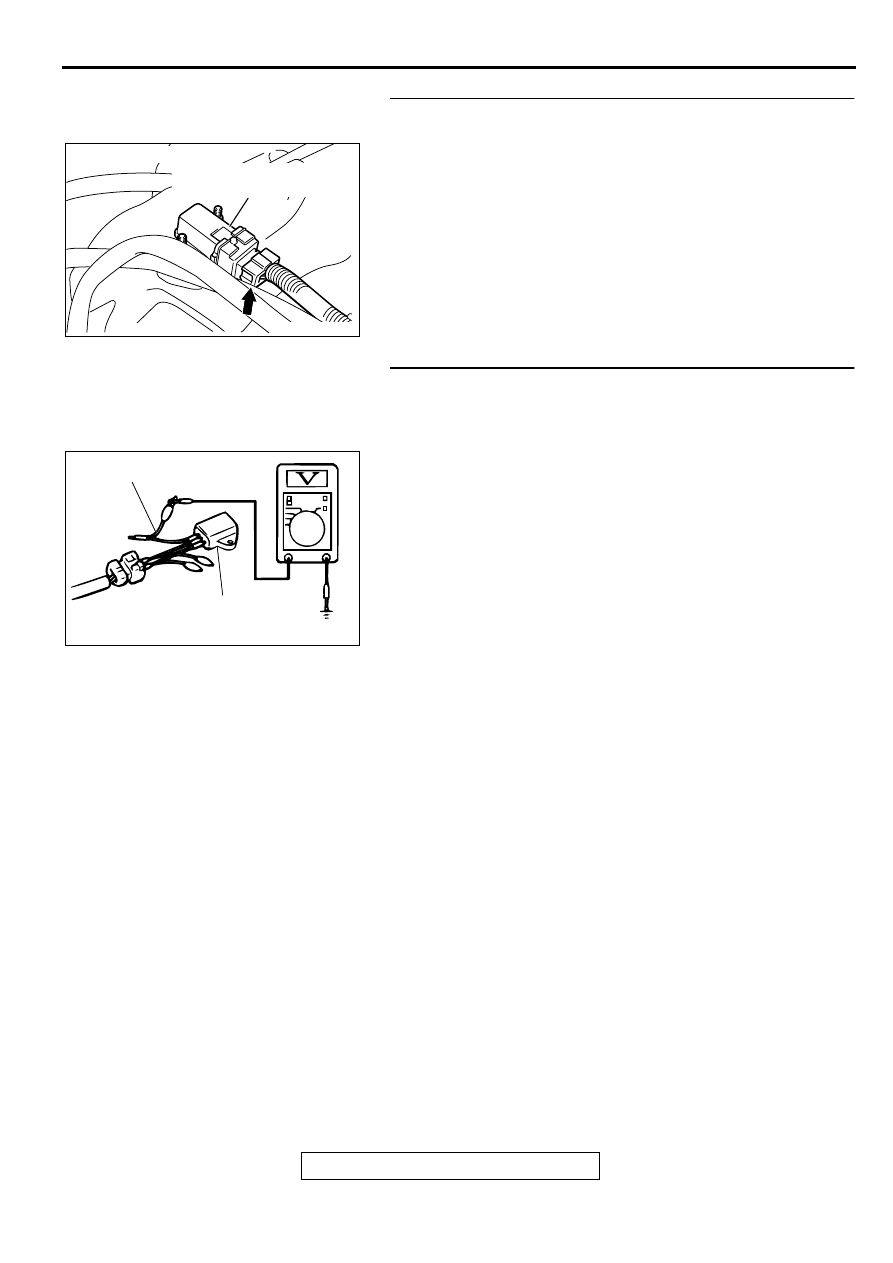

STEP 8. Check fuel tank differential pressure sensor
connector D-18 for damage.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

Q: Is there any failure at fuel tank differential pressure

sensor connector D-18?
YES :
Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 26.

STEP 9. Check the output voltage at fuel tank differential
pressure sensor connector D-18.
(1) Disconnect fuel tank differential pressure sensor connector

D-18.

(2) Use special tool (MB991658) to connect terminals 2 and 3

of the disconnected sensor connector and those of the
harness side connector, respectively.

(3) Turn the ignition switch to the "ON" position.
(4) Remove the fuel cap.
(5) Measure the voltage between terminal 1 and ground by

backprobing.

Voltage should be between 2.0 and 3.0 volts.

(6) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the multi-meter reading within the specified value?

YES : Check connectors D-16, C-90, C-28, C-56 <M/T> or

C-57 <A/T> and repair or replace as required. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. If connectors D-16, C-90, C-28, C-56 <M/T>

or C-57 <A/T> are in good condition, check the
harness between fuel tank differential pressure
sensor connector D-18 and ECM connector C-56 <M/
T> or PCM connector C-57 <A/T> for short circuit to
ground, then repair if necessary. Then go to Step 26.

NO :  Replace the fuel tank differential pressure sensor.

Then go to Step 26.

AC002041AB

CONNECTOR: D-18

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

ACX01760AB

MB991658

FUEL TANK DIFFERENTIAL

PRESSURE SENSOR
