MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-51

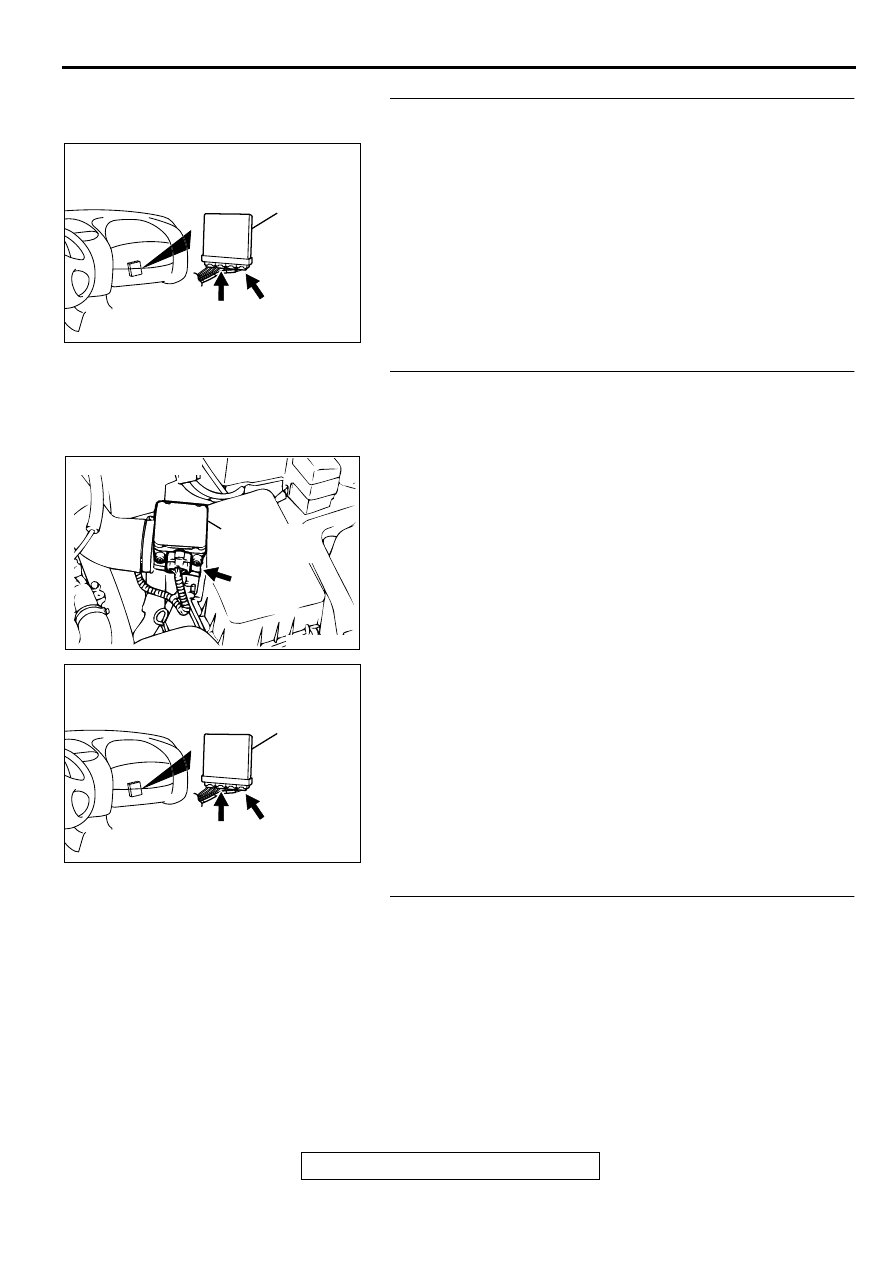

STEP 16. Check connector C-60 at ECM <M/T> or
connector C-54 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 17.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 18.

STEP 17. Check for short circuit to ground and harness
damage between barometric pressure sensor connector B-
14 terminal 2 and ECM connector C-60 terminal 85 <M/T>
or PCM connector C-54 terminal 55 <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the volume air flow sensor. Then go to Step

18.

NO : Repair it. Then go to Step 18.

STEP 18. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 6

−

Other Monitor (

P.13A-5

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0107 is output?

YES : Retry the troubleshooting.
NO : The inspection is complete.

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>

ACX02480

CONNECTOR : B-14

BAROMETRIC
PRESSURE
SENSOR

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-52

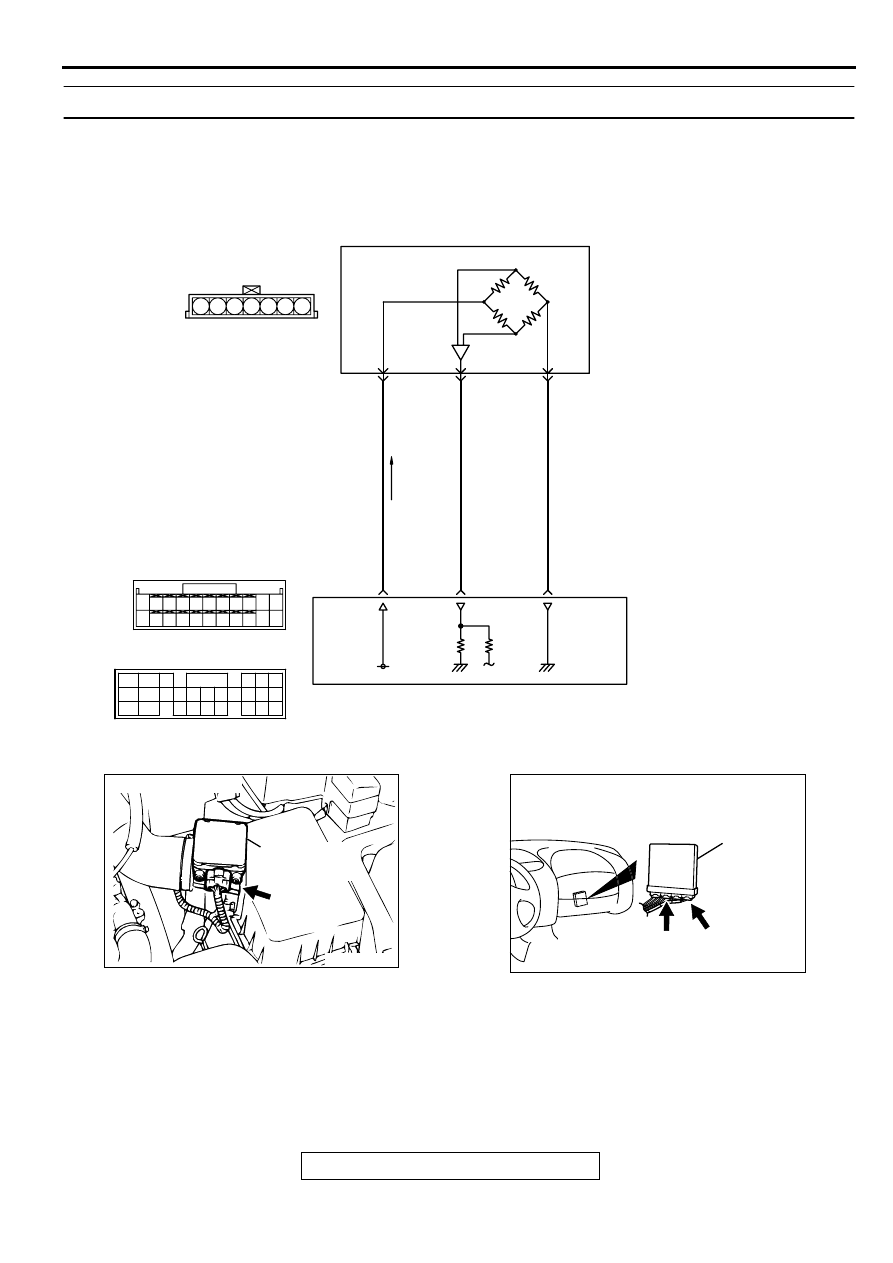

DTC P0108: Barometric Pressure Circuit High Input

CIRCUIT OPERATION

•

A 5-volt voltage is supplied to the barometric
pressure sensor power terminal (terminal 1) from
the ECM (terminal 81) <M/T> or PCM (terminal
46) <A/T>. The ground terminal (terminal 5) is
grounded with ECM (terminal 92) <M/T> or PCM
(terminal 57) <A/T>.

•

A voltage that is proportional to the atmospheric
pressure is sent to the ECM (terminal 85) <M/T>
or PCM (terminal 55) <A/T> from the barometric
pressure sensor output terminal (terminal 2).

AK000653

4 5 6

1 2 3

GREEN-YELLO

GREEN-WHITE

BLA

C-54<A/T>
(MU803781)

C-60<M/T>
(MU803772)

ENGINE CONTROL
MODULE(ECM)<M/T>
OR
POWERTRAIN CONTROL
MODULE(PCM)<A/T>

81<M/T>
46<A/T>

85<M/T>
55<A/T>

92<M/T>
57<A/T>

B-14

BAROMETRIC PRESSURE SENSOR
(INCORPORATED IN VOLUME AIR
FLOW SENSOR)

89 90 91 92

83 84

42 43
48 49 50 51 52 53 54 55 56 57

58 59

60 61 62 63

64 65 66

ACX02480

CONNECTOR : B-14

BAROMETRIC
PRESSURE
SENSOR

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-53

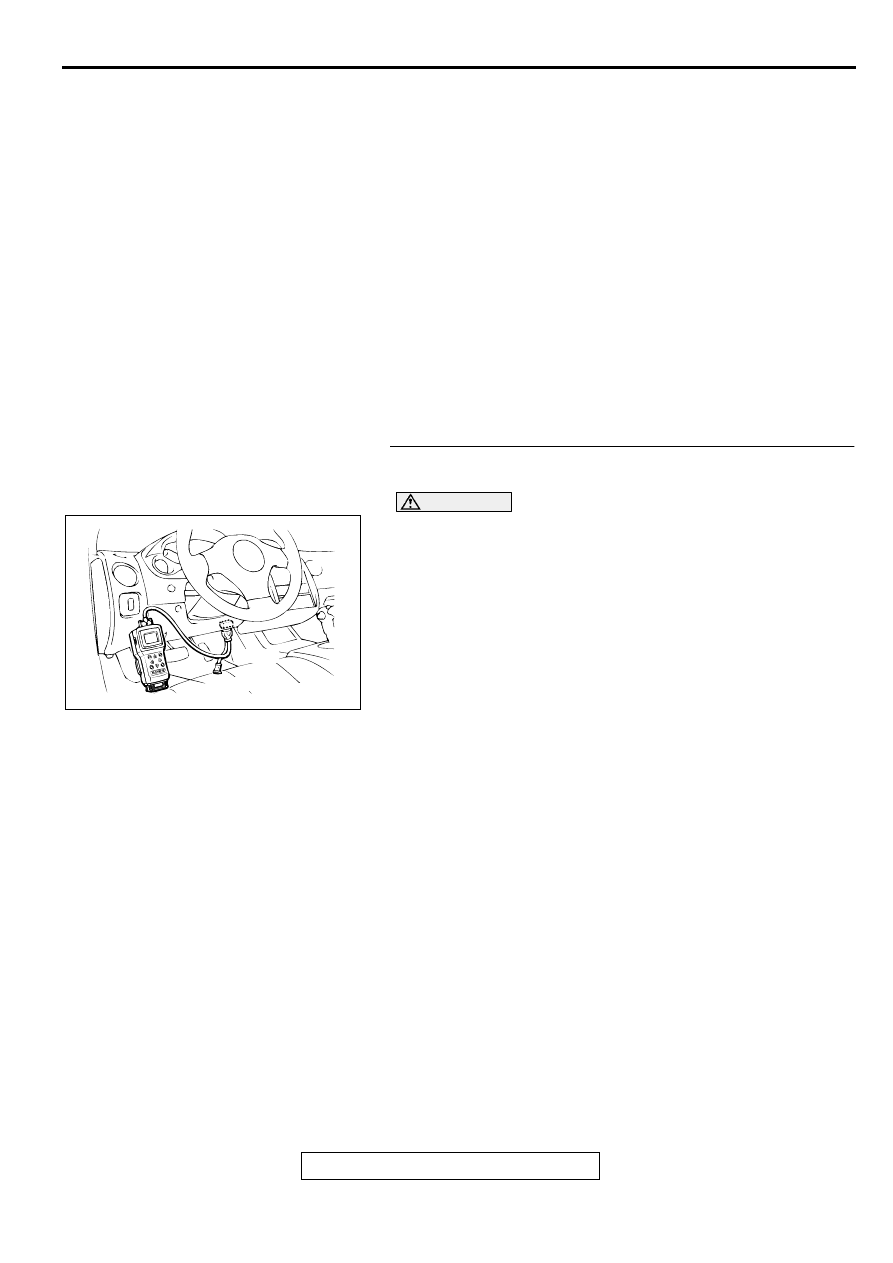

TECHNICAL DESCRIPTION

•

The barometric pressure sensor outputs a
voltage which corresponds to the barometric
pressure.

•

The ECM <M/T> or PCM <A/T> checks whether
this voltage is within a specified range.

DTC SET CONDITIONS

Check Conditions

•

Two seconds or more have passed since the
starting sequence was completed.

•

Battery positive voltage is higher than 8 volts.

Judgement Criteria

•

Barometric pressure sensor output voltage has
continued to be 4.45 volts or higher
[corresponding to a barometric pressure of 114
kPa (16.5 psi) or higher] approximately 4,000 ft
below sea level for 10 seconds.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

•

Barometric pressure sensor failed.

•

Open or shorted barometric pressure sensor
circuit, or loose connector.

•

ECM failed. <M/T>

•

PCM failed. <A/T>

DIAGNOSIS

Required Special Tools
MB991502: Scan Tool (MUT-II)

STEP 1. Using scan tool MB991502, check data list item 25:
Barometric Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to the data reading mode for item

25, Barometric Pressure Sensor.

•

When altitude is 0 m(0 foot), 101 kPa.

•

When altitude is 600 m(1,969 feet), 95 kPa.

•

When altitude is 1,200 m(3,937 feet), 88 kPa.

•

When altitude is 1,800 m(5,906 feet), 81 kPa.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points (

P.00-6

NO : Go to Step 2.

AKX01177

16 PIN

MB991502

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-54

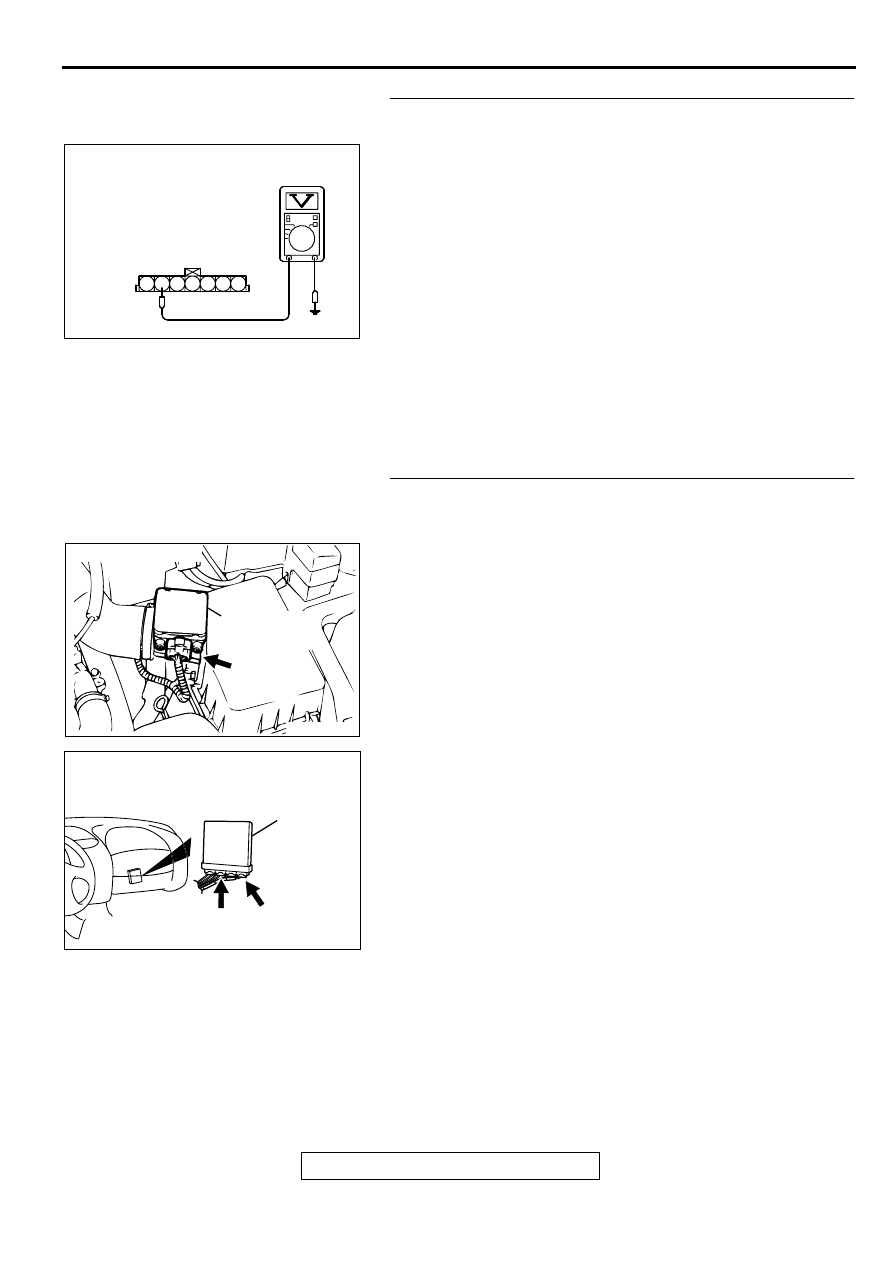

STEP 2. Check the sensor output voltage at barometric
pressure sensor connector B-14 by backprobing.
(1) Do not disconnect the connector B-14.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 2 and ground by

backprobing.

•

When altitude is 0 m(0 foot), voltage should be 3.7 and
4.3 volts.

•

When altitude is 600 m(1,969 feet), voltage should be
3.4 and 4.0 volts.

•

When altitude is 1,200 m(3,937 feet), voltage should be
3.2 and 3.8 volts.

•

When altitude is 1,800 m(5,906 feet), voltage should be
2.9 and 3.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 3.
NO : Go to Step 5.

STEP 3. Check connector B-14 at the barometric pressure
sensor and connector C-60 at ECM <M/T> or connector C-
54 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 12.

AKX01520AC

B-14 CONNECTOR
HARNESS
SIDE VIEW

1 2 3 4 5 6 7

ACX02480

CONNECTOR : B-14

BAROMETRIC
PRESSURE
SENSOR

AK000280

C-54

C-60

ECM<M/T>
OR
PCM<A/T>

CONNECTORS:C-60<M/T>,C-54<A/T>
