Mitsubishi Eclipse / Eclipse Spyder (2000-2002). Service and repair manual - part 12

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-45

Power Steering Oil Pump and A/C Compressor
<2.4L ENGINE> Drive Belt Tension Check and
Adjustment

Check the drive belt tension by the following procedure.
<When using scan tool MB991502>

Required Special Tools:

•

MB991502: Scan Tool (MUT-II)

•

MB991668: Belt Tension Meter Set

Gently tap the middle of the belt between the pulleys (the
location indicated by the arrow) with your finger as shown in the
illustration, and check that the vibration frequency of the belt is
within the standard value range.

NOTE: Refer to

P.00-40

for details on the method of measuring

the vibration frequency using the scan tool.

<When using a tension gauge>
Use a belt tension gauge to check that the belt tension is within
the standard value.

<Belt deflection check>
Apply 98 N (22 pound) of force to the middle of the drive belt
between the pulleys (at the place indicated by the arrow) and
check that the amount of deflection is within the standard value.

Standard value:

<2.4L ENGINE>

ITEMS

WHEN
CHECKED

DURING
ADJUSTMENT

DURING
REPLACEM
ENT

Vibration
frequency
Hz

108

−

132

114

−

126

137

−

157

Tension N
(lb)

392

−

588

(88

−

132)

441

−

539

(99

−

121)

637

−

834

(143

−

187)

Deflection
(Reference
value) mm
(in)

11.7

−

15.3

(0.46

−

0.60)

12.5

−

14.3

(0.49

−

0.56)

8.8

−

11.0

(0.35

−

0.43)

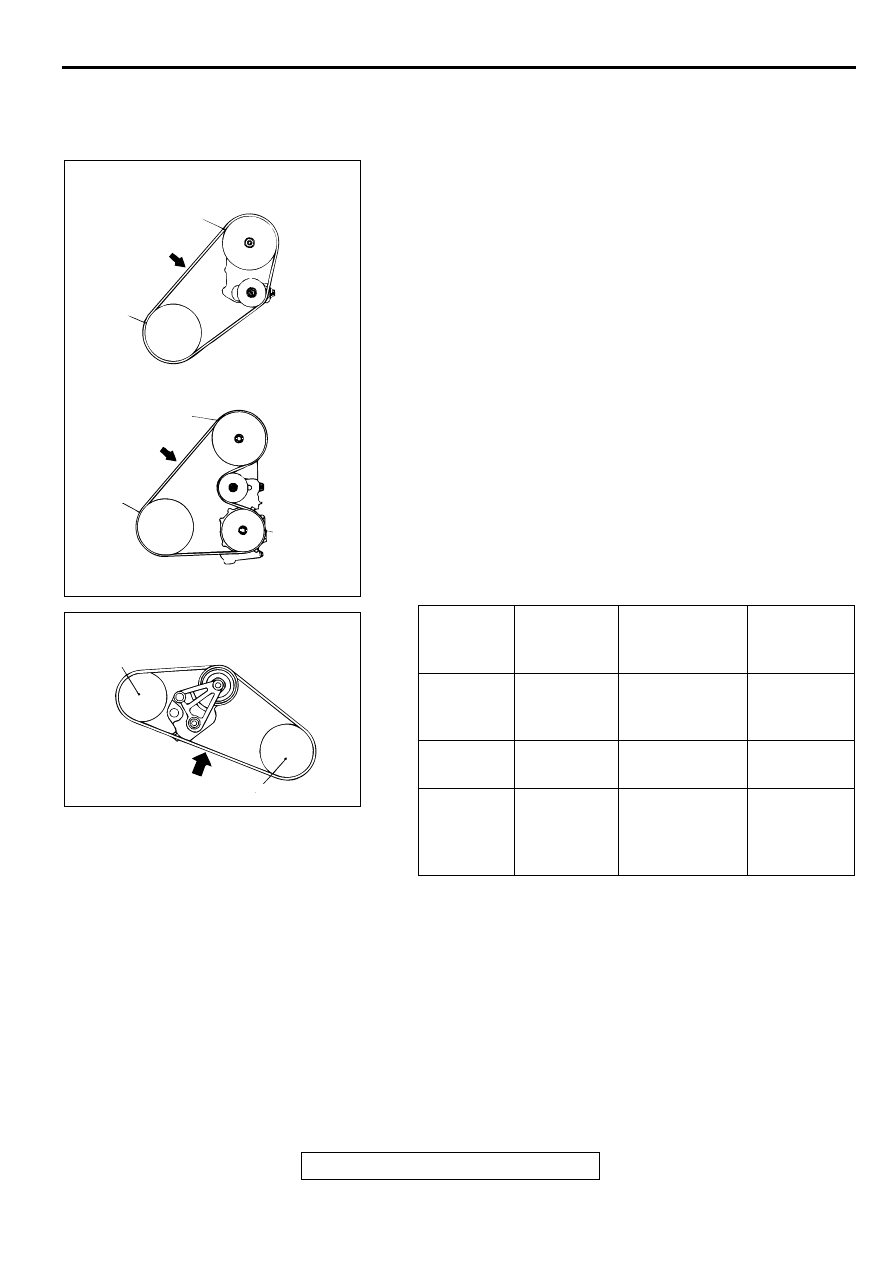

AC000087

<2.4L ENGINE>

(VEHICLES WITHOUT A/C)

(VEHICLES WITH A/C)

OIL PUMP PULLEY

CRANKSHAFT
PULLEY

A/C
COMPRESSOR
PULLEY

AC000088

<3.0L ENGINE>

POWER STEERING
OIL PUMP PULLEY

ADJUSTING
BOLT

CRANKSHAFT PULLEY

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-46

<3.0L ENGINE>

if the tension or deflection is outside the standard value, adjust
by the following procedure.
<2.4L ENGINE>
1. Loosen the tension pulley fixing nut A behind the tension

pulley.

2. Adjust the belt deflection amount using the adjusting bolt B.

3. Tighten the fixing nut A.

Tightening torque: 44

10 N

⋅

m (33

7 ft-lb)

CAUTION

Check after turning the crankshaft once or more
clockwise.
4. Check the belt deflection amount and tension, and readjust

if necessary.

ITEMS

WHEN
CHECKED

DURING
ADJUSTMENT

DURING
REPLACEM
ENT

Vibration
frequency
Hz

125

−

154

133

−

148160

−

183

Tension N
(lb)

373

−

569

(84

−

128)

422

−

520

(95

−

117)

608

−

804

(137

−

181)

Deflection
(Reference
value) mm
(in)

11.0

−

14.2

(0.43

−

0.56)

11.7

−

13.4

(0.46

−

0.53)

8.4

−

9.3

(0.33

−

0.37)

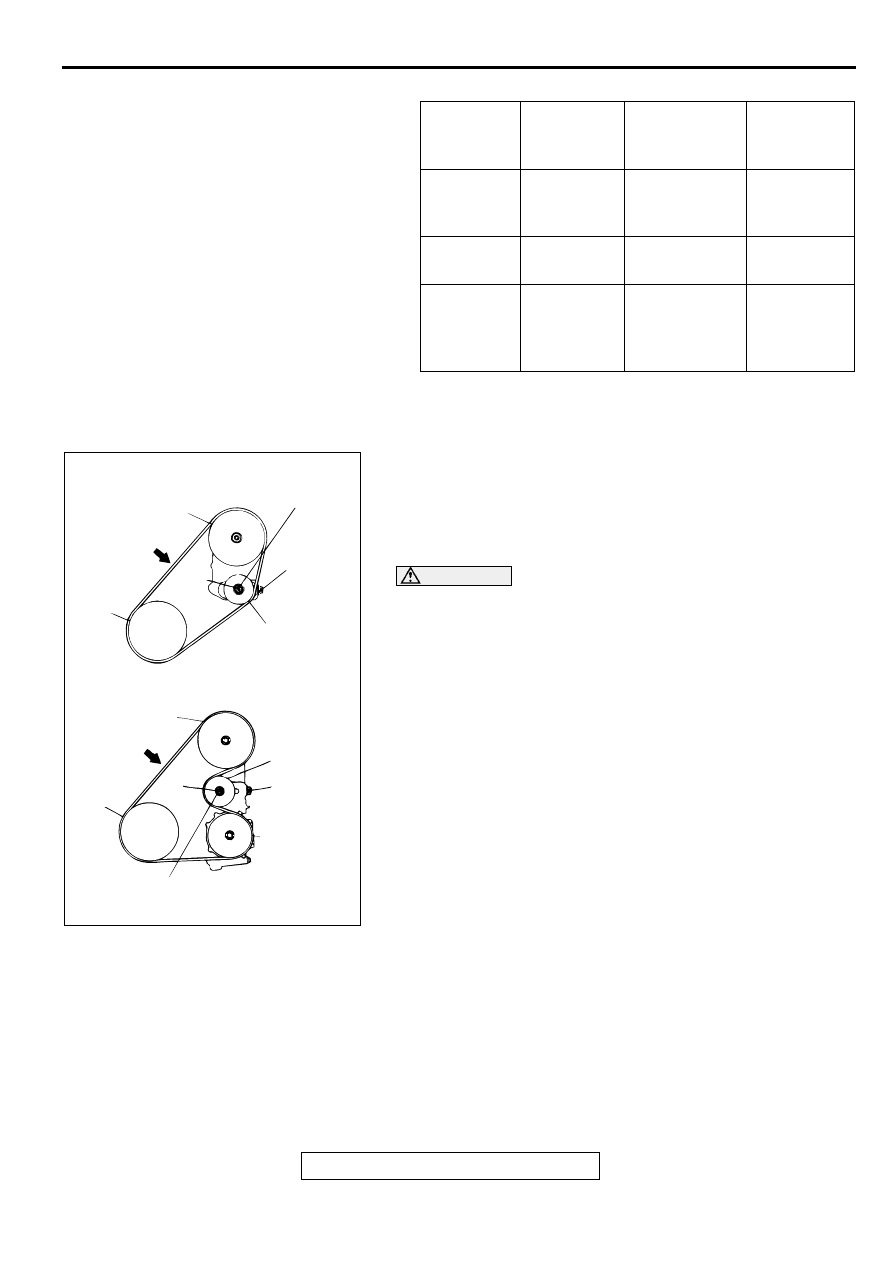

AC000089

<2.4L ENGINE>

(VEHICLES WITHOUT A/C)

A/C
COMPRESSOR
PULLEY

(VEHICLES WITH A/C)

OIL PUMP PULLEY

CRANKSHAFT
PULLEY

TENSIONER PULLEY

TENSIONER
PULLEY

44 ± 10 N·m
33 ± 7 ft-lb

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-47

<3.0L ENGINE>
1. Loosen the tension pulley fixing nut and bolt.

2. Adjust the belt tension using the adjusting bolt.

3. Tighten the fixing nut and bolt.

Tightening torque: 44

10 N

⋅

m (33

7 ft-lb)

CAUTION

Check after turning the crankshaft once or more
clockwise.
4. Check the belt deflection amount and tension, and readjust

if necessary.

10. ENGINE OIL (CHANGE)

M1001002600092

Use the specified oil. (Refer to

P.00-32

1. After warming up the engine, remove the oil filler cap.

WARNING

Use care as oil could be hot.

2. Remove the drain plug to allow the engine oil to drain.
3. Replace the drain plug gasket with a new one, and then

tighten the drain plug to the specified torque.

Tightening torque: 39

5 N

⋅

m (29

4 ft-lb)

NOTE: Install the drain plug gasket so it faces in the
direction shown in the illustration.

4. Pour new engine oil in through the oil filler.

Engine oil capacity:

••••

4.0 dm

(4.5 quart)

[excluding oil filter 0.3 dm

(0.32 quart)]

5. Start the engine and run it at idle for a few minutes.

6. Stop the engine and check to ensure that the engine oil level

is within the level range indicated on the dip stick.

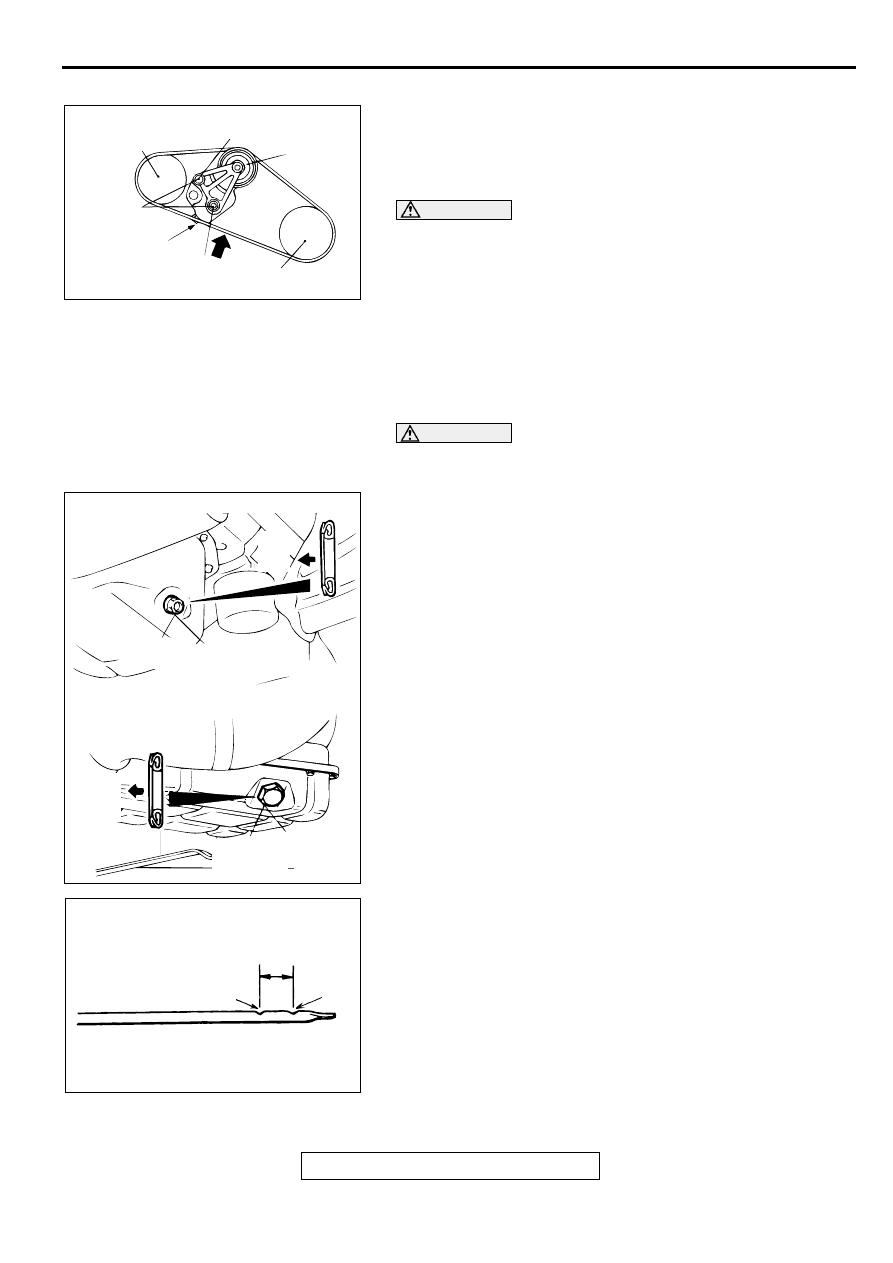

AC000090

<3.0L ENGINE>

TENSION
PULLEY

44 ± 10 N·m
33 ± 7 ft-lb

POWER STEERING

OIL PUMP PULLEY

FIXING BOLT

ADJUSTING BOLT

FIXING NUT

CRANKSHAFT PULLEY

AC000092

<2.4L ENGINE>

DRAIN PLUG GASKET

OIL
PAN
SIDE

DRAIN
PLUG

39 ± 5 N·m
29 ± 4 ft-lb

DRAIN
PLUG

OIL
PAN
SIDE

DRAIN PLUG GASKET

<3.0L ENGINE>

ACX00892AB

GOOD

MAXIMUM

MINIMUM

MAINTENANCE SERVICE

TSB Revision

GENERAL <BODY AND CHASSIS>

00-48

11. ENGINE OIL FILTER (REPLACE)

M1001002700099

The quality of replacement filters varies considerably. Only high
quality filters should be used to assure most efficient service.
Genuine oil filters require that the filter is capable of
withstanding a pressure of 1,765 kPa (256 psi) are high quality
filters and are recommended as follows:

Mitsubishi Oil Filter Part Number:

<2.4L Engine>
MD136466, MD322508, MD325714, MD332687
MD360935, MD365876 or equivalent
<3.0L Engine>
MD352626 or equivalent

Engine Oil Filter Selection

This vehicle is equipped with a full-flow, throw-away oil filter.
The same type of filter is recommended as a replacement filter
for this vehicle. It is possible, particularly in cold weather, that
this vehicle may develop high oil pressure for a short duration.
Make sure that any replacement filter used on this vehicle is a
high-quality filter. The filter can withstand a pressure of 1,765
kPa (256 psi) [manufacturer's specifications] to avoid the filter
and engine damage. The following is a high-quality filter and is
strongly recommended for use on this vehicle: Mitsubishi
Engine Oil Filter Part number MD136466, MD322508,
MD325714, MD332687, MD352626, MD360935 and
MD365876.
Any replacement oil filter should be installed in accordance with
the oil filter manufacturer's installation instructions.
1. Drain the engine oil by removing the oil drain plug.

2. Use an oil filter wrench to remove the engine oil filter.

3. Clean the contacting surface of the filter bracket.

4. Lubricate the O-ring of the new oil filter with a small amount

of new engine oil.

5. Screw on the oil filter by hand until it touches the surface of

the flange and then tighten it with the oil filter wrench: etc.

6. Add new engine oil through the oil filter.

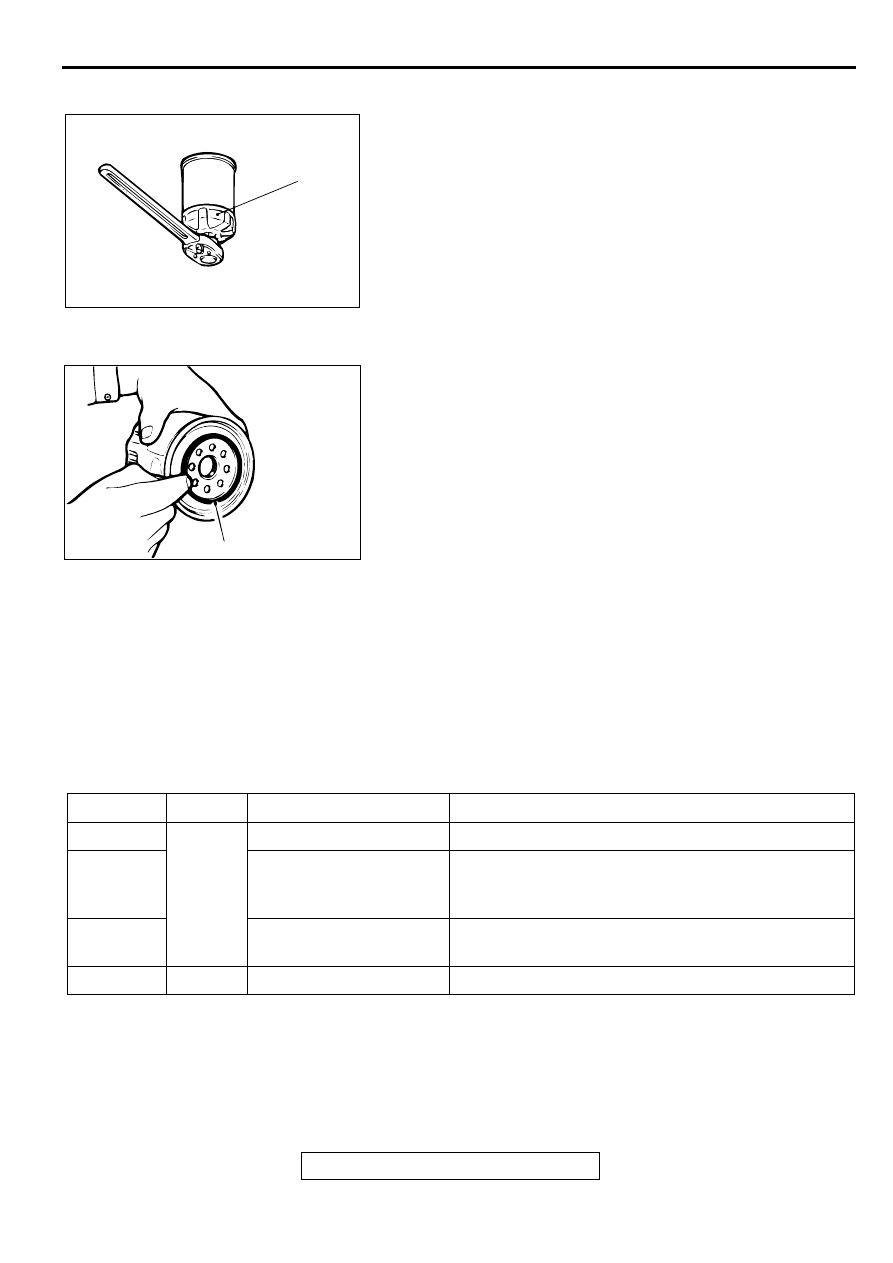

AC000093AB

MB991396 OR
MB991610

NUMBER

ENGINE

SPECIAL TOOL

TIGHTENING TORQUE

MD360935

2.4L

MB991396 or equivalent

Approximately one turn [14

2 N

⋅

m (124

18 in-lb)]

MD325714
MD332687
MD365876

MB991396 or equivalent

Approximately 3/4 turn [16

4 N

⋅

m (12

3 ft-lb)]

MD136466
MD322508

General service tool

Approximately 3/4 turn [17

3 N

⋅

m (34

2 ft-lb)]

MD352626

3.0L

MB991610 or equivalent

Approximately one turn [14

2 N

⋅

m (124

18 in-lb)]

ACX00893 AB

O-RING
