INTERIOR

- Supplemental Restraint System (SRS)

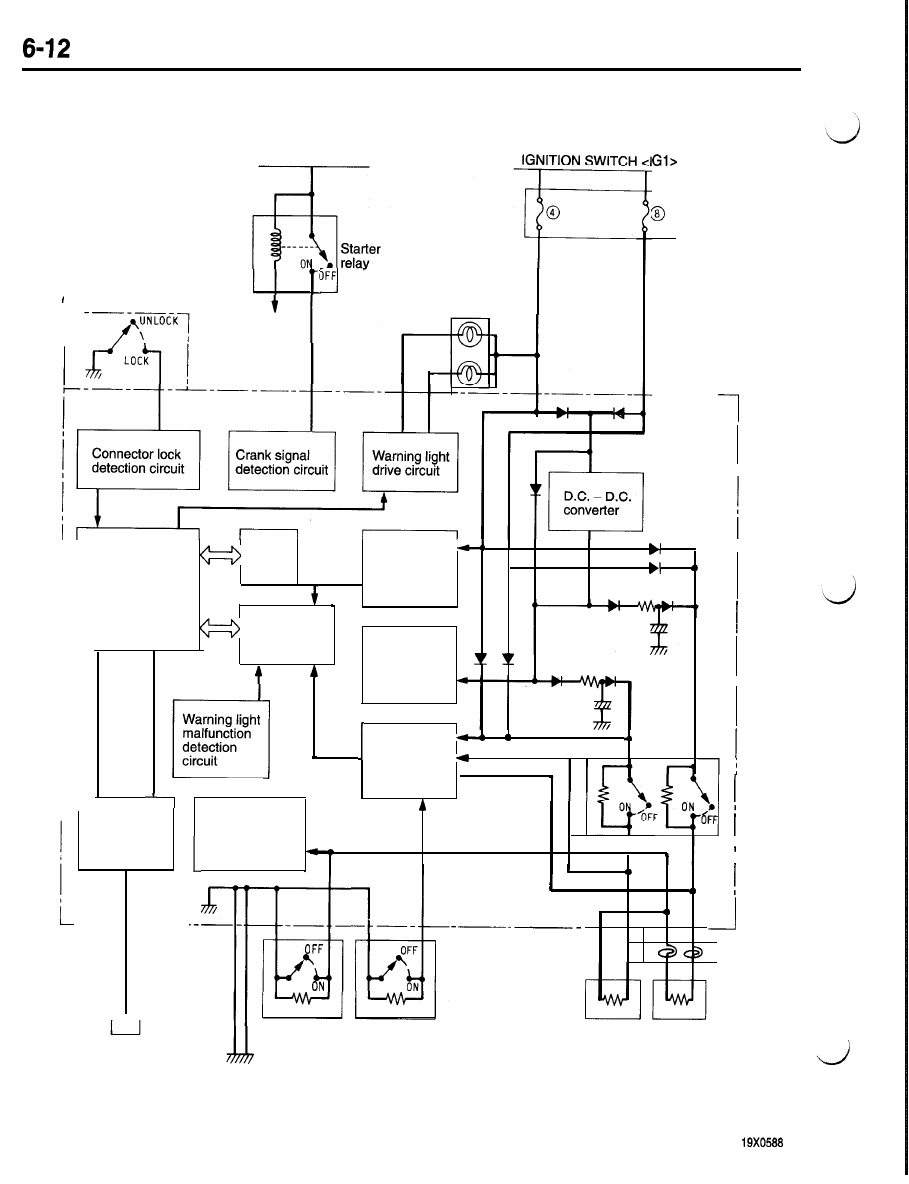

SRS SCHEMATIC

IGNITION SWITCH

<ST>

Connector lock switch

Park/Neutral

position switch

Combination
meter (SRS
warning light)

Multi-purpose

fuses

SDU

E E P

Battery

ROM

voltage
detection

circuit

A I D

Converter

Condenser

voltage
detection
circuit

Safing

Squib

impact

resistance

sensor

detection

circuit

Impact sensor
resistance

detection
circuit

I
I

Micro
computer

Scan tool
interface

circuit

Clock
spring

Data link connector
(For scan tool)

Front impact

sensor (L.H.)

sensor (R.H.)

Air bag
module

(Passenger’s (Driver’s side)

side)

Supplemental Restraint System

WARNING/CAUTION LABELS

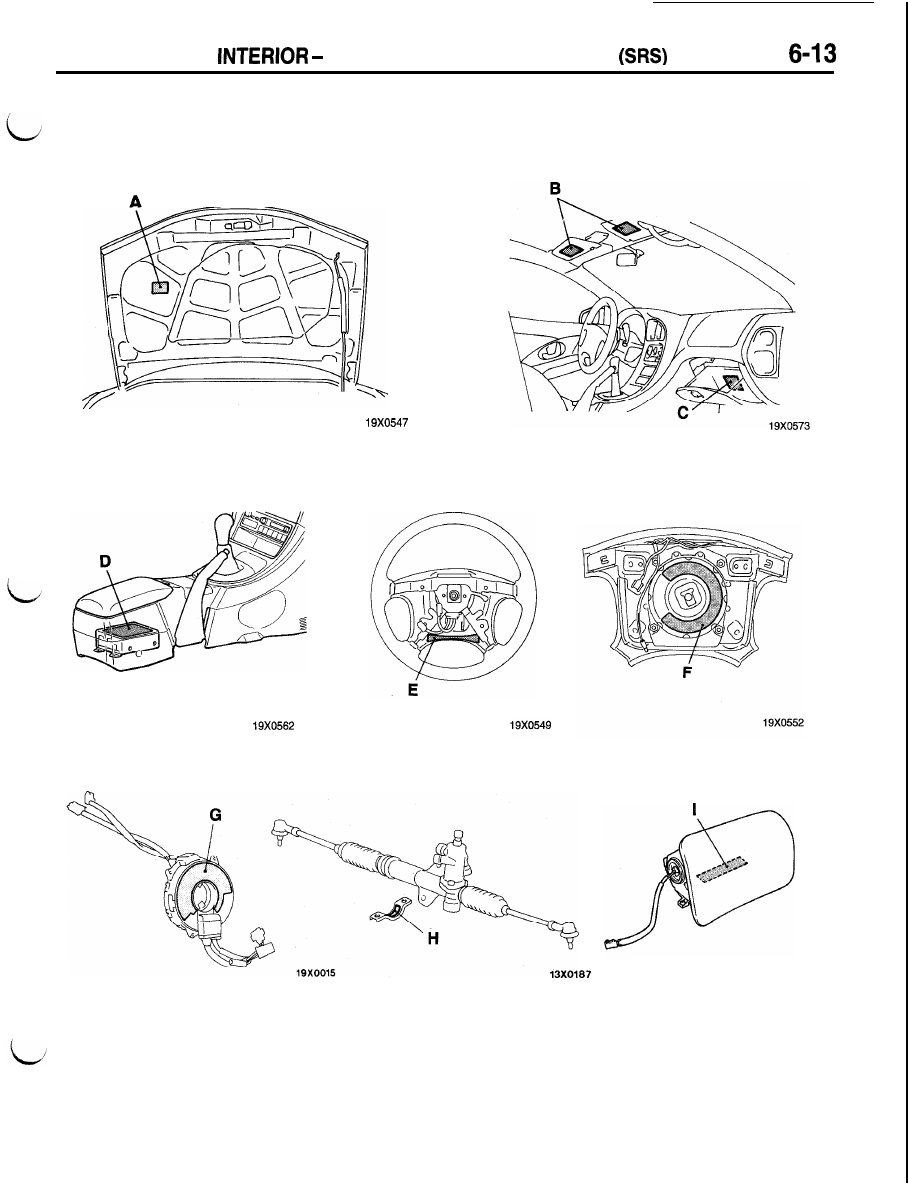

A number of caution labels relating to the SRS are
found in the vehicle, as shown in the following il-

lustration. Follow label instructions when servicing
SRS.

If labels are dirty or damaged, replace them with
new ones.

1 9 x 0 5 5 7

INTERIOR

- Supplemental Restraint System (SRS)

WARNING
This vehicle has an air bag system.

Refer to service manual before servicing or dis-

assembling underhood components. Read

section of manual for important instruc-

tions.

Improper service procedures can result in the

air bag firing or becoming inoperative, possibly
leading to injury.

CAUTION
This vehicle has air bags for front occupants
as a supplemental restraint system (SRS).
You must always wear your seatbelt, even with
an air bag:

Air bags are not designed to inflate in rollovers
or in rear, side or low-speed frontal crashed.
Air bags inflate powerfully and in a moment.
If you’re too close to an inflating air bag, it could
seriously injure you. Seatbelts help keep you
in position for air bag inflation in a crash. An
inflating air bag can seriously injure small chil-

dren. A child in a rear-facing child restraint can
be badly injured by an inflating air bag, so never
use a rear-facing child restraint in the front seat
of this vehicle: a rear-facing child restraint should
be used only in the rear seat. Use a forward-fac-
ing child restraint with the front passenger seat
as far back as possible, or in the rear seat.
Before driving read label inside the glove box;
if the

light comes on while you are driving,

or does not come on when you first start the
vehicles, see your dealer for service.

Driver’s air bag information
This vehicle has an air bag which will supple-
ment the

in certain frontal collisions.

The air bag is not a substitute for the
in any type of collision. The driver, and all other
occupants, should wear seatbelts at all times.
WARNING!
If the “SRS” warning light does not illuminate
For several seconds when ignition key is turned
to “ON” or the engine is started, or if the warning

light stays on while driving, take the vehicle
to your nearest authorized dealer immediately.
Also if the vehicle’s front end is damaged or
if the air bag has deployed.

Take the vehicle for service immediately.
The air bag system must be inspected by an

authorized dealer ten years after the vehicle

date shown on the certification la-

bel located

the left front door-latch post or

Read the

section of your owner’s manual

before driving, for important information, about
operation, and service of the air bag system.
When you are going to discard your gas genera-

tor or vehicle, please see your MITSUBISHI

dealer.

CAUTION: SRS diagnostic unit
This unit cannot be repaired.

If defective, remove and replace entire unit per

service manual instructions.

Do not disassemble or tamper.

See service manual for handling and storage
instructions.
Do not drop: keep dry.

Failure to follow instructions could render air

bag inoperative and result in driver injury.

E. CAUTION: SRS

Before replacing steering wheel, read service
manual, center front wheels and align SRS clock

spring neutral marks.

Failure to do so may render SRS system inop-

erative, risking serious driver injury.

DANGER POISON
Keep out of the reach of children.

Contains sodium azide and potassium nitrate
contents are poisonous and extremely flam-
mable. Contact with acid, water, or heavy metals
may produce harmful and irritating gases
explosive compounds. Do not dismantle, incin-
erate, bring into contact with electricity or store
at temperatures exceeding

(200°F).

FIRST AID: If contents are swallowed induce

vomiting. For eye contact flush eye with water
for 15 minutes. If gases from acid or water con-
tact are inhaled, seek fresh air. In every case,
get prompt medical attention.

For additional information, see material safety
data sheet (MSDS) for this product.

CAUTION: SRS clock spring
This is not a repairable part. Do not disassemble
or tamper.

If defective, remove and replace entire unit per

service manual instructions.
Before replacement, read service manual,
ter front wheels and align neutral marks.

Failure to follow instructions may render

system inoperative, risking serious driver injury

INTERIOR Supplemental Restraint System (SRS)

H. CAUTION: SRS

Before removal of steering gear box, read ser-

vice manual, center front wheels and remove

ignition key.
Failure to do so may damage SRS clock spring
and render SRS system inoperative, risking seri-
ous driver injury.

WARNING: SRS

This air bag module cannot be repaired. Do

not disassemble or tamper.
Do not perform diagnosis. Do not touch with
electrical test equipment or probes.
Refer to service manual for further instructions,
and for special hadling.
Storage and disposal procedures. Tampering
or mishandling can result in injury.
DANGER POISON
Keep out of the reach of children.

Contains sodium azide and potassium nitrate
contents are poisonous and extremely flam-
mable. Contact with acid, water or heavy metals
may produce harmful and irritating gases or
explosive compounds. Do not dismantle. Incin-
erate, bring into contact with electricity or store
at temperatures exceeding

(200°F).

FIRST AID:
If contents are swallowed induce vomiting. For

eye contact flush eye with water for 15 minutes.

If cases from acid or water contact are inhaled,

seek fresh air. In every case, get prompt medical
attention.
