CONVERTIBLE TOP

TSB Revision

BODY

42-125

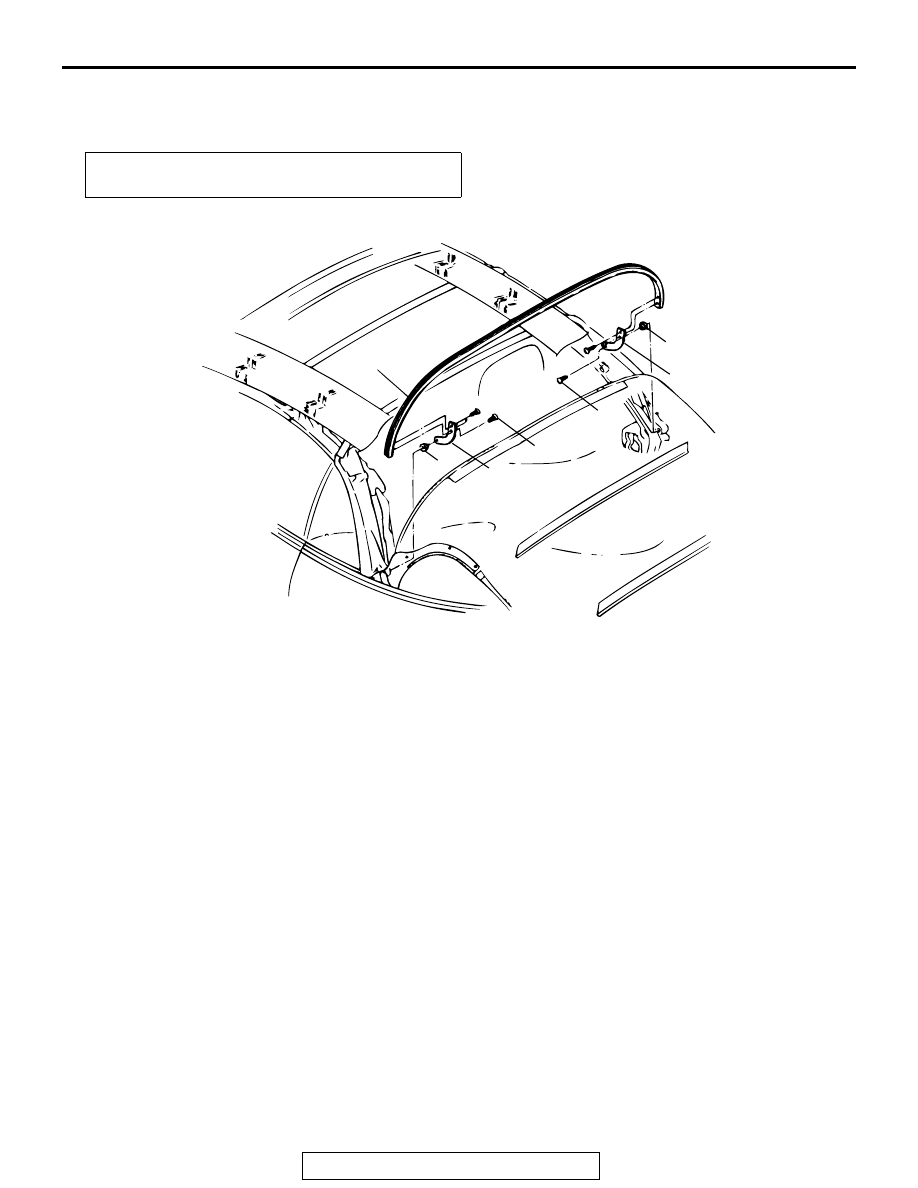

TOPSTACK No.4 BOW

REMOVAL AND INSTALLATION

M1426206600048

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004127

1

2

AB

4

3

1

2

3

REMOVAL STEPS
• HEADLINER (REFER TO

P.42-138

.

NOTE: ONLY REMOVE THE
HEADLINER FROM THE NO.1, 2
AND/OR 3 BOWS AS REQUIRED)

• TOP COVER ASSEMBLY (REFER

TO

P.42-135

. NOTE: ONLY

REMOVE THE TOP COVER FROM
THE NO.1, 2 AND/OR 3 BOWS AS
REQUIRED)

• TOPSTACK SIDE STAY PAD

ASSEMBLY (REFER TO

P.42-133

.

NOTE: ONLY REMOVE THE TOP
COVER FROM THE NO.1, 2
AND/OR 3 BOWS AS REQUIRED)

1. BOLT
2. SLAT
3. BUSHING
4. NO.4 BOW

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-126

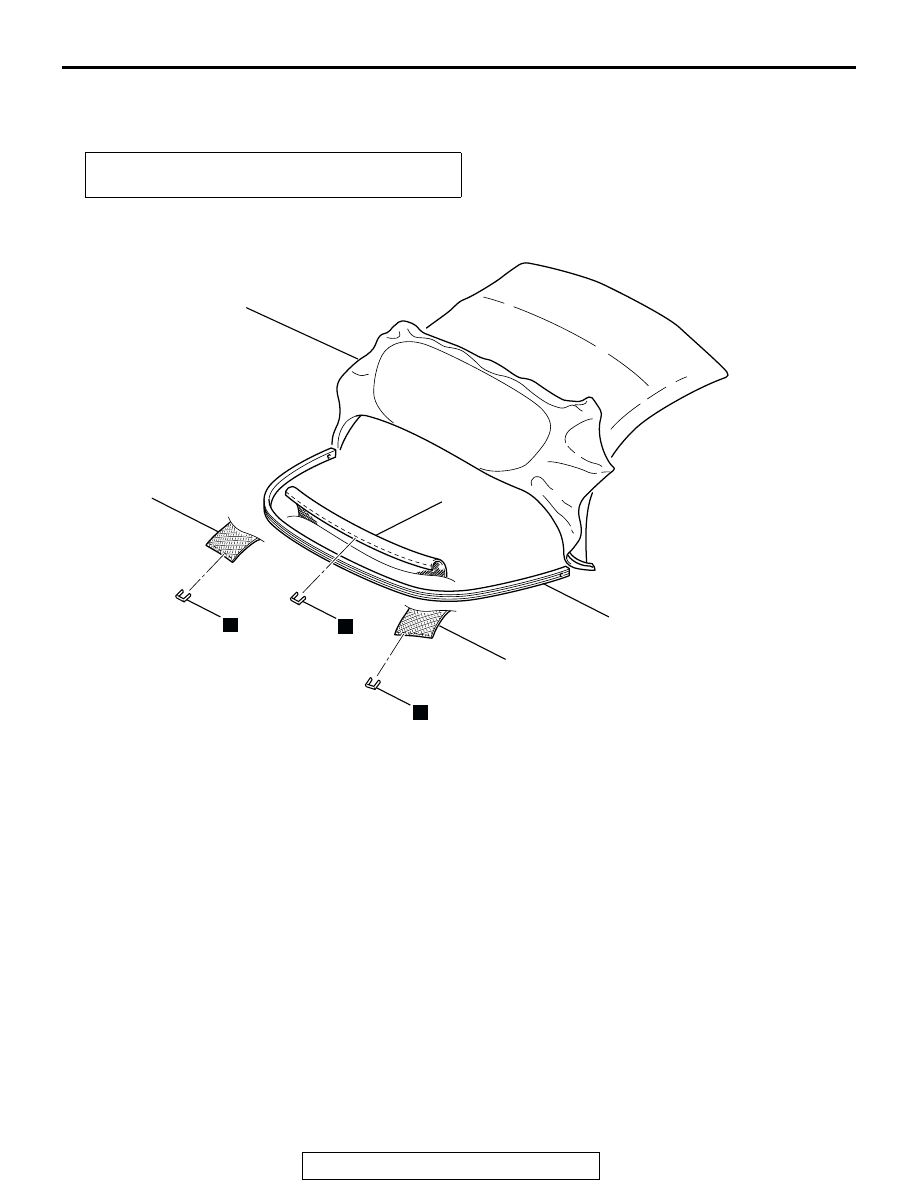

TOPSTACK No.5 BOW

REMOVAL AND INSTALLATION

M1426205700042

Post-installation Operation
• Convertible Top Fit Adjustment (Refer to

P.42-118

.)

AC004128 AB

N

N

N

3

3

2

4

1

REMOVAL STEPS
• CONVERTIBLE TOP ASSEMBLY

(REFER TO

P.42-119

.)

1. TOP COVER ASSEMBLY AT NO.5

BOW CONNECTION

2. TOPSTACK WELL AT NO.5 BOW

CONNECTION

3. SIDE STAY PAD AT NO.5 BOW

CONNECTION

4. NO.5 BOW

REMOVAL STEPS (Continued)

CONVERTIBLE TOP

TSB Revision

BODY

42-127

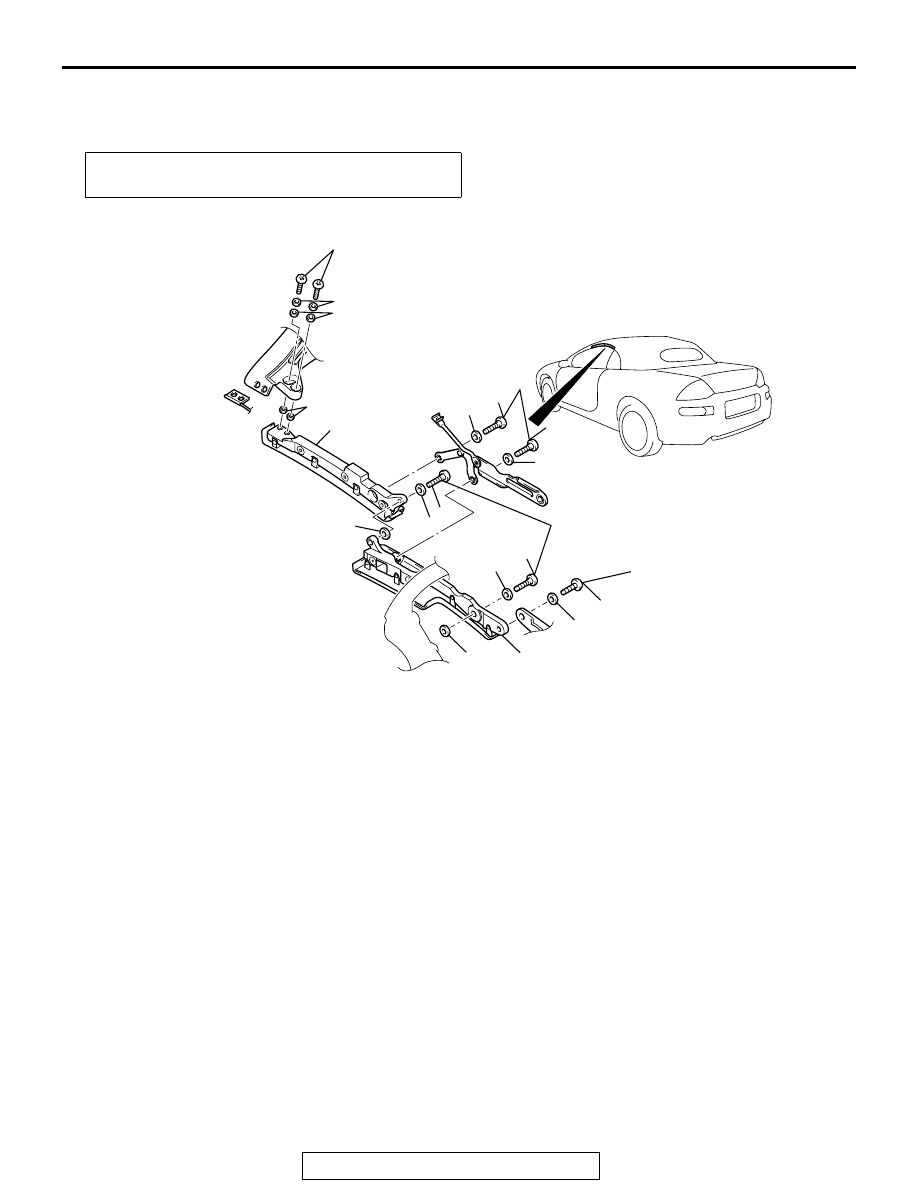

TOPSTACK FRONT RAIL AND CENTER RAIL

REMOVAL AND INSTALLATION

M1426207500044

Pre-removal Operation
• Topstack Open 1/2 Way.

AC004129 AB

3

4

9

1

2

10

13

53 ± 2 N·m
39 ± 2 ft-lb

29 ± 3 N·m
22 ± 2 ft-lb

11

12

14

16

15

5

29 ± 3 N·m
22 ± 2 ft-lb

29 ± 3 N·m
22 ± 2 ft-lb

6

7

7

8

TOPSTACK FRONT RAIL ASSEMBLY
REMOVAL STEPS
• TOPSTACK FRONT RAIL

WEATHERSTRIP HOLDER (REFER
TO

P.42-143

.)

• CONVERTIBLE TOP ASSEMBLY

(REFER TO

P.42-119

.)

1. BOLT
2. WASHER
3. BOLT
4. BUSHING
5. BUSHING
• TOPSTACK SIDE STAY PAD

ASSEMBLY (REFER TO

P.42-133

.)

6. BOLT
7. WASHER
8. TOPSTACK FRONT RAIL

ASSEMBLY

TOPSTACK CENTER RAIL
ASSEMBLY REMOVAL STEPS
• TOPSTACK CENTER RAIL

WEATHERSTRIP HOLDER (REFER
TO

P.42-143

.)

• CONVERTIBLE TOP ASSEMBLY

(REFER TO

P.42-119

.)

9. BOLT
10. WASHER
11. BOLT
12. BUSHING
13. BOLT
14. BUSHING
15. BUSHING
16. TOPSTACK CENTER RAIL

ASSEMBLY

CONVERTIBLE TOP

TSB Revision

BODY

42-128

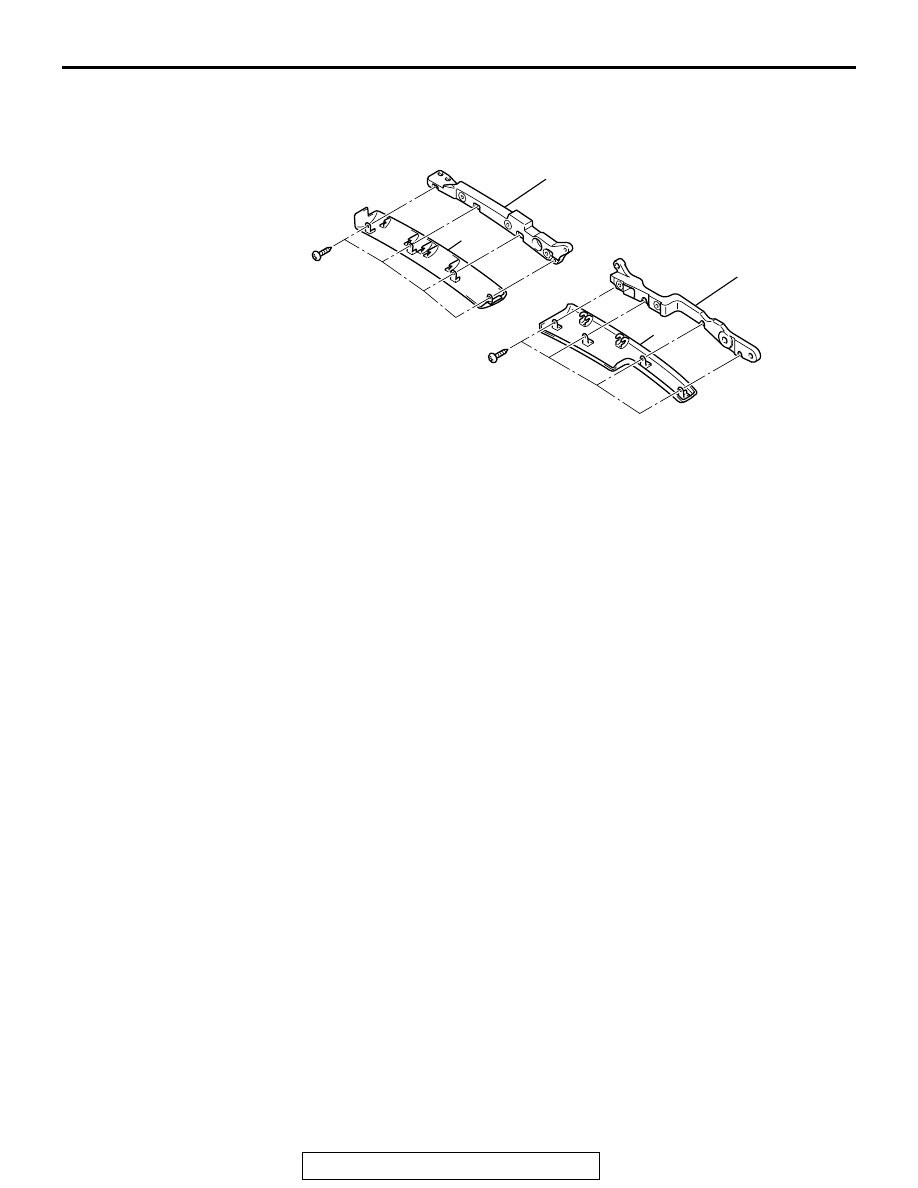

DISASSEMBLY AND ASSEMBLY

M1426209300035

AC004130AB

3

4

1

2

TOPSTACK FRONT RAIL
DISASSEMBLY STEPS
1. TOPSTACK FRONT RAIL GARNISH
2. TOPSTACK FRONT RAIL

TOPSTACK CENTER RAIL
DISASSEMBLY STEPS
3. TOPSTACK CENTER RAIL

GARNISH

4. TOPSTACK CENTER RAIL
