QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-33

.

CIRCUIT OPERATION

• When the power window switch is operated, sig-

nal is sent to the convertible top control module in
order to operate the quarter window regulator
motor to open/close the quarter window.

.

TECHNICAL DESCRIPTION (COMMENT)

• The cause may be a malfunction of the quarter

window regulator motor <LH> drive circuit.

.

TROUBLESHOOTING HINTS

• Malfunction of the convertible top control module.

• Malfunction of the quarter window regulator

motor assembly <LH>.

• Damaged harness wires or connectors.

.

DIAGNOSIS

STEP 1. Check harness wires between convertible top
control module connector F-34 (terminals 10, 3) and
quarter window regulator motor <LH> connector F-36
(terminals 1, 2).
Q: Are there any damaged wires between convertible top

control module connector F-34 (terminals 10, 3) and
quarter window regulator motor <LH> connector F-36
(terminals 1, 2)?
YES : Replace it, then go to Step 4.
NO :  Go to Step 2.

STEP 2. Check the quarter window regulator motor <LH>
operation.
(1) Check that the motor runs smoothly when the battery is

connected directly to the motor terminals.

(2) Furthermore, check that the motor operates in reverse

when the terminal connections are reversed. (Refer to

P.42-39

.)

Q: Is the quarter window regulator motor <LH> damaged?

YES : Replace it, then go to Step 4.
NO :  Go to Step 3.

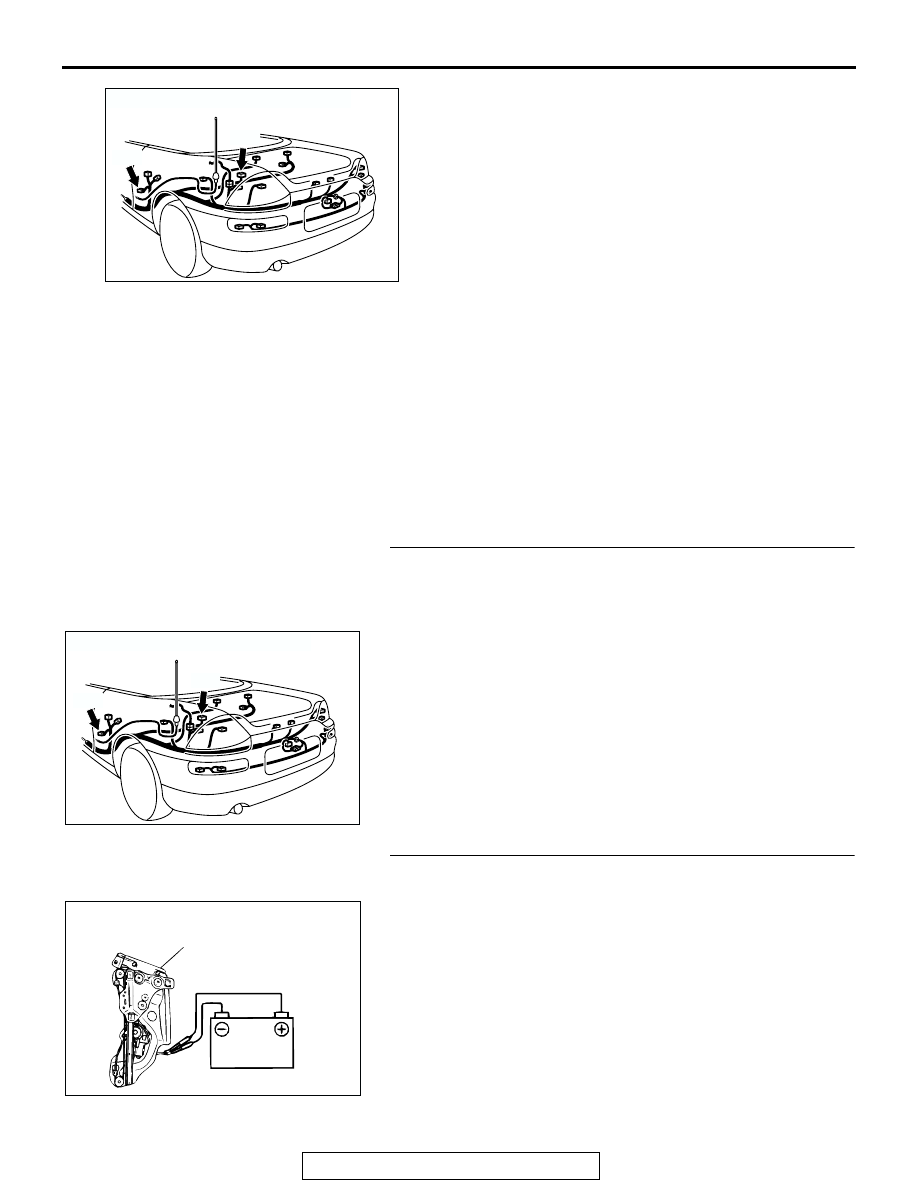

AC003848 AC

CONNECTOR: F-34, F-36

F-34

F-36

AC003848 AC

CONNECTOR: F-34, F-36

F-34

F-36

AC003346

QUARTER WINDOW

REGULATOR ASSEMBLY

AB

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-34

STEP 3. Check the power window main switch continuity.
(1) Exchange the power window main switch with one in good

condition to check that the quarter window glass operates
properly. (Refer to

P.42-54

.)

(2) If normal operates can not be seen, replace the convertible

top control module. (Refer to

P.42-145

.)

Q: Is the power window main switch damaged?

YES : Replace it, then go to Step 4.
NO :  Go to Step 4.

STEP 4. Check symptoms.
Q: Does the quarter windows open and close normally?

YES : This diagnosis is complete.
NO :  Return to Step 1.

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-35

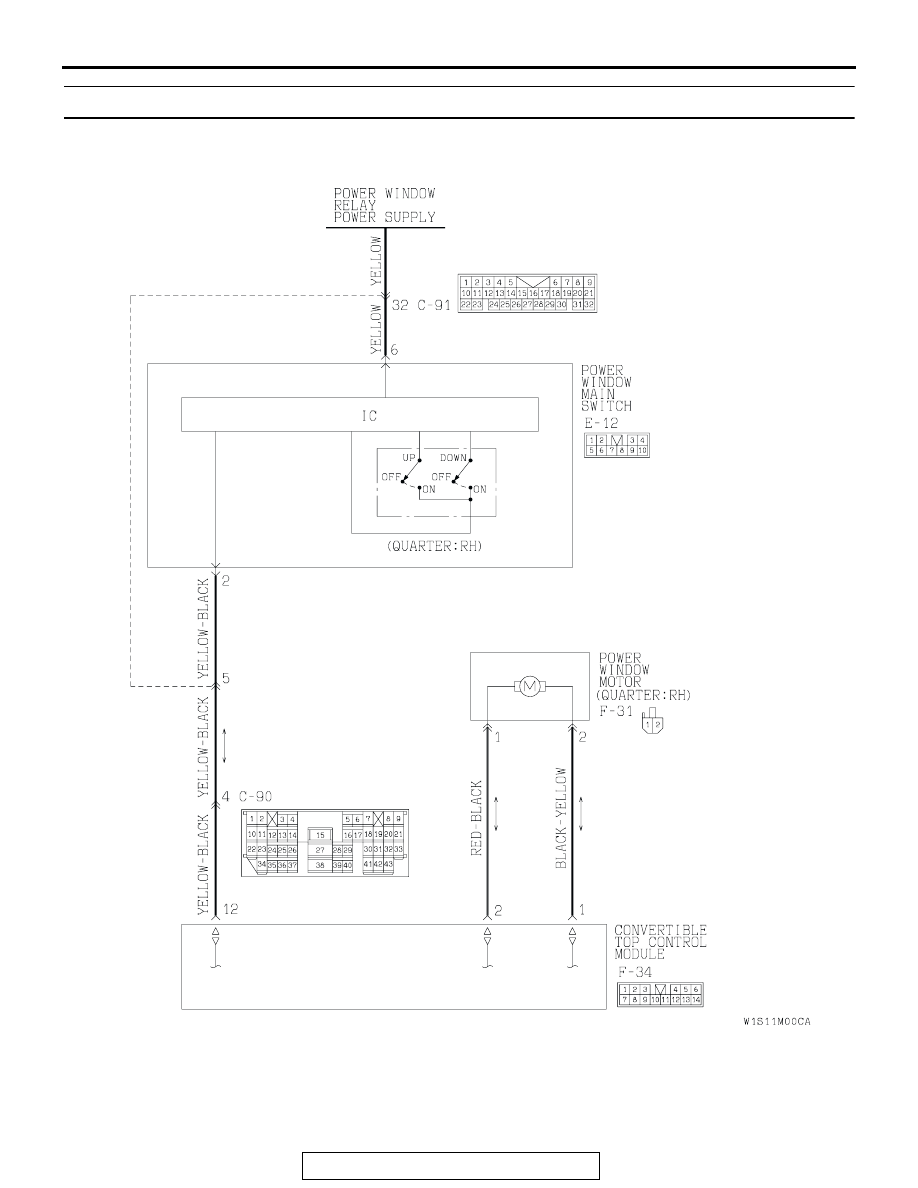

INSPECTION PROCEDURE 3: Only the Quarter Window <RH> does not Open and Close.

AC003734AB

Quarter Window Regulator Motor <RH> Drive Circuit

QUARTER WINDOW GLASS AND REGULATOR ASSEMBLY

TSB Revision

BODY

42-36

CIRCUIT OPERATION

• When the power window main switch is operated,

signal is sent to the convertible top control mod-
ule in order to operate the quarter window regula-
tor motor to open/close the quarter window.

TECHNICAL DESCRIPTION (COMMENT)

• The cause may be a malfunction of the quarter

window regulator motor <RH> drive circuit.

TROUBLESHOOTING HINTS

• Malfunction of the power window main switch

• Malfunction of the quarter window regulator

motor assembly <RH>

• Damaged harness wires or connectors

.

DIAGNOSIS

STEP 1. Check harness wires between convertible top
control module connector F-34 (terminals 2, 1) and quarter
window regulator motor connector F-31 (terminals 1, 2).
Q: Are there any damaged wires between convertible top

control module connector F-34 (terminal 2, 1) and
quarter window regulator motor connector F-31
(terminals 1, 2)?
YES : Replace it, then go to Step 4.
NO :  Go to Step 2.

STEP 2. Check the quarter window regulator motor <RH>
operation.
(1) Check that the motor runs smoothly when the battery is

connected directly to the motor terminals.

(2) Furthermore, check that the motor operates in reverse

when the terminal connections are reversed. (Refer to

P.42-39

.)

Q: Is the quarter window regulator motor <RH> damaged?

YES : Replace it, then go to Step 4.
NO :  Go to Step 3.

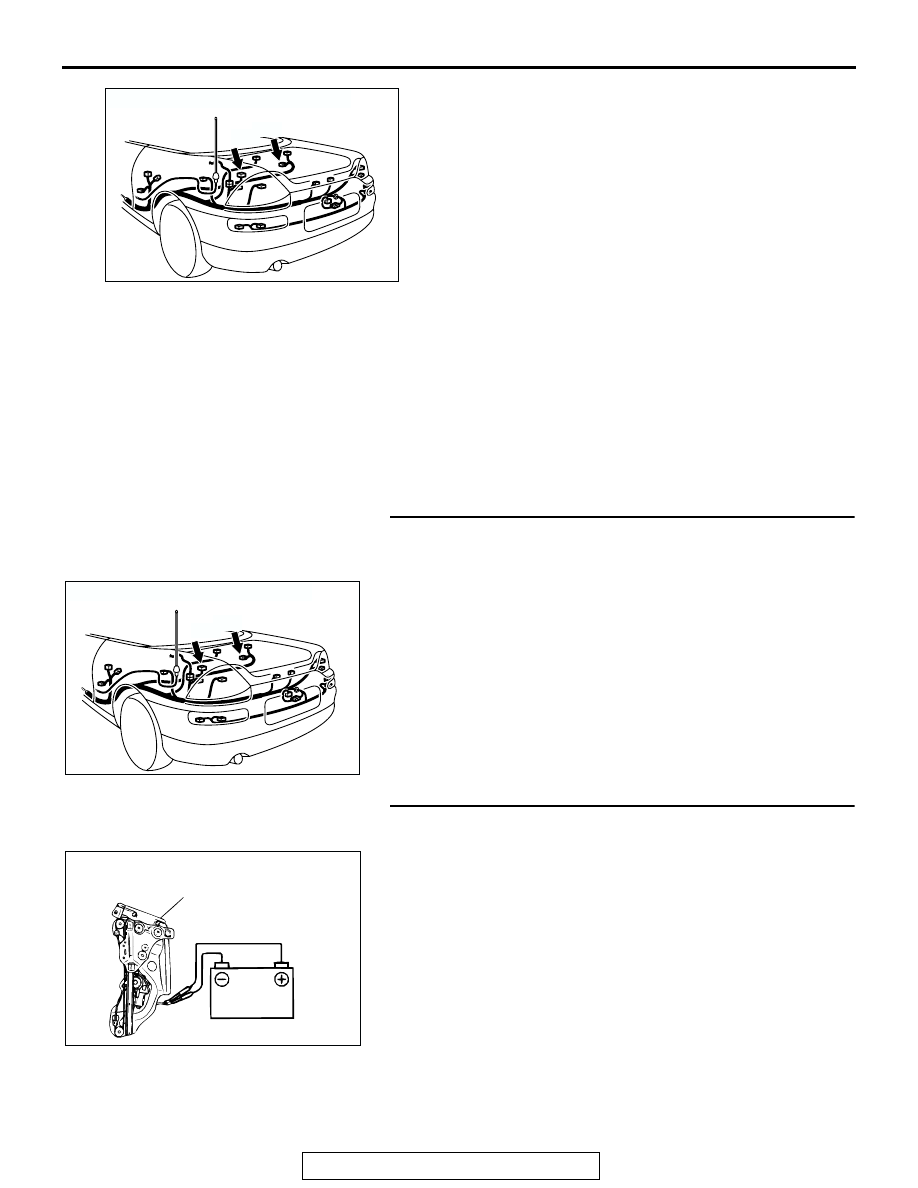

AC003848AD

CONNECTOR: F-31, F-34

F-34

F-31

AC003848AD

CONNECTOR: F-31, F-34

F-34

F-31

AC003346

QUARTER WINDOW

REGULATOR ASSEMBLY

AB
