FENDER

TSB Revision

BODY

42-9

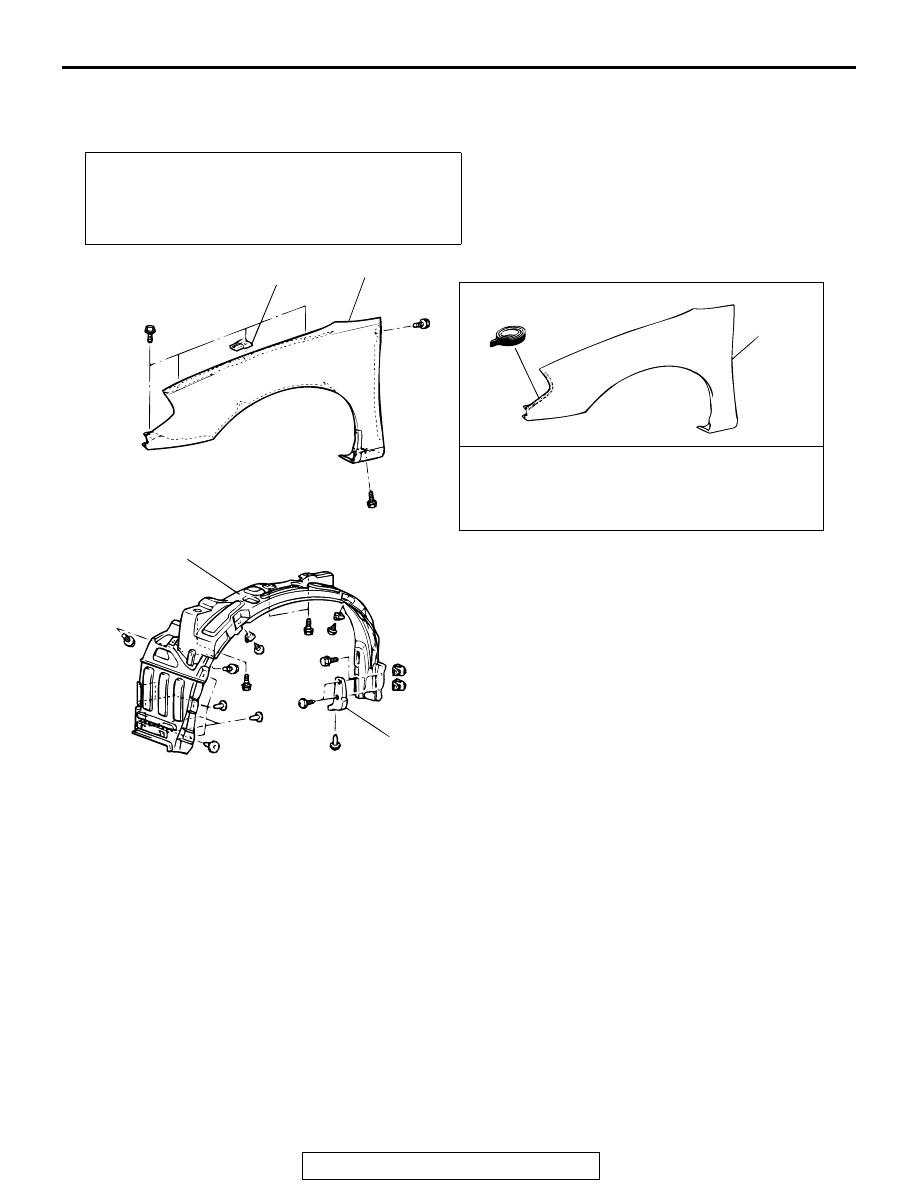

FENDER

REMOVAL AND INSTALLATION

M1421001900067

Pre-removal and Post-installation Operation
• Front Bumper Removal and Installation (Refer to GROUP

51, Front Bumper

P.51-3

.)

• Headlight Removal and Installation (Refer to GROUP

54A, Headlight

P.54A-118

.)

AC000451

3

4

2

1

4

SEALANT:
       3M™ AAD PART NO.8625 OR EQUIVALENT

AB

REMOVAL STEPS
1. FRONT STONE GUARD OR FRONT SIDE

AIR DAM

2. SPLASH SHIELD
3. HOOD DAMPER BRACKET
4. FENDER

FUEL FILLER LID

TSB Revision

BODY

42-10

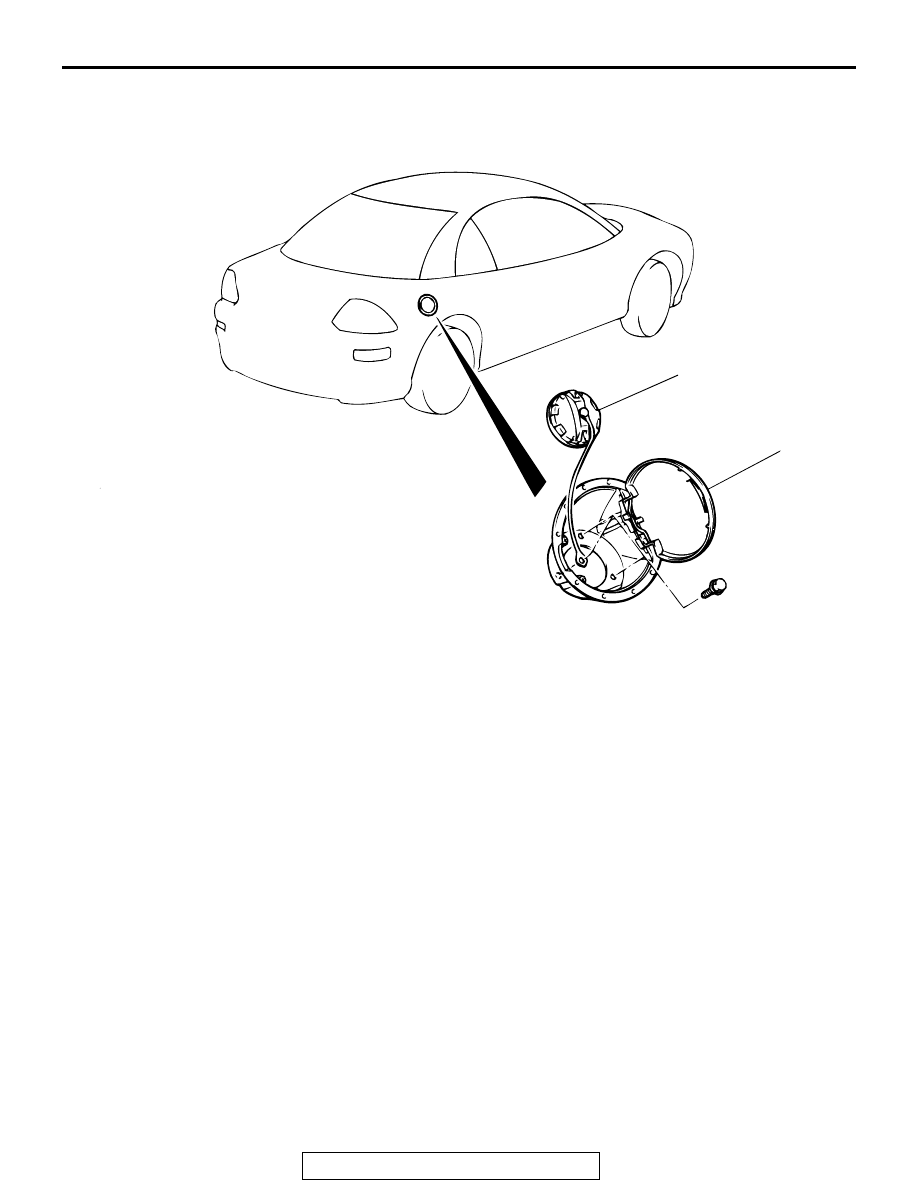

FUEL FILLER LID

REMOVAL AND INSTALLATION

M1421002500073

AC000452

1

2

AB

REMOVAL STEPS
1. FUEL CAP
2. FUEL FILLER DOOR

STRUT TOWER BAR

TSB Revision

BODY

42-11

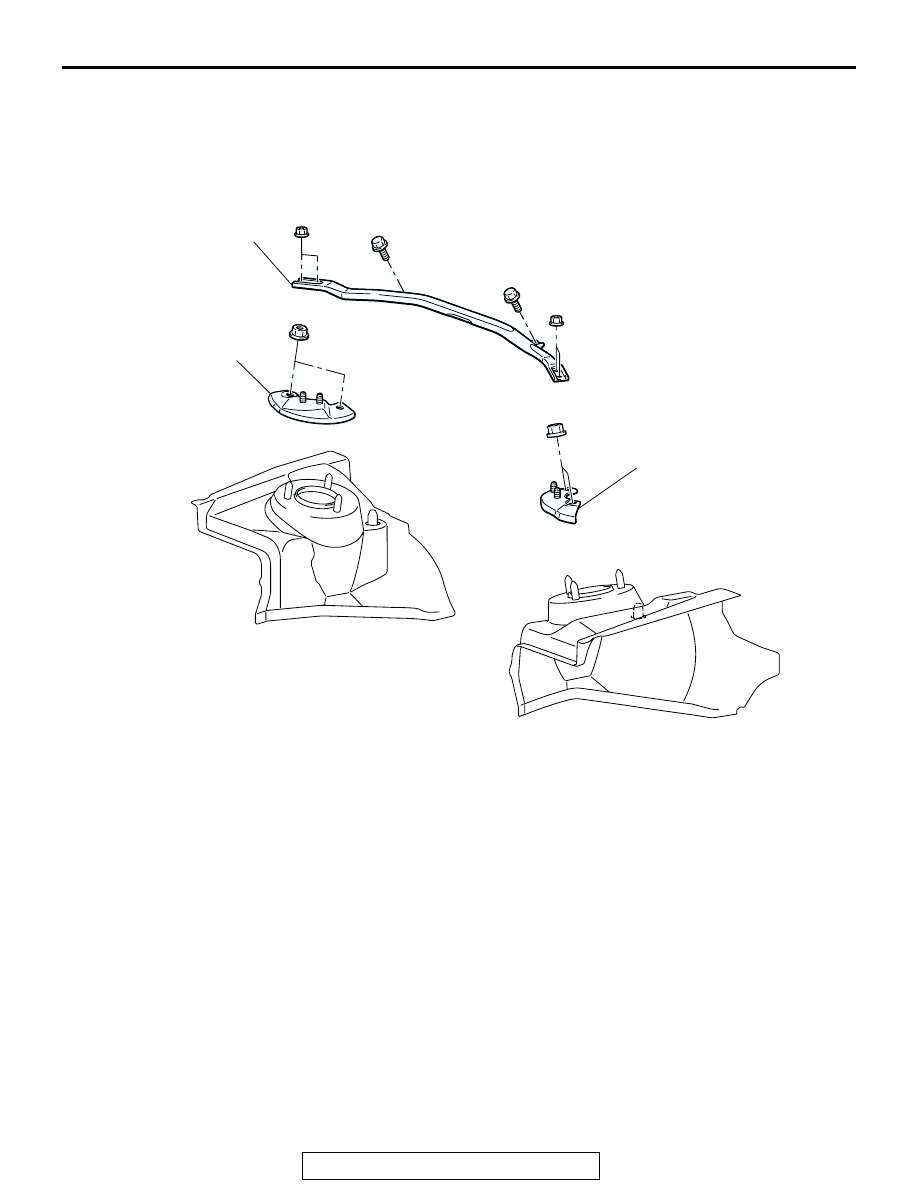

STRUT TOWER BAR

REMOVAL AND INSTALLATION

M1421005600046

AC000790AB

1

2

2

REMOVAL STEPS
1. STRUT TOWER BAR ASSEMBLY
2. STRUT TOWER BAR BRACKET

WINDOW GLASS

TSB Revision

BODY

42-12

WINDOW GLASS

WINDOW GLASS DIAGNOSIS

INTRODUCTION TO WINDOW GLASS DIAGNOSIS

M1422006700072

If water leaks from the windshield, the quarter win-
dow glass <ECLIPSE>, the liftgate glass
<ECLIPSE>, or the seal or body flange may be
faulty.

WINDOW GLASS DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1422006800079

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
window glass fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1422006900087

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Water Leak through Windshield/Water Leak through Quarter Window
Glass/Water Leak through Liftgate Glass

DIAGNOSIS

STEP 1. Check if the seal is faulty.

Q: Is the seal faulty?

YES :

Repair it, then go to Step 3.

NO :

Go to Step 2.

STEP 2. Check if the body flange is deformed.

Q: Is the body flange deformed?

YES :

Repair or replace it, then go to Step 3.

NO :

Go to Step 3.

STEP 3. Check symptoms.

Q: Is any water leaking?

YES :

Return to Step 1.

NO :

This diagnosis complete.

SYMPTOMS

INSPECTION PROCEDURE REFERENCE PAGE

Water leak through windshield

1

P.42-12



Water leak through quarter window glass
Water leak through liftgate glass
