INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-27

>>D<< SYNCHRONIZER SPRING INSTALLATION
Install the synchronizer spring to the illustrated position of the
synchronizer ring and outer synchronizer ring <F5M51>.

.

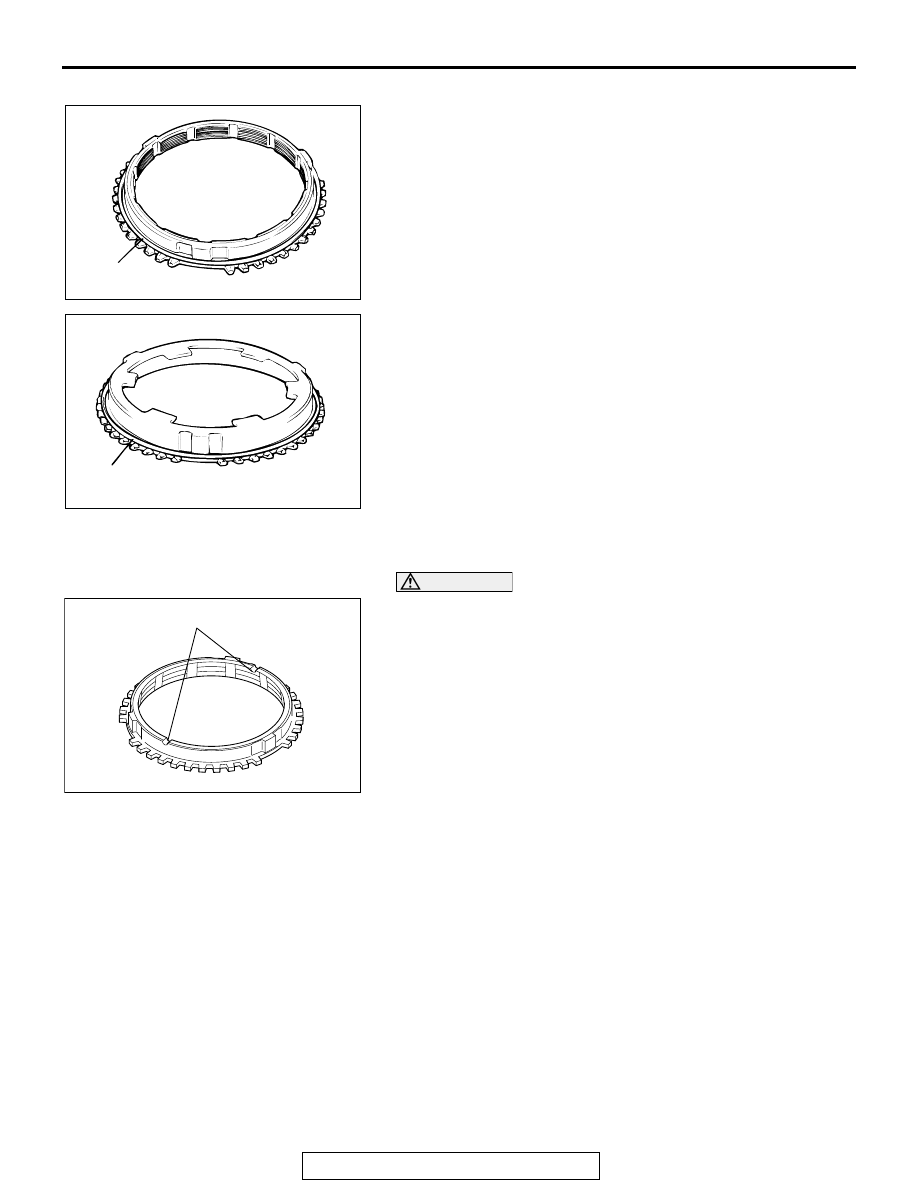

>>E<< SYNCHRONIZER RING INSTALLATION

CAUTION

There are 3rd speed and 4th speed synchronizer rings, if
the wrong one is installed it will effect the shift feeling.
1. Ascertain whether or not there are identification notches on

the synchronizer ring.

Two notches: 3rd speed synchronizer ring
No notches: 4th speed synchronizer ring

2. Install the synchronizer ring so that it does not angle to the

cone of the gear.

.

AKX00847

SYNCHRONIZER
SPRING

AB

AKX00951

SYNCHRONIZER
SPRING

AB

AKX00941

NOTCH

AB

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-28

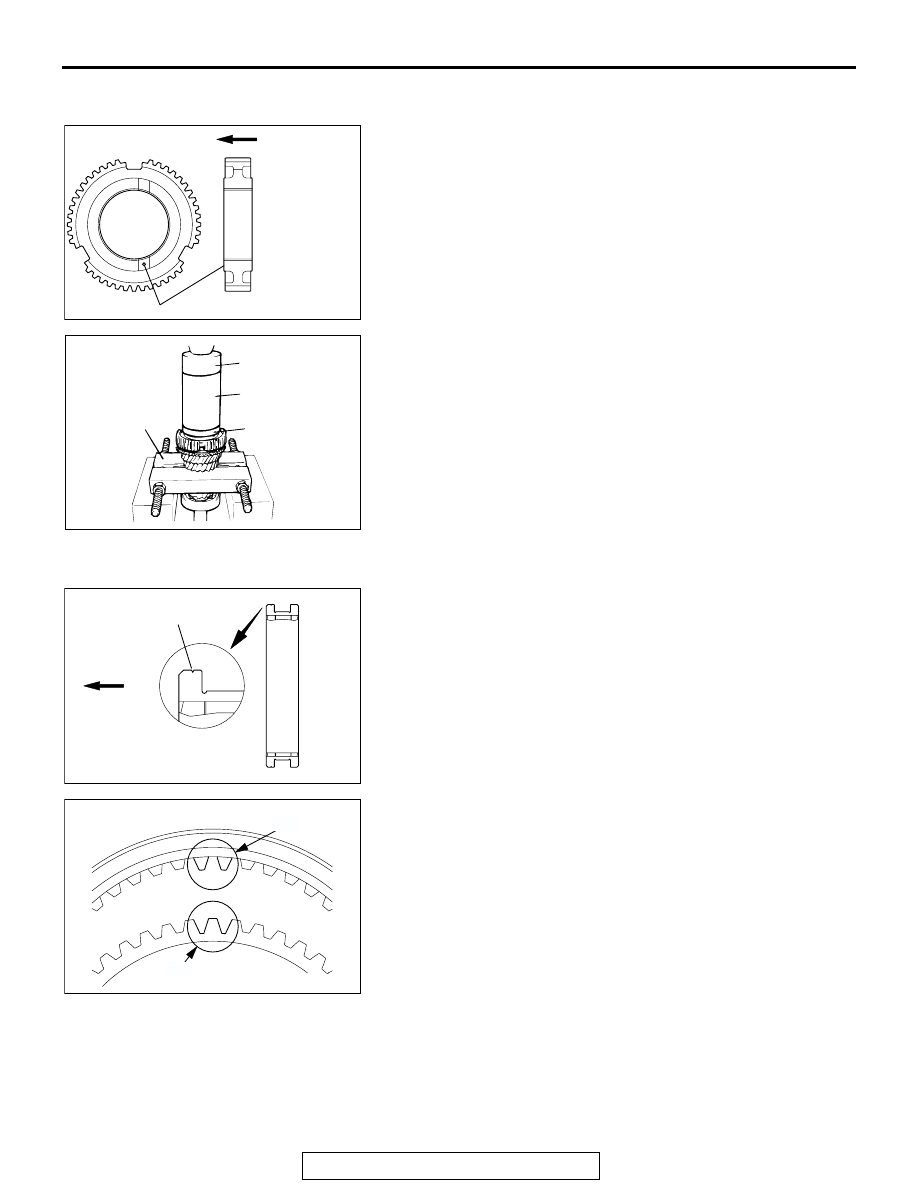

>>F<< 3RD-4TH SPEED SYNCHRONIZER HUB
INSTALLATION
1. Using special tool MD998801, support the 2nd speed gear

portion of the input shaft, and then set them on the press.

2. Make sure that the synchronizer ring <F5M42> or inner

synchronizer ring <F5M51> has been perfectly matched to
the 3rd speed gear cone.

3. Check the installation direction of the 3rd-4th speed

synchronizer hub, and put it on the input shaft.

4. Using special tools MD998812, MD998813 and MD998825,

press install the 3rd-4th speed synchronizer hub with the
press.

5. Make sure that the synchronizer ring <F5M42> or outer

synchronizer ring <F5M51> can rotate freely.

.

>>G<< SYNCHRONIZER SLEEVE INSTALLATION
1. Check the installation direction of the synchronizer sleeve,

and install it onto the 3rd-4th speed synchronizer hub.

2. Install the synchronizer sleeve so that the areas with teeth

that have raised tips (three areas total) are aligned with the
areas on the synchronizer hub that have deep grooves
between the teeth (three areas total).

.

AKX00913

INSTALLATION
DIRECTION

GROOVE

AB

AKX00830

MD998812

MD998813

MD998825

MD998801

AC

AKX00914

GROOVE

INSTALLATION
DIRECTION

AB

AKX00928AB

TEETH WITH
RAISED TIPS

DEEP GROOVES
BETWEEN THE TEETH

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-29

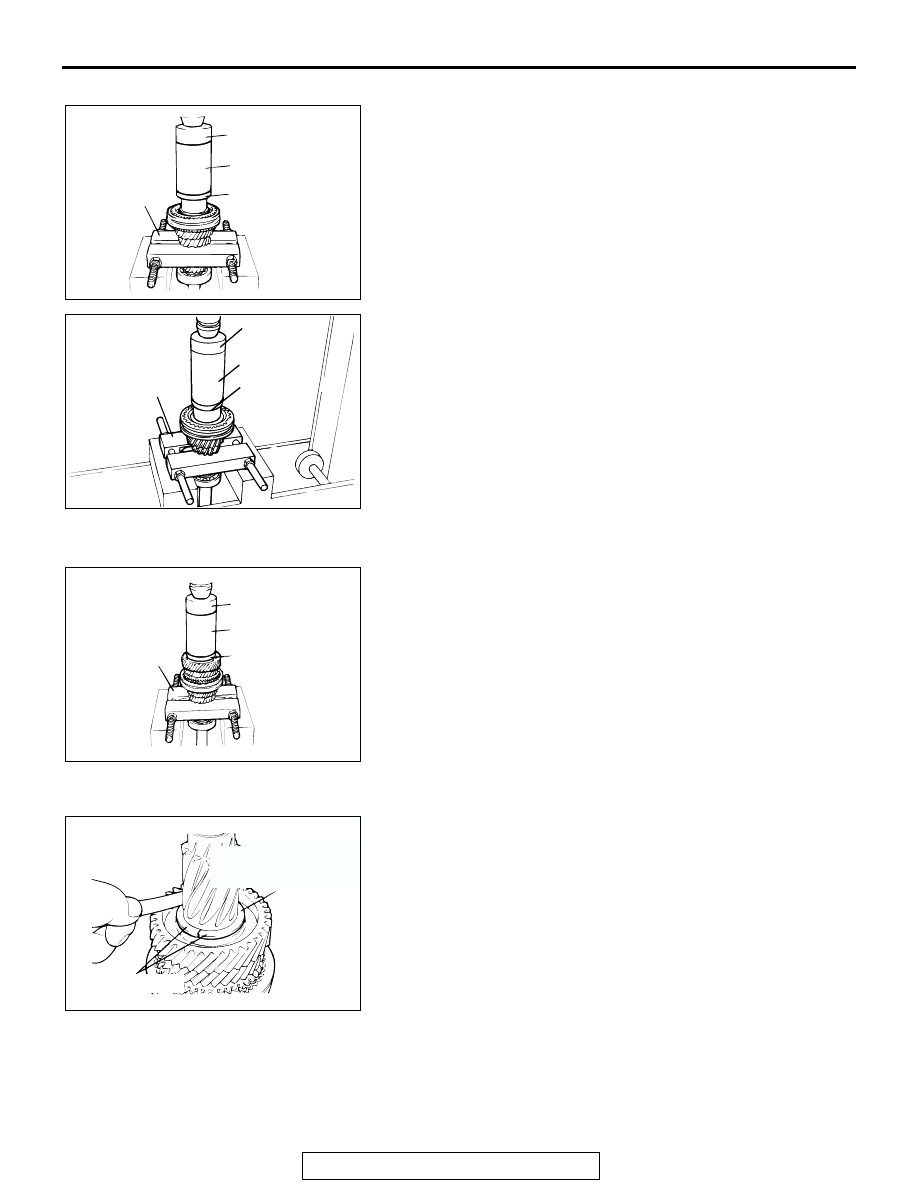

>>H<< 4TH SPEED GEAR SLEEVE INSTALLATION
1. Using special tool MD998801, support the 2nd speed gear

portion of the input shaft, and then set them on the press.

2. Using special tools MD998812, MD998813 and MD998824

<F5M42> or MD998825 <F5M51>, press install the 4th
speed gear sleeve with the press.

.

>>I<< 5TH SPEED GEAR INSTALLATION
1. Using special tool MD998801, support the 2nd speed gear

portion of the input shaft, and then set them on the press.

2. Using special tools MD998812, MD998813 and MD998824

<F5M42> or MD998825 <F5M51>, press install the 5th
speed gear in the input shaft.

.

>>J<< THRUST PLATE INSTALLATION
1. Install the thickest thrust plates that can be fitted in the

groove of input shaft. Install the thrust plate so the surface
stamped with the identification mark is facing up.

2. Make sure that the 5th speed gear end play meets the

standard value.

Standard value: 0

− 0.09 mm (0 − 0.0035 inch)

.

AKX00831

<F5M42>

MD998812

MD998813

MD998824

MD998801

AB

AKX00889AB

MD998812

MD998813

MD998825

MD998801

<F5M51>

AKX00832

MD998812

MD998813

MD998824
<F5M42>,
MD998825
<F5M51>

MD998801

AB

AKX00833AB

SURFACE STAMPED
WITH IDENTIFICATION
MARK

THRUST PLATE

INPUT SHAFT

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-30

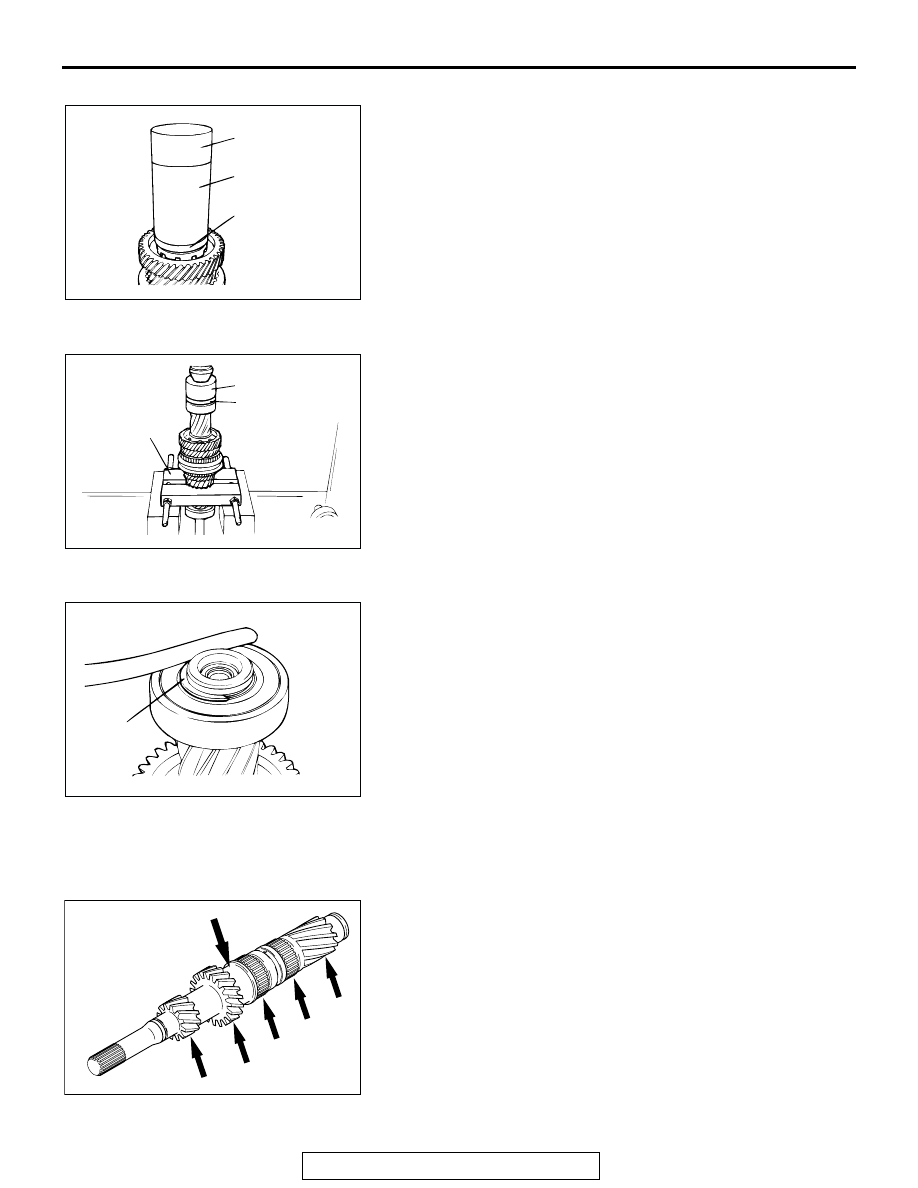

>>K<< THRUST PLATE STOPPER INSTALLATION
Install the thrust plate stopper by pressing special tools
MD998812, MD998813 and MD998824 <F5M42> or
MD998825 <F5M51> by hand. Make sure that it is not tilted.

.

>>L<< BALL BEARING INSTALLATION
1. Using special tool MD998801, support the 2nd speed gear

portion of the input shaft, and then set them on the press.

2. Using special tools MD998812 and MD998818, press install

the ball bearing in the input shaft.

.

>>M<< SNAP RING INSTALLATION
1. Install the thickest snap ring that can be fitted in the groove

of input shaft.

2. Make sure that the ball bearing end play meet the standard

value.

Standard value: 0

− 0.12 mm (0 − 0.0047 inch)

INSPECTION

M1222001700028

.

INPUT SHAFT
1. Check the outside diameter of the needle bearing mounting

portion for damage, abnormal wear and seizure.

2. Check the splines for damage and wear.
3. Check that the helical gear teeth surfaces are not damaged

or worn.

.

AKX00890

MD998812

MD998813

MD998824
<F5M42>,
MD998825
<F5M51>

AB

AKX00834

MD998812
MD998818

MD998801

AB

AKX00835

SNAP RING

AB
