TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-43

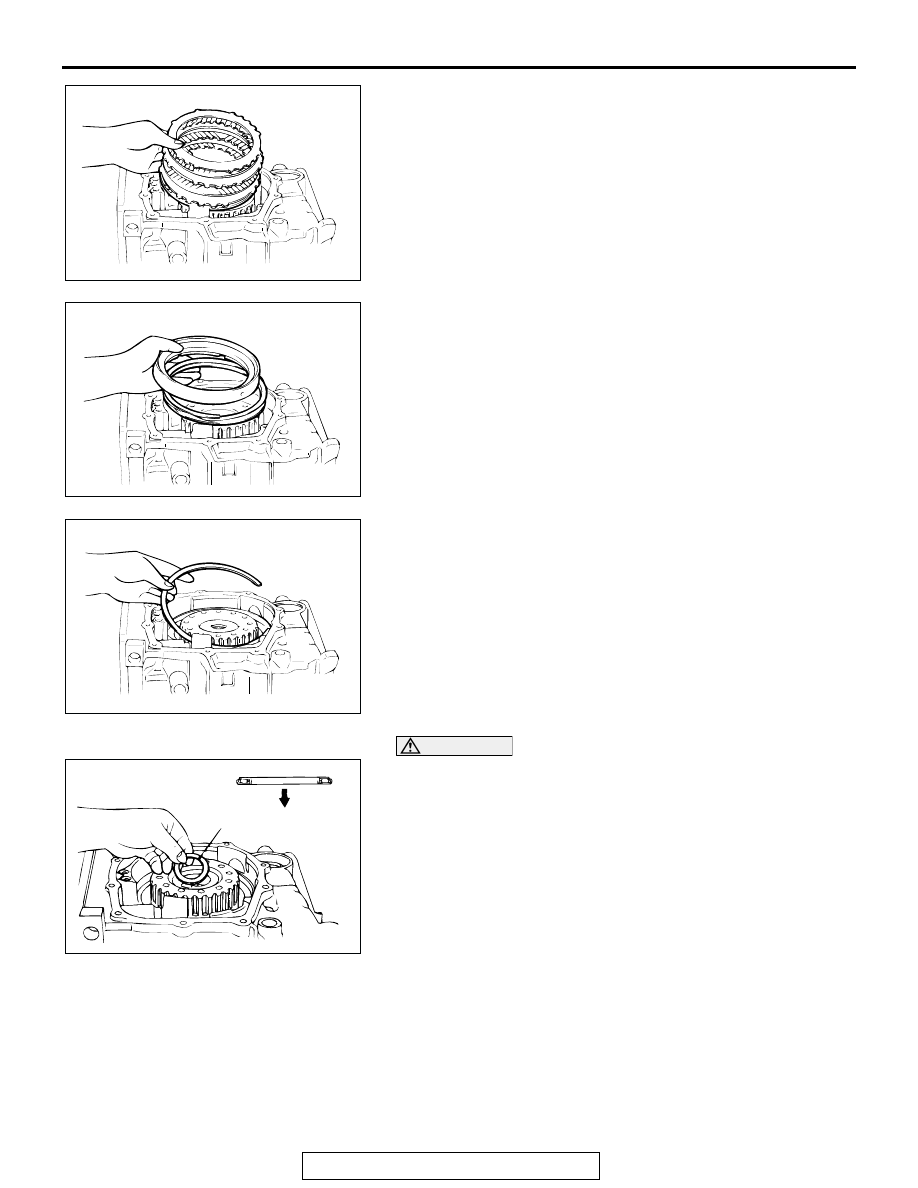

41.Install three brake discs <F4A42> or four brake discs

<F4A51> and two brake plates <F4A42> or three brake
plates <F4A51>, one on top of the other. Next, install the
pressure plate that was selected in step 17.

42.Install the return spring and second brake piston.

43.Install the snap ring.

CAUTION

Be sure to install the thrust bearing in the correct direction
as shown.
44.Check the installation direction of the thrust bearing number

5, and install it on the hub of the planetary reverse sun gear.

AKX01097

AKX01094

AKX01098

AKX01084

INSTALLATION
DIRECTION

THRUST BEARING NO.5

AB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-44

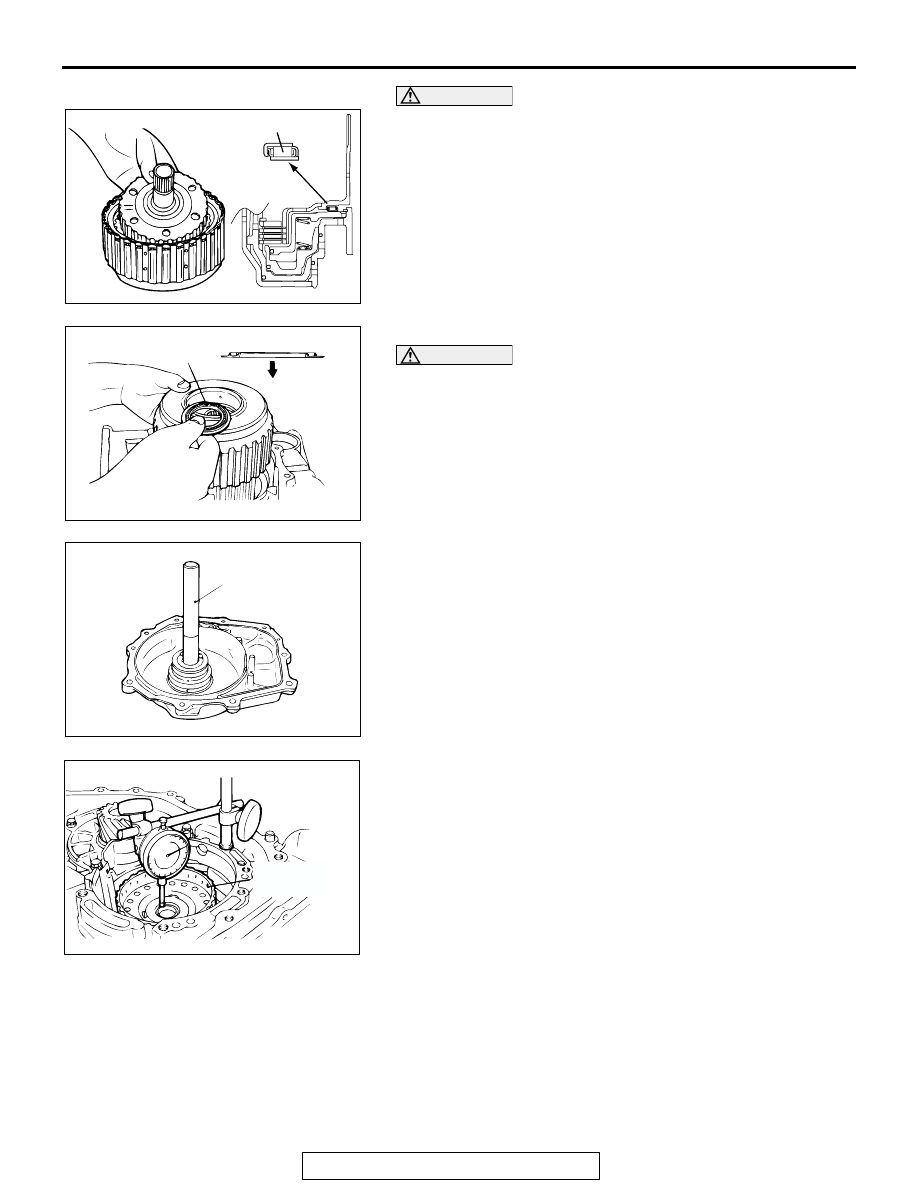

CAUTION

Use care to install the thrust bearing in the proper direc-
tion.
45.Attach thrust bearing number 6 to the inside of the overdrive

clutch hub using petroleum jelly (Vaseline). Then install the
assembly in the reverse and overdrive clutch.

46.Install the reverse and overdrive clutch.

CAUTION

Be sure to install the thrust bearing in the correct direction
as shown.
47.Check the installation direction of thrust bearing number 7,

and install it on the reverse clutch retainer.

48.Use special tool MB990938 to tap the input shaft rear

bearing in the rear cover.

49.Install the four seal rings in the grooves of the rear cover.

50.Measure the end play of the under drive sun gear by the

following procedures:

(1) Install the thinnest thrust race number 8 [thickness 1.6

mm (0.063 inch); part number MD707267] on thrust
bearing number 7.

(2) Install the rear cover on the transaxle case and tighten

the bolts to the specified torque.

Tightening torque: 23

± 3 N⋅m (17 ± 2 ft-lb)

(3) Turn over the transaxle case so that the installation

surface of the torque converter housing is facing up.

(4) Install the under drive clutch hub on the under drive sun

gear.

(5) Measure end play of the underdrive sun gear and record

the measurement value.

Standard value (Reference):
0.25

− 0.45 mm (0.0098 − 0.0177 inch)

(6) After taking the measurement in steps (5), take out the

installed parts in steps (1) through (4).

AKX01085

THRUST BEARING NO.6

AB

AKX01086

INSTALLATION
DIRECTION

THRUST BEARING NO.7

AB

AKX01071

MB990938

AB

AKX01072 AB

UNDERDRIVE
CLUTCH HUB

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-45

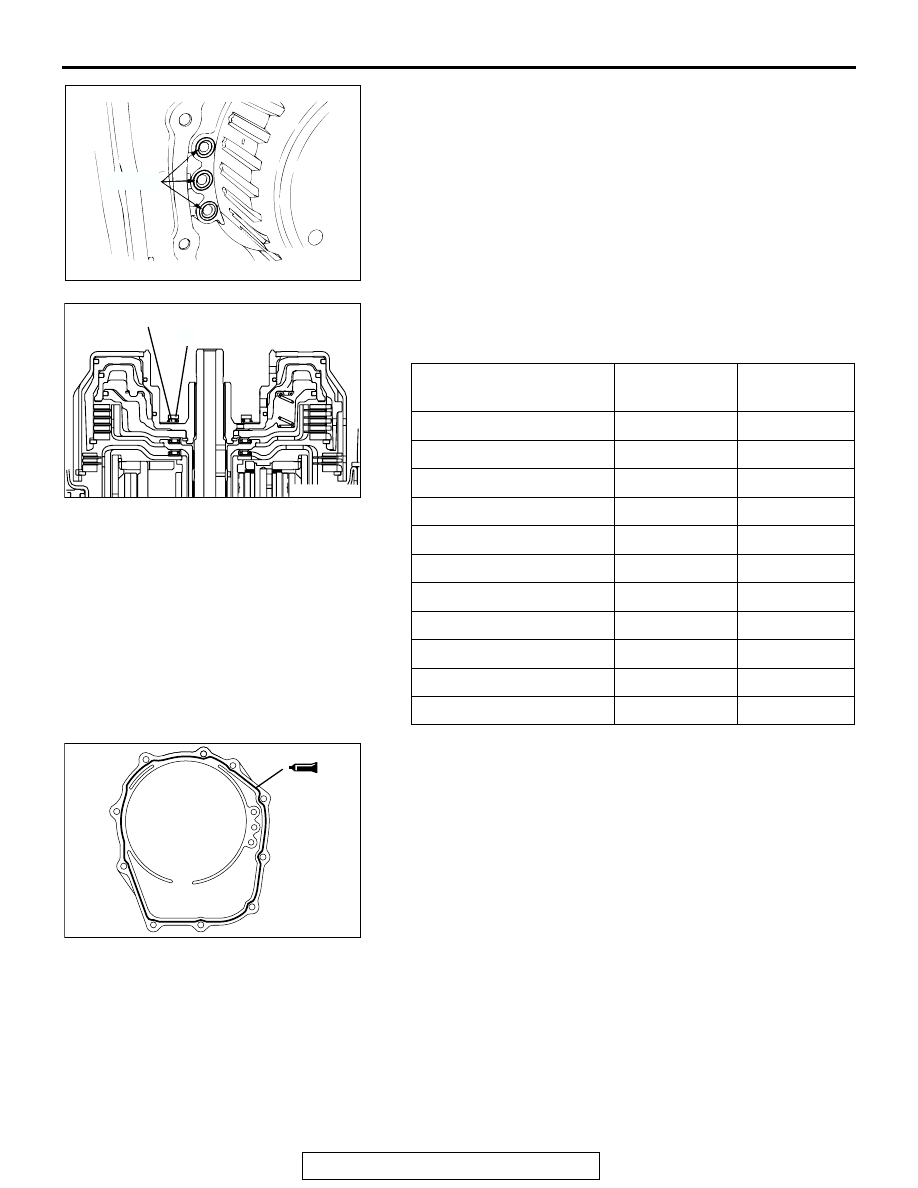

51.Install the three O-rings.

52.Select a thrust race number 8 whose thickness corresponds

to the measured values taken in step 50 from the table
below. Install it on thrust bearing number 7.

53.Apply a 2 mm (0.08 inch) diameter bead of sealant

(MITSUBISHI Genuine Part number MD974421 or
equivalent) to the illustrated position of the rear cover.
NOTE: Be sure to install the case quickly while the sealant is
wet (within 15 minutes) or leaks will occur if the rear cover is
installed after the sealant dries.

AKX01010AB

O-RINGS

MEASUREMENT VALUE
mm (in)

THICKNESS
mm (in)

PART NO.

0.3

− 0.4 (0.012 − 0.016)

1.6 (0.063)

MD707267

0.4

− 0.5 (0.016 − 0.020)

1.7 (0.067)

MD759681

0.5

− 0.6 (0.020 − 0.024)

1.8 (0.071)

MD723064

0.6

− 0.7 (0.024 − 0.028)

1.9 (0.075)

MD754794

0.7

− 0.8 (0.028 − 0.031)

2.0 (0.079)

MD707268

0.8

− 0.9 (0.031 − 0.035)

2.1 (0.083)

MD754795

0.9

− 1.0 (0.035 − 0.039)

2.2 (0.087)

MD723065

1.0

− 1.1 (0.039 − 0.043)

2.3 (0.091)

MD754796

1.1

− 1.2 (0.043 − 0.047)

2.4 (0.094)

MD724358

1.2

− 1.3 (0.047 − 0.051)

2.5 (0.098)

MD754797

1.3

− 1.4 (0.051 − 0.055)

2.6 (0.102)

MD754798

AK101762

THRUST BEARING NO.7

THRUST RACE NO.8

AB

AKX01073

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-46

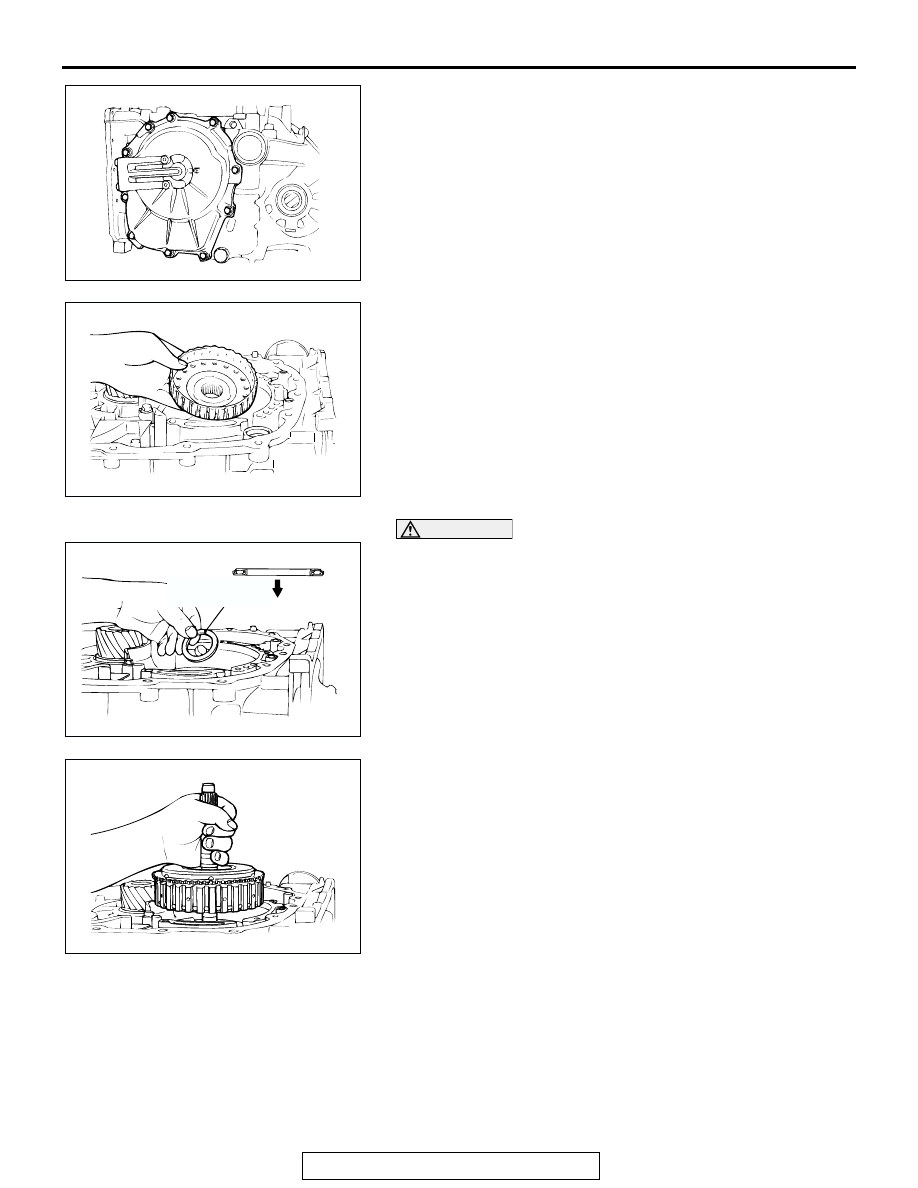

54.Install the rear cover, and tighten its mounting bolts to the

specified torque.

Tightening torque: 23

± 3 N⋅m (17 ± 2 ft-lb)

NOTE: After installation, keep the sealed area away from
the ATF for approximately one hour.

55.Install the underdrive clutch hub to the underdrive sun gear.

CAUTION

Be sure to install the thrust bearing in the correct direction
as shown.
56.Check the installation direction of thrust bearing number 2,

and install it on the underdrive clutch hub.

57.Hold the input shaft, and install the underdrive clutch.

AKX01009

AKX01032

AKX01089

INSTALLATION
DIRECTION

AB

THRUST
BEARING NO.2

AKX01030
