STEP 10. Check the harness for an open circuit or short
circuit to ground between A/T control relay connector
A-17X terminal 4 in the engine component relay box and
A/T control solenoid valve assembly connector B-40
terminal 10.
Q: Is the harness wires in good condition?

YES : Go to Step 11.
NO :  Repair or replace the harness wire.

STEP 11. Check A/T control solenoid valve assembly
connector B-40 and PCM connector C-61 <2.4L Engine> or
C-63 <3.0L Engine> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 12.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

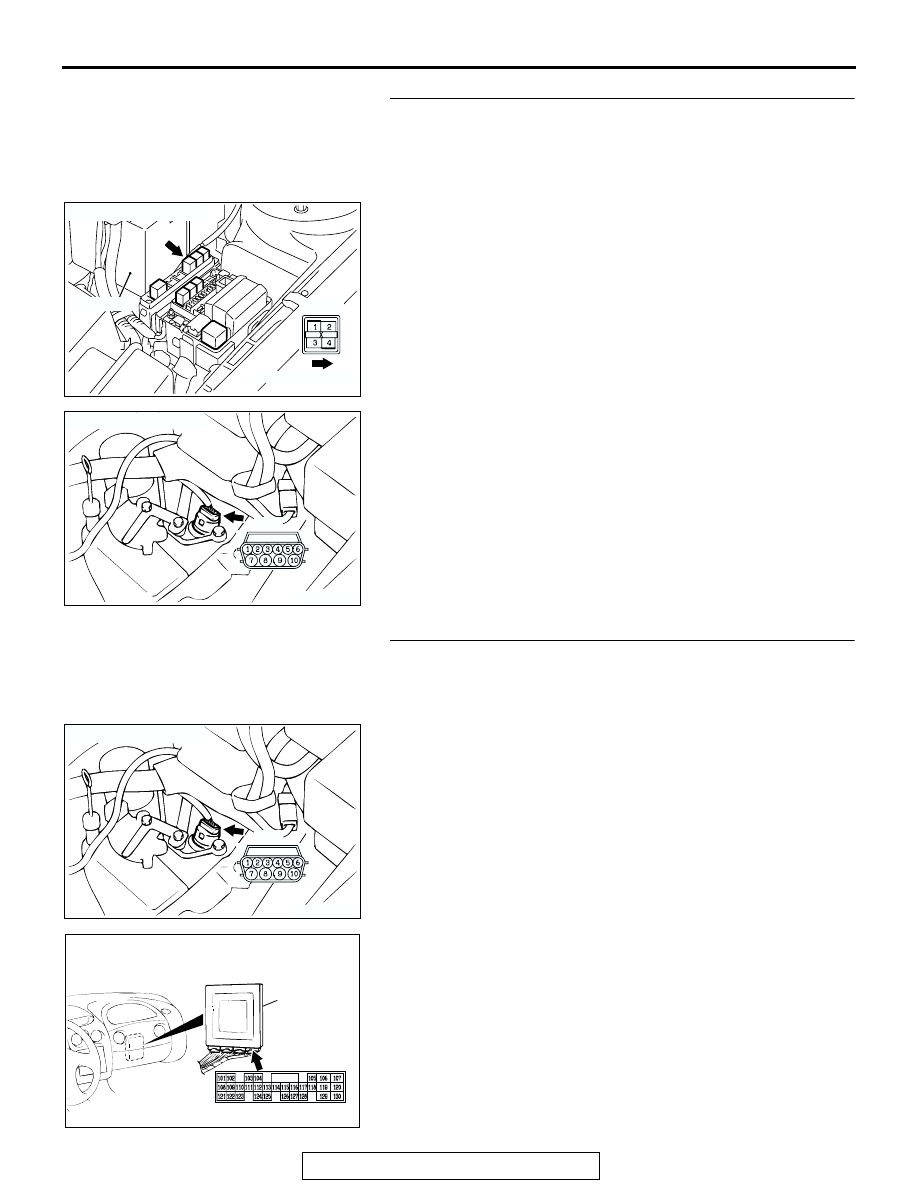

AC102447AF

BATTERY

CONNECTOR: A-17X

A-17X

FRONT OF VEHICLE

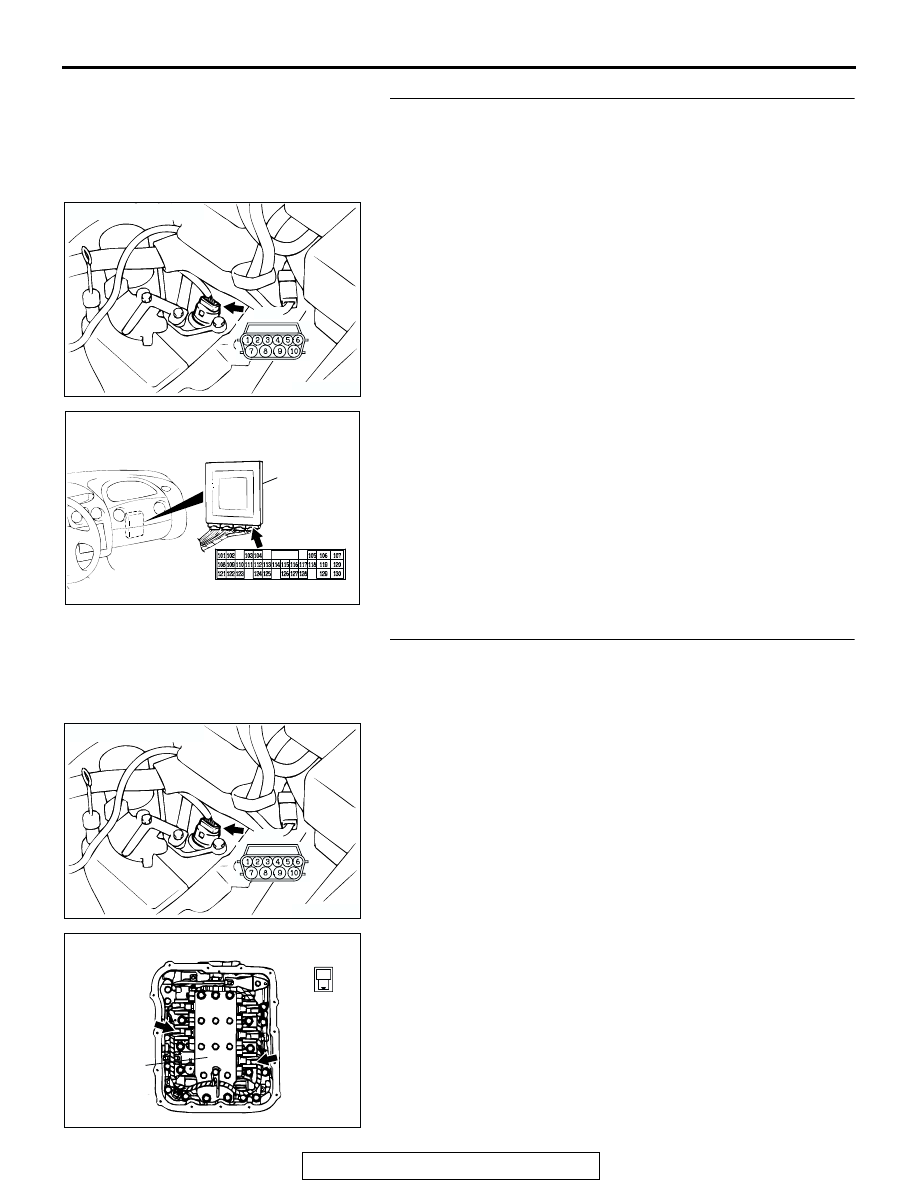

ACX02479

CONNECTOR: B-40

AK

B-40

ACX02479

CONNECTOR: B-40

AK

B-40

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-218

STEP 12. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector B-40 (terminals 6 and 7) and PCM connector
C-61 <2.4L Engine> or C-63 <3.0L Engine> (terminals 107
and 129).
Q: Are the harness wires in good condition?

YES : Go to Step 13.
NO :  Repair or replace the harness wire.

STEP 13. Check the harness for an open or short circuit to
ground between A/T control solenoid valve assembly
connector B-40 (terminals 6, 7, and 10) and solenoid valve
connectors B-40-4 and B-40-5.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Replace the harness wire.

ACX02479

CONNECTOR: B-40

AK

B-40

AC001657

CONNECTOR: C-61 <2.4L ENGINE> OR
C-63 <3.0L ENGINE>

PCM

BC

C-61 <2.4L ENGINE> OR C-63 <3.0L ENGINE>

ACX02479

CONNECTOR: B-40

AK

B-40

AC002219

CONNECTORS: B-40-4, B-40-5

CI

B-40-5

VALVE BODY
ASSEMBLY

B-40-4

2

1

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-219

DTC 32 (P0758): Underdrive Solenoid Valve System

.

Solenoid Valve System Circuit
Refer to

P.23A-209

.

.

CIRCUIT OPERATION
Refer to

P.23A-209

.

.

DESCRIPTIONS OF MONITOR METHODS
If solenoid terminal voltage is below specified value
when shift control is not in progress, PCM judges
that underdrive solenoid has a failure.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• DTC 41 (P0731): 1st gear incorrect ratio

• DTC 42 (P0732): 2nd gear incorrect ratio

• DTC 43 (P0733): 3rd gear incorrect ratio

• DTC 44 (P0734): 4th gear incorrect ratio

• DTC 46 (P0736): Reverse gear incorrect ratio

• DTC 36 (P0743): Torque converter clutch sole-

noid malfunction

• DTC 31 (P0753): Low-reverse solenoid malfunc-

tion

• DTC 33 (P0763): Second solenoid malfunction

• DTC 34 (P0768): Overdrive solenoid malfunction

• DTC 54 (P1751): A/T control relay malfunction

Sensor (The sensor below is determined to be

normal)

• Torque converter clutch solenoid

• Low-reverse solenoid

• Second solenoid

• Overdrive solenoid

• A/T control relay

.

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-220

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS (Entry Conditions and
Malfunction Thresholds)

Check Conditions

• Solenoid status: either solid ON or OFF.

• Shift status: in-gear.

• Voltage of battery: 10 volts or more.

Judgement Criteria

• Solenoid voltage: 3 volts or less. (0.3 second)

• If DTC 32 (P0758) is set consecutively four times,

the transaxle is locked into 3rd gear as a fail-safe
measure, and the "N" range light flashes once
per second.

.

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in "P"
range for 5 seconds.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the underdrive solenoid valve

• Damaged harness or connector

• Malfunction of the PCM

AC205282

Good

Malfunction

END

START

In-gear?

Shift solenoid-B is in ON
or OFF steady state

Voltage of battery > 10 V

Solenoid circuit
voltage < 3 V

Continuous failure
for 0.3 sec.

Yes

No

Yes

No

Yes

No

Yes

No

Yes

No

  Underdrive solenoid valve
is in ON or OFF steady state

AB
