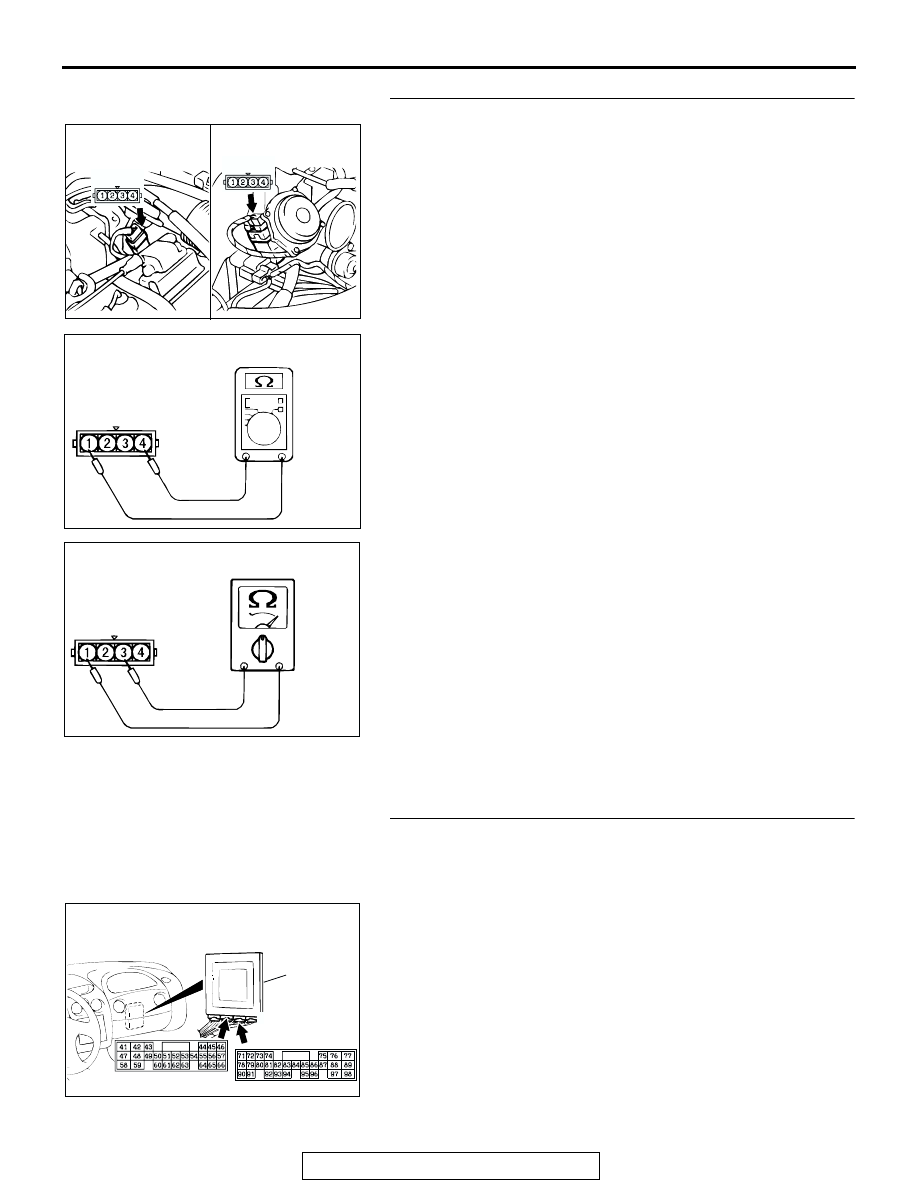

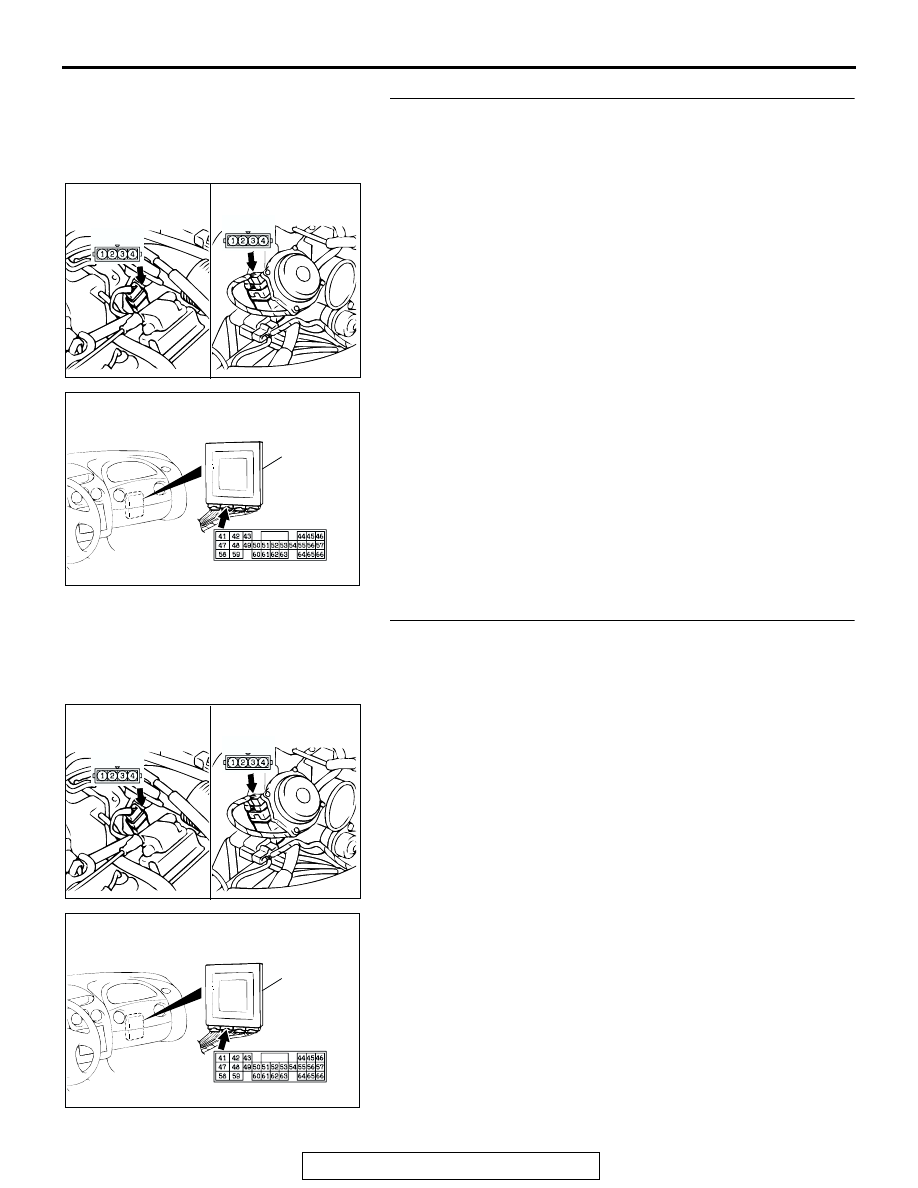

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-73

STEP 17. Check TP sensor connector B-07 and PCM
connector C-54 <2.4L Engine> or C-55 <3.0L Engine> for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 18.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 18. Check the harness for open circuit or damage
between TP sensor connector B-07 terminal 1 and PCM
connector C-54 <2.4L Engine> or C-55 <3.0L Engine>
terminal 57.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair or replace the harness wire.

AC001831AF

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

B-07

B-07

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

BA

C-54 <2.4L ENGINE> OR C-55 <3.0L ENGINE>

AC001831AF

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

B-07

B-07

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

BA

C-54 <2.4L ENGINE> OR C-55 <3.0L ENGINE>

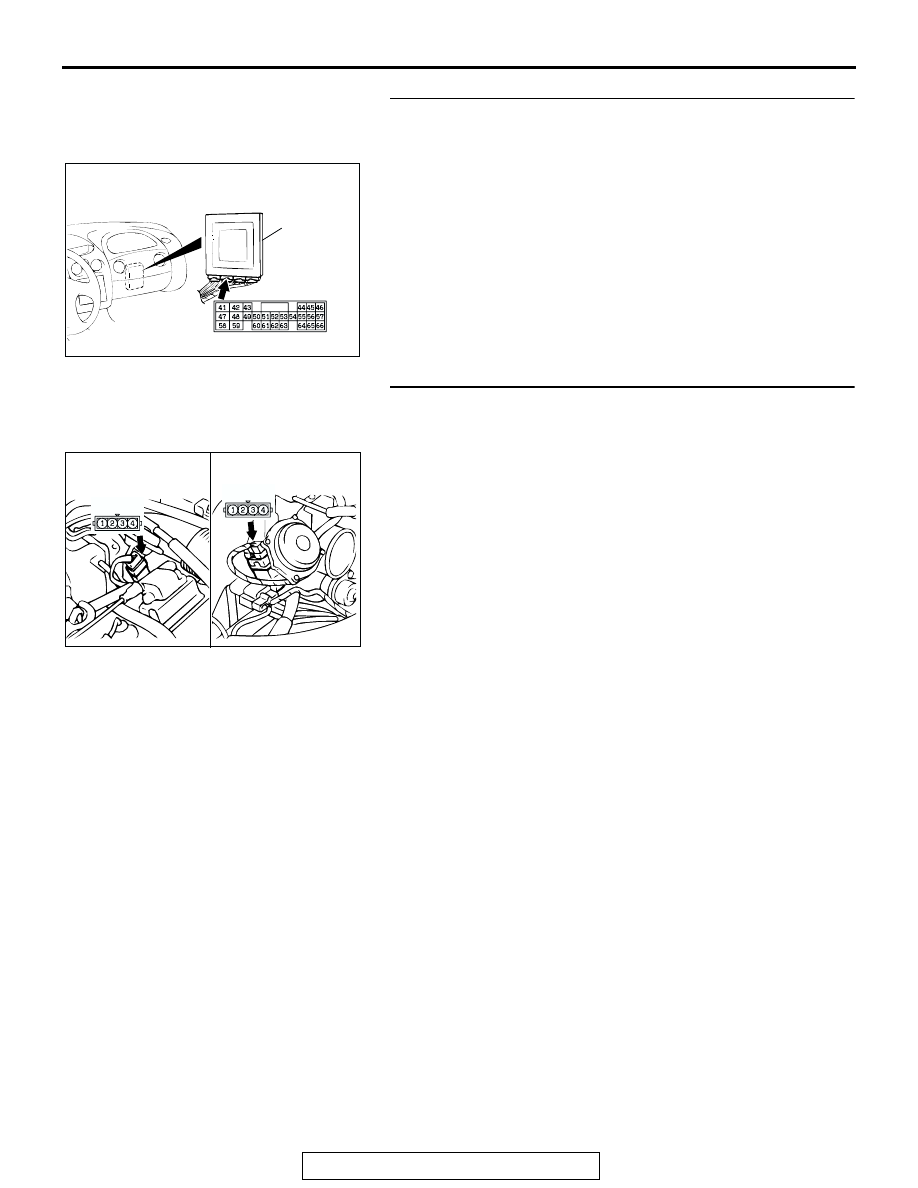

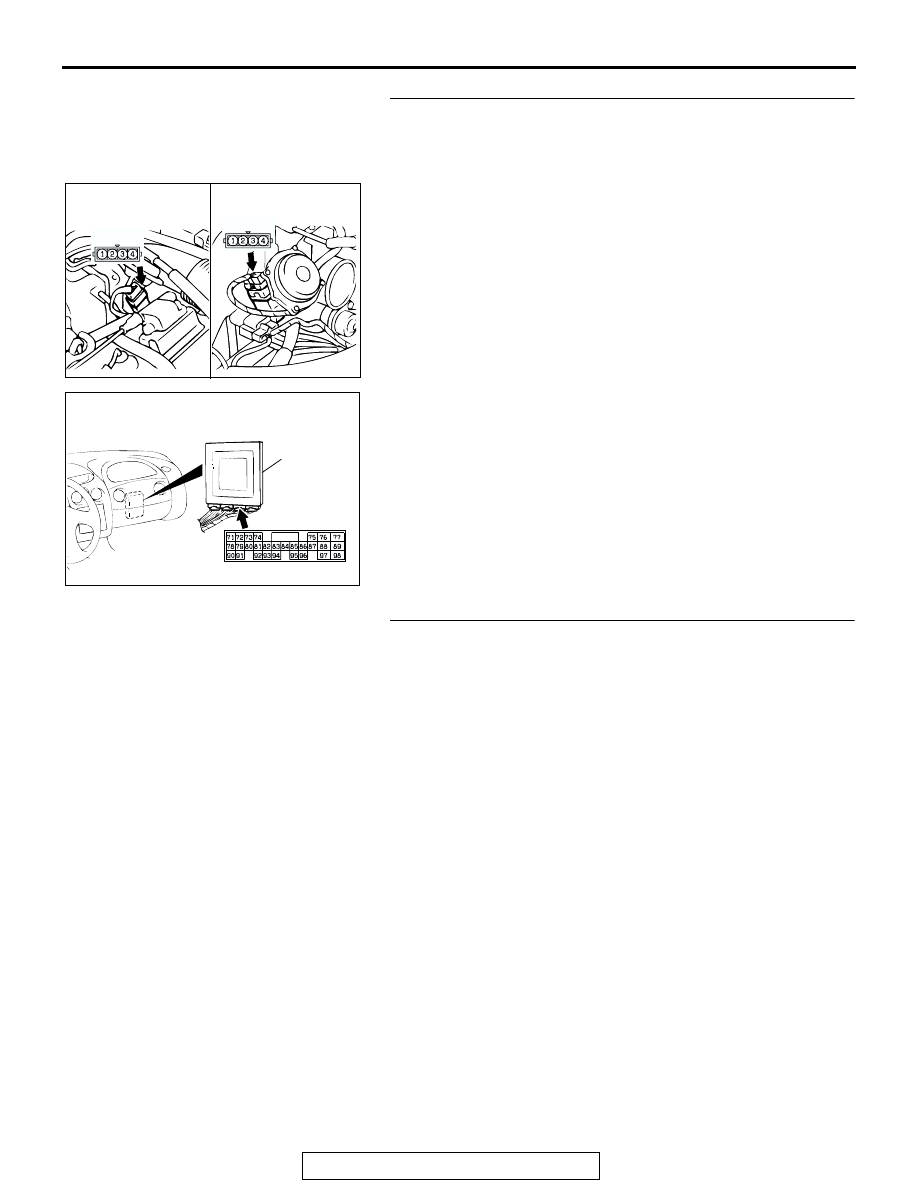

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-74

STEP 19. Check PCM connector C-54 <2.4L Engine> or
C-55 <3.0L Engine> for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Is the connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

STEP 20. Check TP sensor connector B-07 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 21.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001657

CONNECTOR: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

PCM

BA

C-54 <2.4L ENGINE> OR C-55 <3.0L ENGINE>

AC001831AF

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

B-07

B-07

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-75

STEP 21. Check the TP sensor.
(1) Disconnect connector B-07 and measure at the TP sensor

side.

(2) Measure the resistance between the TP sensor connector

terminals 1 and 4.

Standard value: 3.5

− 6.5 kΩ

(3) Measure the resistance between the TP sensor connector

terminals 1 and 3.

(4) Move the throttle valve from the idle position to the full-open

position.

• The resistance should change smoothly in proportion to

the opening angle of the throttle valve.

Q: Dose the resistance change smoothly between 3.5

− 6.5

k

Ω in proportion to the opening angle of the throttle

valve?
YES : Go to Step 22.
NO :  Replace the TP sensor. Refer to GROUP 13A <2.4L

Engine>, Throttle Body Assembly

P.13A-945

 or 13B

<3.0L Engine>, Throttle Body Assembly

P.13B-1116

.

STEP 22. Check PCM connectors C-54 <2.4L Engine> or
C-55 <3.0L Engine> and C-57 <2.4L Engine> or C-59 <3.0L
Engine> for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 23.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

.

AC001831AF

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

B-07

B-07

ACX02093AJ

B-07 HARNESS
CONNECTOR:
TP SENSOR SIDE

ACX02094AI

B-07 HARNESS
CONNECTOR:
TP SENSOR SIDE

AC001657

CONNECTORS: C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>, C-57 <2.4L ENGINE>
OR C-59 <3.0L ENGINE>

BB

PCM

C-54 <2.4L ENGINE> OR
C-55 <3.0L ENGINE>

C-57 <2.4L ENGINE>
OR
C-59 <3.0L ENGINE>

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-76

STEP 23. Check harness for a short circuit to ground or
damage between TP sensor connector B-07 terminal 3 and
PCM connector C-57 <2.4L Engine> or C-59 <3.0L Engine>
terminal 78.
Q: Is the harness wire in good condition?

YES : Go to Step 24.
NO :  Repair or replace the harness wire.

STEP 24. Check the TP sensor connector and harness for
a short circuit to ground between the TP sensor and the
auto-cruise control-ECU connector.
Q: Is the harness wire in good condition?

YES : Adjust the TP sensor. Refer to GROUP 13A <2.4L

Engine>, On-vehicle Service

− TP Sensor Adjustment

P.13A-927

 or 13B <3.0L Engine>, On-vehicle Service

− TP Sensor Adjustment

P.13B-1103

.

NO :  Repair or replace the damaged components.

AC001831AF

CONNECTOR: B-07

<2.4L ENGINE>

<3.0L ENGINE>

B-07

B-07

AC001657

CONNECTOR: C-57 <2.4L ENGINE> OR
C-59 <3.0L ENGINE>

AZ

PCM

C-57 <2.4L ENGINE> OR C-59 <3.0L ENGINE>
