SENSOR
TSB Revision
COMPONENT LOCATIONS
70-9
SENSOR
M1701000600363

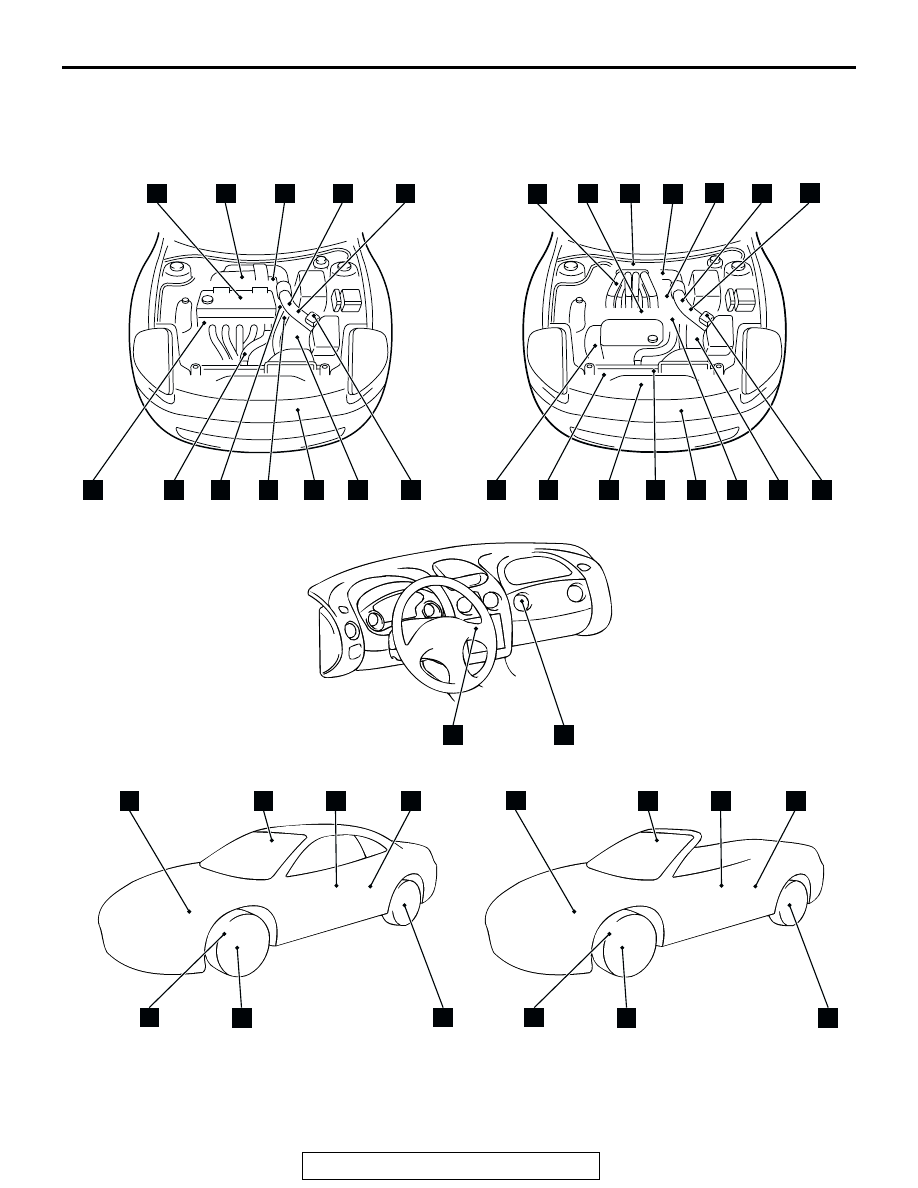

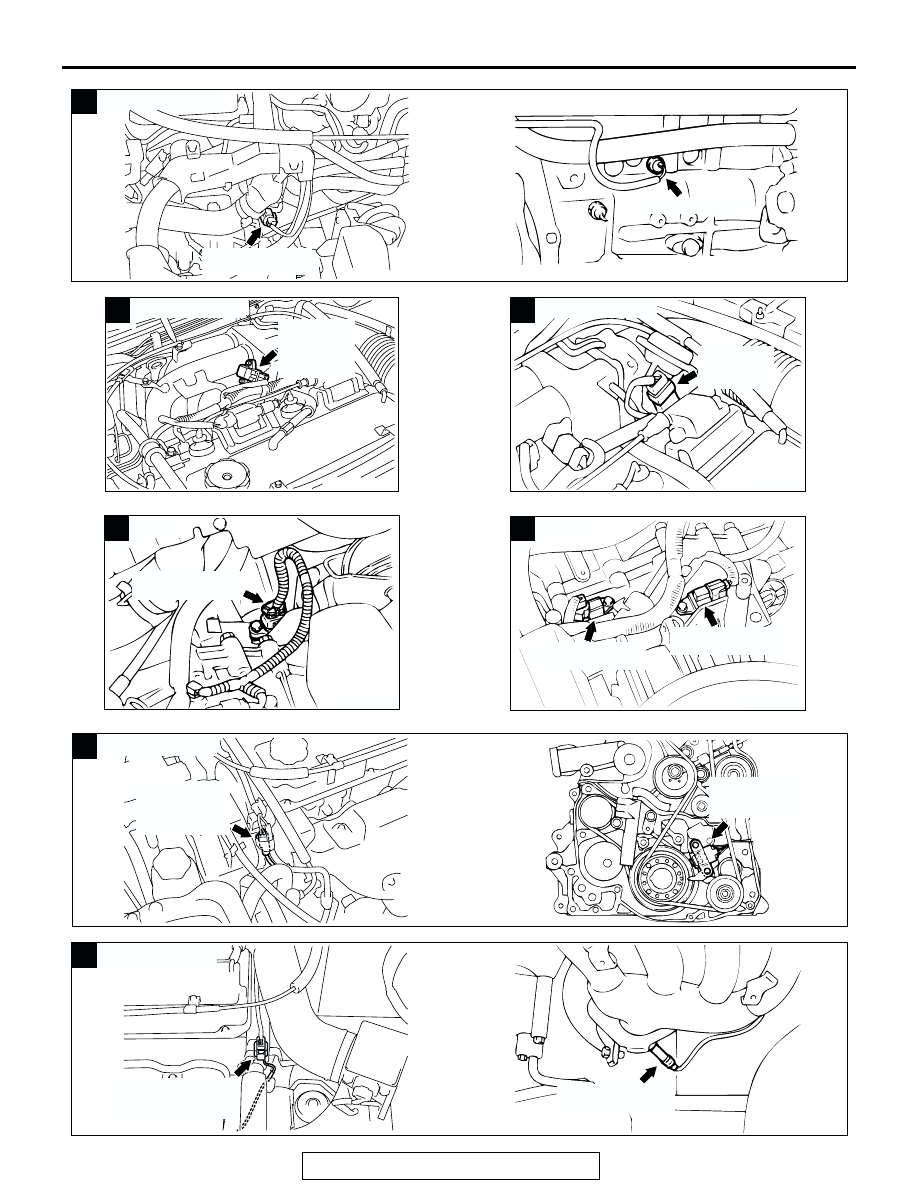

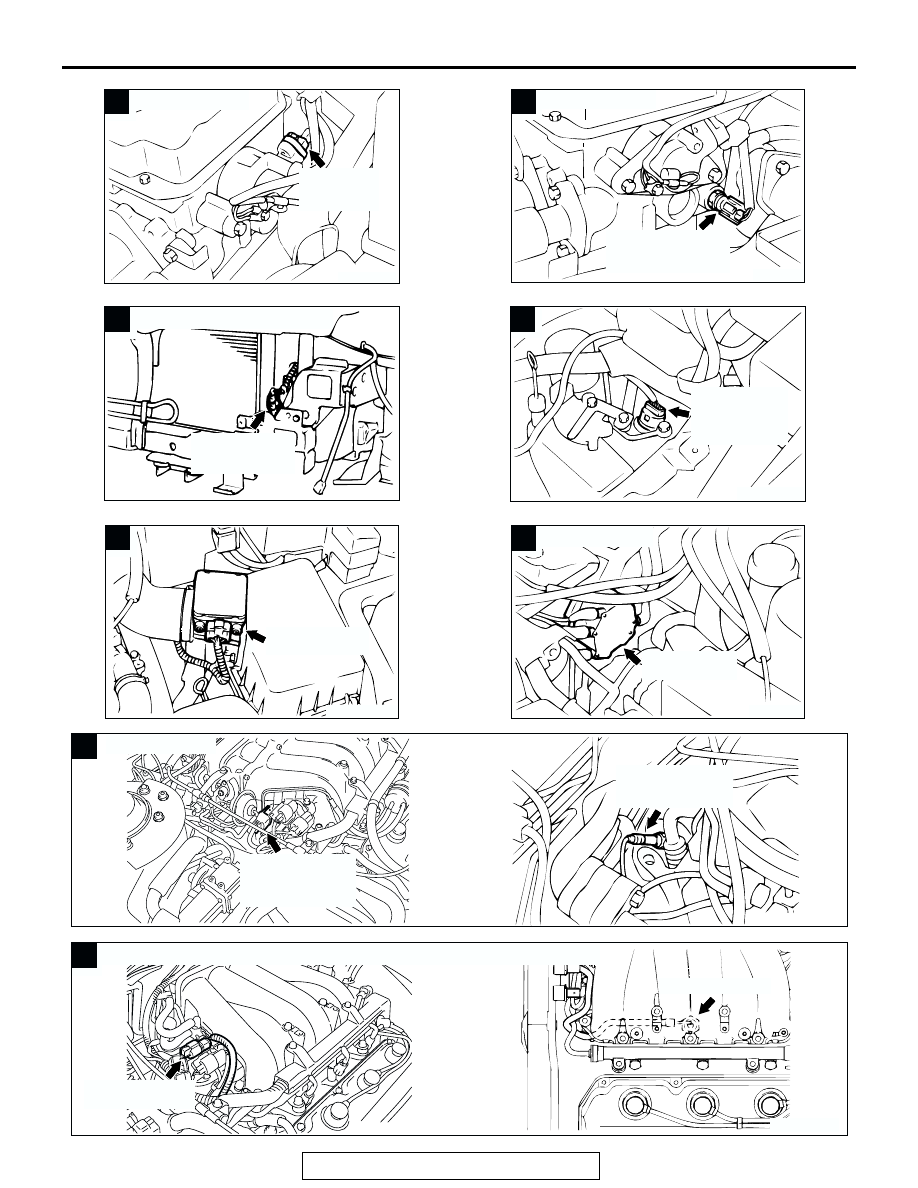

NAME
SYMBOL NAME
SYMBOL
A/C compressor assembly (with built-in
lock sensor) <3.0L Engine>
R
Knock sensor <3.0L Engine>
O
A/T control solenoid valve assembly
(with built-in transmission fluid
temperature sensor)
K
Left bank heated oxygen sensor (front)
<3.0L Engine>
U
Air thermo sensor <A/C>
W
Left bank heated oxygen sensor (rear)
<3.0L Engine>
T
Ambient temperature sensor <Multi
center display>
J
Manifold absolute pressure sensor
<2.4L Engine>
B
Camshaft position sensor <2.4L
Engine>
H
Manifold absolute pressure sensor
<3.0L Engine>
P
Compass sensor <Multi center display> Y
Output shaft speed sensor <A/T>
E
Crankshaft position sensor <2.4L
Engine>
F
Right bank heated oxygen sensor
(front) <3.0L Engine>
N
Crankshaft position sensor <3.0L
Engine>
S
Right bank heated oxygen sensor (rear)
<3.0L Engine>
Z
Distributor assembly (with built-in top
dead center sensor) <3.0L Engine>
M
Side impact sensor <Side air bag>
b
Engine coolant temperature sensor
<2.4L Engine>
I
Thermistor sensor <A/C>
X
Engine coolant temperature sensor
<3.0L Engine>
V
Throttle position sensor <2.4L Engine> C
Fuel tank differential pressure sensor
a
Throttle position sensor <3.0L Engine> Q
Fuel pump module (with built-in fuel
temperature sensor)
a
Vehicle speed sensor <M/T>
D
Heated oxygen sensor (front) <2.4L
Engine>
G
Volume air flow sensor
L
Heated oxygen sensor (rear) <2.4L
Engine>
c
Wheel speed sensor (front) <ABS>
d
Input shaft speed sensor <A/T>
E
Wheel speed sensor (rear) <ABS>
e
Knock sensor <2.4L Engine>
A
