RECOMMENDED LUBRICANTS AND LUBRICANT CAPACITIES TABLE

TSB Revision

GENERAL

00-39

LUBRICANT CAPACITY TABLE

LUBRICANT SELECTION

.

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.
Oil Identification Symbol
Use only engine oils displaying the ILSAC certification mark
("Starburst" symbol) on the container.

If these oils are not available, an API classification SJ EC or
SJ/CD EC can be used.

.

DESCRIPTION

SPECIFICATIONS

Engine oil dm

3

 (qt)

Oil pan (excluding oil filter)

4.0 (4.2)

Oil filter

0.3 (0.32)

Engine coolant dm

3

 (qt)

2.4L engine

7.0 (7.4)

Engine coolant dm

3

 (qt)

3.0L engine

8.0 (8.5)

Manual transaxle dm

3

 (qt)

2.4L engine

2.2 (2.3)

Manual transaxle dm

3

 (qt)

3.0L engine

2.8 (3.0)

Automatic transaxle dm

3

 (qt)

2.4L engine

7.7 (8.1)

Automatic transaxle dm

3

 (qt)

3.0L engine

8.4 (8.5)

Power steering dm

3

 (qt)

1.2 (1.3)

Fuel tank dm

3

 (gal)

62 (16.4)

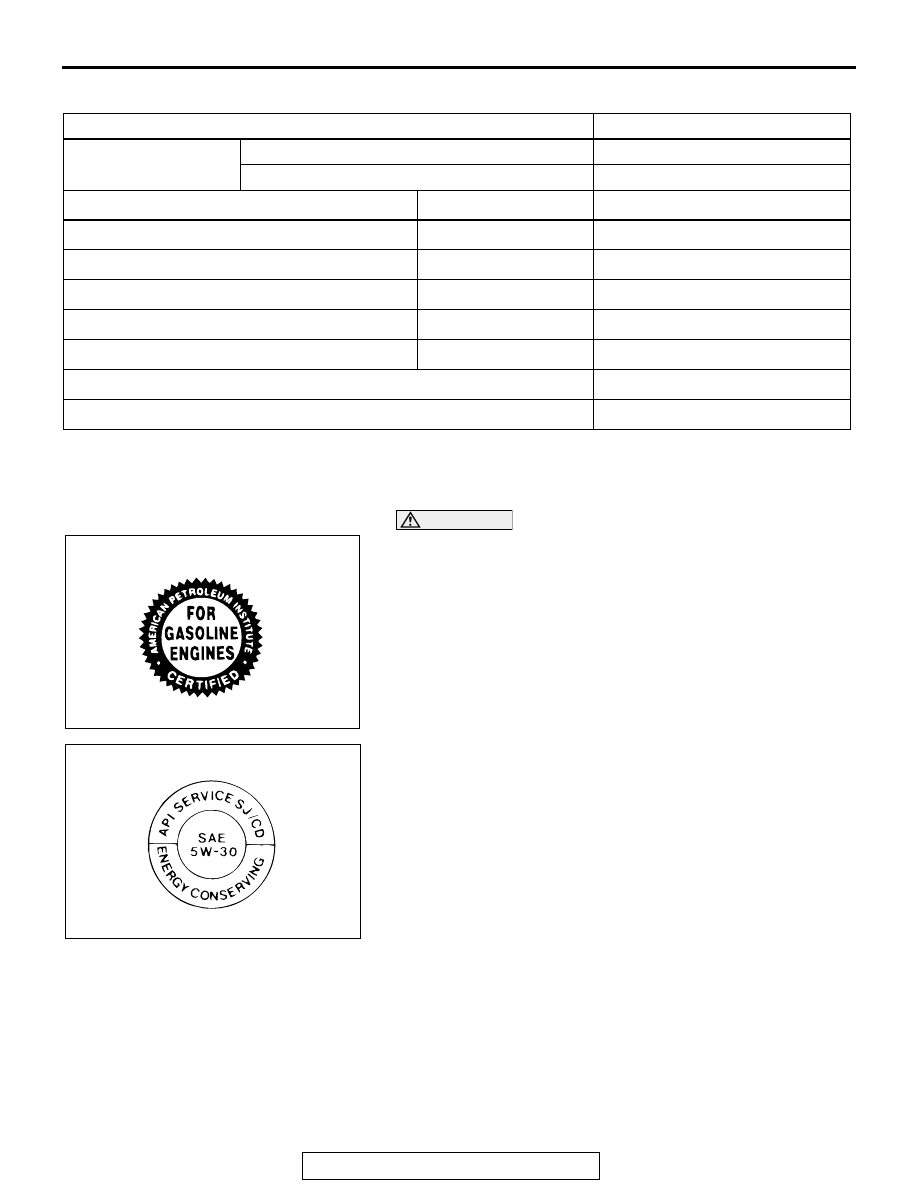

ACX00394AI

ILSAC CERTIFICATION MARK
("STARBURST" SYMBOL)

ACX00886 AB

API SERVICE SYMBOL

RECOMMENDED LUBRICANTS AND LUBRICANT CAPACITIES TABLE

TSB Revision

GENERAL

00-40

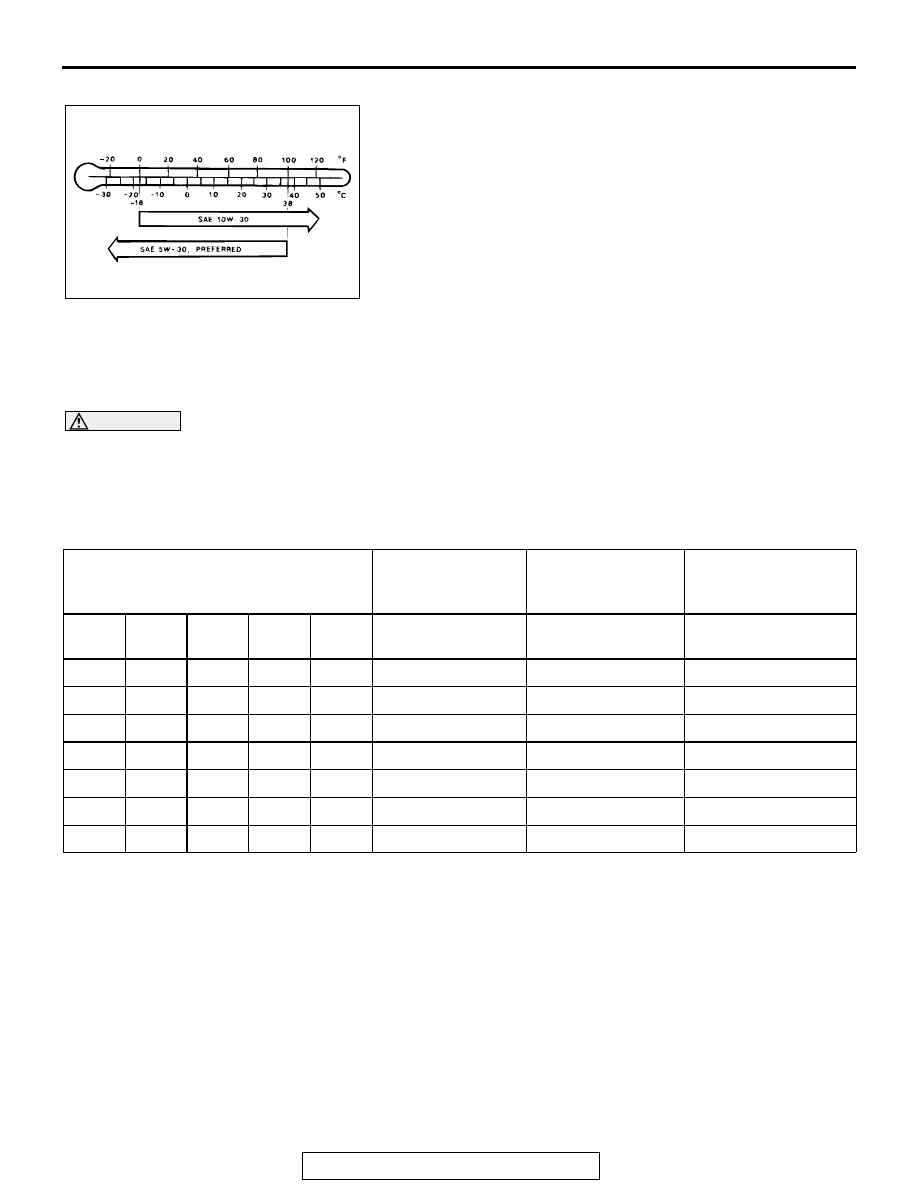

Oil Viscosity
The SAE grade number indicates the viscosity of the oil. A
proper SAE grade number should be selected according to
ambient temperature.

SELECTION OF COOLANT

.

COOLANT
Relationship between Coolant Concentration and Specific Gravity

CAUTION

• If the concentration of the coolant is below 30%, the anti-corrosion property will be adversely

affected. In addition, if the concentration is above 60%, both the anti-freeze and engine cooling
properties will decrease, affecting the engine adversely. For these reasons, be sure to maintain
the concentration level within the specified range.

• Do not use a mixture of different brands of anti-freeze.

Example
The safe operating temperature is

−15°C (5° F) when the specific gravity is 1.058 at the coolant temperature

of 20

°C (68°F)

ACX00887AB

COOLANT TEMPERATURE

°C (°F)

AND SPECIFIC GRAVITY

FREEZING
TEMPERATURE

SAFE OPERATING
TEMPERATURE

COOLANT
CONCENTRATION
(SPECIFIC VOLUME)

10 (50) 20 (68) 30 (86) 40

(104)

50
(122)

°C (°F)

°C (°F)

%

1.054

1.050

1.046

1.042

1.036

−16 (3.2)

−11 (12.2)

30

1.063

1.058

1.054

1.049

1.044

−20 (−4)

−15 (5)

35

1.071

1.067

1.062

1.057

1.052

−25 (−13)

−20 (−4)

40

1.079

1.074

1.069

1.064

1.058

−30 (−22)

−25 (−13)

45

1.087

1.082

1.076

1.070

1.064

−36 (−32.8)

−31 (−23.8)

50

1.095

1.090

1.084

1.077

1.070

−42 (−44)

−37 (−35)

55

1.103

1.098

1.092

1.084

1.076

−50 (−58)

−45 (−49)

60

SCHEDULED MAINTENANCE TABLE

TSB Revision

GENERAL

00-41

SCHEDULED MAINTENANCE TABLE

M1001001400404

.

SCHEDULED MAINTENANCE SERVICE FOR EMISSION CONTROL AND PROPER VEHICLE
PERFORMANCE
Inspection and service should be performed any time if a malfunction is observed or suspected.

.

NO. EMISSION CONTROL

SYSTEM
MAINTENANCE

SERVICE
INTERVALS

KILOMETERS
IN THOUSANDS

24

48

72

96

120

144

168

192

MILEAGE IN
THOUSANDS

15

30

45

60

75

90

105

120

MONTHS

12

24

36

48

60

72

84

96

1

Fuel system (tank,
pipe line and
connection, and fuel
tank filler tube cap)

Check for leaks

X

X

2

Fuel hoses

Check condition

X

*3

X

X

X

3

Air  cleaner  filter

Replace

X

X

X

X

4

Evaporative emission
control system (except
evaporative emission
canister)

Check for leaks and clogging

X

X

5

Spark  plugs

Replace

Standard  type

X

X

X

X

Platinum-tipped
type

X

X

Iridium-tipped
type

X

6

Ignition cables

Replace

X

X

7

Distributor cap and
rotor

Check

X

X

8

Timing belt

Replace

X

*1

X

*2

X

*4

9

Drive belts (for
generator, water
pump, power steering
pump

Check  condition

X

X

X

X

10

Exhaust system
(connection portion of
muffler, muffler pipes
and converter heat
shields)

Check and service

X

*3

X

X

X

SCHEDULED MAINTENANCE TABLE

TSB Revision

GENERAL

00-42

GENERAL MAINTENANCE SERVICE FOR PROPER VEHICLE PERFORMANCE

NOTE:

.

*1

: For California, Massachusetts, Vermont and Maine, this maintenance is recommended but is not required

to maintain the emissions warranty.

*2

: This maintenance is not required if previously replaced.

*3

: The maintenance is recommended is not but required to maintain the emissions warranty.

*4

: In case of replaced at 96,000km (60,000 miles)/48 months

NO.

GENERAL
MAINTENANCE

SERVICE
INTERVALS

KILOMETERS IN
THOUSANDS

24

48

72

96

120

144

168

192

MILEAGE IN
THOUSANDS

15

30

45

60

75

90

105

120

MONTHS

12

24

36

48

60

72

84

96

11

Engine oil

Change

Every 6 months or every 12,000 km (7,500 miles)

12

Engine oil filter

Replace

Every 6 months or every 12,000 km (7,500 miles)

13

Manual
transaxle/transmission
oil

Check  oil  level

X

X

X

X

14

Automatic
transaxle/transmission
fluid

Check fluid level

X

X

X

X

X

X

X

X

15

Engine coolant

Change

X at
first

X

X

16

Coolant hoses (radiator
hose, heater hose)

Inspect

X

X

X

X

17

Disc brake pads, rotors

Inspect for wear

X

X

X

X

X

X

X

X

18

Rear drum brake linings
and rear wheel cylinders
(except vehicles with
disc brakes) for all
wheels

Inspect  for  wear  and  leaks

X

X

X

X

19

Brake hoses

Check for deterioration or leaks

X

X

X

X

X

X

X

X

20

Ball joint and steering
linkage seals

Inspect for grease leaks and
damage

X

X

X

X

21

Drive shaft boots

Inspect for grease leaks and
damage

X

X

X

X

X

X

X

X

22

Suspension system

Inspect for looseness and
damage

X

X

X

X

23

SRS air bag

Inspect system

Every 10 years

24

Tires

Rotate

Every 6 months or every 12,000 km (7,500 miles)

25

Air purifier filter

Replace

Every 6 months or every 12,000 km (7,500 miles)
