INTAKE MANIFOLD <3.0L ENGINE>

TSB Revision

INTAKE AND EXHAUST

15-15

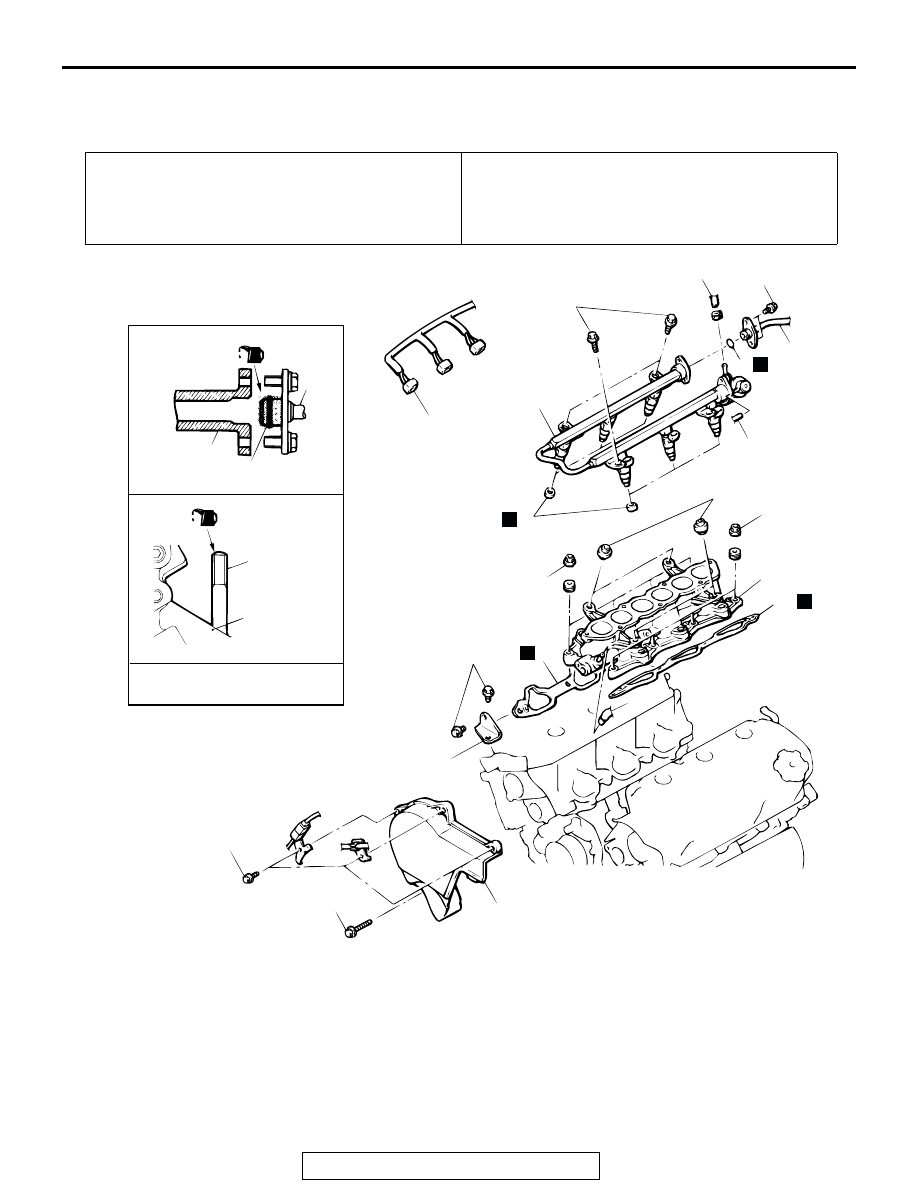

INTAKE MANIFOLD <3.0L ENGINE>

REMOVAL AND INSTALLATION

M1151003000727

Pre-removal Operation
• Fuel Discharge Prevention [Refer to GROUP 13B,

On-vehicle Service

− Fuel Pump Relay Disconnection

(How to Reduce Pressurized Fuel Lines)

P.13B-1109

.]

• Intake Manifold Plenum Removal (Refer to

P.15-7

.)

Post-installation Operation
• Intake Manifold Plenum Installation (Refer to

P.15-7

.)

• Fuel Leakage Inspection

AC001432AB

2

6

3

1

6

12 ± 1 N·m
100 ± 13 in-lb

4

4.9 ± 1.0 N·m
44 ± 8 in-lb

2

3

N

N

8

5

7

22 ± 1 N·m
16 ± 1 ft-lb

22 ± 1 N·m
16 ± 1 ft-lb

12

N

13

N

13

23 ± 3 N·m
17 ± 3 ft-lb

11

9

11 ± 1 N·m
98 ± 8 in-lb

14 ± 1 N·m
117 ± 13 in-lb

10

ENGINE OIL

INTAKE
MANIFOLD
MOUNTING
STUD

CYLINDER
HEAD

REMOVAL STEPS

1. INJECTOR CONNECTOR

>>C<<

2. FUEL HIGH-PRESSURE HOSE

CONNECTION

3. O-RING
4. FUEL RETURN HOSE

CONNECTION

5. VACUUM HOSE CONNECTION

<<A>>

6. FUEL RAIL, INJECTOR AND FUEL

PRESSURE REGULATOR

7. INSULATORS
8. INSULATORS
9. PCV HOSE CONNECTION
10. TIMING BELT FRONT UPPER

COVER, RIGHT

11. BRACKET

>>B<<

12. INTAKE MANIFOLD

>>A<<

13. INTAKE MANIFOLD GASKET

REMOVAL STEPS (Continued)

INTAKE MANIFOLD <3.0L ENGINE>

TSB Revision

INTAKE AND EXHAUST

15-16

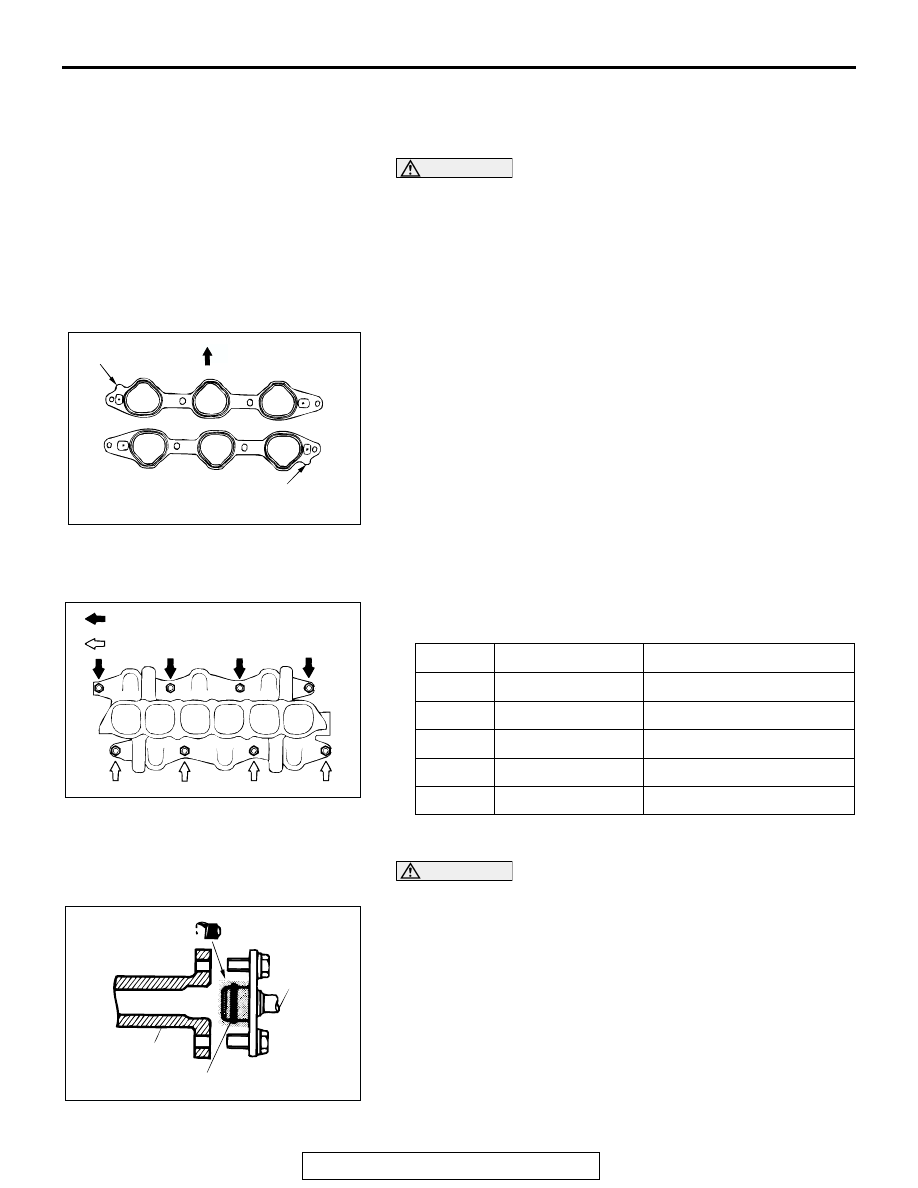

REMOVAL SERVICE POINT

.

<<A>> FUEL RAIL, INJECTOR AND FUEL PRESSURE REG-
ULATOR REMOVAL

CAUTION

Care must be taken when removing the fuel rail not to drop
the injector.
Remove the fuel rail with the injectors and pressure regulator
attached to it.

INSTALLATION SERVICE POINTS

.

>>A<< INTAKE MANIFOLD GASKET INSTALLATION
Install the gasket with the protrusions in the position illustrated.

.

>>B<< INTAKE MANIFOLD INSTALLATION
1. Coat the intake manifold mounting studs with engine oil.
2. Tighten the intake manifold mounting nuts by the following

procedure.

.

>>C<< FUEL HIGH-PRESSURE HOSE INSTALLATION

CAUTION

Be careful not to allow any engine oil to enter the fuel rail.
1. When connecting the fuel high-pressure hose to the fuel rail,

apply a small amount of new engine oil to the O-ring and
then insert the fuel high-pressure hose, being careful not to
damage the O-ring.

2. While turning the fuel high-pressure hose to the left and

right, install it to the fuel rail.

3. Check that the injector turns smoothly. If it does not turn

smoothly, the O-ring may be trapped. Remove the fuel
high-pressure hose and then re-insert it into the fuel rail and
check again.

ACX02434 AC

PROTRUSION

PROTRUSION

FRONT OF VEHICLE

ORDER

MOUNTING NUTS TIGHTENING TORQUE

1st

Right-bank nuts

6.4

± 1.4 N⋅m (56 ± 13 in-lb)

2nd

Left-bank nuts

22

± 1 N⋅m (16 ± 1 ft-lb)

3rd

Right-bank nuts

22

± 1 N⋅m (16 ± 1 ft-lb)

4th

Left-bank nuts

22

± 1 N⋅m (16 ± 1 ft-lb)

5th

Right-bank nuts

22

± 1 N⋅m (16 ± 1 ft-lb)

AC001433

RIGHT BANK

LEFT BANK

AB

AC001436

FUEL HIGH-
PRESSURE
HOSE

FUEL RAIL

O-RING

AC

INTAKE MANIFOLD <3.0L ENGINE>

TSB Revision

INTAKE AND EXHAUST

15-17

INSPECTION

M1151003100605

Check the following points; replace the part if a problem is
found.

Intake Manifold Check

1. Check for damage or cracking of any part.
2. Check for obstruction of the negative pressure (vacuum)

outlet port, and for obstruction of the water passage or gas
passage.

3. Using a straight edge and feeler gauge, check for distortion

of the cylinder head installation surface.

Standard value: 0.15 mm (0.006 inch) or less
Limit: 0.20 mm (0.008 inch)

EXHAUST MANIFOLD <2.4L ENGINE>

TSB Revision

INTAKE AND EXHAUST

15-18

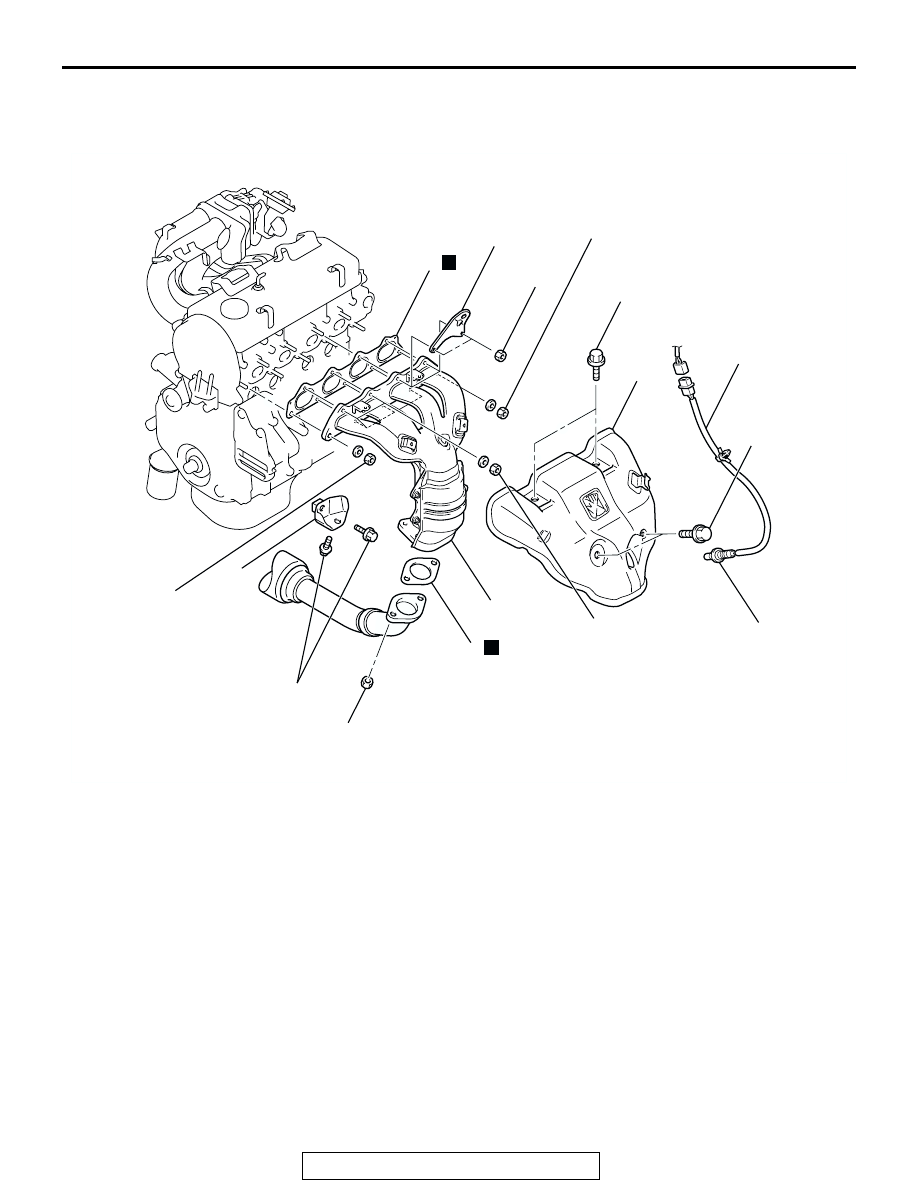

EXHAUST MANIFOLD <2.4L ENGINE>

REMOVAL AND INSTALLATION

M1151003300609

Required Special Tools:

• MB998770: Oxygen Sensor Wrench

AC001808

44 ± 5 N·m
33 ± 3 ft-lb

29 ± 3 N·m
22 ± 2 ft-lb

49 ± 5 N·m
36 ± 4 ft-lb

49 ± 5 N·m
36 ± 4 ft-lb

29 ± 3 N·m
22 ± 2 ft-lb

14 ± 1 N·m
120 ± 13 in-lb

14 ± 1 N·m
120 ± 13 in-lb

35 ± 6 N·m
26 ± 4 ft-lb

1

49 ± 10 N·m
37 ± 7 ft-lb

2

3

4

5

6

N

N

AD

7

REMOVAL STEPS

<<A>> >>A<<

1. HEATED OXYGEN SENSOR

(FRONT)

2. HEAT PROTECTOR
3. ENGINE HANGER

4. EXHAUST MANIFOLD
5. EXHAUST MANIFOLD GASKET
6. GASKET
7. EXHAUST MANIFOLD BRACKET

REMOVAL STEPS (Continued)
