MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-767

DTC SET CONDITIONS

Logic Flow Chart

.

INDICATED FUEL LEVEL

CHANGE < 2L

ACCUMULATE FUEL CONSUMPTION

THROUGH FUEL INJECTORS.

ACCUMULATED FUEL
CONSUMPTION WILL NOT
RESET WHEN KEY-OFF/ON.

ACCUMULATED FUEL >= SPECIFIED

CONSUMPTION          VALUE

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

MONITORING

CONDITIONS

RESET ACCUMULATE

FUEL CONSUMPTION.

AK301450

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-768

Check Conditions, Judgement Criteria

• When the fuel consumption calculated from the

operation time of the injector amounts to 20 litter,
the diversity of the amount of fuel in tank calcu-
lated from the fuel level sensor is 2 litter or less.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Fuel level sensor failed.

• Open or shorted fuel level sensor circuit, harness

damage, or connector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

STEP 1. Check fuel gauge.
Q: Is the fuel gauge functioning?

YES : Go to Step 3.
NO :  Go to Step 2.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-769

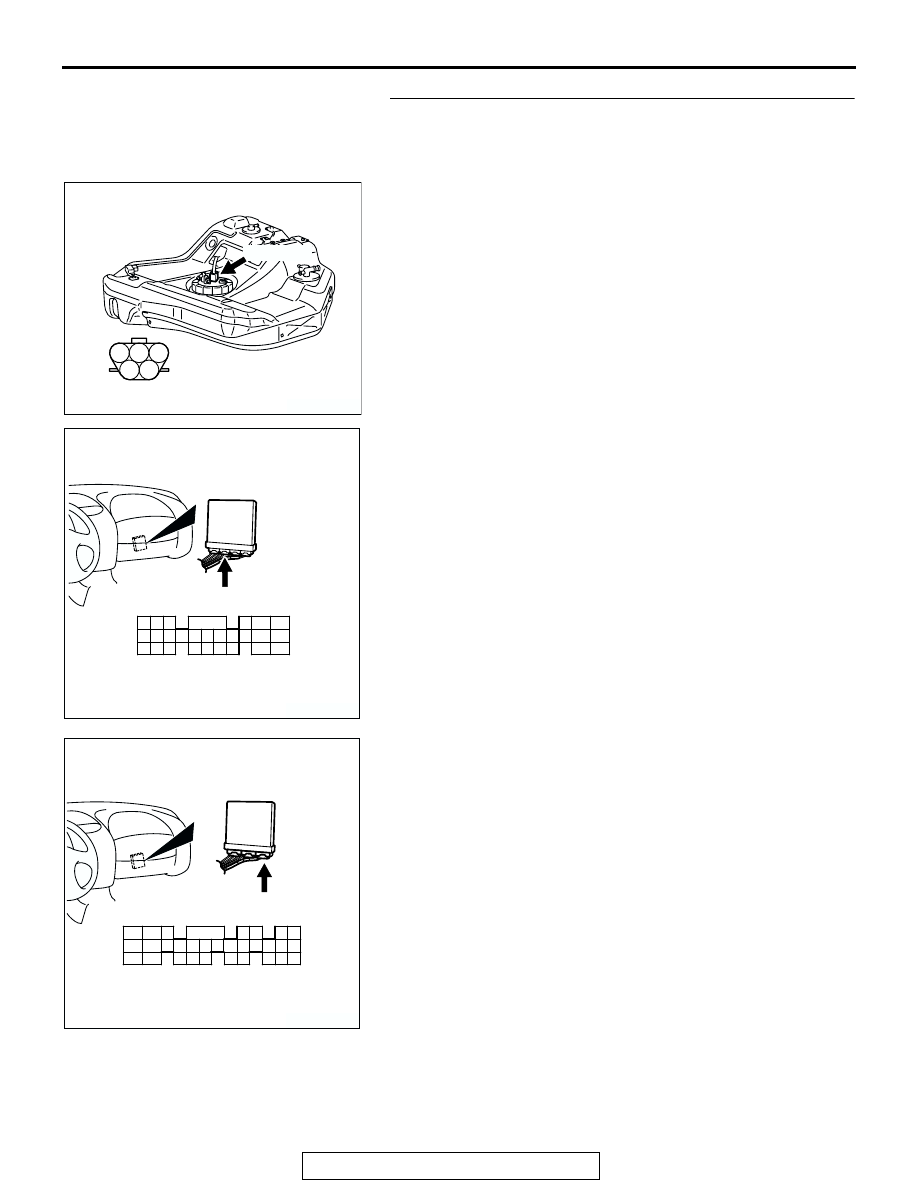

STEP 2. Check for short circuit to ground between fuel
level sensor connector D-17 (terminal No. 2) and ECM
connector C-62 (terminal No. 97) <M/T> or PCM connector
C-55 (terminal No. 60) <A/T>.

AK300446

1

2

3

4

5

D-17 (GR)

AB

CONNECTOR: D-17

HARNESS CONNECTOR:
COMPONENT SIDE

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-770

NOTE: Check harness after checking intermediate connectors
C-90, and C-28. If intermediate connectors are damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Then go to Step 6.

Q: Is the harness wire in good condition?

YES : Refer to GROUP 54A, Combination Meter

P.54A-109

.

NO :  Repair it. Then go to Step 6.

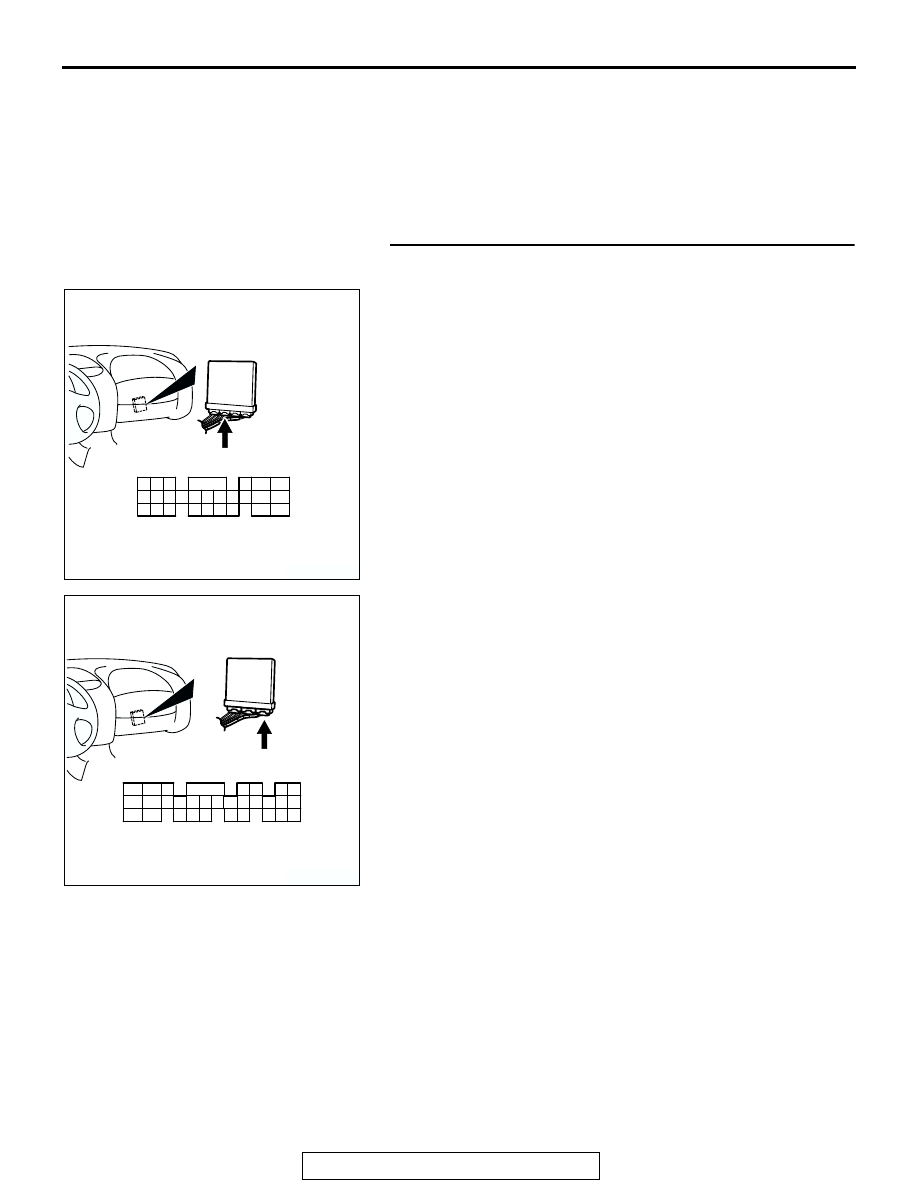

STEP 3. Check connector C-62 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE
