MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-587

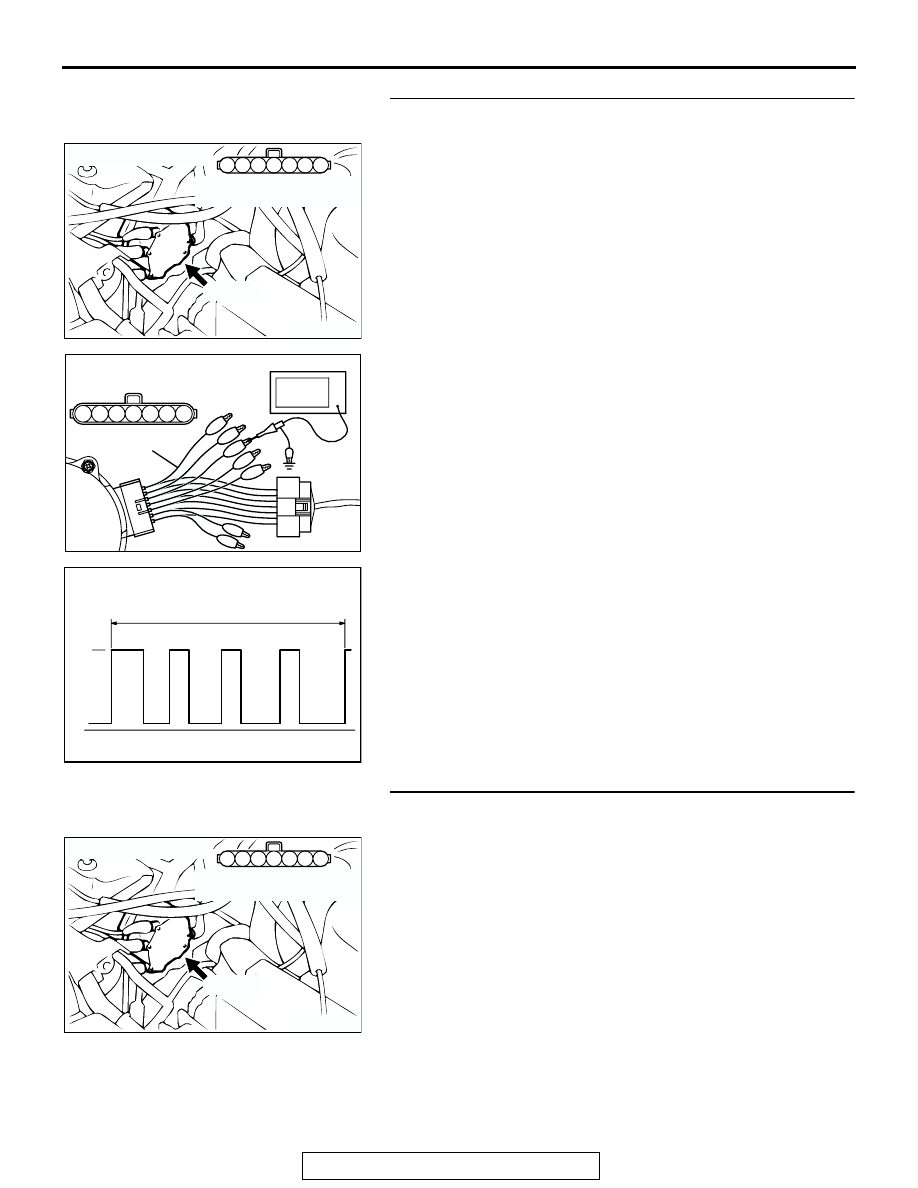

STEP 1. Using the oscilloscope, check the camshaft
position sensor.
(1) Disconnect the camshaft position sensor connector B-22,

and connect test harness special tool (MB991348) in
between. (All terminals should be connected.)

(2) Connect the oscilloscope probe to the camshaft position

sensor side connector terminal No. 5.
NOTE: When measuring with the ECM or PCM side con-
nector, connect an oscilloscope probe to terminal No. 50
<M/T> or terminal No. 56 <A/T>.

(3) Start the engine and run at idle.

(4) Check the waveform.

• The waveform should show a pattern similar to the illus-

tration.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 2.
NO :  Go to Step 4.

STEP 2. Check connector B-22 at camshaft position
sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 19.

AK300439

3

4

5

1

2

6

7

B-22 (B)

AB

CONNECTOR: B-22

HARNESS CONNECTOR:
COMPONENT SIDE

AK102977AB

1 2 3 4 5 6 7

CAMSHAFT POSITION
SENSOR CONNECTOR

OSCILLOSCOPE

MB991348

AKX01420AB

2 ENGINE REVOLUTIONS

NORMAL WAVEFORM

5V

AK300439

3

4

5

1

2

6

7

B-22 (B)

AB

CONNECTOR: B-22

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-588

STEP 3. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-7

.

(2) Check the diagnostic trouble code (DTC).
Q: Is the DTC P0340 is output?

YES : Replace the ECM or PCM. Then go to Step 19.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

STEP 4. Check connector B-22 at camshaft position
sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 19.

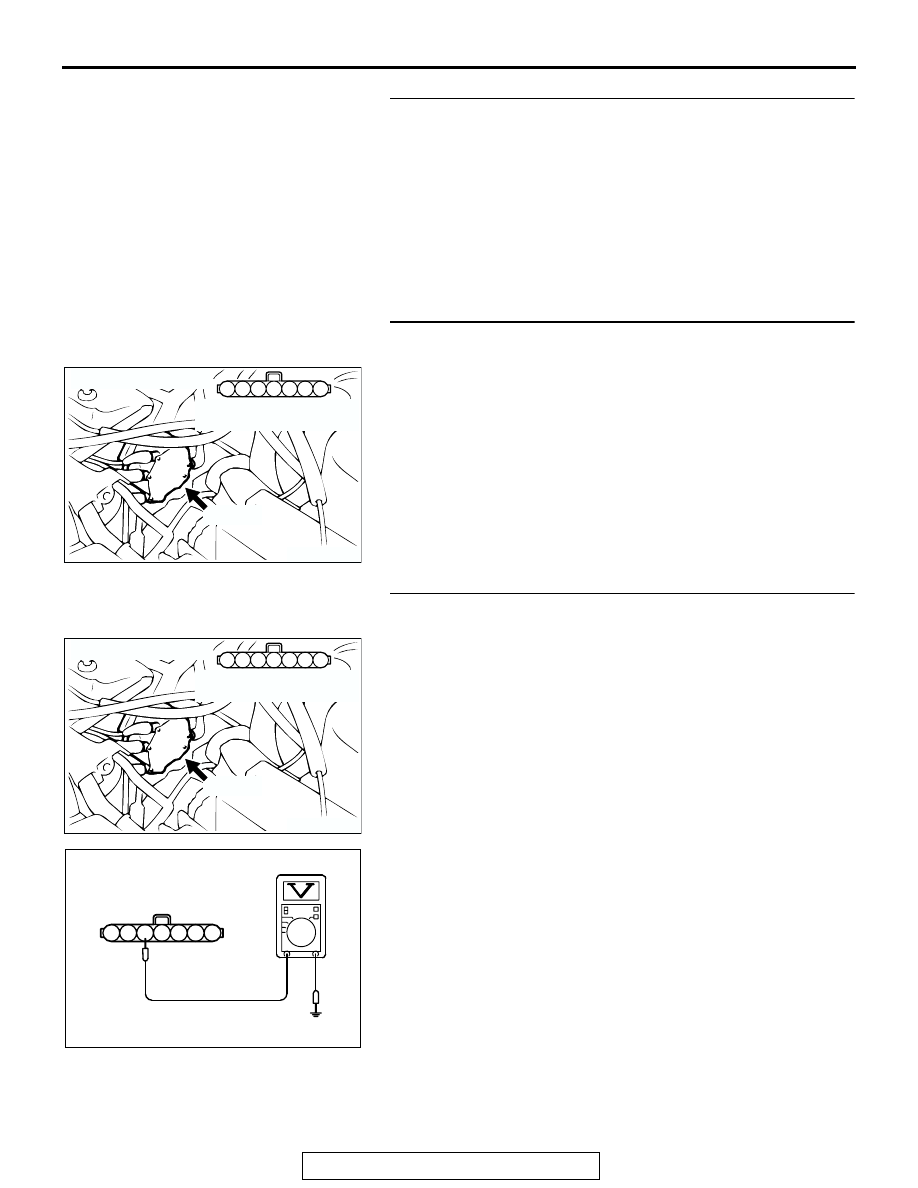

STEP 5. Check the sensor supply voltage at camshaft
position sensor connector B-22.
(1) Disconnect the connector B-22 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 5 and ground.

• Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 10.
NO :  Go to Step 6.

AK300439

3

4

5

1

2

6

7

B-22 (B)

AB

CONNECTOR: B-22

HARNESS CONNECTOR:
COMPONENT SIDE

AK300439

3

4

5

1

2

6

7

B-22 (B)

AB

CONNECTOR: B-22

HARNESS CONNECTOR:
COMPONENT SIDE

AK000250AE

B-22 HERNESS
CONNECTOR:
COMPONENT SIDE

7 6 5 4 3 2 1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-589

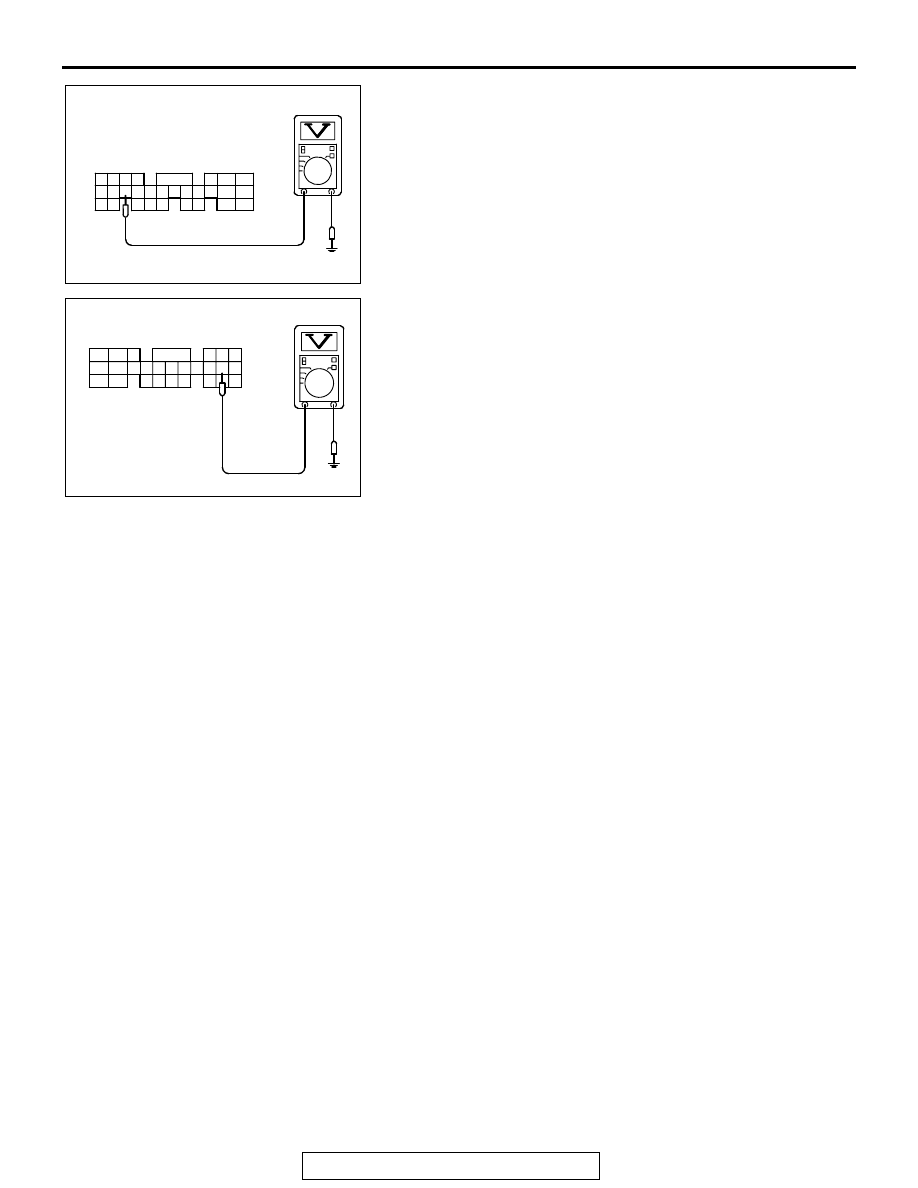

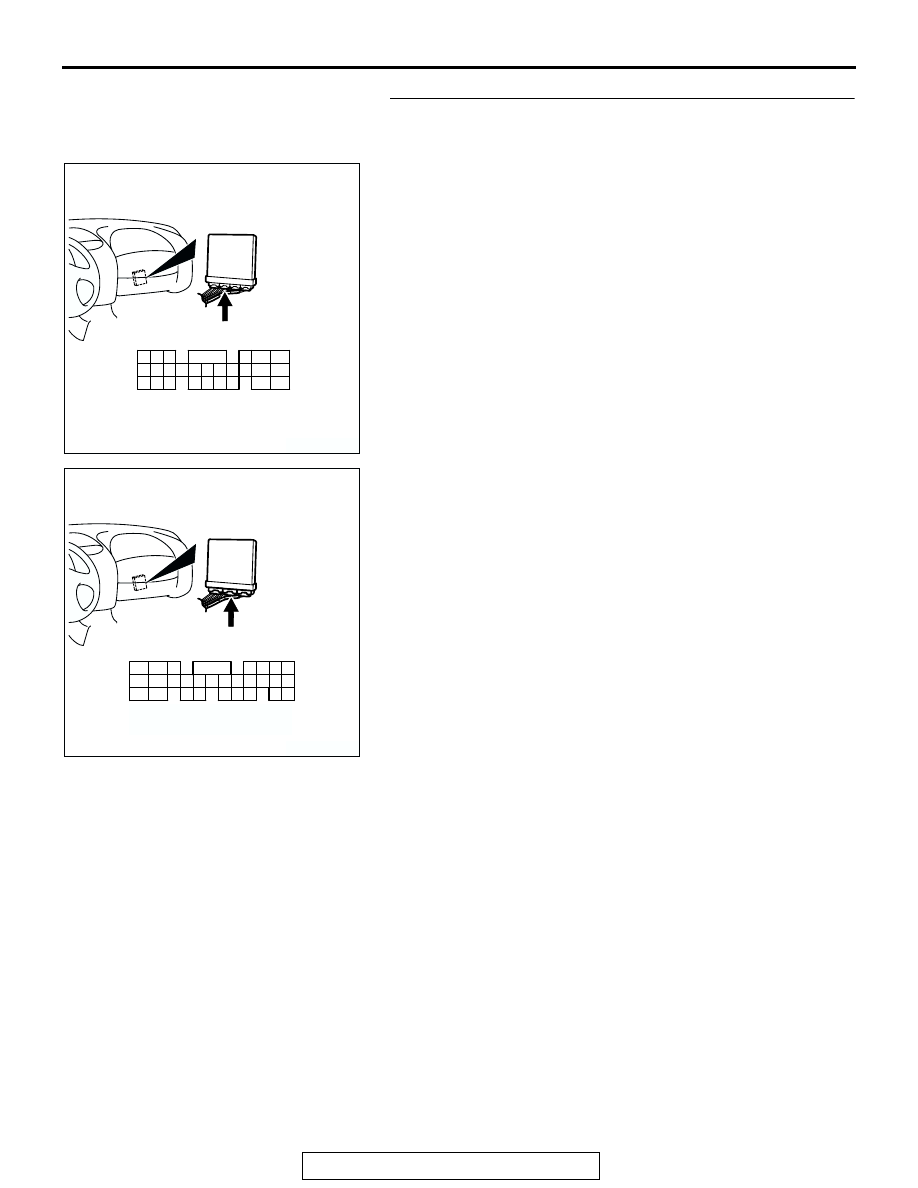

STEP 6. Check the sensor supply voltage at ECM
