MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-567

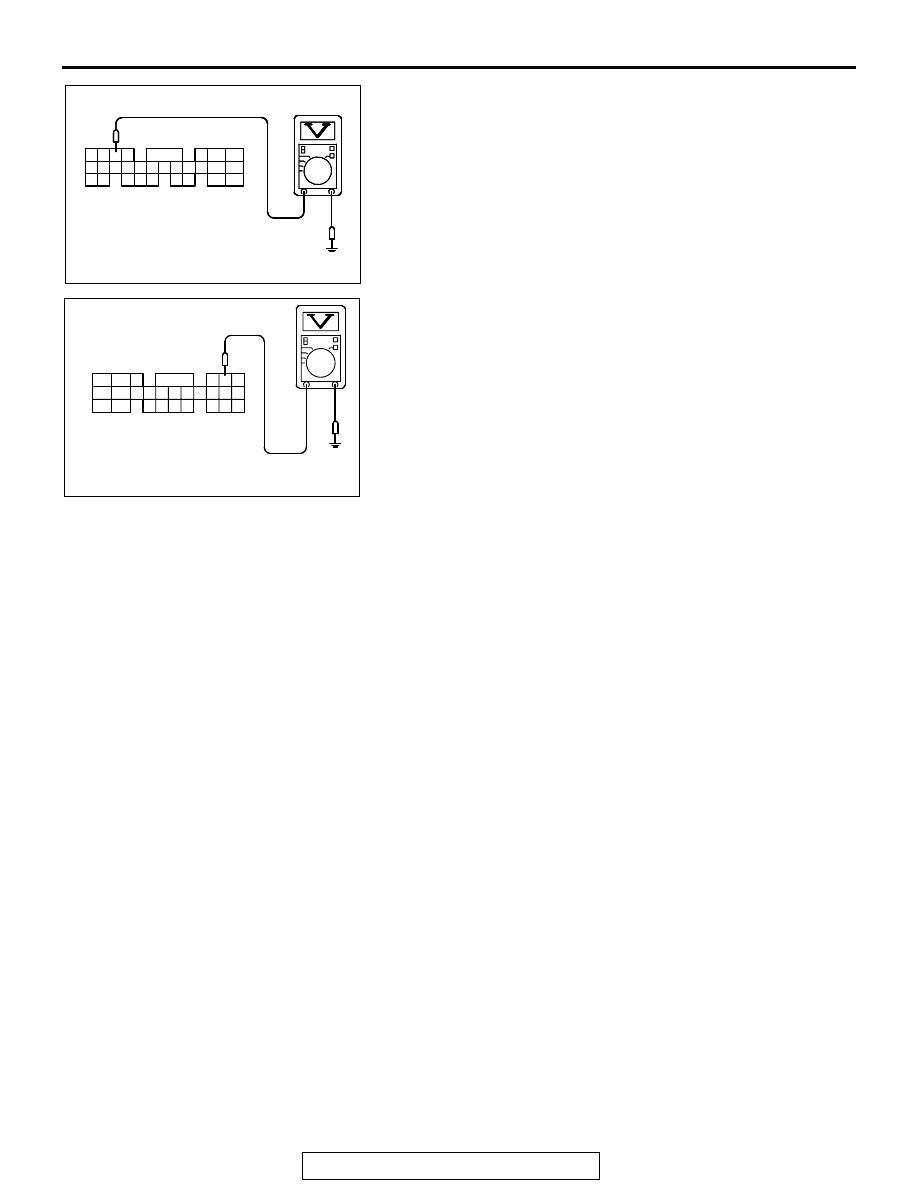

(4) Measure the voltage between terminal No. 43 <M/T> or No.

45 <A/T> and ground by backprobing.

• Voltage should be between 4.8 and 5.2 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 8.
NO :  Go to Step 9.

AK000248

41 42 43 44
48

50 51

49

52 53 54 55 56 57 58 59

45 46 47

60 61

62 63 64

65

67 68

66

AK000248AE

<M/T>

C-58 HARNESS
CONNECTOR:
HARNESS SIDE

AKX01544

AKX01544

41

AH

<A/T>

C-55 HARNESS
CONNECTOR:
HARNESS SIDE

42 43

44 45 46

47 48 49 50 51 52 53 54 55 56 57

58 59

60 61 62 63

64 65 66

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-568

STEP 8. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Repair it because of open circuit between crankshaft

position sensor connector B-20 (terminal No. 2) and
ECM connector C-58 (terminal No. 43) <M/T> or PCM
connector C-55 (terminal No. 45) <A/T>. Then go to
Step 21.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-569

STEP 9. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 21.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-570

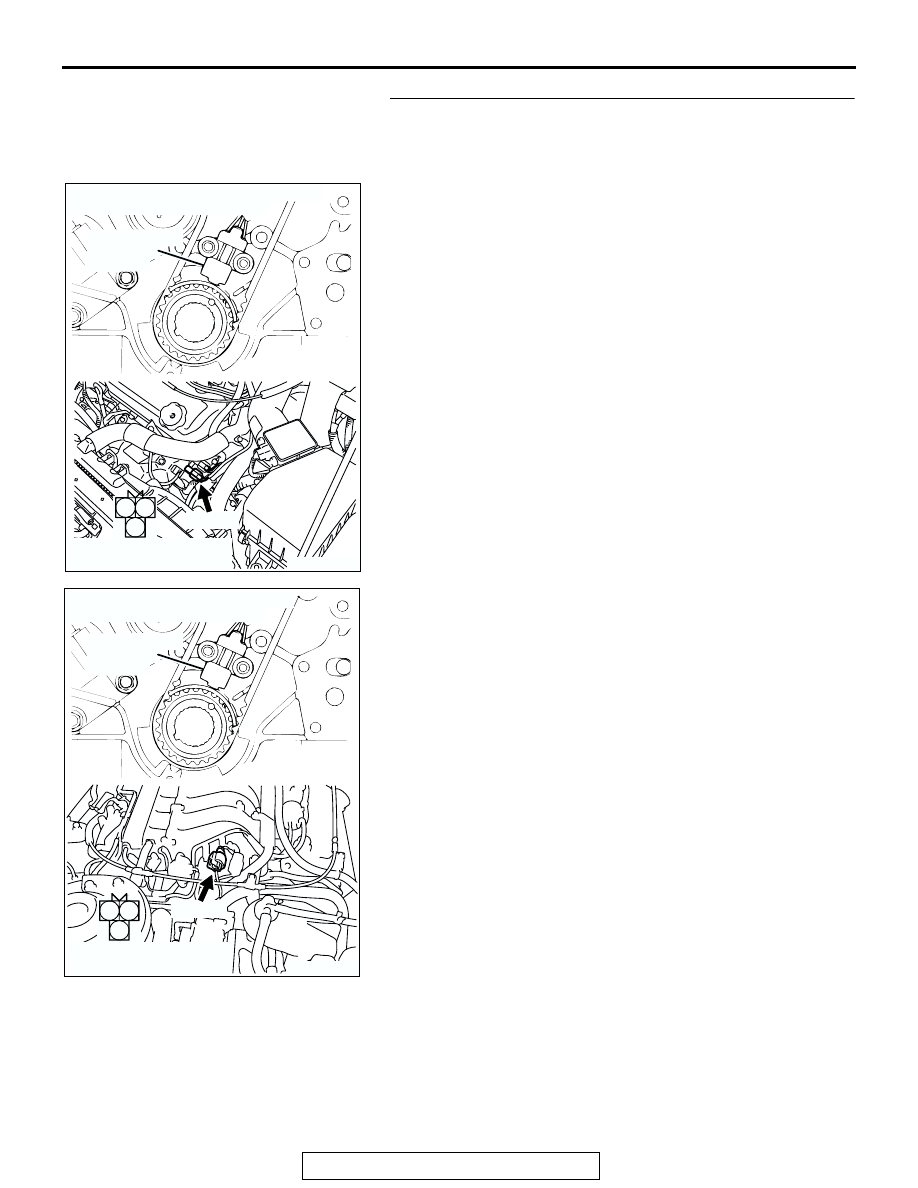

STEP 10. Check for short circuit to ground between
crankshaft position sensor connector B-20 (terminal No. 2)
and ECM connector C-58 (terminal No. 43) <M/T> or PCM
connector C-55 (terminal No. 45) <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 21.
NO :  Repair it. Then go to Step 21.

AK300448

1

2

3

CRANKSHAFT
POSITION
SENSOR

CONNECTOR: B-20 <WITHOUT INTAKE
MANIFOLD TUNING  SYSTEM>

AB

B-20 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300449

1

2

3

CONNECTOR: B-20 <WITH INTAKE
MANIFOLD TUNING  SYSTEM>

AB

B-20 (B)

CRANKSHAFT
POSITION
SENSOR

HARNESS CONNECTOR:
COMPONENT SIDE
