MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-171

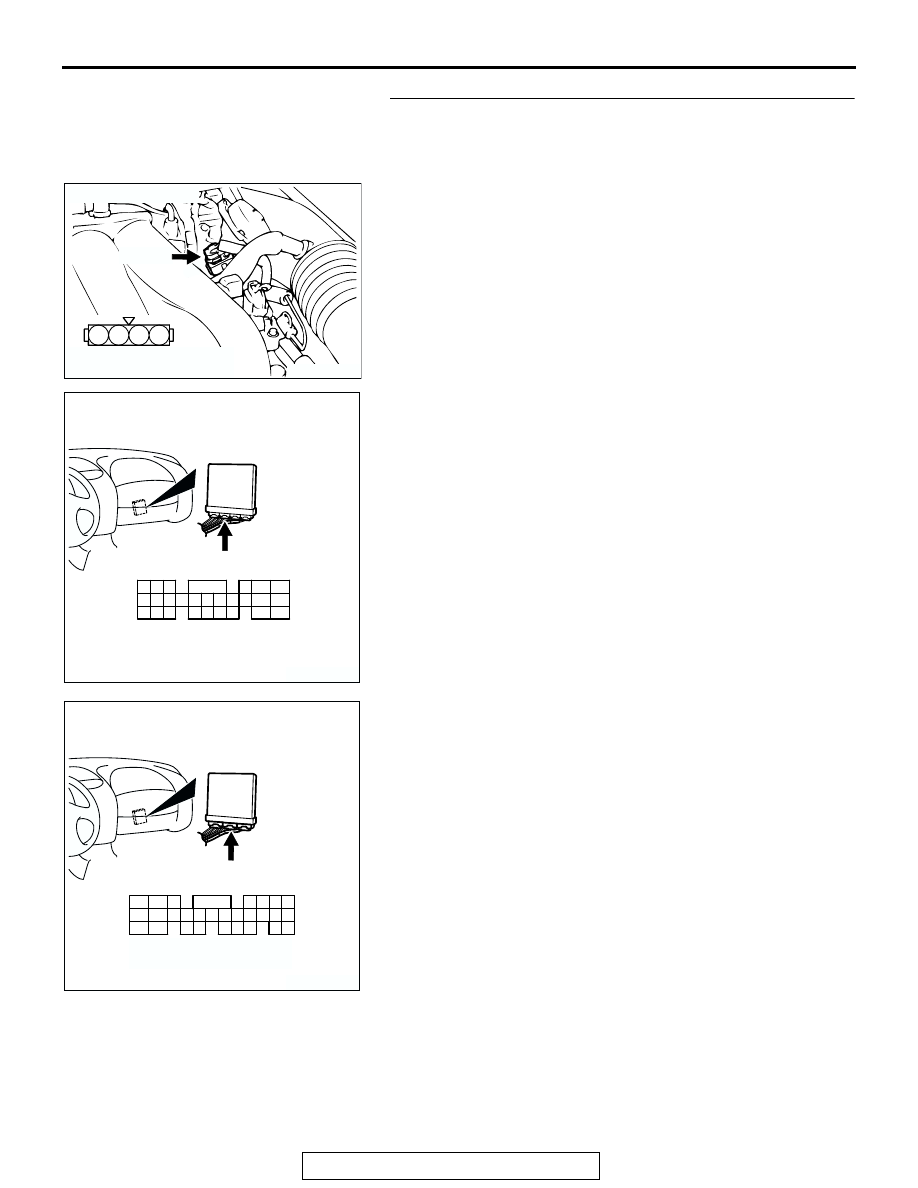

STEP 6. Check for harness damage between throttle
position sensor connector B-07 (terminal No. 4) and ECM
connector C-58 (terminal No. 42) <M/T> or PCM connector
C-55 (terminal No. 46) <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-172

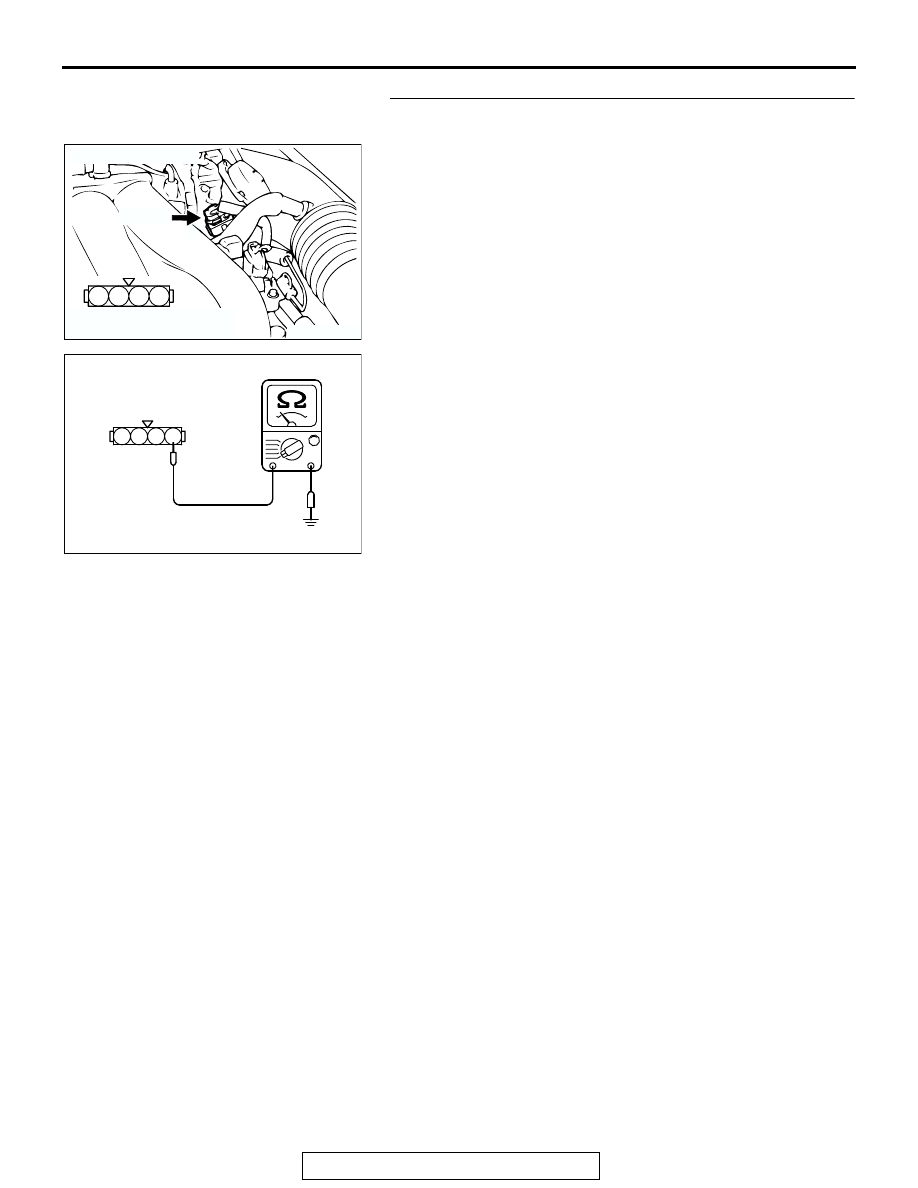

STEP 7. Check the continuity at throttle position sensor
harness side connector B-07.
(1) Disconnect the connector B-07 and measure at the harness

side.

(2) Measure the continuity between terminal No. 1 and ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 10.
NO :  Go to Step 8.

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000237AF

B-07 HERNESS
CONNECTOR:
COMPONENT SIDE

4 3 2 1

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-173

STEP 8. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-174

STEP 9. Check for open circuit and harness damage
between throttle position sensor connector B-07 (terminal
No. 1) and ECM connector C-58 (terminal No. 49) <M/T> or
PCM connector C-55 (terminal No. 57) <A/T>.
Q: Is the harness wire in good condition?

YES : Replace the ECM or PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

AK300434

2 1

3

4

CONNECTOR: B-07

AB

B-07 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE
