MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-55

DTC SET CONDITIONS <Circuit Range/Performance problem-high input>

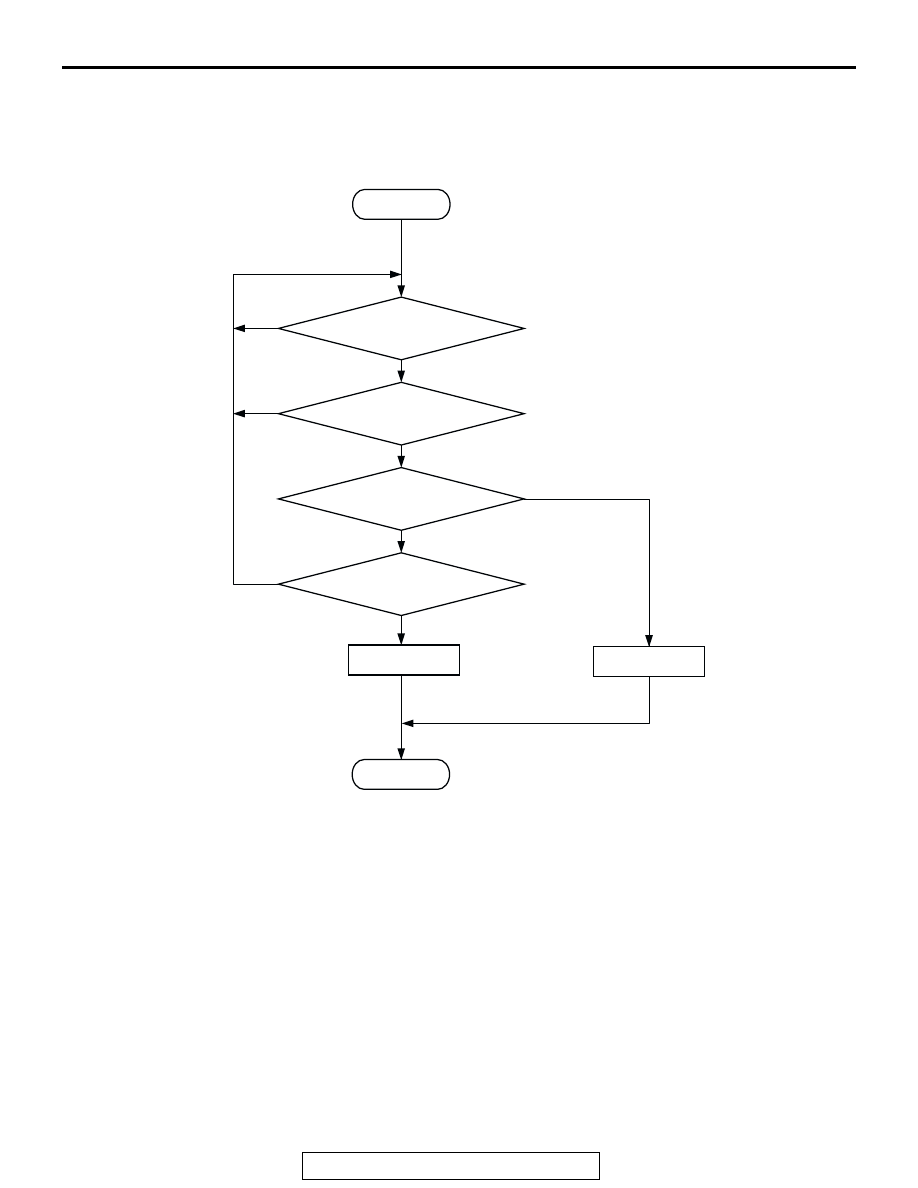

Logic Flow Chart

.

Check Conditions

• 8 minutes or more have passed since the starting

sequence was completed, when the engine cool-
ant temperature at engine start is 0

°C (32°F) or

lower.

• Engine speed is lower than 1,500 r/min.

• Throttle position sensor output voltage is lower

than 0.9 volt.

Judgement Criteria

• Manifold absolute pressure is 89 kPa (26.3 in.Hg)

or higher for 2 seconds.

.

START

YES

YES

YES

YES

NO

NO

NO

NO

MONITORING

CONDITIONS

PRESSURE > 89kPa (26.3in.Hg)

CONTINUOUS

FAILURE FOR 2secs

MALFUNCTION

END

GOOD

THROTTLE POSITION < =0.9V

AK301414

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-56

DTC SET CONDITIONS <Circuit Range/Performance problem-low input>

Logic Flow Chart

.

Check Conditions

• 8 minutes or more have passed since the starting

sequence was completed, when the engine cool-
ant temperature at engine start is 0

°C (32°F) or

lower.

• Engine speed is higher than 1,500 r/min.

• Throttle position sensor output voltage is higher

than 3.5 volts.

Judgement Criteria

• Manifold absolute pressure is 45 kPa (8.3 in.Hg)

or lower for 2 seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Manifold absolute pressure sensor failed.

• Open or shorted manifold absolute pressure sen-

sor circuit, harness damage or connector dam-
age.

• ECM <M/T> failed.

• PCM <M/T> failed.

START

YES

YES

YES

YES

NO

NO

NO

NO

MONITORING

CONDITIONS

PRESSURE <

45kPa (8.3in.Hg)

CONTINUOUS

FAILURE FOR 2secs

MALFUNCTION

END

GOOD

THROTTLE POSITION > =3.5V

AK301415

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-57

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

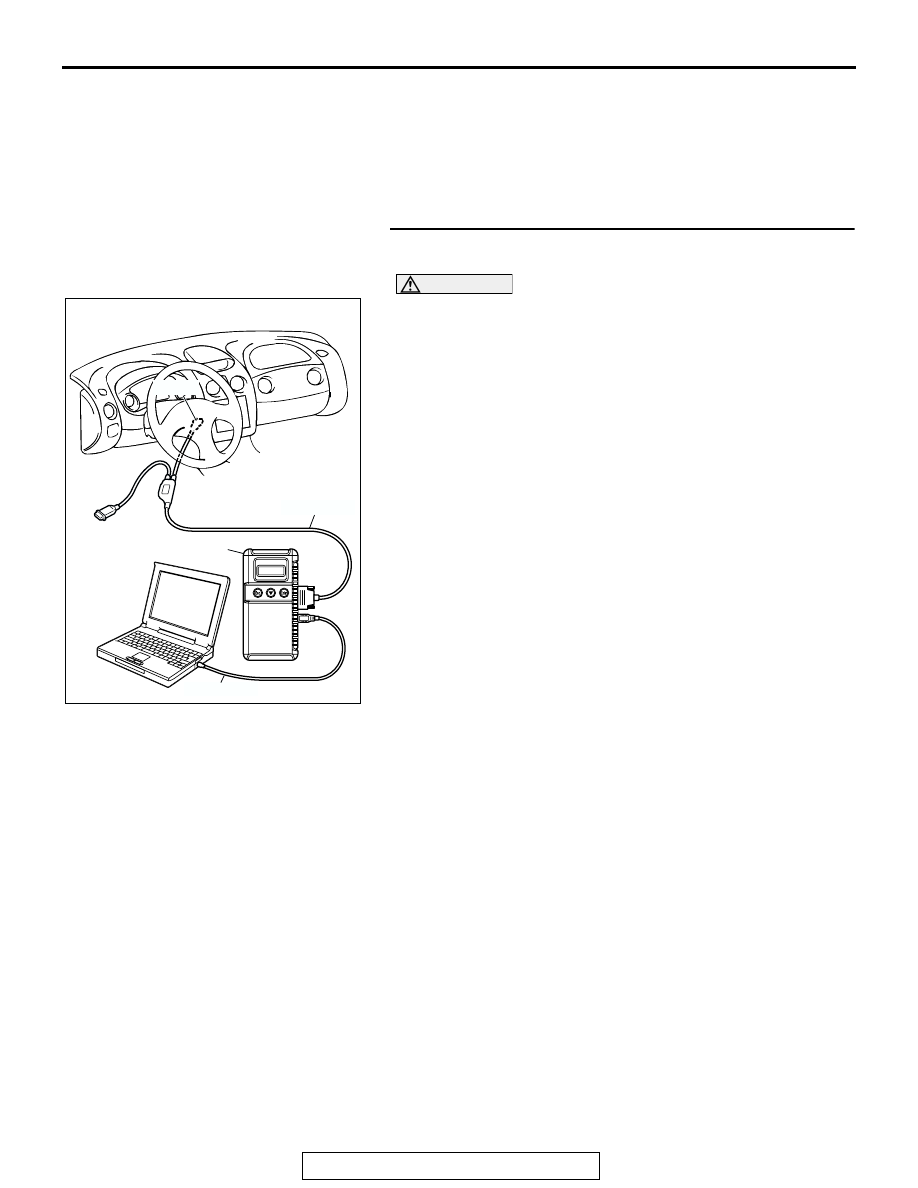

STEP 1. Using scan tool MB991958, check data list item 95:
Manifold Absolute Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

95, Manifold Absolute Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

in.Hg).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

in.Hg).

(4) Start the engine.

• When the engine is idling, 18 − 38 kPa (5.3 − 11.2

in.Hg).

• When the engine is suddenly revved, manifold absolute

pressure increases.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-58

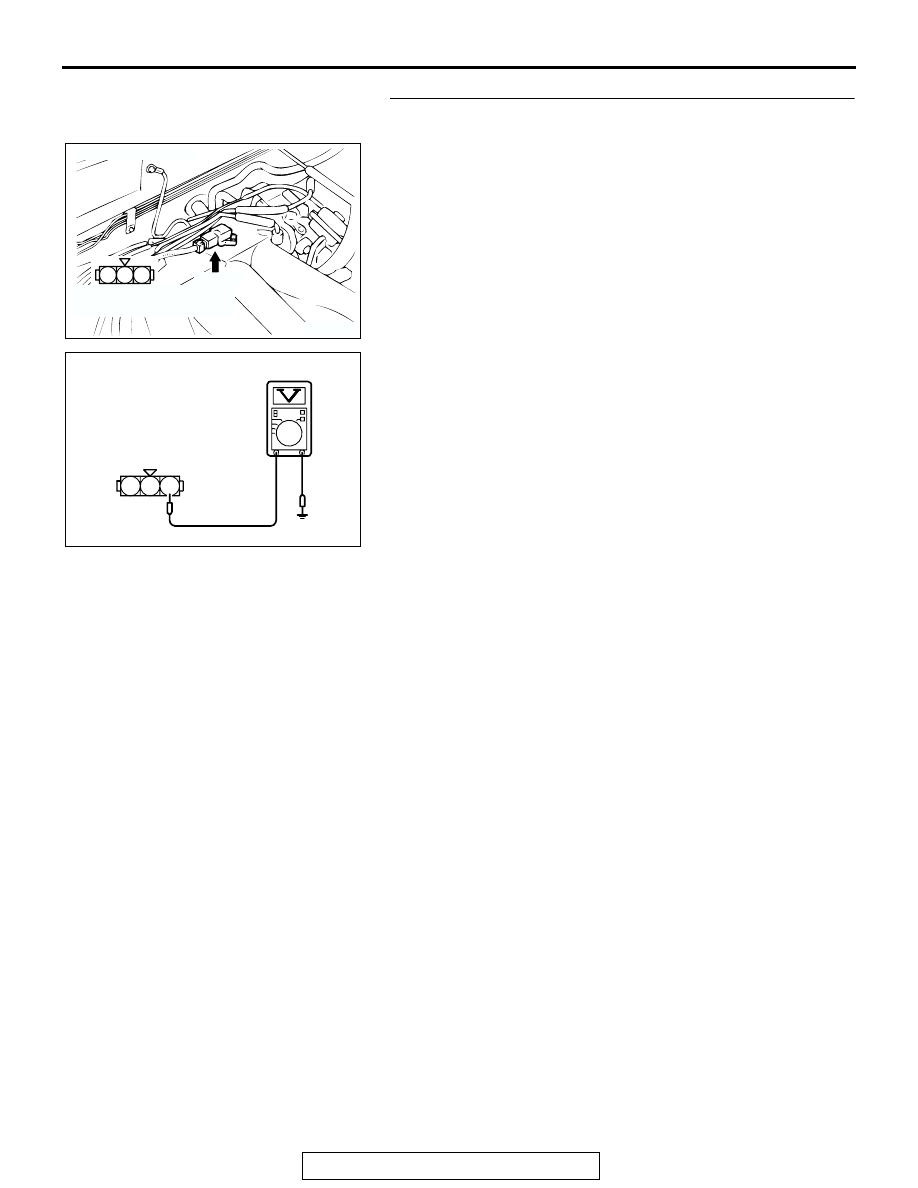

STEP 2. Measure the sensor supply voltage at manifold
absolute pressure sensor connector B-04 by backprobing.
(1) Do not disconnect the connector B-102.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 3 and ground by

backprobing.

• Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.8 and 5.2 volts?

YES : Go to Step 6.
NO :  Go to Step 3.

AK103763

2 1

3

CONNECTOR: B-04

AC

B-04(B)

HARNESS CONNECTOR:
COMPONENT SIDE

3

2

1

AK203036

B-04 HARNESS
CONNECTOR:
HARNESS SIDE

AE
