MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-805

STEP 7. Check the fuel pressure.
Refer to, Fuel Pressure Test

P.13A-929

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Vacuum leak.

• Broken intake manifold gasket.

• Broken air intake hose.

• Broken vacuum hose.

• Positive crankcase ventilation valve does

not operate.

b. Injector clogged.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

STEP 8. Check the fuel pressure.
Refer to, Fuel Pressure Test

P.13A-929

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Check the ignition coil, spark plugs, spark plug

cables.

b. Check compression pressure.

c. Check the fuel filter or fuel line for clogging.

d. Broken air intake hose.
e. Clogged air cleaner.

f. Clogged exhaust system.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

INSPECTION PROCEDURE 19: Surge.

.

COMMENT

• Defective ignition system, abnormal air/fuel ratio,

etc. are suspected.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case: )

• Malfunction of the ignition system.

• Malfunction of air/fuel ratio control system.

• Malfunction of the EGR vacuum regulator sole-

noid valve system.

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-806

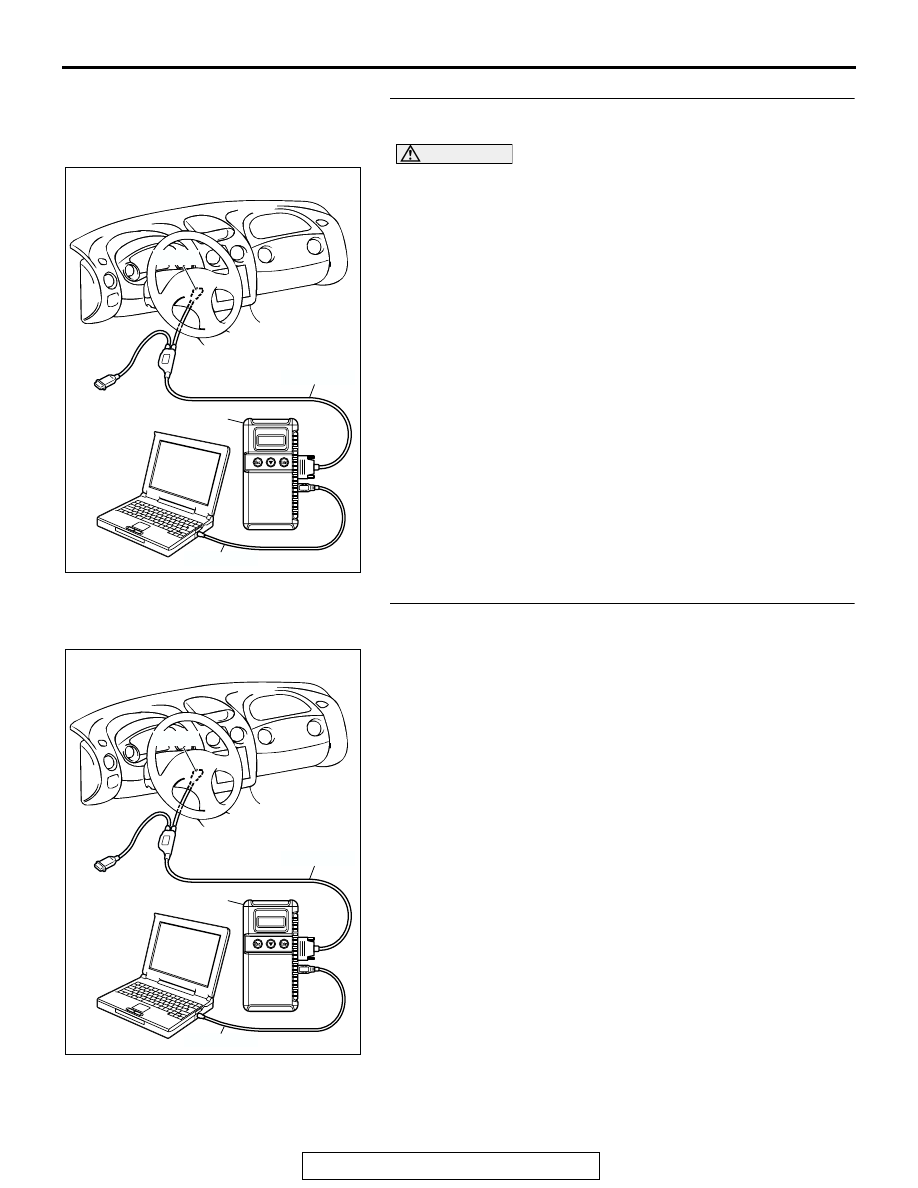

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "ON" position.
Q: Is DTC set?

YES : Refer to, Diagnostic Trouble Code Chart

P.13A-24

.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, check actuator test
items 01, 02, 03, 04: Injector.
(1) Turn the ignition switch to the "ON" position.
(2) Check following items in the actuator test. Refer to, Actuator

Test Reference Table

P.13A-903

.

a. Item 01, 02, 03, 04: Injector.

(3) Turn the ignition switch to the "ON" position.
Q: Is the actuator operating properly?

YES : Go to Step 3.
NO :  Refer to, DTC P0201, P0202, P0203, P0204

−

Injector Circuit Malfunction

P.13A-377

.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-807

STEP 3. Check the ignition timing.
Refer to GROUP 11A, On-vehicle Service

− Ignition Timing

Check

P.11A-7

.

Q: Is the ignition timing normal?

YES : Go to Step 4.
NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

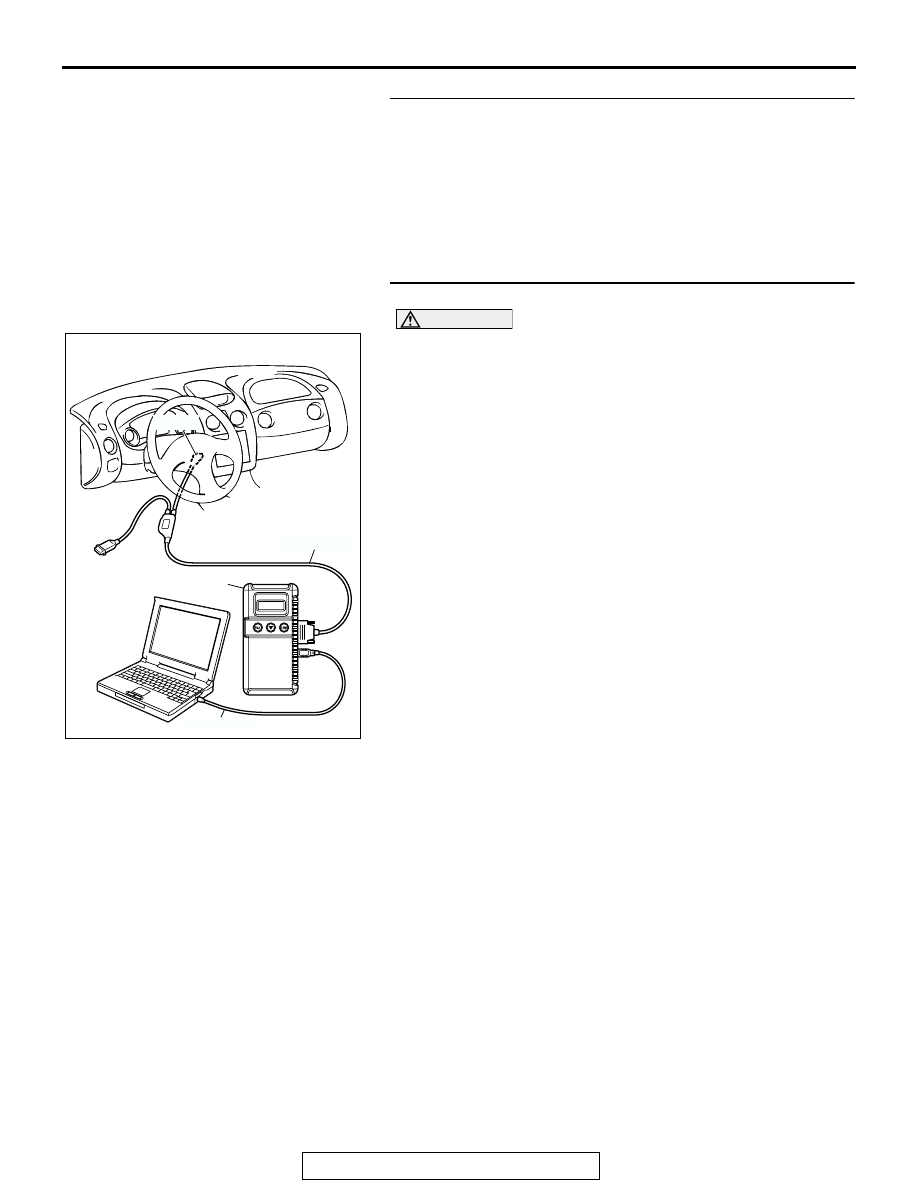

STEP 4. Using scan tool MB991958, check data list.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check the following items in the data list. Refer to, Data List

Reference Table

P.13A-892

.

a. Item 13: Intake Air Temperature Sensor.
b. Item 25: Barometric pressure Sensor.

c. Item 21: Engine Coolant Temperature Sensor.

d. Item 14: Throttle Position Sensor.
e. Item 59: Heated Oxygen Sensor (rear).

f. Item 11: Heated Oxygen Sensor (front).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 5.
NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-808

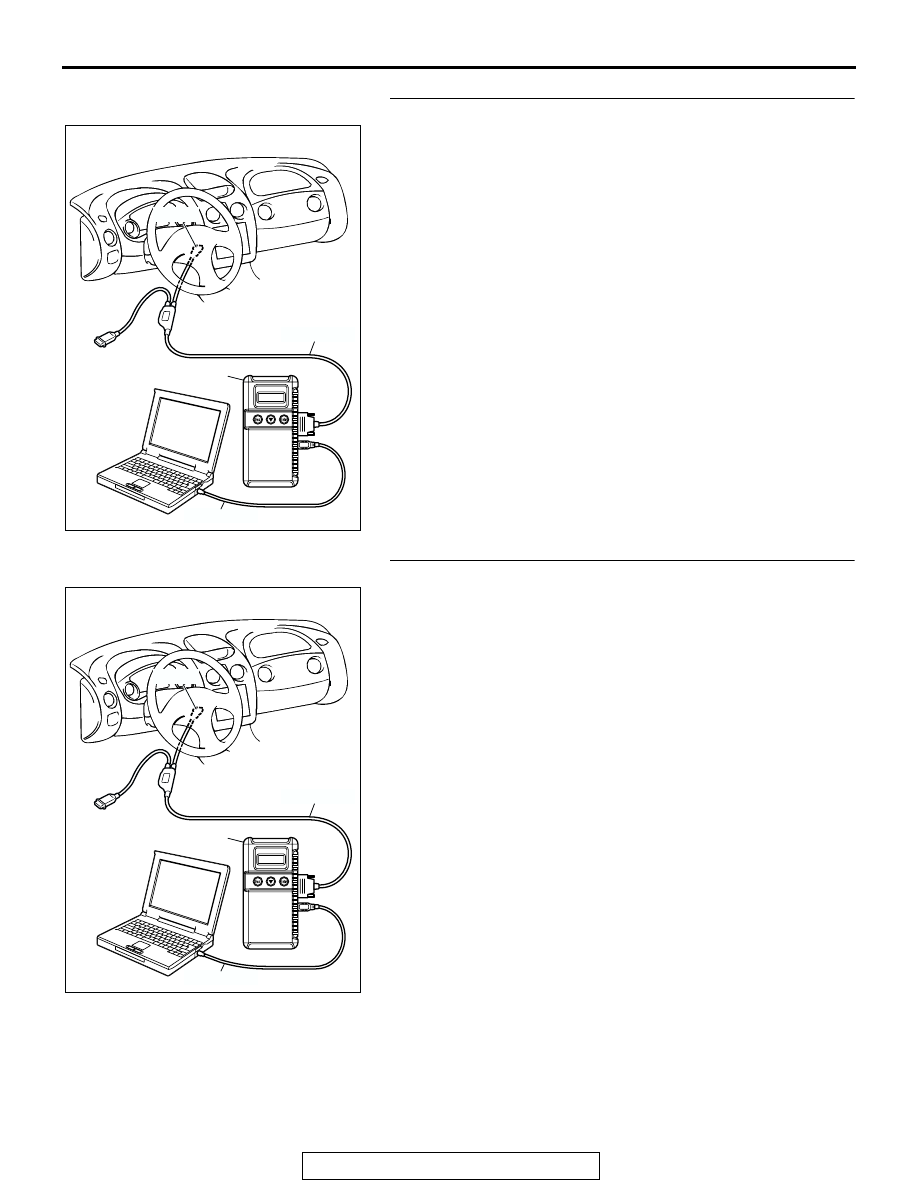

STEP 5. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the actuator test. Refer to,

Actuator Test Reference Table

P.13A-903

.

a. Item 10: EGR Vacuum Regulator Solenoid Valve.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 6.
NO :  Repair or replace. Then confirm that the malfunction

symptom is eliminated.

STEP 6. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items of data list. Refer to, Data List

Reference Table

P.13A-892

.

a. Item 11: Heated Oxygen Sensor (front).

• Voltage should fluctuate between 0 − 0.4 volt and 0.6 −

1.0 volt while idling after the engine has been warmed.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 8.
NO :  Go to Step 7.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AK300810

AB

MB991911

16-PIN

MB991827

MB991824
